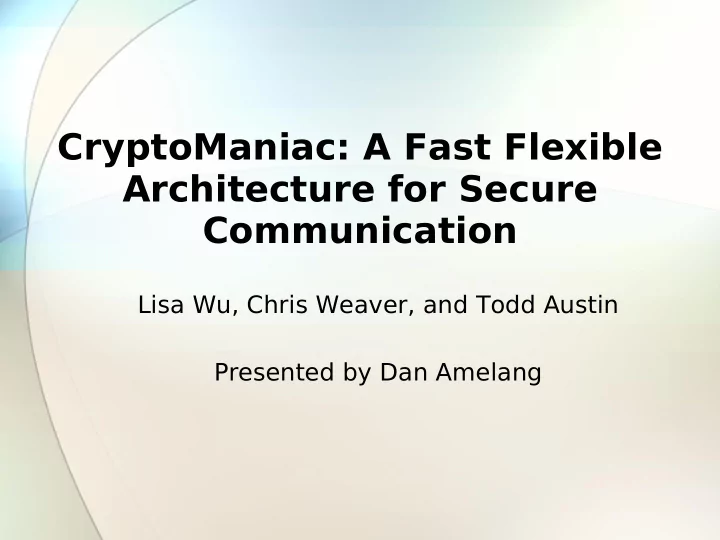

CryptoManiac: A Fast Flexible Architecture for Secure Communication

Lisa Wu, Chris Weaver, and Todd Austin Presented by Dan Amelang

Background

• Rise of the Internet created demand for fast

and efficient cryptographic processing

• General purpose processors are sometimes

sufficient, but sometimes too power- hungry, too slow, or too busy with other tasks.

Design

• Focus on private-key encryption only
• Study a handful of common ciphers (AES,

Blowfish, etc.)

• Identify bottlenecks

Design

• Problems
• Insufficient issue bandwidth
• Insufficient functional unit resources
• Not problems
• Branch misses
• Cache misses
• Some ciphers could use more parallelism

Design

• Found common operations

ADD, ROT, MULT, MOD, AND, XOR, SBOX, XBOX

• No division, square root, floating point, etc.
• 32-bit sufficient

CryptoManiac

• 4 wide VLIW
• 32-bit, no cache, simple branch predictor
• Small static RAM - 1K IMEM, 4K DATA
• 1K SBOX cache in functional units
• Triadic ISA (for instruction combining)
• Composable processing elements

Processing Architecture

ISA

Functional Unit

Evaluation

• Verilog model, 250nm, 360 MHz
• ~1% the size and power consumption of

the Alpha 21264

• 3-wide, 2-wide and 4-wide-non-combining

were also modeled

Performance

Commercial Cryptographic Accelerators

• None are programmable
• For servers
• Sun Crypto Accelerator 6000 PCIe Card

($1,350)

• IBM PCI Cryptographic Accelerator

(~$2,000)

• For mobile devices
• VIA Padlock
