ATAP Infrastructure M anagement L td. Cross Connection Control (CCC) Awareness Andrew Hickey Water Technician Training Lead 1 Overview What is a Cross Connection? What is Backflow? Levels of Hazard Why have a program? What

slide-1
SLIDE 1

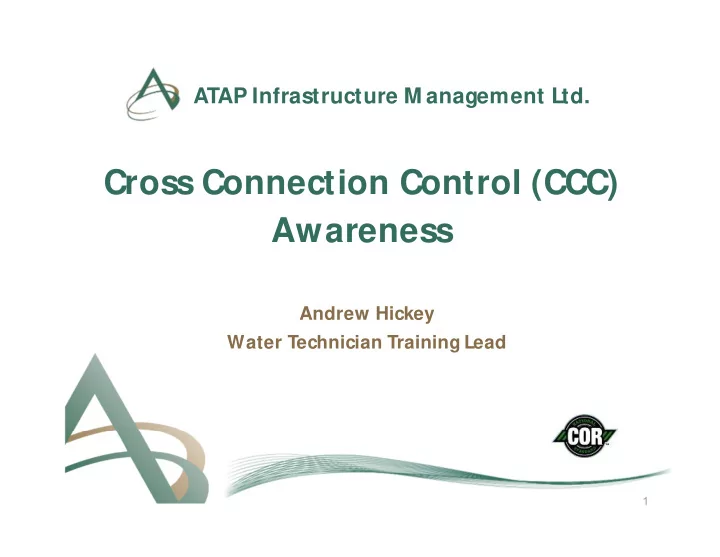

Cross Connection Control (CCC) Awareness

1

ATAP Infrastructure M anagement L td.

Andrew Hickey Water Technician Training Lead

slide-2
SLIDE 2

Overview

  • What is a Cross Connection?
  • What is Backflow?
  • Levels of Hazard
  • Why have a program?
  • What does it involve?
  • Types of protection
  • How can ATAP assist
slide-3
SLIDE 3

What is a Cross Connection?

“An actual or potential connection between a potable water system and anything that may/ can cause pollution or contamination of the potable water”

slide-4
SLIDE 4

What is Backflow?

  • A flowing back or reversal of the normal

direction of flow

  • Backflow can happen due to:

back siphonage

  • r

back pressure

slide-5
SLIDE 5

Back Siphonage

When there is negative or sub- atmospheric pressure in the water system

slide-6
SLIDE 6

Back Pressure

When the pressure is greater than the water system supply pressure

slide-7
SLIDE 7

Levels of Hazard

  • M inor - a hazard that would constitute a

nuisance with no chance of being a health hazard

  • M oderate - a minor hazard with a low chance of

becoming a severe hazard

  • Severe - any connection to a substance that

can cause a DANGER TO HEAL

TH

slide-8
SLIDE 8

Why have a program?

  • Provides extra level of protection
  • Reduces liability
  • Shows due diligence
  • Provides increased consumer confidence
  • Reduced system or business shutdowns
slide-9
SLIDE 9

What does the program involve?

  • Appropriate bylaw / ordinance / regulation
  • Budget & policy
  • Awareness / coordination
  • Inspection / permit review requirements
  • Tracking system / correspondence
  • Incident response plan
  • Quality control & program review
slide-10
SLIDE 10

Types of Protection

  • Air Gap
  • Backflow Preventers
  • various units and designs - degree of hazard
  • Program
  • Positive pressure (20 psi)
slide-11
SLIDE 11

Non-Testable BFP

Air Gap - AG

slide-12
SLIDE 12

Testable Backflow Prevention Device

Reduced Pressure Principle Backflow Prevention Device - RP - Severe

slide-13
SLIDE 13

Double Check Valve Assembly - DCVA - Moderate

Testable Backflow Prevention Device

slide-14
SLIDE 14

Pressure Vacuum Breaker - PVB

Testable Backflow Prevention Device

slide-15
SLIDE 15

Non-Testable BFP

  • Dual Check (DuC)
  • Hose Connection

Vacuum Breaker (HCVB)

  • Atmospheric Vacuum

Breaker (AVB)

slide-16
SLIDE 16

Typical Incident

slide-17
SLIDE 17

Typical Incident

slide-18
SLIDE 18

Incident

slide-19
SLIDE 19

ATAP Can Assist With:

  • Preparing awareness documentation for

Council and the public

  • Preparing bylaws to implement CCC program
  • Budget and policy development
  • S

ystem development of survey and inspection process

  • Database development
  • Staff training
  • Eliminating start up and research time
slide-20
SLIDE 20

Questions?

20

slide-21
SLIDE 21

Thank Y

  • u

ATAP Infrastructure Management Ltd. 1 - 2225 Northridge Drive Saskatoon, SK S7L 6X6 www.atap.ca Ph:(306) 244-8828
