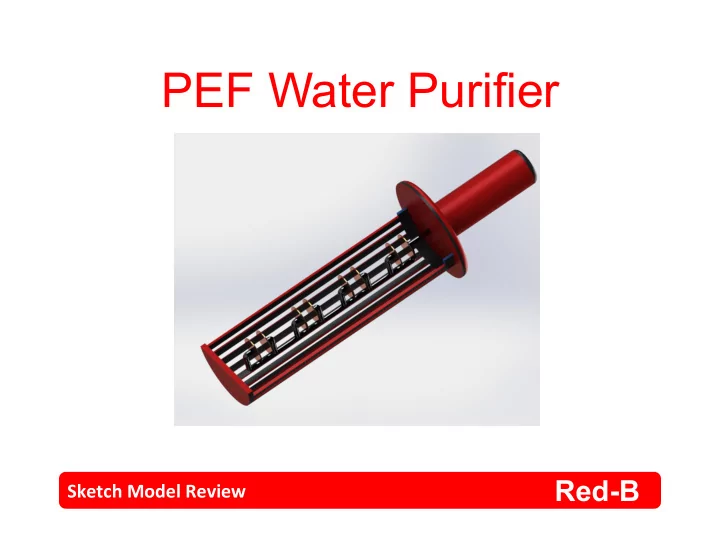

PEF Water Purifier Red-B Sketch'Model'Review''

Product Concept ! Purpose: ! Water Purification with Pulsed Electric Fields (PEF) ! Key Features: ! Scaled-down PEF technology ! Fast & Effective ! Human-Powered ! Users: ! Hikers ! Campers Red-B Sketch'Model'Review''

PEF Treatment Pores form in the cell membrane due to exposure to an external electric field Cell Content Cell Membrane Electric Field Red-B Sketch'Model'Review''

Critical Question Can we scale down the technology? ! Can we reach the required voltage? ! How much energy does it take? ! Can this be human powered? Red-B Sketch'Model'Review''

Scaling Down & Human Powered Simplified Model: Physical Parameters: C = 350 F V c = 2.7 V R = 0.1 Ω B = B o sin( ω t) Ω = 1 Hz N = 120 Turns L = 2cm A = π (1cm) 2 Red-B Sketch'Model'Review''

Scaling Down & Human Powered Reaching Q max : Red-B Sketch'Model'Review''

Demonstration Picture' Red-B Sketch'Model'Review''

Camera Circuitry Red-B Sketch'Model'Review''

Result Picture' Red-B Sketch'Model'Review''

Customer Needs ! Clean Water ! Portable Device ! Lightweight ! Fast & Effective ! Rechargeable Red-B Sketch'Model'Review''

Competition Text%here% % % % % Picture' % % % % % % Red-B Sketch'Model'Review''

Market ~9M ~$850M Red-B Sketch'Model'Review''

Market Key Competitors : $100- 400 $100-150 Total Addressable Market: $100 * 9M = $90M Red-B Sketch'Model'Review''

Questions? MagneGlasses PEF Water Purification Red-B Sketch'Model'Review''
