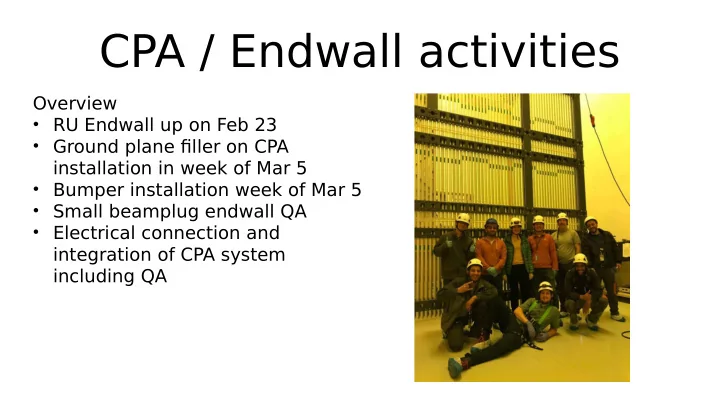

CPA / Endwall activities

Overview

  • RU Endwall up on Feb 23
  • Ground plane fjller on CPA

installation in week of Mar 5

  • Bumper installation week of Mar 5
  • Small beamplug endwall QA
  • Electrical connection and

integration of CPA system including QA

slide-2
SLIDE 2

Ground plane fjller installation

50.8cm 53.3cm 54.7cm 108.8cm 228.7cm 229.8cm

slide-3
SLIDE 3

Ground plane fjller installation

  • Some issues, fjrst

installation:

  • No planarity

between the groundplanes of FC and the fjller pieces

  • Solved by bending

with clamps on a table the fjller pieces into place (thank you Manrico)

slide-4
SLIDE 4

Ground plane fjller installation

slide-5
SLIDE 5

Bumper Installation for Dan

  • A bumper was installed to

the CPA (US and DS) to avoid the Endwall touching the CPA.

  • Bumper material: G10

used epoxy to attach it to CPA , taped to keep in place while epoxy is drying

slide-6
SLIDE 6

Bumper Installation: Status

 Removed the tapes for fixing the bumper position  Epoxied the front surface of the bumper  The clean profile is in position

slide-7
SLIDE 7

Beamplug Endwall QA

Points to measure Expected value (Mohm) FC1 to beam plug ∼56 Gohm FC1 to FC 58 ∼8 Gohm Electronic circuit of the full beamplug endwall

slide-8
SLIDE 8

CPA integration and QA

  • QA tests for CPA #1 & #2 had been done
  • QA test for CPA #3

→ Resistances at check points are well agree with the expected values

  • CPA #1, #2, #3 will be connected tomorrow morning

after they are in place. Heng-Ye and I will do some QA measurements of the fully integrated CPA system

slide-9
SLIDE 9

Backup

slide-10
SLIDE 10

View of height of bumper with profjle removed Bumper

slide-11
SLIDE 11

Bottom edge of CPA Distance from the bottom edge of the

  • CPA. Measure

from the thick part not the fjeld shaping strips Height of

  • bumper. EW not

shown

slide-12
SLIDE 12

Please confjrm there is nothing mounted on the EW at this height. The bumper can be mounted up o 10cm higher if necessary. View of position of bumper

  • n Endwall for location

verifjcation

slide-13
SLIDE 13

Notches

Credit: Francesca

slide-14
SLIDE 14

Notches

Credit: Francesca

slide-15
SLIDE 15

CPA-FC#3 Resistance Measurements

Position Measure Resistance (Mohm) Expected Resistance (Mohm) Cathode to profile1 346 349.2 ± 1.6 profile1 to profile2 442 448 ± 4 profile2 to profile3 496 500 ± 5 cathode to FSS 190 194.0 ± 1.4 FSS to profile1 309 307 ± 2

[BR-bottom FC]

Ref: https://docs.dunescience.org/cgi-bin/private/RetrieveFile?docid=6401&filename=measurement-comparison.pdf&version=1% 20%20p
