Optimization of MicroGroove Copper Tube Coil Designs for Flammable Refrigerants July 11 -14, 2018 Simulation of Isobutane Condensers Baseline condenser coil 6.35 mm (1/4) O.D. copper tubing with wavy fins and R134a. Main Motivation:


slide-1
SLIDE 1

July 11 -14, 2018

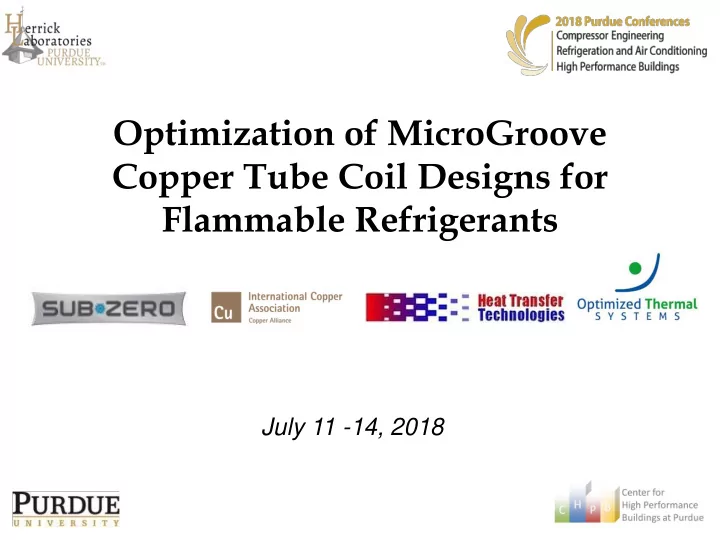

Optimization of MicroGroove Copper Tube Coil Designs for Flammable Refrigerants

slide-2
SLIDE 2

Simulation of Isobutane Condensers

 Baseline condenser coil

» 6.35 mm (1/4”) O.D. copper tubing with wavy fins and R134a.

 Main Motivation:

» Max. 57g charge of Natural Refrigerant R600a while maintaining performance for condenser in domestic refrigerator application

July 9-12, 2018 2 Purdue Conferences

slide-3
SLIDE 3

July 9-12, 2018 3 Purdue Conferences

Baseline System

The baseline refrigerator uses two vapor compression cycles (VCCs) which share a condenser to maintain the freezer and refrigerator temperatures The condenser coil has two circuits, each circuit serves one of the VCCs

slide-4
SLIDE 4

July 9-12, 2018 4 Purdue Conferences

Baseline Condenser

Refrig. Freezer Tube Diameter (mm) 6.5 Tubes per Bank 8 Tube Banks 2 Horizontal Spacing (mm) 22.75 Horizontal Spacing / Outer Diameter 3.5 Vertical Spacing (mm) 26 Vertical Spacing / Outer Diameter 4.0 Tube Length (mm) 432 Fin Type Flat FPI 7 Fin Thickness (mm) 0.19

slide-5
SLIDE 5

July 9-12, 2018 5 Purdue Conferences

5mm Circuit Design 1

Design 1 keeps the circuit design of the baseline while reducing the tube diameter to 5mm, increasing the FPI to 10

Baseline Dimension New Dimension Tube Diameter (mm) 6.5 5 Tubes per Bank 8 8 Tube Banks 2 2 Horizontal Spacing (mm) 22.75 17.5 Horizontal Spacing / Outer Diameter 3.5 3.5 Vertical Spacing (mm) 26 20 Vertical Spacing / Outer Diameter 4.0 4.0 Tube Length (mm) 432 432 Fin Type Flat Flat FPI 7 10 Fin Thickness (mm) 0.19 0.14

slide-6
SLIDE 6

July 9-12, 2018 6 Purdue Conferences

5mm Circuit Design 2

Design 2 uses the geometry changes of Design 1, moves one of the circuits behind the other (in the airflow direction) and straightens out the circuits to keep the same tube pattern as the baseline

Baseline Dimension New Dimension Tube Diameter (mm) 6.5 5 Tubes per Bank 8 8 Tube Banks 2 2 Horizontal Spacing (mm) 22.75 17.5 Horizontal Spacing / Outer Diameter 3.5 3.5 Vertical Spacing (mm) 26 20 Vertical Spacing / Outer Diameter 4.0 4.0 Tube Length (mm) 432 432 Fin Type Flat Flat FPI 7 10 Fin Thickness (mm) 0.19 0.14

slide-7
SLIDE 7

July 9-12, 2018 7 Purdue Conferences

5mm Circuit Design 3

Design 3 is similar to Design 2 but has half of each circuit first in the airflow direction, half second

Baseline Dimension New Dimension Tube Diameter (mm) 6.5 5 Tubes per Bank 8 8 Tube Banks 2 2 Horizontal Spacing (mm) 22.75 17.5 Horizontal Spacing / Outer Diameter 3.5 3.5 Vertical Spacing (mm) 26 20 Vertical Spacing / Outer Diameter 4.0 4.0 Tube Length (mm) 432 432 Fin Type Flat Flat FPI 7 10 Fin Thickness (mm) 0.19 0.14

slide-8
SLIDE 8

July 9-12, 2018 8 Purdue Conferences

5mm Circuit Design 4

Design 4 is similar to Design 3 but splits the front-back divide into 5-3 instead of an even 4-4

Baseline Dimension New Dimension Tube Diameter (mm) 6.5 5 Tubes per Bank 8 8 Tube Banks 2 2 Horizontal Spacing (mm) 22.75 17.5 Horizontal Spacing / Outer Diameter 3.5 3.5 Vertical Spacing (mm) 26 20 Vertical Spacing / Outer Diameter 4.0 4.0 Tube Length (mm) 432 432 Fin Type Flat Flat FPI 7 7 Fin Thickness (mm) 0.19 0.19

slide-9
SLIDE 9

July 9-12, 2018 9 Purdue Conferences

Designs Summary

Design 1 Design 3 Design 2 Design 4 Baseline

Baseline Design 1 Design 2 Design 3 Design 4 Tube Diameter (mm) 6.5 5 5 5 5 Tubes per Bank 8 8 8 8 8 Tube Banks 2 2 2 2 2 Horizontal Spacing (mm) 22.75 22.75 22.75 22.75 22.75 Vertical Spacing (mm) 26 26 26 26 26 Tube Length (mm) 432 432 432 432 432 Fin Type Flat Flat Flat Flat Flat FPI 7 7 7 7 7 Fin Thickness (mm) 0.19 0.19 0.19 0.19 0.19

slide-10
SLIDE 10

July 9-12, 2018 10 Purdue Conferences

Circuits Evaluation

All designs were evaluated using the same refrigerant inlet conditions, estimated based on limited information

Freezer Circuit Refrigerator Circuit Pressure (psi) 75.9 72.6 Discharge temperature (°F) 126 121 Refrigerant mass flow rate (lb/h) 3.38 2.37 Refrigerant Used Isobutane (R600a) Air Inlet Temperature (°F) 90 Air Flow Rate (CFM) 100

slide-11
SLIDE 11

July 9-12, 2018 11 Purdue Conferences

Circuits Analysis

Baseline Design 1 Design 2F Design 2R Design 3 Design 4

Total Air HT Area (m2)

2.13 2.15 2.13 2.15 2.15 2.15

Total Capacity (W)

238 247 235 248 247 248

Air Pressure Drop (Pa)

3.34 3.92 3.9 3.9 3.9 3.9

Refrigerant Pressure Drop (Pa)

286 570 607 583 582 547

Internal Volume (cc)

167.1 111.4 111.4 111.4 111.4 111.4

Fin Material Mass (g)

544 544 544 544 544 544

Tube Material Mass (g)

560 256 256 256 256 256 Circuit Fre ez Ref rig Fre ez Ref rig Fre ez Ref rig Fre ez Ref rig Fre ez Ref rig Fre ez Ref rig Both Circ On Capacity (W) 136 101 144 102 147 88 145 103 147 101 147 102 Subcooling (°F) n/a 0.7 0.9 2.8 5.2 n/a 1.9 3.9 4.0 0.0 4.1 2.0 One Circ On Capacity (W) 144 102 145 102 148 104 148 104 148 104 148 104 Subcooling (°F) 0.1 2.2 2.1 4.1 7.0 6.9 6.9 7.0 7.1 6.8 7.0 6.8

slide-12
SLIDE 12

July 9-12, 2018 12 Purdue Conferences

Circuits Analysis

Series designs perform better than baseline circuit design (parallel) when only one circuit is running All circuits in series with equivalent face area and number of tubes perform equally when

  • ne circuit is running - therefore, all designs

should be evaluated for two-circuit performance Should use Design 2R, focus on two circuit performance

slide-13
SLIDE 13

Optimization Study

 Goal: Equal performance to the baseline while

reducing refrigerant charge to R600a limits

 Multi-objective genetic algorithm (MOGA) was used to

solve the optimization problem

 5mm copper tubes was used to minimize charge  Constraints:

» Heat rejection ≧ to baseline » Subcooling ≧ to baseline » Saturation temp. within 1C of baseline » Air dP within acceptable range for existing fan

July 9-12, 2018 13 Purdue Conferences

slide-14
SLIDE 14

Optimization Study

 HX design variables using 5mm OD tube :

» Heat exchanger length » Fin density » Horizontal tube spacing » Vertical tube spacing » Fin geometry

July 9-12, 2018 14 Purdue Conferences

slide-15
SLIDE 15

Optimization Study

 Multi-objective genetic algorithm (MOGA) explained:

July 9-12, 2018 15 Purdue Conferences

GA is a type of evolutionary algorithm A population of possible solutions is evaluated in each iteration

slide-16
SLIDE 16

Optimization Study

 Multi-objective algorithm:

» Multiple objective functions are evaluated simultaneously

July 9-12, 2018 16 Purdue Conferences

slide-17
SLIDE 17

Optimization Study

 MOGA results:

July 9-12, 2018 17 Purdue Conferences

Get Pareto graph here

slide-18
SLIDE 18

Optimization Study

 MOGA results:

July 9-12, 2018 18 Purdue Conferences

Get Pareto graph here

↓41%

Recommended design

slide-19
SLIDE 19

Prototype Construction

Baseline New Tube Diameter (mm) 6.5 5 Tubes per Bank 8 8 Tube Banks 2 2 Horizontal Spacing (mm) 22.75 22.75 Vertical Spacing (mm) 26 26 Tube Length (mm) 432 432 Fin Type Wavy Flat Fin Density (fpi) 7 7 Fin Thickness (mm) 0.19 0.12

July 9-12, 2018 19 Purdue Conferences

New Baseline

F r e e z e r F r i d g e

Selected prototype geometry to reduce charge:

slide-20
SLIDE 20

Prototype Construction

July 9-12, 2018 20 Purdue Conferences

Baseline Wavy fin

slide-21
SLIDE 21

Prototype Construction

July 9-12, 2018 21 Purdue Conferences

New No collar, flat fin

slide-22
SLIDE 22

Testing

Hot water calorimeter

July 9-12, 2018 22 Purdue Conferences

slide-23
SLIDE 23

Airside Test Results

Overall conductance vs. pressure drop

July 9-12, 2018 23 Purdue Conferences

10 12 14 16 18 20 22 24 26 28 30 32 34 36 0.025 0.027 0.029 0.031 0.033 0.035 0.037 0.039 0.041

UA (W/K) Pressure drop across HX (inches of H2O)

Proposed Design Baseline

  • Log. (Proposed Design)
  • Log. (Baseline)
slide-24
SLIDE 24

Summary and Conclusions

 Summary:

» New HX design using 5mm copper tube vs. 6.5mm has

– 37% lower internal volume – 25% weight reduction – 8% performance improvement (Can be used)

 Conclusion:

» Methodology used (MOGA) successful in finding

  • ptimized designs

» 5mm copper tube MG heat exchanger can maintain performance and allow for lower refrigerant charge in a smaller, lighter envelope, suitable for R290 and R600a natural refrigerants, and others.
