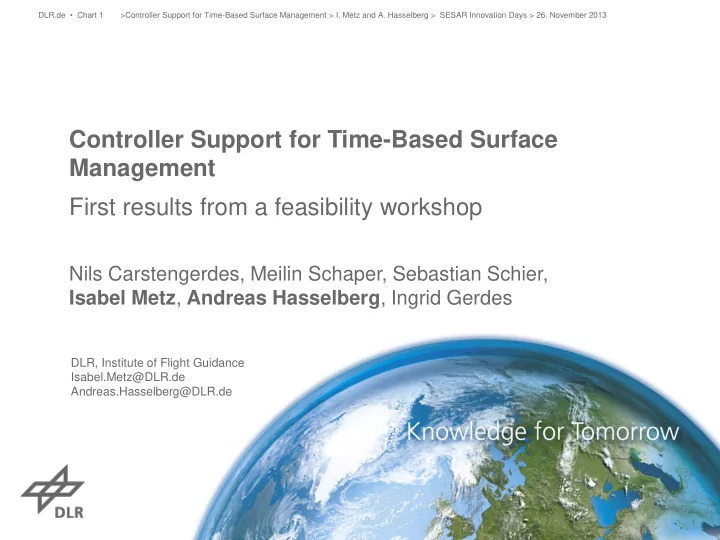

Controller Support for Time-Based Surface Management First results from a feasibility workshop

Nils Carstengerdes, Meilin Schaper, Sebastian Schier, Isabel Metz, Andreas Hasselberg, Ingrid Gerdes

>Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013 DLR.de • Chart 1

DLR, Institute of Flight Guidance Isabel.Metz@DLR.de Andreas.Hasselberg@DLR.de

slide-2
SLIDE 2

“the description of movement

  • f an aircraft both in the air and on the ground

including position, time, and at least via calculation, speed and acceleration.“

Source: The SESAR Integrated Dictionary

Motivation – Trajectories

DLR.de • Chart 2 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-3
SLIDE 3

CADEO: Controller Assistance for Departure Optimization

  • DLR´s Departure Management System (DMAN) prototype
  • Implements concept „Departure Sequence Optimization“

DLR.de • Chart 3 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

Optimization TTOT TOBT + VTT TSAT

TOBT: Target Off-Block Time / TSAT: Target Startup Time TTOT: Target Takeoff Time/ VTT: Variable Taxi Time

  • VTT
slide-4
SLIDE 4

DLR.de • Chart 4 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

Departure Management System CADEO Surface Management System TRACC

CADEO: Controller Assistance for Departure Optimization

  • DLR´s Departure Management System (DMAN) prototype
  • Implements concept „Departure Sequence Optimization“
slide-5
SLIDE 5

TRACC: Taxi Routing for Aircraft: Creation and Controlling

  • DLR´s Surface Management System (SMAN) prototype
  • Conflict-free time-based trajectories on ground
  • Speed and route advisories for air traffic controllers (ATCO)

DLR.de • Chart 5 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

Departure Management System CADEO Surface Management System TRACC

slide-6
SLIDE 6

Flight Tables Traffic Situation Display Advisory Panel

LH073 Speed: 17.1 kt

Speed Pannel Trajectory

slide-7
SLIDE 7

A First Feasibility Workshop: Human-in-the-loop (HITL) Simulations

DLR.de • Chart 7 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

Aims Feasibility and acceptance of time- based concept Usability of TRACC HMI Applicability of the coupled CADEO and TRACC Assumptions Airport Collaborative Decision Making 4D-Flight Management System Compliance of arriving aircraft Execution of exact taxi speeds

slide-8
SLIDE 8

Layout and Traffic Flow

DLR.de • Chart 8

30 Arrivals per hour 20 Departures per hour

>Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-9
SLIDE 9

Simulation Environment

DLR.de • Chart 9 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-10
SLIDE 10

Simulation Environment

DLR.de • Chart 10 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-11
SLIDE 11

Participants: 4 Air Traffic Controllers Selection factors: location, age, certification experience

Experimental Design

DLR.de • Chart 11

Schedule Baseline training (ca. 30 min) Distance-based operational procedures EFS, Ground Radar Baseline (ca. 60 min) TRACC training (ca. 30 - 50 min) Time-based operational procedures TRACC HMI TRACC (ca. 60 min) TRACC & CADEO (ca. 60 min)

>Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-12
SLIDE 12

Measures

DLR.de • Chart 12

Interview Topics During runs: comments After runs: semi-structured guided interviews

  • Guaranties discussion
  • f all topics
  • Allows ATCOs to select focus

Concept and Implementation Precise Speed Advisories Stability and reliability of trajectories Optimization parameters Acceptability Satisfaction Efficiency Usability of the TRACC HMI Information: Arrangement, timeliness, quantity Conflict and critical events notifications Traceability Transparency Plausibility

>Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-13
SLIDE 13

More than 500 Answers and Comments

Favorable Neutral/ Nonspecific Critical Ideas for Improvements

Results

DLR.de • Chart 13 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

Considerable amount of favorable comments (190)

  • Concept generally accepted
  • Planned trajectory in traffic

situation display was valuable

slide-14
SLIDE 14

Some Neutral/ Nonspecific comments (75) Many Critical Comments (160) Many Ideas for Improvements (120)

Results II

DLR.de • Chart 14 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

Focus Deducted Improvements

slide-15
SLIDE 15

Deducted Improvements

Concept and implementation Usability of the TRACC HMI

  • Higher stability of trajectories/

Less frequent adaptations

  • Increase of safety buffers
  • Less speed changes in trajectory
  • Reduced amount of curves
  • Automatic command transmission

(e.g. datalink)

DLR.de • Chart 15

Concept and Implementation Higher stability of trajectories/ Less frequent adaptations Increased safety buffers Less speed changes in trajectory Reduced amount of curves Automatic command transmission (e.g. data link) Usability of the TRACC HMI Information in flight tables optional Clearance status and remarks More information in aircraft label (e.g. last speed command) Connect corresponding information by highlighting Button to prevent disappearing of advisories Transparency of reasons for adaptions

>Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-16
SLIDE 16

DLR.de • Chart 16 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

 Workshop Revised 

Event-icon Visualized remaining command time Different colours arrival / departure Lock-button

slide-17
SLIDE 17

DLR.de • Chart 17 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

 Workshop Revised 

Status selection panel No status input / output display available

slide-18
SLIDE 18

DLR.de • Chart 18 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

 Workshop Revised 

Different colours arrival / departure

slide-19
SLIDE 19

Conclusions

  • Concept is

feasible

  • Acceptance by

ATCOs Constraints

  • Aircraft must

be able to adhere to precise taxi speeds

  • SMAN must be

highly reliable System Improvements

  • Reduce

amount of voice communication

  • Increase safety

margin

  • Improve

coupling of TRACC and CADEO Future Work

  • Validation of

improved TRACC and CADEO coupling and revised HMI

  • Proof benefits
  • f coupled 4D

air-ground trajectories

Conclusions & Future Work

DLR.de • Chart 19 >Controller Support for Time-Based Surface Management > I. Metz and A. Hasselberg > SESAR Innovation Days > 26. November 2013

slide-20
SLIDE 20

QUESTIONS?

Controller Support for Time-Based Surface Management First results from a feasibility workshop

Nils Carstengerdes, Meilin Schaper, Sebastian Schier, Isabel Metz, Andreas Hasselberg, Ingrid Gerdes

DLR, Institute of Flight Guidance firstname.lastname@dlr.de

slide-21
SLIDE 21
  • TRACC
  • I. Gerdes and A. Temme, “Taxi routing for aircraft: Creation and controlling –

ground movements with time constraints,” in Dirk Schaefer (Editor) Proceedings

  • f the 2nd SESAR Innovation Days (2012) EUROCONTROL, Braunschweig,

Germany, 2012.

  • TRACC and CADEO Coupling
  • M. Schaper and I. Gerdes, “Trajectory based ground movements and their

coordination with departure management,” 32nd Digital Avionics Systems Conference, Syracuse, NY, USA, 2013.

  • 360° Tower Simulator
  • S. Schier, T. Rambau, F. Timmermann, I. Metz and T. Stelkens-Kobsch,

“Designing the future tower control research environment“, Deutscher Luft- und Raumfahrtkongress, Stuttgart, Germany, 2013.

More Information About…
