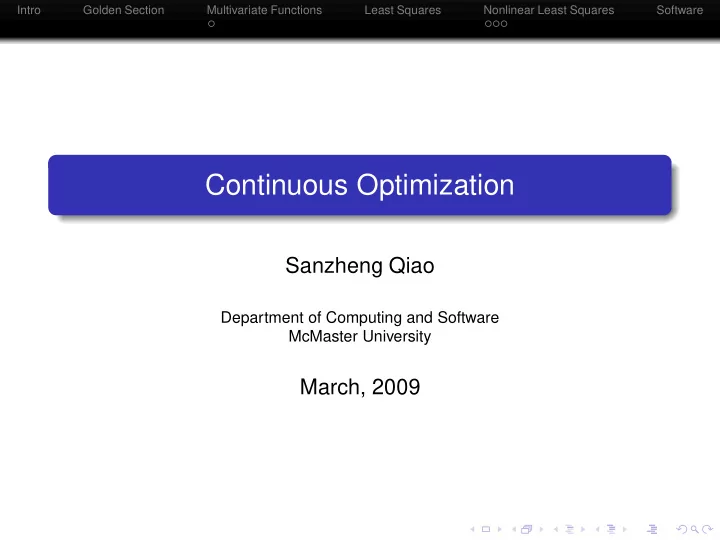

Continuous Optimization

Sanzheng Qiao

Department of Computing and Software McMaster University

March, 2009

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Outline

1

Introduction

2

Golden Section Search

3

Multivariate Functions Steepest Descent Method

4

Linear Least Squares Problem

5

Nonlinear Least Squares Newton’s Method Gauss-Newton Method

6

Software Packages

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Outline

1

Introduction

2

Golden Section Search

3

Multivariate Functions Steepest Descent Method

4

Linear Least Squares Problem

5

Nonlinear Least Squares Newton’s Method Gauss-Newton Method

6

Software Packages

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Problem setting

Single variable functions. Minimization: min

x∈S f(x)

f(x): objective function, single variable and real-valued S: support

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Outline

1

Introduction

2

Golden Section Search

3

Multivariate Functions Steepest Descent Method

4

Linear Least Squares Problem

5

Nonlinear Least Squares Newton’s Method Gauss-Newton Method

6

Software Packages

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Golden section search

Assumption: f(x) has a unique global minimum in [a, b].

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Golden section search

Assumption: f(x) has a unique global minimum in [a, b]. If x∗ is the minimizer, then f(x) monotonically decreases in [a, x∗] and monotonically increases in [x∗, b].

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Golden section search

Assumption: f(x) has a unique global minimum in [a, b]. If x∗ is the minimizer, then f(x) monotonically decreases in [a, x∗] and monotonically increases in [x∗, b]. Algorithm Choose interior points c, d: c = a + r(b − a) d = a + (1 − r)(b − a), 0 < r < 0.5 if f(c) ≤ f(d) b = d else a = c end Each step, the length of the interval is reduced by a factor of (1 − r).

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Golden section search (cont.)

The choice of r: When f(c) ≤ f(d), d+ = c (the next d is c) When f(c) > f(d), c+ = d (the next c is d) Why? Reduce the number of function evaluations

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Choice of r

When f(c) ≤ f(d), b+ = d, d+ = a + (1 − r)(b+ − a) = a + (1 − r)(d − a) then d+ = c means a + (1 − r)(d − a) = a + r(b − a) which implies (1 − r)2 = r. When f(c) > f(d), a+ = c, then c+ = d means c+ = c + r(b − c) = a + (1 − r)(b − a) which also implies (1 − r)2 = r. Thus we have r = 3 − √ 5 2

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Algorithm

c = a + r*(b - a); fc = f(c); d = a + (1-r)*(b - a); fd = f(d); if fc <= fd b = d; fb = fd; d = c; fd = fc; c = a + r*(b-a); fc = f(c); else a = c; fa = fc; c = d; fc = fd; d = a + (1-r)*(b-a); fd = f(d); end

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Convergence and termination

Convergence rate: Each step reduces the length of the interval by a factor of 1 − r = 1 − 3 − √ 5 2 ≈ 0.618

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Convergence and termination

Convergence rate: Each step reduces the length of the interval by a factor of 1 − r = 1 − 3 − √ 5 2 ≈ 0.618 Termination criteria: (d − c) ≤ u max(|c|, |d|) or a tolerance.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Outline

1

Introduction

2

Golden Section Search

3

Multivariate Functions Steepest Descent Method

4

Linear Least Squares Problem

5

Nonlinear Least Squares Newton’s Method Gauss-Newton Method

6

Software Packages

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Problem setting

min f(x) where x is a vector (of variables x1, x2, ..., xn).

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Problem setting

min f(x) where x is a vector (of variables x1, x2, ..., xn). Gradient ∇f(xc) =    

∂f(xc) ∂x1

. . .

∂f(xc) ∂xn

   

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Problem setting

min f(x) where x is a vector (of variables x1, x2, ..., xn). Gradient ∇f(xc) =    

∂f(xc) ∂x1

. . .

∂f(xc) ∂xn

    −∇f(xc): the direction of greatest decrease from xc

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Steepest descent method

Idea: Steepest descent direction: sc = −∇f(xc); Find λc such that f(xc + λcsc) ≤ f(xc + λsc), for all λ ∈ R (single variable minimization problem); x+ = xc + λcsc.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Steepest descent method

Idea: Steepest descent direction: sc = −∇f(xc); Find λc such that f(xc + λcsc) ≤ f(xc + λsc), for all λ ∈ R (single variable minimization problem); x+ = xc + λcsc.

• Remark. Conjugate gradient method:

Use conjugate gradient to replace gradient.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Outline

1

Introduction

2

Golden Section Search

3

Multivariate Functions Steepest Descent Method

4

Linear Least Squares Problem

5

Nonlinear Least Squares Newton’s Method Gauss-Newton Method

6

Software Packages

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Problem setting

Given a matrix A (m-by-n, m ≥ n) and b (m-by-1), find x (n-by-1) minimizing Ax − b2

2.

• Example. Square root problem revisited. Find a1 and a2 in

y(x) = a1x + a2, such that (y(0.25) − √ 0.25)2 + (y(0.5) − √ 0.5)2 + (y(1.0) − √ 1.0)2 is minimized. In matrix-vector form: A =   0.25 1 0.5 1 1.0 1   , x = a1 a2

• , b =

  √ 0.25 √ 0.5 √ 1.0   .

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Method

Transform A into a triangular matrix: PA = R

• where R is upper triangular. Then the problem becomes

Ax − b2

2 = P−1(

Rx − Pb)2

2

where

• R =

R

• .

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Method (cont.)

Desirable properties of P: P−1 is easy to compute; P−1z2

2 = z2 2 for any z.

Partitioning Pb = b1 b2

• ,

then the LS solution is the solution of the triangular system Rx = b1.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Choice of P

Orthogonal matrix (transformation) Q: Q−1 = QT.

• Example. Givens rotation

G =

• cos θ

sin θ − sin θ cos θ

• Introducing a zero into a 2-vector:

G x1 x2

• =

×

• i.e., rotate x onto x1-axis.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Givens rotation

cos θ = x1

• x2

1 + x2 2

sin θ = x2

• x2

1 + x2 2

Algorithm. if x(2) = 0 c =1.0; s = 0.0; elseif abs(x(2)) >= abs(x(1)) ct = x(1)/x(2); s = 1/sqrt(1 + ct*ct); c = s*ct; else t = x(2)/x(1); c = 1/sqrt(1 + t*t); s = c*t; end

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Givens rotation (cont.)

In general, G13 =     c s 1 −s c 1     G13     x1 x2 x3 x4     =     × x2 x4     Select a pair (xi, xj), find a rotation Gij to eliminate xj.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

QR factorization

    × × × ⊗ × × × × × × × ×     − →     × × × × × ⊗ × × × × ×     − →     × × × × × × × ⊗ × ×     − →     × × × × × ⊗ × × ×     − →     × × × × × × ⊗ ×     − →     × × × × × × ⊗     G34G24G23G14G13G12A = R

• Q = GT

12GT 13GT 14GT 23GT 24GT 34

A = QR

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Householder transformation

Basically, in the QR decomposition, we introduce zeros below the main diagonal of A using orthogonal transformations. Another example. Householder transformation H = I − 2uuT with uTu = 1 H is symmetric and orthogonal (H2 = I). Goal: Ha = αe1. Choose u = a ± a2 e1 A geometric interpretation:

(b)

1

e u a (a) b a u

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Householder transformation (cont.)

Normalize u using u2

2 = 2

• a2

2 ± a1a2

• for efficiency.
• Algorithm. Given an n-vector x, this algorithm returns σ, α, and

u such that (I − σ−1uuT)x = −αe1. m = max(abs(x)); u = x/m; alpha = sign(u(1))*norm(u); u(1)= u(1) + alpha; sigma = alpha*u(1); alpha = m*alpha;

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Framework

A framework of the QR decomposition method for solving the linear least squares problem min Ax − b2 Using orthogonal transformations to triangularize A, applying the transformations to b simultaneously; Solving the resulting triangular system.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Outline

1

Introduction

2

Golden Section Search

3

Multivariate Functions Steepest Descent Method

4

Linear Least Squares Problem

5

Nonlinear Least Squares Newton’s Method Gauss-Newton Method

6

Software Packages

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Problem setting

Multivariate vector-valued function f(x) =    f1(x) . . . fm(x)    ∈ Rm, x ∈ Rn find the solution of ρ(x) = min

x

1 2

m

• i=1

fi(x)2

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Problem setting

Multivariate vector-valued function f(x) =    f1(x) . . . fm(x)    ∈ Rm, x ∈ Rn find the solution of ρ(x) = min

x

1 2

m

• i=1

fi(x)2 Application: Model fitting problem.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’s Method

Idea: Solve ∇ρ(x) = 0. (Root finding problem).

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’s Method

Idea: Solve ∇ρ(x) = 0. (Root finding problem). At each step, find the correction sc (x+ = xc + sc) satisfying ∇2ρ(xc)sc = −∇ρ(xc)

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’s Method

Idea: Solve ∇ρ(x) = 0. (Root finding problem). At each step, find the correction sc (x+ = xc + sc) satisfying ∇2ρ(xc)sc = −∇ρ(xc)

• Note. This is Newton’s method for solving nonlinear systems.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’t method (cont.)

What is the gradient ∇ρ(xc)?

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’t method (cont.)

What is the gradient ∇ρ(xc)? ∇ρ(xc) = J(xc)Tf(xc) where the Jacobian J(xc) = ∂fi(xc) ∂xj

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’t method (cont.)

What is the gradient ∇ρ(xc)? ∇ρ(xc) = J(xc)Tf(xc) where the Jacobian J(xc) = ∂fi(xc) ∂xj

• How to get ∇2ρ(xc)?

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’t method (cont.)

What is the gradient ∇ρ(xc)? ∇ρ(xc) = J(xc)Tf(xc) where the Jacobian J(xc) = ∂fi(xc) ∂xj

• How to get ∇2ρ(xc)?

∇2ρ(xc) = J(xc)TJ(xc) +

m

• i=1

fi(xc)∇2fi(xc)

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Newton’t method (cont.)

What is the gradient ∇ρ(xc)? ∇ρ(xc) = J(xc)Tf(xc) where the Jacobian J(xc) = ∂fi(xc) ∂xj

• How to get ∇2ρ(xc)?

∇2ρ(xc) = J(xc)TJ(xc) +

m

• i=1

fi(xc)∇2fi(xc) If x∗ fits the model well (fi(x∗) ≈ 0) and xc is close to x∗, then fi(xc) ≈ 0. Then ∇2ρ(xc) ≈ J(xc)TJ(xc).

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Gauss-Newton Method

Evaluate fc = f(xc) and compute the Jacobian Jc = J(xc); Solve (JT

c Jc)sc = −JT c fc for sc;

Update x+ = xc + sc;

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Gauss-Newton Method

Evaluate fc = f(xc) and compute the Jacobian Jc = J(xc); Solve (JT

c Jc)sc = −JT c fc for sc;

Update x+ = xc + sc;

• Note. sc is the solution to the normal equations for the linear

least squares problem: min

s (Jcs + fc2)

Reliable methods such as the QR decomposition method can be used to solve for sc.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Gauss-Newton Method

Evaluate fc = f(xc) and compute the Jacobian Jc = J(xc); Solve (JT

c Jc)sc = −JT c fc for sc;

Update x+ = xc + sc;

• Note. sc is the solution to the normal equations for the linear

least squares problem: min

s (Jcs + fc2)

Reliable methods such as the QR decomposition method can be used to solve for sc.

• Remark. Gauss-Newton method works well on small residual

(fi(x∗) ≈ 0) problems.

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Outline

1

Introduction

2

Golden Section Search

3

Multivariate Functions Steepest Descent Method

4

Linear Least Squares Problem

5

Nonlinear Least Squares Newton’s Method Gauss-Newton Method

6

Software Packages

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Software packages

IMSL uvmif, uminf, umiah, unlsf, flprs, nconf, ncong MATLAB fmin, fmins, leastsq, lp, constr NAG e04abf, e04jaf, e04laf, e04fdf, e04mbf, e04vdf MINPACK lmdif1 NETLIB varpro, dqed Octave sqp, ols, gls

Intro Golden Section Multivariate Functions Least Squares Nonlinear Least Squares Software

Summary

Problem setting: Real valued objective function Golden section search: Convergence rate Direction of descent: Steepest descent Linear least squares: Data fitting, QR decomposition or triangularization of a matrix using orthogonal transformations (rotation, Householder transformation) Nonlinear least squares: Newton’s method (relation with solving nonlinear systems), Gauss-Newton method (relation with solving linear least squares)
