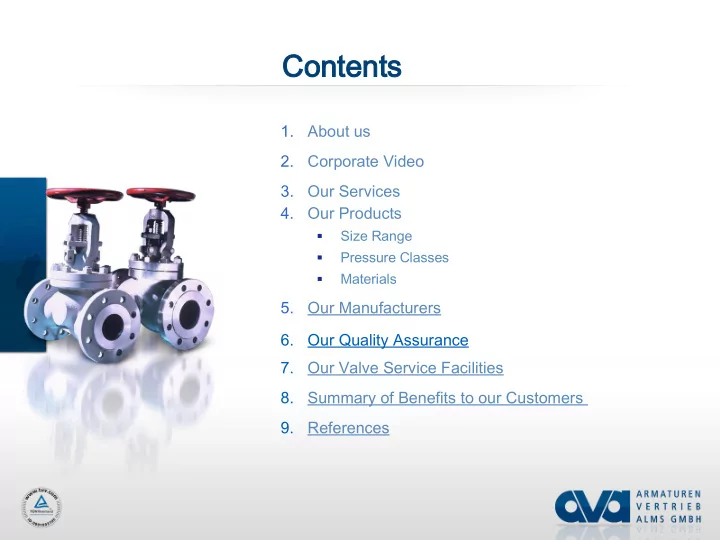

Conten Contents ts 1. About us 2. Corporate Video 3. Our - - PowerPoint PPT Presentation

Conten Contents ts

1. About us 2. Corporate Video 3. Our Services 4. Our Products

• Size Range
• Pressure Classes
• Materials

5. Our Manufacturers 6. Our Quality Assurance 7. Our Valve Service Facilities 8. Summary of Benefits to our Customers 9. References

About us

• Established in 1972
• Largest and major distributor of industrial and process valves

according to DIN and ASME Standards in Germany

• Sales and warehouse locations in
• Germany (Head Office)
• The Netherlands
• United Kingdom (UK)
• Hungary
• Foreign Representatives throughout Europe and the Middle East
• Expediting and Support Services in Monza (Italy)
• Long term major partnerships with leading companies in the

Chemical, Petrochemical, Process Plant and General Industry

Our L r Locati tion

• ns

Germany Netherlands Italy Fo Foreign resp spresentatives AVA Sales and warehouse se loca cations Sweden Poland Hungary Rumänia Russ ssia Baltic c st states UK AVA Sales Loca cations Belarus Norway Fr France ce CZ SK A

Our Servi vices

• Fast and efficient supply of Industrial valves according to:
• DIN and ASME Standards
• German and European regulations, such as for example

Pressure Equipment Directive 97/23/EC and AD2000 A4.

• Many years of exclusive sales experience and transfer of technological

information in partnership with leading global manufacturers.

• Comprehensive and qualified quality management system.
• Reliable delivery and MRO / project support during plant construction

and shut down.

• Certification, supplementary technical testing and evaluation

documentation.

• Conversion and Modification services through our own valve

service shop (ASA).

Corporate Video

AVA at one sight

QS-Management QS-Management

• Extensive AVA QS-

Management

• DIN EN ISO 9001:2008
• ATEC94/9/EC
• AD200 HPO, AD2000 A4
• TA-Luft 2002/VDI2440
• API BS 6755
• Extensive AVA QS-

Management

• DIN EN ISO 9001:2008
• ATEC94/9/EC
• AD200 HPO, AD2000 A4
• TA-Luft 2002/VDI2440
• API BS 6755

AVA Know-How AVA Know-How

• Certification & approvals
• Projectmanagement
• Technical „KnowHow“

transfer and explanation

• Valve serivce
• Supplier control &

expediting

• Certification & approvals
• Projectmanagement
• Technical „KnowHow“

transfer and explanation

• Valve serivce
• Supplier control &

expediting

Product range Product range

• Consistant volume of more

than 10 Mio €

• Immediate availability
• Gate -, Globe-, Ckeck-

Ball-, Butterfly Valves Strainers, Sight Glasses, Steam Traps

• Var. Carbon steel, alloy

steel, stainless steel to DIN and ASME standard

• Consistant volume of more

than 10 Mio €

• Immediate availability
• Gate -, Globe-, Ckeck-

Ball-, Butterfly Valves Strainers, Sight Glasses, Steam Traps

• Var. Carbon steel, alloy

steel, stainless steel to DIN and ASME standard

Sales & advisory Sales & advisory

• Sales & warehouse locations

in Germany, Netherlands, UK and Hungary

• Sales representatives
• Direct distribution
• Consigned stocks
• ( for e.g.DOW, BASF,

TANQUID)

• Sales & warehouse locations

in Germany, Netherlands, UK and Hungary

• Sales representatives
• Direct distribution
• Consigned stocks
• ( for e.g.DOW, BASF,

TANQUID)

AVA Armaturen Vertrieb Alms GmbH

AVA V Valv lve Pr Project Ma Management Pr t Prog

• gram

FEE EED Contra ract ctor Project Team EPC PC Contract ctor

Provide product specifications and related date to support design Review piping specifications and process requirements Review actuation philosophy and specifications Review and contribute to procurement lead time estimates and materials management plans Identify critical long lead items and support procurement plans Develop budgeting estimates Provide product specifications and related date to support design Review piping specifications and process requirements Review actuation philosophy and specifications Review and contribute to procurement lead time estimates and materials management plans Identify critical long lead items and support procurement plans Develop budgeting estimates

AVA VA are able to pro rovi vide the following se serv rvice ces s as s may y be needed to su support rt co contract ctor r desi sign and co const stru ruct ction object ctive ves.

Develop project specification gap analysis Finalize technical design and actuation selection Review P&ID takeoff and detailed valve data base Review final coating and preservation specification Develop valve data base Develop project specification gap analysis Finalize technical design and actuation selection Review P&ID takeoff and detailed valve data base Review final coating and preservation specification Develop valve data base Construction RAS date alignment Identify and provide field shorts Manage overages Develop expediting reports Insure proper documentation provided Provide site warehousing, inventory, preservation services Provide service technician Construction RAS date alignment Identify and provide field shorts Manage overages Develop expediting reports Insure proper documentation provided Provide site warehousing, inventory, preservation services Provide service technician

Engineering Services Materials Management Services

Develop/provide complete valve order and expediting management program Manage alternate suppliers Develop/provide complete valve order and expediting management program Manage alternate suppliers

AVA Program objectives are Project focused and designed to create value through Engineering and Materials Management support activities throughout a project life cycle.

Our Products

• Consistant storage volume of more than 100,000 products

valued at approximately €10 Million held in stock in Germany and The Netherlands (UK in progress).

• Immediate availability of our standard range of valves which

includes: Gate Valves, Globe Valves, Check Valves, Ball Valves, Butterfly Valves, Strainers, Sight Glasses and Steam Traps from leading international manufacturers.

• Various Carbon Steel, Alloy Steel and Stainless Steel to DIN

and ASME Standards.

• Specialised Valve Modification Service Operation.
• Bespoke valves produced to customer specification.
• Efficient Logistics and Information management System.

Size Range (AVA-Stock) k)

TYP YPE DIN ASME ASME Gate Valve DN15 - DN500 1/4“ – 20“ Globe Valve DN8 - DN200 1/4“ – 8“ Swing Check Valve DN50 - DN300 1/2“ – 12“ Piston Check Valve DN15 - DN150 1/2“ – 2“ Ball Valve DN8 - DN200 1/4“ – 12“ Butterfly Valve DN40 - DN400 1.1/2“ – 12“ Strainer DN15 - DN200 1/2“ – 10“ Sight Glass DN15 - DN100 1/2“ – 4“ Steam Trap DN15 - DN25

• n request

Press ssure Class Range (AVA-Stock) k)

TYP YPE DIN ASME ASME Gate Valve PN10 - PN160 150 - 1500 lbs Globe Valve PN10 - PN160 150 - 1500 lbs Swing Check Valve PN10 - PN40 150 - 600 lbs Piston Check Valve PN10 - PN40 150 - 1500 lbs Ball Valve PN10 - PN100 150 - 1500 lbs Butterfly Valve PN10 - PN16 150 lbs Strainer PN10 - PN40 150 - 300 lbs Sight Glass

• n request

150 lbs Steam Trap PN10 - PN40

• n request

Material Range (AVA-Stock)

DIN/EN DIN/EN ASME ASME

Body/Bonnet/Cover Forged Steel Cast Steel Forged Steel Cast Steel Carbon Steel 1.0460 1.0619 1.0460 ~ A105N 1.0619 = A216-WCB Low Temperature Carbon Steel 1.0566

• n request

1.0566 ~ A350-LF2 A352-LCC~1.6220 Alloy Steel 1.7335 1.7362 1.7357 1.7365 A182- F1 ~ 1.5415 A182-F11~1.7335 A182-F9 ~ 1.4920 1.7335 ~ A182-F12 1.7362 = A182-F5 A182-F22 ~ 1.7380 A217-C12 1.7365 = A217-C5 CrNi Stainless Steel 1.4541 1.4552 1.4541 = A182 -F321 1.4552 = A351-CF8C CrNiMo Stainless Steel 1.4571 1.4408 1.4581 1.4404 = A182 F316(L) 1.4408 = A351-CF8M Duplex Stainless Steel 1.4462 1.4470

• n request
• n request

Our Manufacturers

Our Manufacturers

B.F.E. S.p.A. (Bonney Forge Valve Licensee):

The largest manufacturer of industrial valves according to DIN and ASME standards in forged steels worldwide. Valve types: Gate Valves, globe Valves, check Valves (piston, ball & swing type), strainers and ball Valves trunnion and floating type (soft and metal to metal seated). Dimensions: ¼“ / DN10 to 24“ / DN600 DIN pressure class: PN10 to PN500 ASME pressure class: class 150# to class 4500# DIN EN materials: 1.0460, 1.0566, 1.5415, 1.7335, 1.7380, 1.7362, 1.4404, 1.4541, 1.4571, 1.4462 (other materials available on request) ASME materials: A105N, A350-LF2, A182-F1, A182-F11, A182-F22, A182-F5, A182-F9, A182-F304(L), A182-F316(L), A182-F321, A182-F44, A182-F51 (other materials available on request) Approvals / Inspections: ISO9001:2008, PED 97/23/EC, AD 2000 A4, AD 2000 HP0, AD2000 W0, API 6A, API 6D, TA-Luft 2002/VDI2440, EC Type Test , BS 6755 / API 607, ATEX 94/9/EC

B.F.E. S.p.A. (Bonney Forge Valve Licensee):

The largest manufacturer of industrial valves according to DIN and ASME standards in forged steels worldwide. Valve types: Gate Valves, globe Valves, check Valves (piston, ball & swing type), strainers and ball Valves trunnion and floating type (soft and metal to metal seated). Dimensions: ¼“ / DN10 to 24“ / DN600 DIN pressure class: PN10 to PN500 ASME pressure class: class 150# to class 4500# DIN EN materials: 1.0460, 1.0566, 1.5415, 1.7335, 1.7380, 1.7362, 1.4404, 1.4541, 1.4571, 1.4462 (other materials available on request) ASME materials: A105N, A350-LF2, A182-F1, A182-F11, A182-F22, A182-F5, A182-F9, A182-F304(L), A182-F316(L), A182-F321, A182-F44, A182-F51 (other materials available on request) Approvals / Inspections: ISO9001:2008, PED 97/23/EC, AD 2000 A4, AD 2000 HP0, AD2000 W0, API 6A, API 6D, TA-Luft 2002/VDI2440, EC Type Test , BS 6755 / API 607, ATEX 94/9/EC

Our Manufacturers

SWI Valve Company Ltd. : Manufacturer of industrial valves according

to ASME standards in forged steel. Valve types: Gate valves, globe Valves , check valves (piston, ball & swing type) and ball valves. Dimensions: ¼“ / DN10 to 2“ / DN50 ASME pressure class: class 150# to class 600# (higher pressure class on request) ASME materials: A105N, A350-LF2, A182-F1, A182-F11, A182-F22, A182-F5, A182- F9, A182-F304(L), A182-F316(L), A182-F321 (other materials available on request) Approvals / inspections: ISO9001, PED 97/23/EC, BS 6755 / API 607, ATEX 94/9/EC

SWI Valve Company Ltd. : Manufacturer of industrial valves according

to ASME standards in forged steel. Valve types: Gate valves, globe Valves , check valves (piston, ball & swing type) and ball valves. Dimensions: ¼“ / DN10 to 2“ / DN50 ASME pressure class: class 150# to class 600# (higher pressure class on request) ASME materials: A105N, A350-LF2, A182-F1, A182-F11, A182-F22, A182-F5, A182- F9, A182-F304(L), A182-F316(L), A182-F321 (other materials available on request) Approvals / inspections: ISO9001, PED 97/23/EC, BS 6755 / API 607, ATEX 94/9/EC

Our Manufacturers

Valvosider s.r.l.: One of the largest manufacturers of Industrial Valves within Europe

producing in accordance with DIN and ASME Standards in cast materials. Valve types: Gate valves, globe valves, check valves and strainers Dimensions: 1/2“ / DN15 to 42“ / DN1050 DIN pressure class: PN10 to PN250 ASME pressure class: class 150# to class 2500# DIN EN materials: 1.0619, 1.7357, 1.7365, 1.4408, 1.4552, 1.4581, 1.4470 (other materials available on request) ASME materials: A216-WCB, A352-LCB, A352-LCC, A217-WC1, A217-WC6, A217-C5, A217-C12, A351-CF8, A351-CF3, A351-CF8C, A351-CF8M, A351- CF3M (other materials available on request) Approvals / inspections: ISO9001:2008, PED 97/23/EC, AD 2000 A4, AD 2000 HP0, AD 2000 W0, API-Monogram, API 6D, TA-Luft 2002/VDI2440, EC Type Test, ATEX 94/9/EC

Valvosider s.r.l.: One of the largest manufacturers of Industrial Valves within Europe

producing in accordance with DIN and ASME Standards in cast materials. Valve types: Gate valves, globe valves, check valves and strainers Dimensions: 1/2“ / DN15 to 42“ / DN1050 DIN pressure class: PN10 to PN250 ASME pressure class: class 150# to class 2500# DIN EN materials: 1.0619, 1.7357, 1.7365, 1.4408, 1.4552, 1.4581, 1.4470 (other materials available on request) ASME materials: A216-WCB, A352-LCB, A352-LCC, A217-WC1, A217-WC6, A217-C5, A217-C12, A351-CF8, A351-CF3, A351-CF8C, A351-CF8M, A351- CF3M (other materials available on request) Approvals / inspections: ISO9001:2008, PED 97/23/EC, AD 2000 A4, AD 2000 HP0, AD 2000 W0, API-Monogram, API 6D, TA-Luft 2002/VDI2440, EC Type Test, ATEX 94/9/EC

Our Manufactures

.

Kitz :One of the largest manufacturer of industrial valves according to ASME

standards in cast materials worldwide. Valve types: Gate valves, globe valves, piston check valves, swing check valves, butterfly valves (soft seated), ball valves (soft and metal to metal seated) Dimensions: ¼“ up to 30“ ASME pressure classes: class 150# up to class 2500# DIN EN materials: 1.0619, 1.4408, 1.4308 (other material on request) ASME materials: A216-WCB, A352-LCB, A352-LCC, A217-WC6, A217-WC9, A217-C5, A217-C12, A351-CF8, A351-CF8C, A351-CF8M, Bronze, (other material

• n request)

Approvals: ISO9001:2008, PED 97/23/EC, AD2000 A4, AD2000 HP0, API-Monogram, API 6D, TA-Luft 2002/VDI2440, EC- type approval, BS 6755 / API 607, ATEX 94/9/EC, WRAS.

Kitz :One of the largest manufacturer of industrial valves according to ASME

standards in cast materials worldwide. Valve types: Gate valves, globe valves, piston check valves, swing check valves, butterfly valves (soft seated), ball valves (soft and metal to metal seated) Dimensions: ¼“ up to 30“ ASME pressure classes: class 150# up to class 2500# DIN EN materials: 1.0619, 1.4408, 1.4308 (other material on request) ASME materials: A216-WCB, A352-LCB, A352-LCC, A217-WC6, A217-WC9, A217-C5, A217-C12, A351-CF8, A351-CF8C, A351-CF8M, Bronze, (other material

• n request)

Approvals: ISO9001:2008, PED 97/23/EC, AD2000 A4, AD2000 HP0, API-Monogram, API 6D, TA-Luft 2002/VDI2440, EC- type approval, BS 6755 / API 607, ATEX 94/9/EC, WRAS.

Our Manufactures

. NEWMANS : Major manufacturer of industrial valves according to ASME standards in cast materials. Valve types: Gate valves, globe valves, swing check valves, piston check valves, tripple offset butterfly valves (metal to metal seated), ball valves (soft and metal to metal seated) Dimensions: 2“ up to 36“ ASME pressure classes: class 150# up to class 1500# DIN EN materials: 1.0619, 1.6220 (other material on request) ASME materials: A216-WCB, A216-WCC, A352-LCC (other material on request) Approvals: ISO9001:2008, PED 97/23/EC, AD 2000 HP0, AD2000 W0, API-Monogram, API 6D, TA-Luft 2002 / VDI2440, BS 6755 / API 607, ATEX 94/9/EC NEWMANS : Major manufacturer of industrial valves according to ASME standards in cast materials. Valve types: Gate valves, globe valves, swing check valves, piston check valves, tripple offset butterfly valves (metal to metal seated), ball valves (soft and metal to metal seated) Dimensions: 2“ up to 36“ ASME pressure classes: class 150# up to class 1500# DIN EN materials: 1.0619, 1.6220 (other material on request) ASME materials: A216-WCB, A216-WCC, A352-LCC (other material on request) Approvals: ISO9001:2008, PED 97/23/EC, AD 2000 HP0, AD2000 W0, API-Monogram, API 6D, TA-Luft 2002 / VDI2440, BS 6755 / API 607, ATEX 94/9/EC

Our manufactures

Kingdom: Manufacturer of industrial valves espec. Ball valves in accordance with

DIN and ASME standards Valves types: Ball valves, Gate valves , Butterfly valves, Swing check valves Strainers Dimensions: ¼“ / DN10 to 12“ / DN300 DIN-pressure class: PN10 to PN40 ASME-pressure class: class 150# to class 600# DIN/EN materials: 1.06191.6220, 1.4408.1.4409, 1.4470 ( others on request) ASME-materials: A216-WCB, A216-WCC, A352-LCB, A352-LCC, A351-LCB, A351-CF8M, A351-CF3, A351-CF3M, A890-Gr. 4A ( others on request) Approvals/ inspections: ISO9001:2008, pressure equipment directive 97/23/EC, AD2000 A4, AD2000 HP0, TA-Luft 2002/VDI2440, ATEX 94/9/EC, API 607/ISO 10497-5:2004, GOSTR-R, API 6D

Kingdom: Manufacturer of industrial valves espec. Ball valves in accordance with

DIN and ASME standards Valves types: Ball valves, Gate valves , Butterfly valves, Swing check valves Strainers Dimensions: ¼“ / DN10 to 12“ / DN300 DIN-pressure class: PN10 to PN40 ASME-pressure class: class 150# to class 600# DIN/EN materials: 1.06191.6220, 1.4408.1.4409, 1.4470 ( others on request) ASME-materials: A216-WCB, A216-WCC, A352-LCB, A352-LCC, A351-LCB, A351-CF8M, A351-CF3, A351-CF3M, A890-Gr. 4A ( others on request) Approvals/ inspections: ISO9001:2008, pressure equipment directive 97/23/EC, AD2000 A4, AD2000 HP0, TA-Luft 2002/VDI2440, ATEX 94/9/EC, API 607/ISO 10497-5:2004, GOSTR-R, API 6D

Our Manufacturers

BAC VALVES: Major manufacturer of industrial valves in accordance

with DIN and ASME standards. Valve types: Ball valves floating & trunnion designs (soft and metal to metal seated), double eccentric butterfly valves (wafer and lug type). Dimensions: ¼“ / DN10 to 24“ / DN600 DIN pressure class: PN10 to PN40 ASME pressure class: class 150# to class 1500# DIN EN materials: 1.0619, 1.6220, 1.4408, 1.4470 (Other materials available on request) ASME materials: A105N, A216-WCB, A216-WCC, A350-LF2, A352-LCB, A352-LCC, A182-F316, A351-CF8M (other materials available on request) Approvals / inspections: ISO9001:2008, PED 97/23/EC, AD 2000 A4, AD 2000 HP0, API-Monogram, API Q1 and API 6D, TA-Luft 2002 / VDI 2440, BS 6755 / API 607, API 6FA, ATEX 94/9/EC

BAC VALVES: Major manufacturer of industrial valves in accordance

with DIN and ASME standards. Valve types: Ball valves floating & trunnion designs (soft and metal to metal seated), double eccentric butterfly valves (wafer and lug type). Dimensions: ¼“ / DN10 to 24“ / DN600 DIN pressure class: PN10 to PN40 ASME pressure class: class 150# to class 1500# DIN EN materials: 1.0619, 1.6220, 1.4408, 1.4470 (Other materials available on request) ASME materials: A105N, A216-WCB, A216-WCC, A350-LF2, A352-LCB, A352-LCC, A182-F316, A351-CF8M (other materials available on request) Approvals / inspections: ISO9001:2008, PED 97/23/EC, AD 2000 A4, AD 2000 HP0, API-Monogram, API Q1 and API 6D, TA-Luft 2002 / VDI 2440, BS 6755 / API 607, API 6FA, ATEX 94/9/EC

Our Manufacturers

Ghibson Italia srl: Manufacturer of butterfly and check valves in accordance with

DIN and ASME standards. Valve types: Centric and double eccentric butterfly valves (wafer, lug and flanged type), swing check valves (wafer type) and disc check valves (wafer type). Dimensions: 1/2“ / DN15 to 40“ / DN1000 DIN pressure class: PN10 to PN40 ASME pressure class: class 150# to class 300# Materials: Ductile iron GS-400, A216-WCB, A351-CF8M, Bronze B-584, Aluminium Bronze B148-C958.00, Aluminium EN AB 46400 (other materials available on request). Liner material: NBR(Buna-N), EPDM, VITON, PTFE, Neoprene, Silicon, (other materials available on request) Approvals / inspections: ISO9001:2008, PED 97/23/EC, DVGW, TA-Luft 2002 / VDI2440, API 607, ATEX 94/9/EC

Ghibson Italia srl: Manufacturer of butterfly and check valves in accordance with

DIN and ASME standards. Valve types: Centric and double eccentric butterfly valves (wafer, lug and flanged type), swing check valves (wafer type) and disc check valves (wafer type). Dimensions: 1/2“ / DN15 to 40“ / DN1000 DIN pressure class: PN10 to PN40 ASME pressure class: class 150# to class 300# Materials: Ductile iron GS-400, A216-WCB, A351-CF8M, Bronze B-584, Aluminium Bronze B148-C958.00, Aluminium EN AB 46400 (other materials available on request). Liner material: NBR(Buna-N), EPDM, VITON, PTFE, Neoprene, Silicon, (other materials available on request) Approvals / inspections: ISO9001:2008, PED 97/23/EC, DVGW, TA-Luft 2002 / VDI2440, API 607, ATEX 94/9/EC

Our Manufacturers

.

Ritag: Manufacturer of industrial valves in accordance with DIN and ASME Standards.

Valve types: Duo check valves, swing check valves, disc check valves, sampling valves , line blinds and tank bottom Valves Dimensions: 1/2“ / DN15 to 48“ / DN1200 DIN pressure class: PN10 to PN160 ASME pressure class: class 150# to class 1500# DIN EN materials: 1.0460, 1.4301, 1.0577, 1.4404, 1.4408, 1.4571, 1.0619 (Other materials available on request) ASME materials: A105N ,A216-WCB, A182-F304(L), A351-CF8, A182-F316(L), A351-CF8M, A182-F321, A351-CF8C (Other materials available on request) Approvals / inspections: ISO9001:2008, Pressure Equipment Directive 97/23/EC, AD 2000 A4, AD 2000 HP0, TA-Luft 2002/VDI2440, EC Type Test, ATEX 94/9/ EC

Ritag: Manufacturer of industrial valves in accordance with DIN and ASME Standards.

Valve types: Duo check valves, swing check valves, disc check valves, sampling valves , line blinds and tank bottom Valves Dimensions: 1/2“ / DN15 to 48“ / DN1200 DIN pressure class: PN10 to PN160 ASME pressure class: class 150# to class 1500# DIN EN materials: 1.0460, 1.4301, 1.0577, 1.4404, 1.4408, 1.4571, 1.0619 (Other materials available on request) ASME materials: A105N ,A216-WCB, A182-F304(L), A351-CF8, A182-F316(L), A351-CF8M, A182-F321, A351-CF8C (Other materials available on request) Approvals / inspections: ISO9001:2008, Pressure Equipment Directive 97/23/EC, AD 2000 A4, AD 2000 HP0, TA-Luft 2002/VDI2440, EC Type Test, ATEX 94/9/ EC

Our Quality y Ass ssurance

ISO 9001 Certificate

Our quality ass ssurance

AVA AVA

In-house In-house  Documentation  Visual inspection  Dimensional inspection  Pressure test  Supplementary NDE/NDT  Documentation  Visual inspection  Dimensional inspection  Pressure test  Supplementary NDE/NDT

AVA AVA

Certification Certification

Manufactu Manufactu rs rs

with approvals with approvals  AD 2000 HPO  AD 2000 A4  AD 2000 WO  API Monogramm  DGRL 97/23/EG  ATEX 94/9/EG  TA-Luft 2002/VDI24440  AD 2000 HPO  AD 2000 A4  AD 2000 WO  API Monogramm  DGRL 97/23/EG  ATEX 94/9/EG  TA-Luft 2002/VDI24440

Audits Audits

at our manufacturs at our manufacturs  Through dedicated notified bodies as TÜV or respresantatives

• f AVA

 Through dedicated notified bodies as TÜV or respresantatives

• f AVA

AVA Quality management AVA Quality management

In House Inspection & Te Test sting

• Visual examination
• Pressure test examination
• Positive material identification (PMI) with NITON
• Hardness testing
• Surface crack testing / liquid penetrant examination
• Other surface testing (thikness of coatings and

roughness of facings)

• Ultrasonic examination
• Radioactivity detection
• Third party inspection (through customer and/or

notified body)

In house special examinations

In addition to routine hydrostatic and gas pressure tests which are carried out in our separate dedicated “In-House” valve test facility. further „In-House“ examination options include:

• In-House low emission testing facilities dedicated to undertake

static or cyclic functional tests acc. TA-Luft 2002 / VDI 2440 or ISO 15848-2 using helium as test media.

• In-House high pressure testing facilities dedicated to undertake

high pressure gas tests acc. DIN 3230 Part 3 using air or nitrogen as test media (up to 220 bar).

• In-House live cycle testing of gate, globe, ball, plug and butterfly

valves on own test bench. (Other examinations as X-Ray and MPI examinations can be done

• n request through external laboratries).

Docu cumentation

• Extensive documentation including data sheets,

procedures, test certificates and are available to order. Necessary Test certificates acc. to DIN EN 10204-3.1 provided as standard, for all AVA stocked products.

• Owners manuals for all products can be submitted on

request.

• Documentation available in various electronic and optical

formats in addition to printed form.

• Manufacturers catalogues available on demand.
• Unique On-Line AVA WEB catalogue with excess to the

warehouses can be used via AVA WEB side.

• By pass and heating jackets.
• Bonnet extensions.
• Regulating disc, discharge disc.
• Screw down non return valves.
• Water sealing connection.
• Pressure relief device.
• Machining and modification of

end connections.

• Low emission packing and gaskets
• Live loaded packings
• Coatings.
• Special cleaning for oxygen

service.

Our Valve Servi vice

• Provide independant

evaluation of product damage and potential cause.

• Provide proposals to

improve performance

• f original product.
• Worm gears.
• Bevel gears.
• Spur gears.
• Locking device.
• Mechanical Indicators.
• Limit / proximity switches.
• Shaft extensions.
• Stem extensions.
• Chain wheels .
• Electric actuators.
• Pneumatic actuators

.

• Restoration of damaged
• components.
• Valve repair to achieve near original
• condition.
• Renewal of surface finish.
• Replacement of parts as stems and
• bolting.
• Replacement of low emission
• packings and gaskets acc. to
• approved procedure.
• Full pressure test using in-house
• test facilities.
• .

Note* ASA is 100% part of the AVA Group

Summary of benefits to our customers

 Prompt deliveries with a comprehensive and extensive stock

• f valves in carbon, low alloy, high alloy steel and stainless

steel.  Increase flexibility to provide necessary product changes and improvements by Armaturen-Service Alms (ASA) GmbH.  Extensive range of valve types, pressure classes and materials.  Only high quality and proven products are held in stock!  Many years of exclusive sales and technology partnerships with leading global manufacturers.  Experienced and conscientious workforce, able and willing to attend to all our customers requirements.

Reference ces

England, UK AVA Alms Valve Agency Ltd Unit 2, Ash Way Thorp Arch Estate Wetherby, West Yorkshire LS23 7FA UK, Tel: +44 (0) 1937-840460 Fax: +44 (0) 1937-840461 Email: office@ava-alms.co.uk www.ava-alms.co.uk Ungarn AVA Armaturen Vertrieb Alms Kft Leshegy Ipari Park Leshegy utca 9/A H-2310 Szigetszentmiklos Tel: +36(24)515-078 Fax: +36(24) 515-079 Email: attila.boda@ava-alms.hu www.ava-alms.hu

Germany Armaturen Vertrieb Alms GmbH Holterkamp 1 40880 Ratingen phone: +49 (0) 2102 4390-0 fax: +49 (0) 2102 4390-99 Email: mailbox@ava-alms.de www.ava-alms.de Netherland AVA Alms Valve Agency BV Schuit 1 1724 BD Oudkarspel phone: +31 (0) 226 319999 fax: +31 (0) 226 319990 Email: mailbox@ava-alms.nl www.ava-alms.nl

Co Conta tact t AVA Gr Gruppe
