Connectivity: Fahrerlos in der Logistikkette A GLOBAL POWER WORKING FOR YOU EXPERIENCE THE TII GROUP Pfedelbach, Champs-sur-Yonne, Ulm, Bawal, Germany France Germany India LOGISTICS E-WIESEL AGV E-WIESEL AGV INFORMATION / Load and

SLIDE 1

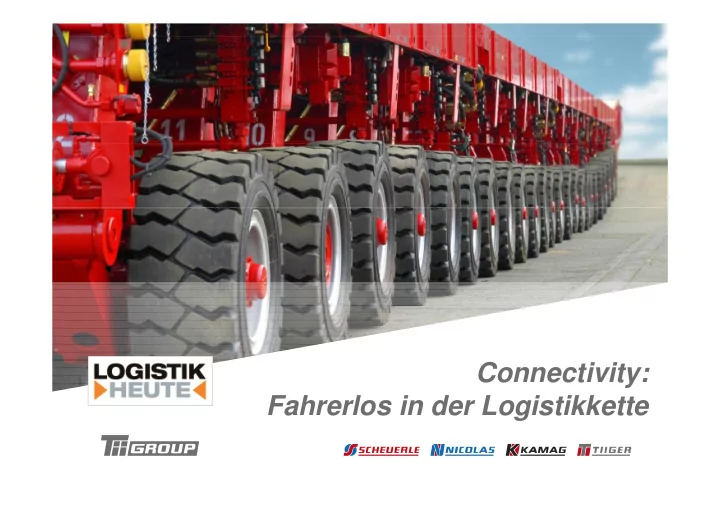

Connectivity: Fahrerlos in der Logistikkette

SLIDE 2

A GLOBAL POWER WORKING FOR YOU

EXPERIENCE THE TII GROUP

Pfedelbach, Germany Champs-sur-Yonne, France Ulm, Germany Bawal, India

SLIDE 3

LOGISTICS

E-WIESEL AGV

SLIDE 4

E-WIESEL AGV

INFORMATION

/ Load and unload pallets at loading ramps fully automatic / Unmanned operation in outdoor area / Dynamic guidance of single vehicles and vehicle groups via a trail guide system / Efficient and reliable / Payload 16 t / Fully retractable bumper / Emission-free, thanks to electric drive / Excellent maneuverability, thanks to the two steering axles

SLIDE 5

E-WIESEL AGV

INFORMATION

Technical data / Perm. total weight 30 t / Payload approx. 16 t / Dead weight approx. 14 t / Pallet spaces 14 Drive All-electric battery-operated driving system / Drive performance: approx. 70 kW / E-motor revs: 0 - 4,400 rpm / E-motor flange-mounted on transmission / Transmission connected to rear axle via drive shaft / Rear axle with differential gear / Power electronics for e-motor

SLIDE 6

E-WIESEL AGV

INFORMATION

Battery / Capacity: 40.6 kWh / Voltage: 400 V (nominal) / Heating system for the battery using heating mats Charger / Charger with 22 kW (on board) / Water cooling / Connection 400 V / 32 A Different technologies of track guidance allow at customer site what he wants:  Transponder, GPS, WLAN, satellite systems, geo systems etc.

SLIDE 7

E-WIESEL AGV

FURTHER INFORMATION http://agv.kamag.com/ http://agv.kamag.com/highlights/ https://www.kamag.com/products/logistics-transporters.html
