06 25433 – Logic Programming

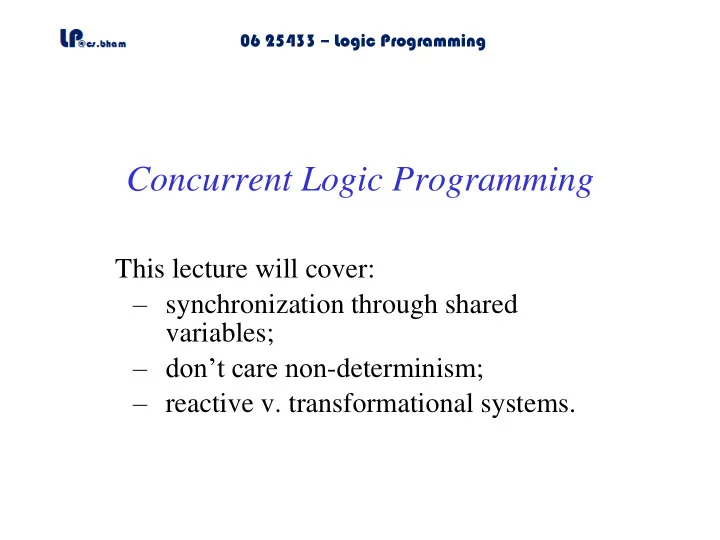

Concurrent Logic Programming

This lecture will cover: – synchronization through shared variables; – don’t care non-determinism; – reactive v. transformational systems.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 1

A new language

For concurrent programming, Prolog needs to be extended - or at least changed - to make it better suited. Changes are in three areas: – the logic variable as an information channel; – synchronization through shared variables; – viewing non-determinism differently.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 2

Logic variable as information channel

Remember – variables in Prolog are logic variables:

• they cannot be re-instantiated;
• they can be unified with Prolog terms,

including uninstantiated variables. Better still - they can be – incrementally instantiated by more than one process contributing information.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 3

Synchronization through shared variables - 1

We need a way of suspending processes until they are ready to execute. Prolog would terminate catastrophically if both the first two arguments are uninstantiated:

plus(Augend, Addend, Sum) :- Sum is Augend + Addend.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 4

Synchronization through shared variables - 2

We can add some type checks so that the rule fails gracefully if the arguments are not instantiated to numerics:

plus(Augend, Addend, Sum) :- number(Augend), number(Addend), Sum is Augend + Addend.

but this doesn’t help in parallel processing where we need to delay execution until arguments are instantiated.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 5

Synchronization through shared variables - 3

If our language includes suspension, then we can synchronize processes quite easily. The idea is that a clause is: – immediately executable; – never executable; – possibly executable - dependent on changes to its arguments.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 6

Synchronization through shared variables - 4

This needs two changes to the language: 1 Guards

plus(Augend, Addend, Sum) <- number(Augend), number(Addend) | Sum is Augend + Addend.

Only when the guard tests have been satisfied can the rule be committed to.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 7

Synchronization through shared variables - 5

This needs two changes to the language: 2 One-way unification Prolog has 2-way unification - information flows both ways. We need information to flow one-way: Query: app([a,b], [1,2], List). Rule head: app([Hd|L1], L2, L3).  Query: app([a,b], [1,2], List). Rule head: app([Hd|L1], L2, [Hd|L3]).



06 25433 – Logic Programming

20 - Concurrent Logic Programming 8

Alternative non-determinism - 1

Prolog uses “don’t know” non-determinism: – Programmer writes the (non-deterministic) program – Prolog searches for solution. – Programmer doesn’t know which path through the search tree has been taken.

a 1 3 4 2 5

Important idea: try many times until success.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 9

Alternative non-determinism - 2

We need to use “don’t care” non-determinism: – Programmer writes guarded clauses – OR-parallel search of heads & guards – One clause selected - either immediately or when unsuspended..

a 1 3 4 2 5

Important idea: put off a choice until certain.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 10

Flat Concurrent Prolog

There have been numerous proposals for concurrent logic programming languages: – Parlog – Guarded Horn Clauses (GHC) – Concurrent Prolog

• Flat Concurrent Prolog

guards are “normal” Prolog in-built predicates (mainly).

06 25433 – Logic Programming

20 - Concurrent Logic Programming 11

merge/3 in FCP(|)

merge/3 could equally be written in Prolog: Terminating:

merge([],In,Out) <- In = Out. merge(In,[],Out) <- In = Out.

explicit assignment because of 1-way unification Recursive

merge([X|In1],In2,Out) <- Out = [X|Out1], merge(In1,In2,Out1). merge(In1,[X|In2],Out) <- Out = [X|Out1], merge(In1,In2,Out1).

06 25433 – Logic Programming

20 - Concurrent Logic Programming 12

Running merge/3 in FCP(|) - 1

fcp(|) ?- merge([1,2],[a,b],List). Variable bindings: *** List=[a,1,b,2] *** Suspended goals ***

Note the order of elements shows the

• rder in which clauses

were committed to.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 13

Running merge/3 in FCP(|) - 2

fcp(|) ?- merge([1,2],[a,b],List). Variable bindings: *** List=[a,1,2,b] *** Suspended goals ***

The order of elements is different because

• ther commitments

were made.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 14

Running merge/3 in FCP(|) - 3

merge/3 in Prolog would be OR-unfair - it would always favour one choice of clause over any other. This implementation of FCP(|) is OR-fair because it makes a arbitrary selection from candidate clauses. Any executable clause will eventually fire (in theory and given eternity).

06 25433 – Logic Programming

20 - Concurrent Logic Programming 15

Hamming numbers - 1

merge/3 isn’t a good example of a concurrent program because a fair version could be written quite easily in Prolog. Hamming numbers are an ordered stream of numbers in the form: 2i3j5k, e.g.[1,2,3,4,5,6,8,9,10,12,15,…]. It is possible to write this in Prolog - but easier in FCP.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 16

Hamming numbers - 2

We need to have an ordered merge process:

• merge([X|In1], [Y|In2], Out) <-

number(X), number(Y), X =:= Y | Out = [X|Out1],

• merge(In1, In2, Out1).

06 25433 – Logic Programming

20 - Concurrent Logic Programming 17

Hamming numbers - 3

• merge([X|In1], [Y|In2], Out) <-

X gt Y | Out = [X|Out1],

• merge(In1, [Y|In2], Out1).
• merge([X|In1], [Y|In2], Out) <-

Y gt X | Out = [Y|Out1],

• merge([X|In1], In2, Out1).

06 25433 – Logic Programming

20 - Concurrent Logic Programming 18

Hamming numbers - 4

We also have to be able to multiply a list of numbers by a given number:

multiply([X|In], N, Out) <- Out = [Y|Out0], Y := X * N, multiply(In, N, Out0).

06 25433 – Logic Programming

20 - Concurrent Logic Programming 19

Hamming numbers - 5

Finally we need to add the top-level rule:

hamming(Xs) <- multiply([1|Xs], 2, X2), multiply([1|Xs], 3, X3), multiply([1|Xs], 5, X5),

• merge(X2, X3, X23),
• merge(X5, X23, Xs).

06 25433 – Logic Programming

20 - Concurrent Logic Programming 20

Hamming numbers - 6

Seeing the output is more difficult because the process runs continually. It is a good example of a reactive system - which reacts to input and continues. merge/3 is an example of a transformational system - which transforms its input into an output.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 21

What happened to mutual exclusion?

Sometime we need to ensure that only one process has access to a resource (e.g. file, screen, keyboard input) - and all others are excluded. Simple mutual exclusion is fairly easy by setting variables shared between processes. Hard mutual exclusion is impossible in FCP(|) - but not other concurrent logic programming languages.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 22

The Dining Philosophers - 1

Imagine five philosophers sitting around a circular table. Their meal is an endless supply of slippery spaghetti It requires the use of two forks to eat it. They are too poor to own more than one fork which they place on the table on their left-hand side. If they are to avoid hunger, they have to co-operate and use their fork and the one belonging to the philosopher to their

• right. They cannot all eat at the same time.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 23

The Dining Philosophers - 2

The problem is that there is no way of excluding groups of resources in FCP(|). We can’t grab two forks simultaneously and relinquish two forks simultaneously. We just need a more powerful programming language - strictly speaking, one with atomic unification.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 24

The model: stream parallelism

FCP (and most other concurrent logic programming languages) use stream parallelism. – goal/subgoal calls are evaluated concurrently; – communication is through shared variables; – as this is logic programming, the shared variable is a logic variable; – the variable is used for every communication - data and synchronization. We almost have to have don’t care non-determinism.

06 25433 – Logic Programming

20 - Concurrent Logic Programming 25

Looking back at the module

Major themes: Logic programming languages are based on models from predicate logic. They all have to deal with: OR-choice AND-choice

06 25433 – Logic Programming

20 - Concurrent Logic Programming 26

Looking back at the module

Major themes: OR-choice involves non-determinism Non-determinism comes in several varieties – e.g. Don’t know (using a stack – Prolog and friends) Don’t care (pick one; throw away the rest – FCP etc)

06 25433 – Logic Programming

20 - Concurrent Logic Programming 27

Looking back at the module

Major themes: Variables (sometimes with constraints) Logic programming has a distinctive model of variable Two-way unification – like Prolog and CLP One-way unification – like FCP and ConLP Incomplete information – all LP languages
