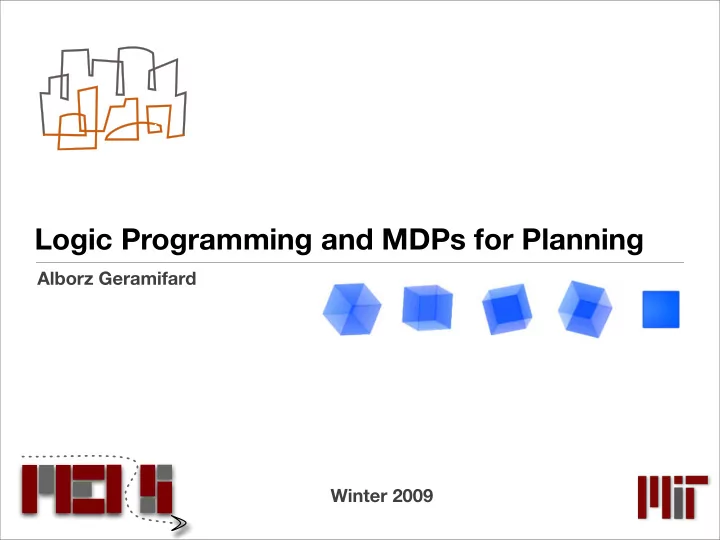

Logic Programming and MDPs for Planning Alborz Geramifard Winter - - PowerPoint PPT Presentation

Alborz Geramifard

Logic Programming and MDPs for Planning

Winter 2009

MDP+ Logic + Programming MDP

Index

2

Introduction Logic Programming

MDP+ Logic + Programming MDP

Index

2

Introduction Logic Programming

Why do we care about planning?

3

Sequential Decision Making

4

✙

?

Sequential Decision Making

4

✙

?

Sequential Decision Making

4

✙

?

Sequential Decision Making

4

✙

?

Desired Property?

Sequential Decision Making

4

✙

?

Desired Property? Feasible: Logic (Focuses on Feasibility)

Sequential Decision Making

4

✙

?

Desired Property? Feasible: Logic (Focuses on Feasibility) Optimal: MDPs (Scaling is Hard)

MDP+ Logic + Programming MDP

Index

5

Introduction Logic Programming

MDP+ Logic + Programming MDP

Index

5

Introduction Logic Programming

Logic

6

Goal Directed Search Start Goal State: Set of propositions (e.g. ¬Quite, Garbage, ¬Dinner) Feasible Plan: Sequence of actions from start to goal

Actions

7

Clean Hands Ingredients Cook Dinner Ready Precondition Action Effect STRIPS, Graph Plan (16.410/16.413)

8

Graph Plan or Forward Search

Not easily scalable

GOLOG: ALGOL in LOGIC

Restrict action space with programs Scales easier Results are dependent on high-level programs

Logic Programming

[Levesque, et. al. 97]

Situation Calculus (Temporal Logic)

9

Situation: S0, do(A,S)

Situation Calculus (Temporal Logic)

9

Situation: S0, do(A,S) Example: do(putdown(A), do(walk(L), do(pickup(A), S0)))

Situation Calculus (Temporal Logic)

9

Situation: S0, do(A,S) Example: do(putdown(A), do(walk(L), do(pickup(A), S0))) Relational Fluent: relations with values depending on situations

Situation Calculus (Temporal Logic)

9

Situation: S0, do(A,S) Example: do(putdown(A), do(walk(L), do(pickup(A), S0))) Relational Fluent: relations with values depending on situations Example: is_carrying(robot, p, s)

Situation Calculus (Temporal Logic)

9

Situation: S0, do(A,S) Example: do(putdown(A), do(walk(L), do(pickup(A), S0))) Relational Fluent: relations with values depending on situations Example: is_carrying(robot, p, s) Functional Fluent: situation dependent functions

Situation Calculus (Temporal Logic)

9

Situation: S0, do(A,S) Example: do(putdown(A), do(walk(L), do(pickup(A), S0))) Relational Fluent: relations with values depending on situations Example: is_carrying(robot, p, s) Functional Fluent: situation dependent functions Example: loc(robot, s)

Situation Calculus (Temporal Logic)

9

Situation: S0, do(A,S) Example: do(putdown(A), do(walk(L), do(pickup(A), S0))) Relational Fluent: relations with values depending on situations Example: is_carrying(robot, p, s) Functional Fluent: situation dependent functions Example: loc(robot, s)

More expressive than LTL

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

10

GOLOG: Syntax

[Scott Sanner - ICAPS08 Tutorial]

?

Aren’t we hard-coding the whole solution?

Blocks World

11

Actions: pickup(b), putOnTable(b), putOn(b1,b2) Fluents: onTable(b, s), on(b1, b2, s) GOLOG Program: while (∃b) ¬onTable(b) then (pickup(b), putOnTable(b)) endWhile

Blocks World

11

Actions: pickup(b), putOnTable(b), putOn(b1,b2) Fluents: onTable(b, s), on(b1, b2, s) GOLOG Program: while (∃b) ¬onTable(b) then (pickup(b), putOnTable(b)) endWhile

?

What does it do?

GOLOG Execution

12

Given Start S0, Goal S’, and program δ

GOLOG Execution

12

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’)

GOLOG Execution

12

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’) First-order logic proof system

GOLOG Execution

12

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’) First-order logic proof system Prolog

GOLOG Execution

12

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’) First-order logic proof system Prolog

S0

GOLOG Execution

12

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’) First-order logic proof system Prolog

S0 S1

GOLOG Execution

12

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’) First-order logic proof system Prolog

S0 S1 S2 S3

GOLOG Execution

12

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’) First-order logic proof system Prolog

S0 S1 S2 S3

GOLOG Execution

12

Non-deterministic

S4

Given Start S0, Goal S’, and program δ Call Do(δ,S0,S’) First-order logic proof system Prolog

S0 S1 S2 S3

GOLOG Execution

12

Non-deterministic

MDP+ Logic + Programming MDP

Index

13

Introduction Logic Programming

MDP+ Logic + Programming MDP

Index

13

Introduction Logic Programming

MDP

S, A, Pa

ss′, Ra ss′, γ

14

B.S.

100%,+85

M.S.

100%,+120 Studying 10%,-50 80%,-50 Studying 30%,-200 70%,-200

Ph.D.

10%,-300 Working 100%,+60 Working Working

B.S., W

• rking, +60, B.S. Studying, -50, M.S. , ...

MDP

15

V π(s) = E ∞

• t=1

γt−1rt

• s0 = s, π
• .

Policy π(s): How to act in each state Value Function V(s): How good is it to be in each state?

MDP

16

Goal

Find the optimal policy (π*), which maximizes the value function for all states

V ∗(s) = max

a

E

• r + γV ∗(s′)
• π∗(s) = argmaxa · · ·

Example (Value Iteration)

17

• 1

Reward: Actions:

V (s) = max

a

E

• r + γV (s′)

Example (Value Iteration)

17

• 1

Reward: Actions:

V (s) = max

a

E

• r + γV (s′)

Example (Value Iteration)

17

• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1

Reward: Actions:

V (s) = max

a

E

• r + γV (s′)

Example (Value Iteration)

17

• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 2
• 2
• 2
• 2
• 2
• 2
• 1
• 2
• 2
• 2
• 2
• 2
• 2
• 2

Reward: Actions:

V (s) = max

a

E

• r + γV (s′)

Example (Value Iteration)

17

• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 1
• 2
• 2
• 2
• 2
• 2
• 2
• 1
• 2
• 2
• 2
• 2
• 2
• 2
• 2
• 1
• 2
• 3
• 3
• 4
• 5
• 6
• 1
• 2
• 3
• 4
• 2
• 3
• 4
• 5

Reward: Actions:

V (s) = max

a

E

• r + γV (s′)

MDP+ Logic + Programming MDP

Index

18

Introduction Logic Programming

MDP+ Logic + Programming MDP

Index

18

Introduction Logic Programming

DT-GOLOG: Decision Theoretic GOLOG

19

[Boutilier, et. al 00]

DT-GOLOG: Decision Theoretic GOLOG

19

GOLOG No Optimization [Boutilier, et. al 00]

DT-GOLOG: Decision Theoretic GOLOG

19

MDP Scaling is challenging GOLOG No Optimization [Boutilier, et. al 00]

DT-GOLOG: Decision Theoretic GOLOG

19

MDP Scaling is challenging GOLOG No Optimization All non-deterministic actions are optimized using MDP concepts. [Boutilier, et. al 00]

DT-GOLOG: Decision Theoretic GOLOG

19

MDP Scaling is challenging GOLOG No Optimization All non-deterministic actions are optimized using MDP concepts. Uncertainty, Reward [Boutilier, et. al 00]

Decision Theoretic GOLOG

20

Programming(GOLOG) Planning(MDP)

Decision Theoretic GOLOG

20

Programming(GOLOG) Planning(MDP)

Known Solution High-level Structure

Decision Theoretic GOLOG

20

Programming(GOLOG) Planning(MDP)

Not enough grasping Low-level Structure Known Solution High-level Structure

Example

21

Build a tower with least effort

Example

21

Build a tower with least effort Pick a block as base Stack all other blocks on top of it

Example

21

Build a tower with least effort Use which block for base? In which order pick up the blocks Pick a block as base Stack all other blocks on top of it

Example

21

Build a tower with least effort Use which block for base? In which order pick up the blocks Pick a block as base Stack all other blocks on top of it

GOLOG MDP

Example

21

Build a tower with least effort Use which block for base? In which order pick up the blocks Pick a block as base Stack all other blocks on top of it

GOLOG MDP

?

Guaranteed to be optimal?

DT-GOLOG Execution

22

Given Start S0, Goal S’, and program δ Add rewards Formulate the problem as an MDP

S4 S0 S1 S2 S3

DT-GOLOG Execution

22

Given Start S0, Goal S’, and program δ Add rewards Formulate the problem as an MDP

S4 S0 S1 S2 S3

DT-GOLOG Execution

22

Given Start S0, Goal S’, and program δ Add rewards Formulate the problem as an MDP

• 1

+3

• 2
• 5

S4 S0 S1 S2 S3

DT-GOLOG Execution

22

Given Start S0, Goal S’, and program δ Add rewards Formulate the problem as an MDP (∃b) ¬onTable(b), b∈{b1, ..., bn} ¬onTable(b1)∨¬onTable(b2)∨... ∨¬onTable(bn)

• 1

+3

• 2
• 5

23

First Order Dynamic Programming

Idea:

Logical Structure Abstract Value Function Avoid curse of dimensionality!

[Sanner 07] Resulting MDP can still be intractable.

24

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic ?

V (s) = max

a

• r + γV (s′)

24

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic ?

V (s) = max

a

• r + γV (s′)

24

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic ?

V (s) = max

a

• r + γV (s′)

24

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic ?

V (s) = max

a

• r + γV (s′)

24

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic ?

V (s) = max

a

• r + γV (s′)

24

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic ?

V (s) = max

a

• r + γV (s′)
• Representation of Reward and Values

Adding rewards and values Max Operator Find S

25

Reward and Value Representation

Case Representation

∃b, b≠b1, on(b,b1) 10 ∄b, b≠b1, on(b,b1)

b1

rCase =

26

Add Symbolically

⊖ ⊗

Similarly defined for and [Scott Sanner - ICAPS08 Tutorial]

⊕

A 10 ¬A 20 B 1 ¬B 2 A∧B 11 A∧¬B 12 ¬A∧B 21 ¬A∧¬B 22

=

27

Max operator

max Operator

Φ1 10 Φ2 5 Φ3 3 Φ4

max_a =

Φ1 10 ¬Φ1∧Φ2 5 ¬Φ1∧¬Φ2∧Φ3 3 ¬Φ1∧¬Φ2∧¬Φ3∧Φ4

a_1 a_2 [Scott Sanner - ICAPS08 Tutorial]

28

Find s? Isnʼt it obvious?

28

Find s? Isnʼt it obvious?

s

s’

a

28

Find s? Isnʼt it obvious?

s

s’

a

Dynamic Programming: Given V(s’) find V(s) In MDPs, we have s explicitly. In symbolic representation we have it implicitly so we have to build it.

29

Find s = Goal Regression

b1 B b1

regress(Φ1,a)

Weakest relation that ensures Φ1 after taking a

b1 A

Clear(b1) ∧ B≠b1 On(A,b1)

Φ1=clear(b1) put(A,B)

∨

?

29

Find s = Goal Regression

b1 B b1

regress(Φ1,a)

Weakest relation that ensures Φ1 after taking a

b1 A

Clear(b1) ∧ B≠b1 On(A,b1)

Φ1=clear(b1) put(A,B)

∨

vCase = max

a

• rCase ⊕ γ × regr(vCase, a)
• 30

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic:

?

V (s) = max

a

• r + γV (s′)

vCase = max

a

• rCase ⊕ γ × regr(vCase, a)
• 30

Symbolic Dynamic Programming (Deterministic)

Tabular: Symbolic:

V (s) = max

a

• r + γV (s′)

31

Classical Example

Box Truck City Goal: Have a box in Paris

∃b, BoxIn(b,Paris) 10 else

rCase =

32

Classical Example

Actions: drive(t,c1,c2), load(b,t), unload(b,t), noop load and unload have 10% chance of failure Fluents: BoxIn(b,c), BoxOn(b,t), TruckIn(t,c) Assumptions: All cities are connected. ϒ = .9

33

Example

[Sanner 07]

∃b, BoxIn(b,Paris) 100 noop else, ∃b,t TruckIn(t,Paris) ∧ BoxOn(b,t) 89 unload(b,t) else, ∃b,c,t BoxOn(b,t) ∧ TruckIn(t,c) 80 drive(t,c,paris) else, ∃b,c,t BoxIn(b,c) ∧ TruckIn(t,c) 72 load(b,t) else, ∃b,c1,c2,t BoxIn(b,c1) ∧ TruckIn(t,c2) 65 drive(t,c2,c1) else noop

s V*(s) π*(s)

33

Example

[Sanner 07]

∃b, BoxIn(b,Paris) 100 noop else, ∃b,t TruckIn(t,Paris) ∧ BoxOn(b,t) 89 unload(b,t) else, ∃b,c,t BoxOn(b,t) ∧ TruckIn(t,c) 80 drive(t,c,paris) else, ∃b,c,t BoxIn(b,c) ∧ TruckIn(t,c) 72 load(b,t) else, ∃b,c1,c2,t BoxIn(b,c1) ∧ TruckIn(t,c2) 65 drive(t,c2,c1) else noop

?

What did we gain by going through all of this? s V*(s) π*(s)

Conclusion

34

Conclusion

34

Logic Programming Situation Calculus GOLOG Planning

Conclusion

34

Logic Programming Situation Calculus GOLOG Planning MDP Review Value Iteration

Conclusion

34

Logic Programming Situation Calculus GOLOG Planning MDP Review Value Iteration MDP+ Logic + Programming DT-GOLOG Symbolic DP

References

35

Levesque, H.,Reiter, R., Lespérance, Y., Lin, F ., and Scherl, R. “ GOLOG: A Logic Programming Language for Dynamic Domains “, Journal of Logic Programming, 31:59--84, 1997 Richard S. Sutton, Andrew G. Barto, “Reinforcement Learning: An Introduction”, MIT Press, Cambridge, 1998 Craig Boutilier, Raymond Reiter, Mikhail Soutchanski, Sebastian Thrun, “Decision-Theoretic, High-Level Agent Programming in the Situation Calculus”. AAAI/IAAI 2000: 355-362

• S. Sanner, and K. Kersting, ”Symbolic dynamic programming”.

Chapter to appear in C. Sammut, editor, Encyclopedia of Machine Learning, Springer-Verlag, 2007

References

36

Craig Boutilier, Ray Reiter and Bob Price, “Symbolic Dynamic Programming for First-order MDPs”, Proceedings of the Seventeenth International Joint Conference on Artificial Intelligence (IJCAI), Seattle, pp.690--697 (2001).

37

Questions ?

37

Questions ?
