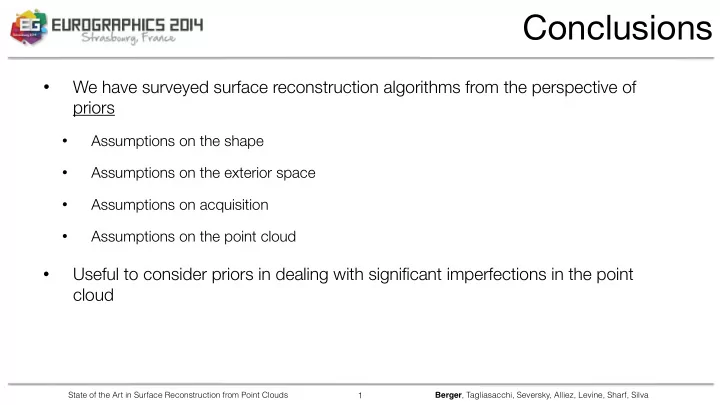

Conclusions

• We have surveyed surface reconstruction algorithms from the perspective of

priors

• Assumptions on the shape
• Assumptions on the exterior space
• Assumptions on acquisition
• Assumptions on the point cloud
• Useful to consider priors in dealing with significant imperfections in the point

cloud

1

Berger, Tagliasacchi, Seversky, Alliez, Levine, Sharf, Silva State of the Art in Surface Reconstruction from Point Clouds

Innovations in Acquisition

2

?

• real-time scanning
• structured noise
• RGB imagery
• line of sight
• low noise
• limited coverage

Berger, Tagliasacchi, Seversky, Alliez, Levine, Sharf, Silva State of the Art in Surface Reconstruction from Point Clouds

Acquisition on Your Phone

3

[Tanskanen et al. ICCV’13]

Berger, Tagliasacchi, Seversky, Alliez, Levine, Sharf, Silva State of the Art in Surface Reconstruction from Point Clouds

Specialized Reconstruction

4

[Luo et al. SIG’13]

Point cloud & orientation field Ribbons

Reconstruction of Hair Strands

Berger, Tagliasacchi, Seversky, Alliez, Levine, Sharf, Silva State of the Art in Surface Reconstruction from Point Clouds

Specialized Reconstruction

5

[Bradley et al. SIG’13]

Leaf Reconstruction

Berger, Tagliasacchi, Seversky, Alliez, Levine, Sharf, Silva State of the Art in Surface Reconstruction from Point Clouds

Massive Reconstruction

6

[Nießner et al. SIGA’13]

Online Reconstruction

Berger, Tagliasacchi, Seversky, Alliez, Levine, Sharf, Silva State of the Art in Surface Reconstruction from Point Clouds

Questions?

7

Berger, Tagliasacchi, Seversky, Alliez, Levine, Sharf, Silva State of the Art in Surface Reconstruction from Point Clouds

References

8
