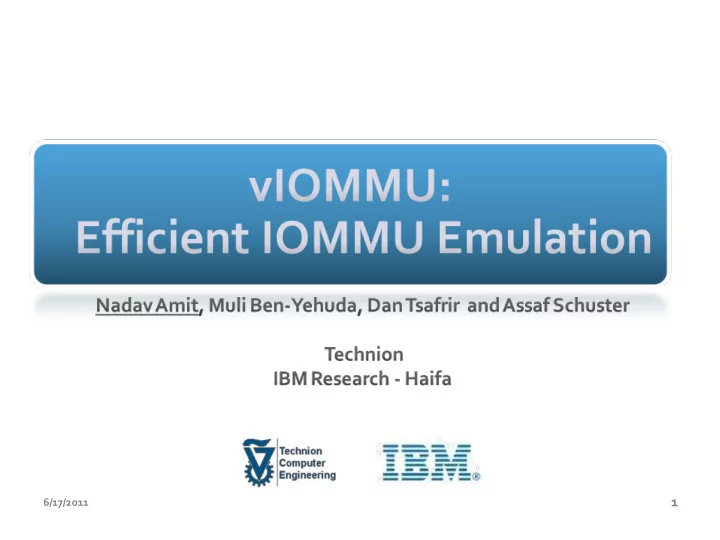

1 6/17/2011 Introduction Emulation Evaluation Conclusions CPU - - PowerPoint PPT Presentation

▶

Apr 08, 2023 596 likes •799 views

1 6/17/2011 Introduction Emulation Evaluation Conclusions CPU Device Chipset Memory Physical Address Physical Address 2 6/17/2011 Introduction Emulation Evaluation Conclusions Main Memory Physical Address IOMMU MMU I/O Virtual

SLIDE 1

6/17/2011

1

SLIDE 2

Device CPU Memory Chipset Physical Address Physical Address

6/17/2011

2

Introduction Emulation Evaluation Conclusions

SLIDE 3

Introduction Emulation Evaluation Conclusions MMU IOMMU Main Memory CPU I/O Device I/O Virtual Address Physical Address Virtual Address

SLIDE 4

6/17/2011

4

Introduction Emulation Evaluation Conclusions

SLIDE 5

6/17/2011

5

Introduction Emulation Evaluation Conclusions

SLIDE 6

6/17/2011

6

Introduction Emulation Evaluation Conclusions

SLIDE 7

6/17/2011

7

Guest Domain Emulation Domain (Hypervisor) System Domain I/O Device IOMMU Memory IOMMU Emulation

Phys. PTEs

I/O Buffer

9. Transaction to IOVA
7. Map

IOVAHPA

11. Translate

IOVA

10. IOVA Access
12. HPA Access
8. IOTLB Invd.

Mapping Layer

1. Request IOVA

for GPA

I/O Device Driver

Emul. PTEs
3. Update Mappings (IOVAGPA)
5. Read
4. IOTLB Invd.
f IOVA
2. Allocate IOVA
6. Pin pages

Introduction Emulation Evaluation Conclusions

SLIDE 8

6/17/2011

8

Introduction Emulation Evaluation Conclusions

SLIDE 9

6/17/2011

9

Introduction Emulation Evaluation Conclusions

SLIDE 10

6/17/2011

10

Guest Hypervisor (VMM) Sidecore (VMM) Emulated Registers Write Poll Emulate Done (Write) Done (Read) Introduction Emulation Evaluation Conclusions

SLIDE 11

6/17/2011

11

Introduction Emulation Evaluation Conclusions

SLIDE 12

6/17/2011

12

Introduction Emulation Evaluation Conclusions

SLIDE 13

6/17/2011

13

I/O virtual page 1 Physical page I/O virtual page 2 Introduction Emulation Evaluation Conclusions

SLIDE 14

6/17/2011

14

Introduction Emulation Evaluation Conclusions

SLIDE 15

6/17/2011

15

Introduction Emulation Evaluation Conclusions

SLIDE 16

CPU Cycles SW/HW Interaction Logic Total Bare-metal 2316 4593 6909 Trap & Emulate 30645 4324 34969 Sidecore 7321 1904 9225

6/17/2011

16

Average breakdown of (un)mapping a single page using the strict invalidation scheme Introduction Emulation Evaluation Conclusions

SLIDE 17

Setting Secure (No IOTLB Batching) Relaxed (Linux Default; IOTLB Batching) Optimistic (Patched; IOTLB Batching) Bare-metal 43% 91% 100% Trap & Emulate 10% 11% 82% Sidecore 30% 49% 100%

6/17/2011

17

Measuring the NetperfTCP throughput relatively to the maximum attainable (9.3Gbps) Introduction Emulation Evaluation Conclusions

SLIDE 18

Setting Secure (No IOTLB Batching) Relaxed (Linux Default; IOTLB Batching) Optimistic (Patched; IOTLB Batching) Bare-metal 84% 92% 94% Trap & Emulate 38% 39% 56% Sidecore 61% 63% 66%

6/17/2011

18

Measuring Apache throughput (25 concurrent requests); the baseline for normalization is 6828 requests per second Introduction Emulation Evaluation Conclusions

SLIDE 19
