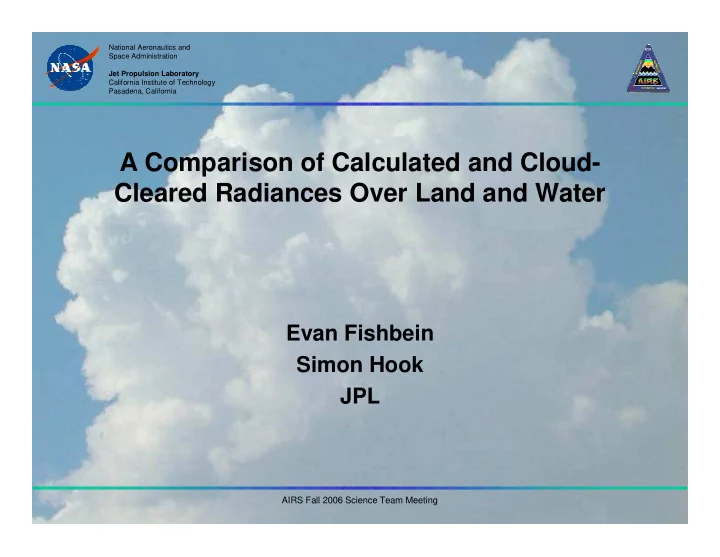

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California A Comparison of Calculated and Cloud- Cleared Radiances Over Land and Water Evan Fishbein Simon Hook JPL AIRS

slide-1
SLIDE 1

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS Fall 2006 Science Team Meeting

A Comparison of Calculated and Cloud- Cleared Radiances Over Land and Water

Evan Fishbein Simon Hook JPL

slide-2
SLIDE 2

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS Fall 2006 Science Team Meeting

  • 1. Height dependence of observed minus

Calculated Radiances from ECMWF

slide-3
SLIDE 3

Atmospheric Sounding Channels

slide-4
SLIDE 4

North Africa Atmospheric Radiances Differences

12 hPa 35 hPa 40 hPa 100 hPa 690 hPa 150 hPa 340 hPa 490 hPa

Spatial coherency of cloud clearing versus height of cloud-cleared minus average footprint radiance

slide-5
SLIDE 5

Channel 79 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 79, 668.79 cm-1 , 12 hPa
slide-6
SLIDE 6

Channel 245 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 245, 719.76 cm-1 , 100 hPa
slide-7
SLIDE 7

Channel 237 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 237, 717.41 cm-1 , 690 hPa
slide-8
SLIDE 8

South America Atmospheric Radiances Differences

12 hPa 35 hPa 40 hPa 100 hPa 690 hPa 150 hPa 340 hPa 490 hPa

slide-9
SLIDE 9

Channel 79 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 79, 668.79 cm-1 , 12 hPa
slide-10
SLIDE 10

Channel 239 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 239, 717.99 cm-1 , 490 hPa
slide-11
SLIDE 11

Channel 237 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 237, 717.41 cm-1 , 690 hPa
slide-12
SLIDE 12

ASIA

12 hPa 35 hPa 40 hPa 100 hPa 690 hPa 150 hPa 340 hPa 490 hPa

slide-13
SLIDE 13

Mapped Calculated Radiances Asia Channel 79

  • Channel 79 668.79 cm-1 12 hPa
slide-14
SLIDE 14

Mapped Calc(ECMWF) - CC Radiances Asia Channel 245 Channel 245 719.76 cm-1 100 hPa

slide-15
SLIDE 15

Mapped Calc(ECMWF) - CC Radiances Asia Channel 239 Channel 239 717.99 cm-1 718 hPa

slide-16
SLIDE 16

North America

12 hPa 35 hPa 40 hPa 100 hPa 690 hPa 150 hPa 340 hPa 490 hPa

slide-17
SLIDE 17

Mapped Calc(ECMWF) - CC Radiances North America Channel 245 Channel 245 719.76 cm-1 100 hPa

slide-18
SLIDE 18

Mapped Calc(ECMWF) - CC Radiances North America Channel 239 Channel 239 717.99 cm-1 718 hPa

slide-19
SLIDE 19

Consistency between Channels

slide-20
SLIDE 20

Consistency between Channels

slide-21
SLIDE 21

Cloud-Cleared Radiance Summary

  • CC – ECMWF residuals are dominated by spatially-

correlated differences

  • Scan-dependence
  • State-dependence
  • Stratosphere not as useful as expected
  • ECMWF temperature errors > 1 K
  • CC error characterize random and systematic errors.
  • Includes ECMWF errors
  • Possibly at the point where CC – ECMWF residuals have

very limited usefulness at this point.

slide-22
SLIDE 22

National Aeronautics and Space Administration Jet Propulsion Laboratory California Institute of Technology Pasadena, California

AIRS Fall 2006 Science Team Meeting

  • 1. Surface Products
  • Comparison of observed and laboratory emissivity

spectra

  • Emissivity radiometric signatures
slide-23
SLIDE 23

ASTER Emissivity Database

slide-24
SLIDE 24

Radiometric Signature of Minerals

  • Retrieved HaGolan atmosphere and skin temperature
  • Quartz surface - black surface
  • Calc(quartz surface) – Calc(black surface)
slide-25
SLIDE 25

Envelope of Radiometric Signature

slide-26
SLIDE 26

Model Emissivity Envelopes

slide-27
SLIDE 27

Emissivity Spectra

  • Compare retrieved emissivity spectra with laboratory

measurements

  • Locations

Tropical forest Salonga NP, Zaire Quartz sands Egypt 1 Carbonates HaNegev, Israel Basalts HaGolan Israel/Syria

slide-28
SLIDE 28

Ha Golan (Israel/Syria)

  • 33.04°

N, 36.04° E

  • Rift flood basalts
slide-29
SLIDE 29

Ha Golan (Israel/Syria) Radiance Residuals

  • CC – Calculated using retrieved states
slide-30
SLIDE 30

Ha Golan (Israel/Syria) Radiance Residuals

  • Calculated using emissivity database
slide-31
SLIDE 31

Ha Negev (Israel/Syria)

  • 30.93°

N, 34.77° E

  • Carbonates
slide-32
SLIDE 32

Ha Negev Radiance Residuals

  • CC – Calculated using retrieved states
slide-33
SLIDE 33

Ha Negev Radiance Residuals

  • Calculated using emissivity database
slide-34
SLIDE 34

Egypt One

  • 27°

7’ N, 26° 6’ E

  • Quartz Sands
slide-35
SLIDE 35

Egypt One Radiance Residuals

  • CC – Calculated using retrieved states
slide-36
SLIDE 36

Egypt One Radiance Residuals

  • Calculated using emissivity database
slide-37
SLIDE 37

Salonga National Park, Zaire

  • 2°

27’ S, 21° 15’ E

  • Vegetated tropical rain forest
slide-38
SLIDE 38

Salonga National Park, Zaire

  • CC – Calculated using retrieved states
slide-39
SLIDE 39

Salonga National Park, Zaire

  • Calculated using emissivity database
slide-40
SLIDE 40

Emissivity Summary

  • Significant improvements in long-wave emissivty
  • Attributed to regression
  • Strong Day-night differences in short-wave emissivity
  • Attributed to short-wave only skin temperature retrieval
  • Skin temperatures have day night differences
slide-41
SLIDE 41

BACKUP SLIDES

slide-42
SLIDE 42

Channel 84 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 84, 670.35 cm-1 , 35 hPa
slide-43
SLIDE 43

Channel 247 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 247 720.35 cm-1 , 40 hPa
slide-44
SLIDE 44

Channel 244 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 244, 719.47 cm-1 , 150 hPa
slide-45
SLIDE 45

Channel 241 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 241, 718.58 cm-1 , 340 hPa
slide-46
SLIDE 46

Channel 239 North Africa Mapped CC – Calc (ECMWF) Differences

  • Channel 239, 717.99 cm-1 , 490 hPa
slide-47
SLIDE 47

Channel 84 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 84, 670.35 cm-1 , 35 hPa
slide-48
SLIDE 48

Channel 247 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 247 720.35 cm-1 , 40 hPa
slide-49
SLIDE 49

Channel 245 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 245, 719.76 cm-1 , 100 hPa
slide-50
SLIDE 50

Channel 244 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 244, 719.47 cm-1 , 150 hPa
slide-51
SLIDE 51

Channel 241 South America Mapped CC – Calc (ECMWF) Differences

  • Channel 241, 718.58 cm-1 , 340 hPa
slide-52
SLIDE 52

Mapped Calc(ECMWF) - CC Radiances Asia Channel 79 Channel 79 668.79 cm-1 12 hPa

slide-53
SLIDE 53

ARM-CART SGP

  • 35°

30’ N, 95° 57’ W

  • Mixed grassland, bare soil
slide-54
SLIDE 54

ARM-CART SGP

  • CC – Calculated using retrieved states
