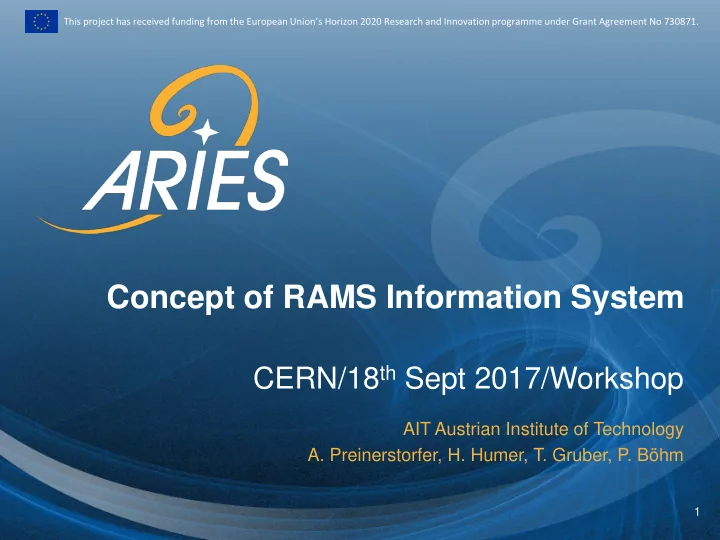

Concept of RAMS Information System

AIT Austrian Institute of Technology

• A. Preinerstorfer, H. Humer, T. Gruber, P. Böhm

CERN/18th Sept 2017/Workshop

High Level Architecture of Information System by Johannes Gutleber

2

Fault tracking, Logbooks, Observations, Estimates Handbooks, Data initatives Model driven Design and improvement Information System Historical records

PDF(characteristics, quality, conditions)

Overview

• RAMS parameter
• MIL-Handbook 127, ISO 14224 (OREDA), ISO 6527,

etc.

• Taxonomy of parameters
• Scheme of information element
• Components of Information System

3

RAMS parameter

• Operational information
• Operating pressures & temperatures, materials of

construction, medium characteristics, age

• Equipment data
• describing the "life" of some equipment notably related to

failures and maintenance.

• Event data
• describing all events concerning the system functioning,

maintenance, etc. These data can be divided into classes:

• failure data: information about all accidents/incidents

(time of happening of event, site, conditions, consequences, persons involved, etc)

• maintenance data –

information about corrective and preventive maintenance (time, duration, conditions, cost, etc);

4

ISO 14224:2016

7

Aim:

• Collection of reliability and maintenance (RM) data in a

standard format for equipment in all facilities and

• perations

within the petroleum, natural gas and petrochemical industries during the operational life cycle of equipment

• Defines equipment taxonomy and standard processes for

collection, merging and analysis of reliability data

Key Aspects

• Equipment data e.g. class boundary definitions
• Failure and activity codes
• Time definitions
• Consequence severity assessment
• Quality of data e.g. completeness of data

ISO 14224:2016

8

Taxonomy

• systematic classification of items into generic groups based on factors possibly

common to several of the items

ISO 6527:1982 Nuclear power plants - Reliability data exchange - General guidelines

9 This standard was last reviewed and confirmed in 2015. Therefore this version remains current. This standard identifies the typical parameters of a component that permit it to be characterized unequivocally and to allow the corresponding reliability data to be associated with those of other components having equivalent typical parameters. Parameters refer to technical characteristics including the physical principle of operation and quality level and to actual operating conditions and maintenance and test intervals.

• Component characteristics are separated into
• Technical characteristics
• Quality characteristics
• Operation characteristics
• Normal operating conditions
• Maintenance and test intervals
• Environmental conditions
• Failure data may be represented both
• in a historical and
• in a statistical form.
• Mode-of-failure classification
• The failures shall be linked to their

mode of failure

Taxonomy of parameters

• Equipment
• System
• Subsystem
• Component
• What else?

10

Equipment System Subsystem Component (Specific ID-code)

9/18/2017

Document reference

11

Scheme of information element

12 Component (specific ID-code) Master Data (Technical Attributes) Origin (manufacturer) Design Characteristics Operating Parameters Operation Reports Operating Time Standby Time Event Reports Failure Event Maintenance & Inspection Intervals

In this proposed scheme the COMPONENT is the smallest unit. Each component has a defined component boundary.

Derived from ZEDB database

Components of Information System

13

Data Collection

Origin

• Historical

Records

• Fault Tracking
• Logbooks
• Observations
• Handbooks
• Data Initiatives

Objects

• Components
• Operation
• Failure
• Maintenance

Taxonomy

• Equipment
• System
• Subsystem
• Component

Roles

Administrator Component Provider Quality Manager Information User

• Role model
• Validation & trust of user

Anonymization

• Statistical data (MTTF, MTTR)
• Queries (by component,

subsystem, system)

Analysis

• Import & Export of data

User Interface (GUI)

Role Concept

14

Links between roles possible!
