Concept of a Portal for the Integration of COP-Objects from Heterogeneous Sources

slide-1
SLIDE 1

Command and Control Information Systems Research Institute for Communication, Information Processing and Ergonomics

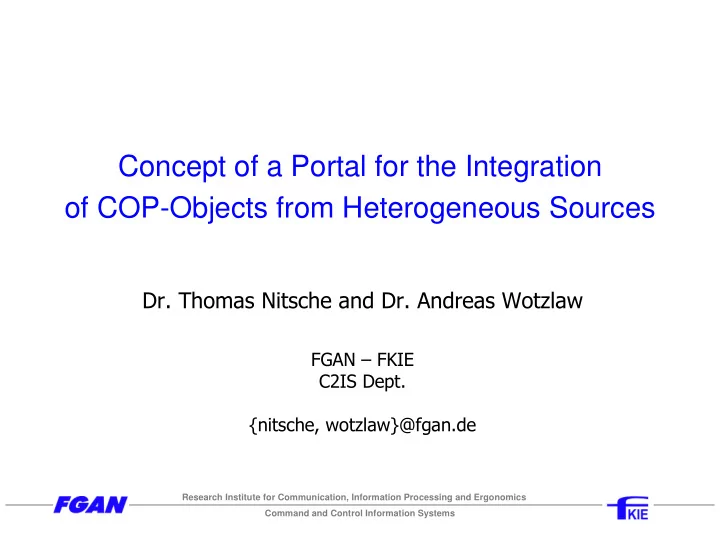

Concept of a Portal for the Integration

  • f COP-Objects from Heterogeneous Sources
  • !"#$%&
slide-2
SLIDE 2

Command and Control Information Systems

2

Research Institute for Communication, Information Processing and Ergonomics

  • C2IS should support network-centric operations (NCO)
  • C2IS must provide a global infospace connecting all participating elements
  • Joint, combined, interagency operations (JIMP) multi-disciplinary teams
  • Agility requires being able to respond to emerging situations
  • Heterogeneous systems to be included

Info- space

slide-3
SLIDE 3

Command and Control Information Systems

3

Research Institute for Communication, Information Processing and Ergonomics

& ' '

( )

slide-4
SLIDE 4

Command and Control Information Systems

4

Research Institute for Communication, Information Processing and Ergonomics

& ' '

( ) *+,

  • "."

/

slide-5
SLIDE 5

Command and Control Information Systems

5

Research Institute for Communication, Information Processing and Ergonomics

& ' '

( ) *+,

  • "."

/

A semantic integration is necessary.

slide-6
SLIDE 6

Command and Control Information Systems

6

Research Institute for Communication, Information Processing and Ergonomics

  • Is this proper integration?

Legacy systems and COTS products do not allow for an easy semantic integration: different business and logic data models heavy heterogeneous data to be integrated various formats and standards for communication, data storage, etc.

???

slide-7
SLIDE 7

Command and Control Information Systems

7

Research Institute for Communication, Information Processing and Ergonomics

  • System = collection of applications
  • Own GUI for each application integration on „pixel-level“
  • Disadvantages:
  • Workflow: application driven

(import edit store)

  • Difficult adaption to COP
  • Inconsistent, fragmented

& misleading visualization

  • Different views, symbols,

positions

Current Analysis Planning

01 0n

  • 1

12 n 12 (

slide-8
SLIDE 8

Command and Control Information Systems

8

Research Institute for Communication, Information Processing and Ergonomics

  • 1

12 n 12

  • COP views of different services are combined

within a common situational picture and service-crossing function calls are supported No ‚semantic’ integration at the business

  • bjects layer. Harmonization of logical data

models of services is not required! Integration of C2 applications at the visualization (presentation) layer

The integration idea: consolidation of the visualization data from the business objects of services and their appropriate visualization at a common presentation layer.

slide-9
SLIDE 9

Command and Control Information Systems

9

Research Institute for Communication, Information Processing and Ergonomics

Advantages of the integration portal: 1. Central integrated user interface based on COP

  • homogeneous overall view (uniform data visualization)
  • Misinterpretation and misunderstandings decreased

2. Better support for application-crossing business processes

  • more intuitive and efficient realization of business processes of the user
  • increased user acceptance

3. Encapsulation of GIS

  • elimination of redundant visualization components of C2IS
  • uniform presentation of spatial data
  • easy of exchangeability of GIS
  • product-independent integration of GIS (usage of open source possible)
slide-10
SLIDE 10

Command and Control Information Systems

10

Research Institute for Communication, Information Processing and Ergonomics

Full semantic integration:

  • time-consuming
  • very expensive
  • extremely complicated

Integration level

Portal technology Integration Portal:

  • no semantic integration necessary
  • no ultimate solution
  • flexible and cost-efficient compromise
slide-11
SLIDE 11

Command and Control Information Systems

11

Research Institute for Communication, Information Processing and Ergonomics

  • services pass visualizable data of their business objects to integration portal
  • integration portal presents only visualization elements
  • abstract, plattform independent objects
  • transformation of business objects into visualization elements required

Legacy System

Service 1 external transformation business objects IntPortal Core visualization elements

Visualization elements Function call

Service 2 internal transformatuion business objects

New Service

IntPortal

GUI

slide-12
SLIDE 12

Command and Control Information Systems

12

Research Institute for Communication, Information Processing and Ergonomics

BlueForceTracking Service Mail-Service Warning-Service

Btl 2 Coy 2 Coy 5 Btl 34

Send Mail Warning

Plt 2

+Updates

Information with priority

Plt 1

slide-13
SLIDE 13

Command and Control Information Systems

13

Research Institute for Communication, Information Processing and Ergonomics

BlueForceTracking Service Mail-Service Warning-Service

Btl 2 Coy 2 Coy 5 Btl 34

Send Mail Warning

Plt 2

associated

+Updates

Information with priority

Plt 1

slide-14
SLIDE 14

Command and Control Information Systems

14

Research Institute for Communication, Information Processing and Ergonomics

BlueForceTracking Service Mail-Service Warning-Service

Btl 2 Coy 2 Coy 5 Btl 34

Send Mail Warning

Plt 2

associated

+Updates

Information with priority

Plt 1

visualization data from business objects

IntPortal

user interface IntPortal Transformation

slide-15
SLIDE 15

Command and Control Information Systems

15

Research Institute for Communication, Information Processing and Ergonomics

!" !#$

V-Objects: abstract objects for visualization data of services visualized in the integration portal

unique identifier data to be visualized

  • ptional data, parameters, etc.

V-Object

  • bjectID

: String

  • bjectData

: Data [optional Parameter]

…

Example: .'345

V-Object

  • bjectID : Kp 2 Gfstd
  • bjectData :

…

Coordinate latitude : 34.513765 longitude: 69.173695 2DMilData coordinate : SID : SFGPUCIM--AEGEG

…

GUI IntPortal

slide-16
SLIDE 16

Command and Control Information Systems

16

Research Institute for Communication, Information Processing and Ergonomics

!"

Information groups: represents structured groupings of thematic-related v-objects

  • important structuring-tool
  • possesses structure and linear order on its nodes
  • two types of nodes: v-objects and groupings

Patrol

A01 A76 Streets single-lane multi-lane Btl 2 Btl 34 Coy 3 Coy 8 Plt I Blue Force Plt II Coy 5

Patrol Blue Force Btl 2 Coy 3 Coy 8 Plt I Plt II Btl 34 Coy 5 Streets multi-lane A01 A76 single-lane

slide-17
SLIDE 17

Command and Control Information Systems

17

Research Institute for Communication, Information Processing and Ergonomics

!" %

  • thematic-related v-objects constitute groups with similar functionalities
  • services assign their functions to groups which semantic they know
  • need for service-crossing standardization of description for information-groups

Service-functions: defined by some service, can be called by the user in the context of v-objects in the GUI, but are implemented and executed by the service itself

Send mail Get status Info

slide-18
SLIDE 18

Command and Control Information Systems

18

Research Institute for Communication, Information Processing and Ergonomics

!" %

  • thematic-related v-objects constitute groups with similar functionalities
  • services assign their functions to groups which semantic they know
  • need for service-crossing standardization of description for information-groups

Service-functions: defined by some service, can be called by the user in the context of v-objects in the GUI, but are implemented and executed by the service itself

Send mail Get status Info Subject: Plt 1, Plt 2 To: Warning Send mail On … Text: Cancel Send

slide-19
SLIDE 19

Command and Control Information Systems

19

Research Institute for Communication, Information Processing and Ergonomics

!" %

  • thematic-related v-objects constitute groups with similar functionalities
  • services assign their functions to groups which semantic they know
  • need for service-crossing standardization of description for information-groups

Service-functions: defined by some service, can be called by the user in the context of v-objects in the GUI, but are implemented and executed by the service itself

Send mail Get status Info Subject: Plt 1, Plt 2 To: Warning Send mail On … Text: Cancel Send

Mail-Service

slide-20
SLIDE 20

Command and Control Information Systems

20

Research Institute for Communication, Information Processing and Ergonomics

&

Communication IntPortal Services based on Requests and Answers Service-Requests: Service IntPortal

  • add, modify, and delete-requests for visualization elements

IntPortal-Requests: IntPortal Service, or IntPortal IntPortal Manager

  • for handling of user calls to service-functions
  • support the maintenance of the integration portal (e.g., log-off procedure)

Manager-Requests: IntPortal Manager IntPortal

  • manage the instantiation and initialization of the integration portal

Answers IntPortal-Requests Service-Requests Answers

IntPortal BlueForceTracking Service

…

Mail-Service IntPortal Manager

Answers Manager-Requests IntPortal-Requests Answers

slide-21
SLIDE 21

Command and Control Information Systems

21

Research Institute for Communication, Information Processing and Ergonomics

&

  • Visual Object Manager:

consistency-preserving processing of service-requests

  • Display Manager:

efficient maintenance of visualization elements and their preparation for visualization

  • Graphical User Interface:

ergonomic presentation & interaction with the user

IntPortal Service i Visual Object Manager GUI Display Manager

Service 1 Service n

…

Service 1 Service n

…

Visual Object Manager Visual Object Manager Display Manager Display Manager GUI GUI

Advantage: the components can be

distributed in the network according to the actual available resources

slide-22
SLIDE 22

Command and Control Information Systems

22

Research Institute for Communication, Information Processing and Ergonomics

%

Priority strategy:

  • enables for priority-based handling of requests
  • defines the processing order of requests
  • realized by dedicated components of integration portal: mediators

Update strategy:

  • makes sure that only the actual data is visualized
  • no more actual data is deleted or moved to history
  • implemented in request-mediators

Example: Split priority strategy

  • Every request gets from services two different priority-values:
  • Request-priority: valid among all requests of one service
  • Service-priority: valid among all services (cross-service)
  • Values allowed for priorities are given the services by some instance of access-

control-service

slide-23
SLIDE 23

Command and Control Information Systems

23

Research Institute for Communication, Information Processing and Ergonomics

!"

Integrationsportal

VisComp 1

(Hierarchies)

VisComp 3

(Funct. View)

VisComp 2

(Media Player)

…

…

VisComp k

GIS Wrap.

Service 1 Service n

… Integrationsportal

VisComp 1

(Hierarchies)

VisComp 3

(Funct. View)

VisComp 2

(Media Player)

…

…

VisComp k

GIS Wrap. GIS Wrap.

Service 1 Service n

…

  • Specific visualization components
  • As plug-ins
  • Fill their corresponding panels
  • Highly flexible, adaptable to various data types
slide-24
SLIDE 24

Command and Control Information Systems

24

Research Institute for Communication, Information Processing and Ergonomics

Integrationsportal

VisComp 1

(Hierarchies)

VisComp 3

(Funct. View)

VisComp 2

(Media Player)

…

…

VisComp k

GIS Wrap.

Service 1 Service n

… Integrationsportal

VisComp 1

(Hierarchies)

VisComp 3

(Funct. View)

VisComp 2

(Media Player)

…

…

VisComp k

GIS Wrap. GIS Wrap.

Service 1 Service n

…

'%

  • visualization of spatial data via GIS
  • encapsulation of GIS via appropriate visualization components

Advantages:

  • Elimination of redundant visualization components of C2IS
  • Uniform visualization of spatial data
  • Product-independence
  • Easy exchangeability of GIS (even open source GIS possible)

…

Vis-Component

GIS

Wrapper to visualization

GIS Panel

GUI

slide-25
SLIDE 25

Command and Control Information Systems

25

Research Institute for Communication, Information Processing and Ergonomics

%

  • New integration concept for COP
  • based on integration of visualization elements
  • heterogeneous sources of data
  • modular architecture
  • Integration portal as alternative solution for integration
  • Allows reuse of existing systems and services
  • Interesting compromise between portal technology and semantic integration
  • Step towards fully integrated, single system
  • Collaboration
  • Shared and integrated handling of COP-objects from heterogeneous sources
  • Hiding underlying complexity from the user
  • Increased effectiveness through natural, service-crossing workflows
slide-26
SLIDE 26

Command and Control Information Systems

26

Research Institute for Communication, Information Processing and Ergonomics

Thank you for your attention!
