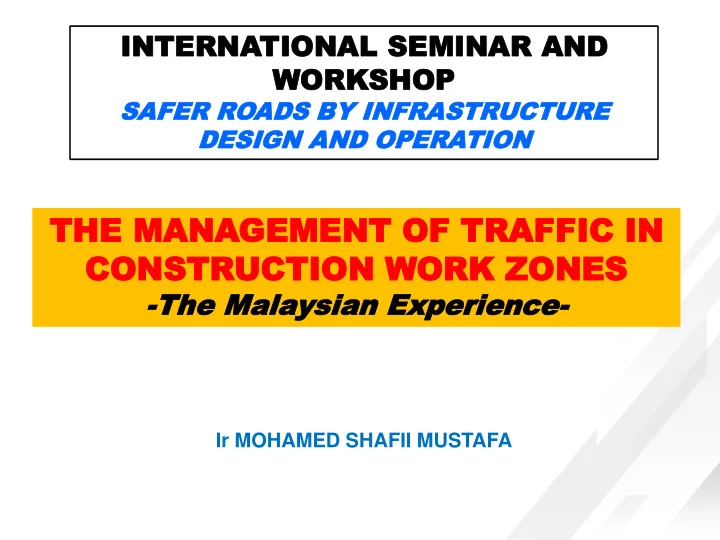

THE THE MAN MANAGEMENT GEMENT OF TRAFFIC OF TRAFFIC IN IN CON CONSTR STRUCTIO UCTION N WORK ORK ZON ZONES ES

  • The

he Malay Malaysian sian Exp Exper erienc ience-

Ir MOHAMED SHAFII MUSTAFA

INTERN INTERNATION TIONAL AL SEMI SEMINAR AR AND AND WORK ORKSHO SHOP

SAFER SAFER R ROAD ADS S BY BY IN INFRA FRASTR STRUCTU CTURE RE DESIGN DESIGN A AND ND OPERA OPERATION TION

slide-2
SLIDE 2

MOBILITY

ISSUES IN MANAGING TRAFFIC IN WORK ZONES

SAFETY

+

.... in an ever changing environment ...

slide-3
SLIDE 3

Haphazard placement of TCDs

slide-4
SLIDE 4

Night visibility are compromised

slide-5
SLIDE 5

Protection against Rigid Bodies are compromised

slide-6
SLIDE 6

INCREASED in accident types:

◼Fixed Object ◼Rear End ◼Head On

DECREASED accident types:

◼

Right Angle

◼

Turning

◼

Ran Off the Road

ALL THESE LEADS TO...

slide-7
SLIDE 7

There are also some good examples

slide-8
SLIDE 8

Good Examples

slide-9
SLIDE 9

Good Examples

slide-10
SLIDE 10

Which way do we go?

slide-11
SLIDE 11

ARAHAN TEKNIK (JALAN) 2C/85

1985

In 1985, the Malaysian Public Works Dept (PWD) produced their first Technical Instruction

  • n Traffic

Management at Work Zones

slide-12
SLIDE 12

12

ATJ 2C/85 (1985)

  • Focussing on Designs of TMP
  • Use of Standardised TCDs
  • Use of Templates for

Placement of TCDs

  • In 2003, added Standard BQ
slide-13
SLIDE 13

13

Use of Standardise TCDs

slide-14
SLIDE 14

14

Use of Templates for Placement of TCDs

slide-15
SLIDE 15

15

slide-16
SLIDE 16

16

Use of Traffic Control Zones

slide-17
SLIDE 17

17

ARAHAN TEKNIK (JALAN) 2C/85

1985 2003

+

NOTA TEKNIK (JALAN) 23/03

In 2003, added Standard BQ

slide-18
SLIDE 18

NOTA TEKNIK (JALAN) 26/08

Standard Bill Of Quantities

slide-19
SLIDE 19

In 2016, a revised Technical Instruction was produced

slide-20
SLIDE 20

A series of training, evaluations and audits were carried out....

Then,

slide-21
SLIDE 21

Training

slide-22
SLIDE 22

Site Training

slide-23
SLIDE 23

Site Audits

slide-24
SLIDE 24

2017

ATJ 2C/85 (Pindaan 2017)

These resulted in a revised Technical Instruction a year later, 2017

slide-25
SLIDE 25

Also... ROAD SPECIFICATION & BQ

JKR/SPJ/2017- S19

Latest Specification

slide-26
SLIDE 26

JKR/SPJ/2017- S19 19.1 GENERAL

19.2

THE EFFECTIVE IMPLEMENTATION OF TMWZ 19.3 TEMPORARY SIGNAGE 19.4 TEMPORARY ROAD MARKING 19.5 TRAFFIC MGMT EQUIPMENT

MATERIALS SPECIFICATIONS METHOD OF INSTALLATION APPLICATION REQUIREMENT

SPJ

slide-27
SLIDE 27

WHAT’S NEW ?

CONTENT

ATJ 2C/86 PINDAAN 2016 ATJ 2C/86 PINDAAN 2017 General Principles of Traffic Management at Work Zones Strategies for Effective Implementation Responsibility Planning of TMWZ Designing Principles TMWZ Typical Layout Taking Off Quantities Placement and Removal Maintenance of Traffic Control Zones Report Outline (TMP, TMSR) Temporary Traffic Control Devices

RESPONSIBILITY PLANNING SITE EXECUTION MAINTENANCE REPORTING

slide-28
SLIDE 28

The New Manual Focuses on

  • Roles of the Players
  • Monitoring and Reporting
  • Inspection and Maintenance

TRANSFORMATION

slide-29
SLIDE 29

TRANSFORMATION

... from focussing on

DESIGNS ...

... to focussing on

OPERATIONS ...

slide-30
SLIDE 30

ROLE OLES S OF OF PLA PLAYER YERS

slide-31
SLIDE 31
slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34
slide-35
SLIDE 35

DURING CONSTRUCTION STAGE

➢ TMP Monitored by Management Framework ➢ Contractor sets up TMT & ERT Teams ➢ Contractor designs Localised TCPs ➢ Contractor prepares TMSR ➢ Site Placements/Removals ➢ Maintenance of Work Zones ➢ TMO Daily Inspections ➢ RSA Audit TMP/TMSR

slide-36
SLIDE 36

TMP Working Teams

slide-37
SLIDE 37

➢ Design Localised TCPs ➢ Sets up TMT & ERT Teams ➢ Maintain Effectiveness of Localised TCPs ➢ Prepares TMSR ➢ Daily Inspections

Traffic Management Officer (TMO)

slide-38
SLIDE 38

➢ Ensure Effective Implementation of TCPs ➢ Efficient Placement and Removals of TCDs ➢ Ensure Safety and Smooth Traffic Flows ➢ Maintain Effectiveness of TCDs

Traffic Management Team (TMT)

slide-39
SLIDE 39

TMT at work

slide-40
SLIDE 40

TMT at WORK

slide-41
SLIDE 41

TMT at Work

slide-42
SLIDE 42

➢ Provide 24hr patrol of Work Zones ➢ Provide Traffic Control during emergency situations ➢ Implement Emergency Response Plan

Emergency Response Team (ERT)

slide-43
SLIDE 43

ERT at Work

slide-44
SLIDE 44

ERT at Work

slide-45
SLIDE 45

ERT at Work

slide-46
SLIDE 46
  • TMP Masterplan

(within 1 month of site possession)

  • Traffic Safety Management

Report

(every 3 months)

  • TMP Audit Report

(after every TMSR)

REPORTS

slide-47
SLIDE 47

➢ Comprehensive inspection and maintenance program ➢ Inspection procedures ➢ Frequency of Inspection ➢ Documentation ➢ Record Keeping

slide-48
SLIDE 48

Traffic Accid idents

slide-49
SLIDE 49

De Devices Di Displacement

slide-50
SLIDE 50

Da Damages Cau aused by y Con

  • nstruction Act

Activitie ies

slide-51
SLIDE 51

Repair Temporary Warnin ing Sig ignboard

Before After

slide-52
SLIDE 52

Reali ligned Con

  • ncrete Bar

arrie ier

slide-53
SLIDE 53

✓ To carry out routine inspection on all traffic control devices. ✓ Frequency of inspection depends on several factors. ✓ Documentation can be done through Inspection Form. ✓ Record Keeping can be done through Inventory Forms together with Site Diary complete with photos and brief description (date, time, location, etc)

slide-54
SLIDE 54

EXAMPLE FORM FOR IN INSPECTION

slide-55
SLIDE 55

In addition…

DESIGNS of TCPs have been simplified and standardised

slide-56
SLIDE 56

STANDARD DEFINITIONS TMWZ – Traffic Management at Work Zone

TMP – Traffic Management Plan TCP – Traffic Control Plan TCD – Traffic Control Devices TMO – Traffic Management Officer

slide-57
SLIDE 57

SIMPLIFIED DESIGN APPROACH

Traffic Categories

slide-58
SLIDE 58

Traffic Categories vs Length of Areas

slide-59
SLIDE 59

Construction Duration Categories

slide-60
SLIDE 60

Construction Duration vs TCD (Temporary Lane Closure)

Temporary Lane Closure) ( < 1 day )

slide-61
SLIDE 61

Construction Duration vs TCD (Road Diversion)

( >1 day but < 1 month) ( > 1 month)

slide-62
SLIDE 62

WORK ZONE LENGTH

Excavation

  • Length < 200m
  • Nos < 4

Work zone not including surcharge area

  • Length < 5km (rural)
  • Length < 2km (urban)
slide-63
SLIDE 63

OLD NEW

NEW SIGN FACES

slide-64
SLIDE 64

OLD NEW

slide-65
SLIDE 65

SIMPLIFIED SIGN ARRANGEMENTS

slide-66
SLIDE 66
slide-67
SLIDE 67

Work Area

slide-68
SLIDE 68

CONCLUDING REMARKS To achieve Safer Environment in Construction Work Zones, we have ... ➢ Shifted FOCUS from Designs to Operations ➢ Simplified and Standardise Designs ➢ Set up systems for CHECK & BALANCE ➢ Set up Monitoring Framework ➢ Set up Inspection & Monitoring ➢ Introduce frequent Reporting

slide-69
SLIDE 69

FRAMEW FRAMEWOR ORK K TO O MO MONI NITOR OR T TRA RAFF FFIC IC MAN MANAGEME GEMENT NT AT W T WORK ORK ZONE ZONE

slide-70
SLIDE 70

RESULTS…

slide-71
SLIDE 71

THANK YOU
