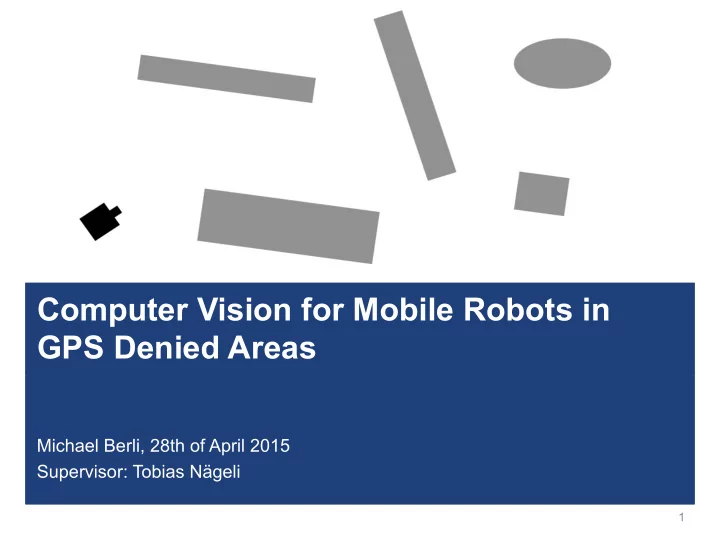

Michael Berli, 28th of April 2015 Supervisor: Tobias Nägeli

Computer Vision for Mobile Robots in GPS Denied Areas

1

2

Robots can work in places we as humans can't reach and they can do jobs we are unable or unwilling to do.

[1,2]

§ How do we make robots navigate autonomously?

Autonomous mobile robots

3

Robots should be able to explore an unknown environment and navigate inside this environment without active human control

Autonomous mobile robots

4

Mapless Map-Based Map-Building

§ Using computer vision for autonomous navigation

Robots

5

[3,4,5]

Type of robot § Autonomous Ground Vehicles Environment § Indoor environments (rooms, tunnels, warehouses) Sensors § Cameras, wheel sensors

Focus in this talk

6

Robot scenarios: Industrial-Automation

7

[6]

Robot scenarios: Inspection & Discovery

8

[7]

Robot scenarios: Space operations

9

[8]

The three navigation classes

10

Mapless Map-Based Map-Building

Mapless Navigation

11

Walk through Paris without colliding

[10]

Collision Avoidance

12

Optical Flow

13

Frame @ t Frame @ t+1 (x,y) (x+dx,y+dy) u v (x,y)

§ Describe the motion of patterns in successive images

14

Optical Flow

[11]

15

t0 t1

[11]

§ Get an understanding of depth in images § Time-To-Contact between a camera and an object

Optical Flow

16

[11]

Optical Flow: Time-To-Contact

17

Optical Flow: Time-To-Contact

18

Optical Flow: Time-To-Contact

19

FOE

Focus of Expansion Where the camera points at

Optical Flow: Time-To-Contact

20

FOE

Left Flow Right Flow Central Flow

TTCl TTCc TTCr

Obstacle Avoidance FSM

21

[23]

Inspired by biology

22

Inspired by biology

23

Inspired by biology

24

Maximum of

• ptical flow

§ Applications for visually impaired § Image Stabilization § Video Compression (MPEG) Drawbacks § Hard if no textures § Dynamic scenes?

Optical Flow: Further applications

25

The three navigation classes

26

Mapless Map-Based Map-Building

A E B F C G D

Map-Based Navigation

27

Use a map of Paris to navigate to champs elysée

[12]

Map-Based Navigation: Robot Scenario

28

[13]

Map-Based Navigation: Map Representation

29

Topological Map Graph-based representation of features and their relations, often associated with actions. Metric Map Two-Dimensional space in which objects and paths are placed.

path feature

+ simple and compact

• no absolute distances
• obstacle avoidance needed

+ very precise

• hard to obtain and to maintain

Map-Based Navigation Example

30

Use the topological map to navigate Build a topological map of the floor

Feature Extraction

31

Feature Elements which can easily be re-observed and distinguished from the environment

§ Features should be

§ Easily re-observable and distinguishable § Plentiful in the environment § Stationary

Room Identification

32

F

Signature Room F

[14]

33

Topological Map

[14]

Room Searching

34 Signature matching

[P]

§ Learning and maintenance is expensive § Use scanner tags or artificial beacons?

Drawbacks and Extensions

35

?

remove cupboard

The three navigation classes

36

Mapless Map-Based Map-Building

[15]

Map-Building Navigation

37

Leave your hotel in Paris, explore the environment and return to the hotel afterwards

[16]

§ Goal: in an unknown environment the robot can build a map and localize itself in the map § Two application categories

§ Structure from Motion (Offline) § Simultaneous Localization and Mapping (SLAM) ß Real-Time!

Map-Building Navigation

38

Structure from Motion (Offline)

Pros Cons

§ Well studied § Very accurate and robust solution § Offline approach § Changing environment requires new learning phase

39

Robot moves around and captures video frames Frame-To-Frame feature detection 3D Map and trajectory reconstruction

§ Build a map using dead reckoning and camera readings § We focus on EKF-SLAM (Extended Kalman Filter)

Simultaneous Localisation and Mapping (SLAM)

40

41

[15]

A map built with SLAM

42

[15]

§ Motion estimation with data from odometry and heading sensors

Dead Reckoning

43

Starting position Uncertainty Prediction

Six steps of map-building (1/2)

44

[17]

Six steps of map-building (2/2)

45

[17]

EKF-SLAM: The system

46

This system is represented by

• System state vector
• System covariance matrix

EKF-SLAM: The state vector

47

⌢ xv = xr yr θr ! " # # # $ % & & & ⌢ y1 = x1 y1 ! " # $ % & ⌢ y2 = x2 y2 ! " # $ % & ⌢ y3 = x3 y3 ! " # $ % &

EKF-SLAM: The covariance matrix

48

49

PREDICTION

• f Robot position

Feature Extraction Match predicted and

• bserved features

Camera PREDICTION

• f observed features

EKF Fusion Robot moved ESTIMATION

• f updated robot position

SLAM Process

§ Estimate robot‘s new position after a movement

Motion model

50

Motion model

• ld

position

• dometry

xv = fv( ˆ xv,u)

Estimated robot position

51

PREDICTION

• f robot position

Feature Extraction Match predicted and

• bserved features

Camera PREDICTION

• f observed features

EKF Fusion Robot moved ESTIMATION

• f updated robot position

SLAM Process

§ Based on the predicted robot position and the map, use a measurement model to predict which features should be in view now

Measurement model

52

SLAM Process

53

PREDICTION

• f robot position

Feature Extraction Match predicted and

• bserved features

Camera PREDICTION

• f observed features

EKF Fusion Robot moved ESTIMATION

• f updated robot position

Data matching

54

Prediction Camera

§ Match predicted and observed features

SLAM Process

55

PREDICTION

• f robot position

Feature Extraction Match predicted and

• bserved features

Camera PREDICTION

• f observed features

EKF Fusion Robot moved ESTIMATION

• f updated robot position

EKF Fusion

56

Prediction Camera Residual

EKF Fusion

57

EKF Update

58

§ Robustness in changing environments § Multiple robot mapping

SLAM – Research topics

59

Motion estimation of agile cameras

60

§ Real-Time SLAM with a Single Camera

§ Andrew J. Davison, University of Oxford, 2003

§ Parallel Tracking and Mapping for Small AR Workspaces

§ Georg Klein, David Murray, University of Oxford, 2007

[18]

§ No odometry data, fast and unpredictable movements § Use a constant velocity model instead of odometry

Motion estimation of agile cameras

61

xv = (x y z α β δ vx vy vz vα vβ vδ )

Position Orientation Velocity

62

[19]

Motion estimation of agile cameras

63

§ Real-Time SLAM with a Single Camera

§ Andrew J. Davison, University of Oxford, 2003

§ Parallel Tracking and Mapping for Small AR Workspaces

§ Georg Klein, David Murray, University of Oxford, 2007

[19]

Tracking and Mapping for AR Workspaces

64

[20]

65

[21]

§ What autonomous mobile robots are used for § How todays mobile robots navigate autonomously

§ mapless, map-based, map-building

§ The potential and the challenges of SLAM

What we have seen

66
