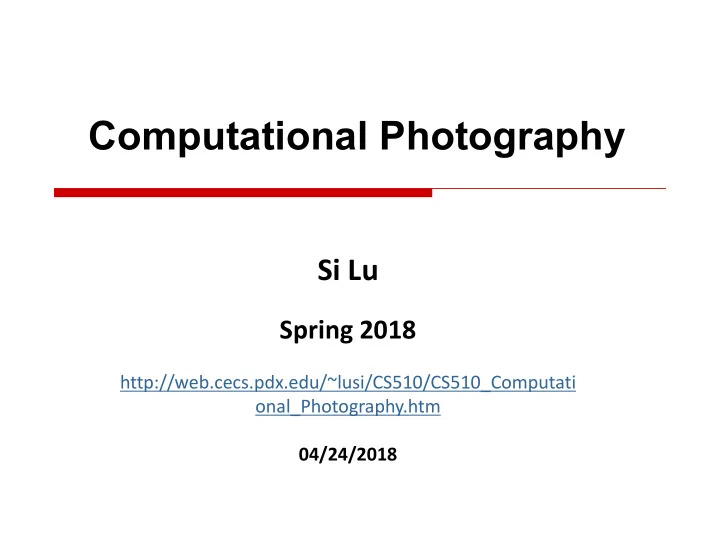

Computational Photography

Si Lu

Spring 2018

http://web.cecs.pdx.edu/~lusi/CS510/CS510_Computati

• nal_Photography.htm

04/24/2018

Last Time

2

• Relighting

n Tone Mapping n HDR

Today

• Panorama

n Overview n Feature detection n Feature matching

• Mid-term project presentation

n Not real mid-term n 8 minutes presentation n Schedule

• May 1 and 3

3

With slides by Prof. C. Dyer and K. Grauman

Panorama Building: History

4

Along the River During Ching Ming Festival

by Z.D Zhang (1085-1145 )

San Francisco from Rincon Hill, 1851, by Martin Behrmanx

Panorama Building: A Concise History

• The state of the art and practice is good at assembling

images into panoramas

n Mid 90s –Commercial Players (e.g. QuicktimeVR) n Late 90s –Robust stitchers(in research) n Early 00s –Consumer stitching common n Mid 00s –Automation

5

Stitching Recipe

• Align pairs of images
• Align all to a common frame
• Adjust (Global) & Blend

6

Stitching Images Together

7

When do two images “stitch”?

8

Images can be transformed to match

9

Images are related by Homographies

10

Compute Homographies

11

Automatic Feature Points Matching

• Match local neighborhoods around points
• Use descriptors to efficiently compare: SIFT

n [Lowe 04] most common choice

12

Stitching Recipe

• Align pairs of images
• Align all to a common frame
• Adjust (Global) & Blend

13

Wide Baseline Matching

• Images taken by cameras that are far apart make the

correspondence problem very difficult

• Feature-based approach: Detect and match feature

points in pairs of images

Credit: C. Dyer

• Detect feature points
• Find corresponding pairs

Matching with Features

Credit: C. Dyer

Matching with Features

• Problem 1:

n Detect the same point independently in both images

no chance to match!

We need a repeatable detector

Credit: C. Dyer

Matching with Features

• Problem 2:

n For each point correctly recognize the corresponding point

?

We need a reliable and distinctive descriptor

Credit: C. Dyer

• Local: features are local, so robust to occlusion and clutter

(no prior segmentation)

• Invariant (or covariant) to many kinds of geometric and

photometric transformations

• Robust: noise, blur, discretization, compression, etc. do

not have a big impact on the feature

• Distinctive: individual features can be matched to a large

database of objects

• Quantity: many features can be generated for even small
• bjects
• Accurate: precise localization
• Efficient: close to real-time performance

Properties of an Ideal Feature

Credit: C. Dyer

Problem 1: Detecting Good Feature Points

Credit: C. Dyer

[Image from T. Tuytelaars ECCV 2006 tutorial]

• Hessian
• Harris
• Lowe: SIFT (DoG)
• Mikolajczyk & Schmid:

Hessian/Harris-Laplacian/Affine

• Tuytelaars & Van Gool: EBR and IBR
• Matas: MSER
• Kadir & Brady: Salient Regions
• Others

Feature Detectors

Credit: C. Dyer

• C. Harris, M. Stephens, “A Combined Corner and Edge Detector,” 1988

Harris Corner Point Detector

Credit: C. Dyer

• We should recognize the point by looking

through a small window

• Shifting a window in any direction should give

a large change in response

Harris Detector: Basic Idea

Credit: C. Dyer

“flat” region: no change in all directions “edge”: no change along the edge direction “corner”: significant change in all directions

Harris Detector: Basic Idea

Credit: C. Dyer

 

2 ,

( , ) ( , ) ( , ) ( , )

x y

E u v w x y I x u y v I x y    



Change of intensity for a (small) shift by [u,v] in image I:

Intensity Shifted intensity Weighting function

• r

Weighting function w(x,y) = Gaussian 1 in window, 0 outside

Harris Detector: Derivation

Credit: R. Szeliski

Apply 2nd order Taylor series expansion:

  

     

y x y x y x y y x x

y x I y x I y x w C y x I y x w B y x I y x w A Bv Cuv Au v u E

, , 2 , 2 2 2

) , ( ) , ( ) , ( ) , ( ) , ( ) , ( ) , ( 2 ) , (

 

( , ) A C u E u v u v C B v             

x y x I I x    / ) , (

y y x I I y    / ) , (

Harris Detector

Credit: R. Szeliski

 

( , ) , u E u v u v M v       

Expanding E(u,v) in a 2nd order Taylor series, we have, for small shifts, [u,v], a bilinear approximation:

2 2 ,

( , )

x x y x y x y y

I I I M w x y I I I         



where M is a 2  2 matrix computed from image derivatives:

Note: Sum computed over small neighborhood around given pixel

x y x I I x    / ) , ( y y x I I y    / ) , (

Harris Corner Detector

Credit: R. Szeliski

 

( , ) , u E u v u v M v       

Intensity change in shifting window: eigenvalue analysis 1, 2 – eigenvalues of M

direction of the slowest change direction of the fastest change

(max)-1/2 (min)-1/2

Ellipse E(u,v) = const

Harris Corner Detector

Credit: R. Szeliski

1 and 2 both large

Image patch SSD surface

Selecting Good Features

Credit: C. Dyer

large 1, small 2

SSD surface

Selecting Good Features

Credit: C. Dyer

small 1, small 2

SSD surface

Selecting Good Features

Credit: C. Dyer

1 2 “Corner” 1 and 2 both large,

1 ~ 2;

E increases in all

directions

1 and 2 are small; E is almost constant

in all directions

“Edge” 1 >> 2 “Edge” 2 >> 1 “Flat” region Classification of image points using eigenvalues of M:

Harris Corner Detector

Credit: C. Dyer

Harris Corner Detector

Measure of corner response:

 

2

det trace R M k M  

1 2 1 2

det trace M M       

k is an empirically-determined constant; e.g., k = 0.05

Credit: C. Dyer

Harris Corner Detector

1 2 “Corner” “Edge” “Edge” “Flat”

• R depends only on

eigenvalues of M

• R is large for a corner
• R is negative with large

magnitude for an edge

• |R| is small for a flat

region R > 0 R < 0 R < 0 |R| small

Credit: C. Dyer

Harris Corner Detector: Algorithm

• Algorithm:
• 1. Find points with large corner

response function R

(i.e., R > threshold)

• 2. Take the points of local maxima
• f R (for localization) by non-

maximum suppression

Credit: C. Dyer

Harris Detector: Example

Credit: C. Dyer

Compute corner response R = 12 – k(1 + 2)2

Harris Detector: Example

Credit: C. Dyer

Harris Detector: Example

Find points with large corner response: R > threshold

Credit: C. Dyer

Take only the points of local maxima of R

Harris Detector: Example

Credit: C. Dyer

Harris Detector: Example

Credit: C. Dyer

Interest points extracted with Harris (~ 500 points)

Harris Detector: Example

Credit: C. Dyer

Harris Detector: Example

Credit: C. Dyer

Harris Detector: Summary

• Average intensity change in direction [u,v] can be

expressed in bilinear form:

• Describe a point in terms of eigenvalues of M:

measure of corner response:

• A good (corner) point should have a large intensity

change in all directions, i.e., R should be a large positive value

 

( , ) , u E u v u v M v       

 

2 1 2 1 2

R k       

Credit: C. Dyer

Harris Detector Properties

• Rotation invariance

Ellipse rotates but its shape (i.e., eigenvalues) remains the same Corner response R is invariant to image rotation

Credit: C. Dyer

• But not invariant to image scale

Fine scale: All points will be classified as edges Coarse scale: Corner

Harris Detector Properties

Credit: C. Dyer

Harris Detector Properties

• Quality of Harris detector for different scale

changes

Repeatability rate:

# correct correspondences # possible correspondences

• C. Schmid et al., “Evaluation of Interest Point Detectors,” IJCV 2000

Credit: C. Dyer

46

Invariant Local Features

• Goal: Detect the same interest points

regardless of image changes due to translation, rotation, scale, viewpoint

47

• Geometry

n Rotation n Similarity (rotation + uniform scale) n Affine (scale dependent on direction) valid for: orthographic camera, locally planar

• bject
• Photometry

n Affine intensity change (I  a I + b)

Models of Image Change

Credit: C. Dyer

SIFT Detector [Lowe ’04]

• Difference-of-Gaussian (DoG)

is an approximation of the Laplacian-of-Gaussian (LoG)  =

Lowe, D. G., “Distinctive Image Features from Scale-Invariant Keypoints”, International Journal of Computer Vision, 60, 2, pp. 91-110, 2004

Credit: C. Dyer

SIFT Detector

Credit: C. Dyer

SIFT Detector

Credit: C. Dyer

SIFT Detector Algorithm Summary

• Detect local maxima in

position and scale of squared values of difference-of-Gaussian

• Fit a quadratic to

surrounding values for sub-pixel and sub- scale interpolation

• Output = list of (x, y, )

points

Credit: C. Dyer

References on Feature Descriptors

• A performance evaluation of local descriptors, K.

Mikolajczyk and C. Schmid, IEEE Trans. PAMI 27(10), 2005

• Evaluation of features detectors and descriptors

based on 3D objects, P. Moreels and P. Perona, Int. J. Computer Vision 73(3), 2007

Credit: C. Dyer

Today

• Panorama

n Overview n Feature detection n Feature matching

53

With slides by Prof. C. Dyer and K. Grauman

Stitching Recipe

• Align pairs of images

n Feature Detection n Feature Matching n Homography Estimation

• Align all to a common frame
• Adjust (Global) & Blend

54

55

Invariant Local Features

• Goal: Detect the same interest points

regardless of image changes due to translation, rotation, scale, viewpoint

• After detecting points (and patches) in each image,
• Next question: How to match them?

?

Point descriptor should be:

• 1. Invariant
• 2. Distinctive

Feature Point Descriptors

All the following slides are used from Prof. C. Dyer’s relevant course, except those with explicit acknowledgement.

• 1. Detection: Identify the

interest points

• 2. Description: Extract feature

vector for each interest point

• 3. Matching: Determine

correspondence between descriptors in two views

] , , [

) 1 ( ) 1 ( 1 1 d

x x   x ] , , [

) 2 ( ) 2 ( 1 2 d

x x   x

Local Features: Description

Geometric Transformations

e.g. scale, translation, rotation

Photometric Transformations

Figure from T. Tuytelaars ECCV 2006 tutorial

Raw Patches as Local Descriptors

The simplest way to describe the neighborhood around an interest point is to write down the list of intensities to form a feature vector But this is very sensitive to even small shifts or rotations

§ Find local orientation

Dominant direction of gradient:

§ Compute description relative to this

• rientation

1 K.Mikolajczyk, C.Schmid. “Indexing Based on Scale Invariant Interest Points”. ICCV 2001 2 D.Lowe. “Distinctive Image Features from Scale-Invariant Keypoints”. Accepted to IJCV 2004

Making Descriptors Invariant to Rotation

• Compute histogram of local

gradient directions computed at selected scale in neighborhood

• f a feature point relative to

dominant local orientation

• Compute gradients within sub-

patches, and compute histogram of orientations using discrete “bins”

• Descriptor is rotation and scale

invariant, and also has some illumination invariance (why?)

SIFT Descriptor: Select Major Orientation

• Compute gradient orientation histograms on 4 x 4 neighborhoods over

16 x 16 array of locations in scale space around each keypoint position, relative to the keypoint orientation using thresholded image gradients from Gaussian pyramid level at keypoint’s scale

• Quantize orientations to 8 values
• 4 x 4 array of histograms
• SIFT feature vector of length 4 x 4 x 8 = 128 values for each keypoint
• Normalize the descriptor to make it invariant to intensity change

D.Lowe. “Distinctive Image Features from Scale-Invariant Keypoints,” IJCV 2004

SIFT Descriptor

64

• Stable (repeatable) feature points can

currently be detected that are invariant to

n Rotation, scale, and affine transformations, but not to more general perspective and projective transformations

• Feature point descriptors can be computed,

but

n are noisy due to use of differential operators n are not invariant to projective transformations

Feature Detection and Description Summary

Feature Matching

Wide-Baseline Feature Matching

• Standard approach for pair-wise matching:

n For each feature point in image A n Find the feature point with the closest descriptor in image B

From Schaffalitzky and Zisserman ’02

Wide-Baseline Feature Matching

• Compare the distance, d1, to the closest

feature, to the distance, d2, to the second closest feature

• Accept if d1/d2 < 0.6

n If the ratio of distances is less than a threshold, keep the feature

• Why the ratio test?

n Eliminates hard-to-match repeated features n Distances in SIFT descriptor space seem to be non-uniform

Feature Matching

• Exhaustive search

n for each feature in one image, look at all the other features in the other image(s)

• Hashing

n compute a short descriptor from each feature vector, or hash longer descriptors (randomly)

• Nearest neighbor techniques

n k-trees and their variants

Wide-Baseline Feature Matching

• Because of the high dimensionality of features,

approximate nearest neighbors are necessary for efficient performance

• See ANN package, Mount and Arya

http://www.cs.umd.edu/~mount/ANN/

Next Time

• Panorama

n Homography estimation n Blending n Multi-perspective panoramas

71
