COMPONENTS AND ACCESSORIES FOR THE AIR DIFFUSION, DISTRIBUTION AND REGULATION Dampers and operation kits Zone control system Supply air grilles Return air grilles Ceiling diffusers Adapters Y elbow Duct manifolds INDEX DAMPERS AND

SLIDE 1

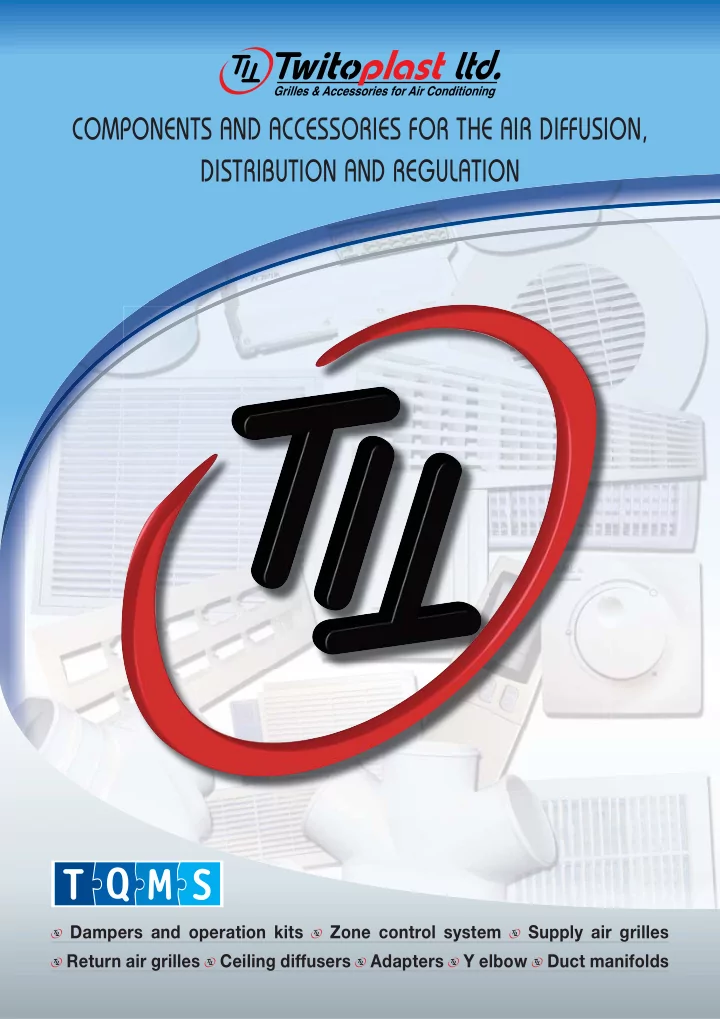

COMPONENTS AND ACCESSORIES FOR THE AIR DIFFUSION, DISTRIBUTION AND REGULATION

Dampers and operation kits Zone control system Supply air grilles Return air grilles Ceiling diffusers Adapters Y elbow Duct manifolds

SLIDE 2

Company Overview

Founded in 1989, Twitoplast is a privately owned company focusing on the development and manufacture of plastic accessories, primarily for the air conditioning market. With a solid proven achievement on saving an average of 45% on the installation time, together with a superior quality and excellent service, Twitoplast has successfully turned to be global an is now operating in 33 countries worldwide. Twitoplast’s revolutionary “Twito Quick Modular System (TQMS)” is the most effective and cost-efficient air distribution system on the market today. The system includes a variety of 750 products, including connectors, y-elbows, duct manifolds, return air grilles with & without filter, plenums, proportional electrical dampers, multizone control system, multiple ceiling diffusers, supply grilles and flexible ducts. Twitoplast’s products are registered patents in several countries, and manufactured from non-toxic plastic and withstand even under harsh environmental conditions. Twitoplast currently offers 8 groups of products, each complementary to the other.

INDEX

DAMPERS AND OPERATION KITS . . . . . . . . . . . . . . . . . . . . . . . . . 3 PROPORTIONAL MULTIZONE CONTROL SYSTEM UP TO 7 ZONES . . . . 9 DOUBLE DEFLECTION AIR SUPPLY GRILLES . . . . . . . . . . . . . . . . . . 13 RETURN AIR GRILLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 STRIP LINE GRILLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 LINEAR SLOT DIFFUSERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 CEILING DIFFUSERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 ADAPTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Y elbow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 DUCT MANIFOLDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Special products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

SLIDE 3

Our dampers are manufactured from corrosion- resistant ABS plastic. Insulating properties of this material prevent condensation making it ideal for use with heating/cooling air conditioning systems (temperature range 0- 65°C / 30-140 °F). Dampers serve as airflow capacity regulators in the

ducts. They control the air supply to the individual
users. These dampers are of the butterfly type and

allow adjustment of 90° from fully open to closed

position. 5 control methods are available:

Mechanical, electrical, thermostatic temperature

control. The thermostatic method allows to control

the dampers proportionally regarding the difference between the actual air temperature and the desired temperature.

DAMPERS AND OPERATION KITS

SLIDE 4

MODULAR ROUND DAMPERS

Available from diameter 4” up to 14”, the dampers are designed for the direct connection to the flexible ducts or straight to the duct manifold of the A/C unit. The dampers of 14”, 12” (8” on request) feature an

val shape. These dampers are uniquely designed

and the damper shell is split into two halves which are joined together on site. These stack able dampers ship compactly- saving storage space and shipping costs. Assembly is simple: slide the web into the slot, press the halves together until they click and the damper is ready for use. ABS modular damper diam. 100 mm (4”) DM1104 ABS modular damper diam. 150 mm (6”) DM1106 ABS modular damper diam. 200 mm (8”) DM1108 ABS modular damper diam. 200 mm

val shape (8”)

ABS modular damper diam. 250 mm (10”) DM1110 ABS modular damper diam. 300 mm

val shape (12”)

DM1112 ABS modular damper diam. 350 mm

val shape (14”)

DM1114 Also available 127 mm (5”) DM1105

OPPOSED BLADE DAMPERS

Opposed blade dampers for supply air grilles.

#Code

150x300 mm 12861530 150x400 mm 12861540 150x500 mm 12861550 200x300 mm 12862030 200x400 mm 12862040 200x500 mm 12862050

OPERATION KIT TYPE MECHANICAL

Mechanical operation kit type Mechanical: the control box is connected with 2 m (6-8”) long brake cable to the damper. The cable operates the butterfly to desired setting (On/Off). Oper kit Mechanical (wall) 128907 Oper kit Mechanical (Box) 128908 Oper kit Mechanical component ( New) 1400131

4 OPPOSED BLADE DAMPERS

Opposed blade dampers for ceiling diffusers.

#Code

O.B.D 225*225 For Ceiling Diffuser 12862222 O..B.D 305*305 For Ceiling Diffuser 12863030 O.B.D 385*385 For Ceiling Diffuser 12863838 modu ula lar da damp mper diam 100 mm (4 4”) ”) D Box Wall

Mac. Comp

Box W ll

SLIDE 5

OPERATION KIT TYPE EL-WM

The kit type EL-WM: is an electrical control toggle switch system which controls a motorized proportional damper. Main characteristics: Modern design

Can be installed as an independent unit
In any existing air conditioning system
Ergonomic and easy to operate
Easy adjusting of the airflow
Several intermediate positions that can be
Easily secured
Quick and easy installation
Dimmer for wall mount installation, motor unit for

damper, 6 m long RJ11 connection cable, installation and operation instructions. AC/DC 12V Transformator not included. Code# Operation kit Opal EL-WM 128913

UNIVERSAL REMOTE CONTROL

This nice and high tech remote control Specially disdain with transparent LCD . u can use with any kind / brands of air-conditioner ,By just pressing the SET button until the code of the A/C will flash on the LCD . The remote control is very thin and contain lithium battery . Code # UNIVERSAL REMOTE CONTROL 11890058

OPERATION KIT TYPE EL-BM

The kit type EL-MB: is an electrical control toggle switch System which controls a motorized proportional damper. Main characteristics:

Modern design
Can be installed as an independent unit in

any existing air conditioning system

Ergonomic and easy to operate
Easy adjusting of the airflow
Several intermediate positions that can be

easily secured

Quick and easy installation

Dimmer for box mount installation, motor unit for damper, 6 m long RJ11 connection cable, installation and operation instructions. AC/DC 12V Transformator not included. Code# Operation kit Opal EL-BM 128914

SLIDE 6

OPERATION KIT TYPE MOB 128DD

The kit type MOB 128DD is an electronic control unit for a proportional Motorized Opposed Blade Damper that maintains a required room temperature. It can be installed in any existing air conditioning system. The unit is based on a micro-controller that carries out the user’s instructions. The unit provides optimum control of the desired working temperature according to the selected operation mode. Main characteristics:

Modern design
Can be installed as an independent unit in any

existing air conditioning system

Ergonomic and easy to use
Cooling/Heating selector
Manual, automatic selector
Quick and easy installation

Package contents OPAL C128DD thermostat, motor unit for damper with frame adapter for the OBD, connection RJ11 cable lg. 6 m, installation and operation instructions

OPERATION KIT TYPE OPAL MOB RC-11

The OPAL MOB RC-11 is an electronic control system which controls a proportional Motorized Opposed Blade Damper. The system is based on a IR remote control unit that sends the operations commands to a wall mount IR receiver. The receiver is based on a strong micro-controller able to display the operating mode with 5 LEDs and to carry out the operation mode logic and algorithm. Main characteristics:

Setting timer
“I feel” temperature sensor on the remote control
ID code
On/Off, sleep mode
Can be installed as an independent unit in any

existing air conditioning system

Cooling/Heating selector
Manual, automatic or turbo selector
Modern design
Quick and easy installation

Package contents Remote control type KFD, receiver type C612KFD, motor unit for damper with frame adapter for the OBD, 6 m long RJ11 connection cable, batteries for the remote control, installation and operation instructions

OPERATION KIT TYPE MOB 650DD

The kit type MOB 650DD is an electronic control unit for a proportional Motorized Opposed Blade Damper that maintains a required room temperature. It can be installed in any existing air conditioning system. The unit is based on a micro-controller that carries out the user’s instructions. The unit provides optimum control

f the desired working temperature

according to the selected operation mode. Main characteristics:

Modern design
Display with back light
Flash mount thermostat for standard electrical box
Can be installed as an independent unit in any

existing air conditioning system

Ergonomic and easy to use
Cooling/Heating selector
Manual, automatic selector
Quick and easy installation

Package contents OPAL C650DD thermostat, motor unit for damper with frame adapter for the OBD, opposed blade damper dimensions 300x150 mm, 6 m long RJ11 connection cable, installation

and operation instructions.

ckage co cont nten ents k

SLIDE 7

CONNECTION CABLES RJ11

RJ11 connection cables for damper operation kits.

#Code

1005980400S0010 Length 4 m 140104 1005980450S0010 Length 6 m 140106 1005980500S0010 Length 10 m 140110 1005980550S0010 Length 15 m 140115 1005980550S0010 Length 20 m 140120

POWER SUPPLY TYPE C-315 FOR STAND ALONE CONFIGURATIONS

The power supply units type C-315 feature up to 4 12 V output channels for the electrical proportional dampers. Main characteristics:

Input nominal voltage 230 Vac 50-60 Hz
Non-flammable plastic ABS – V0
Motor operation voltage 12 V
Operation indication light
UL/IEC certificates

#Code

Power supply output 1 channel 1400315 Power supply output 2 channels 14003152 Power supply output 4 channels 14003154

SPLITTER FOR RJ11 CABLES

RJ11 connection cables for damper operation kits To split 2 dampers with 1 operation kit.

#Code

RJ spliter (for white cabel) 140011 RJ spliter (for black cabel) 140012

SLIDE 8

CONNECTION EXAMPLES “STAND ALONE” CONFIGURATION

S p l i t e r- C o n n e c t i n g o n e thermostat or one Remote control and 2 dampers by using the RJ-11splitter. C-3154 Power Supply box 4 channels- connecting 4 Remote controls or 4 thermostats through the power supply box to 4 dampers C-3152 Power Supply box 2 channels- connecting 2 Remote controls or 2 thermostats through the power supply box to 2 dampers C-3151 Power Supply box 1 channel-connecting Remote control or thermostat through the power supply box to the damper 8

SLIDE 9

PROPORTIONAL MULTIZONE CONTROL SYSTEM

Why zone control- ZC-207DK

Provides room by room comfort control
Reduces equipment run time
Eliminates hot/cold rooms
Works with conventional air conditioning units, fan coils and heat pumps.
Allows you to heat or cool only the areas you want, when you want
Saves energy and reduces utility bills up to 40%
Up to 7 modulation rooms (zones) + proportional electrical controlled BY-PASS
Quick and easy installation

18º 19º 22º 21º 19º 21º 20º

UP TO 7 ZONES

+ PROPRTIONAL BYPASS

SLIDE 10

PROPORTIONAL DRY CONTACT MULTIZONE ZONE SYSTEM ZC-207DK PROPORTIONAL MULTI ZONE SYSTEM- ZC-207

The Proportional Dry Contact Multi zone System Type ZC-207DK has a dry contact controller. Designed to control up to 7 zones with round ABS dampers (diam. 4”, 6”, 8”, 10” 12” or 14” ), and By–Pass electrical proportional damper, 2 relays and communication port. The communication port allows connecting additional controller to the main one. This feature allows connecting up to 14 zones to one system. The ZC-207DK have indication panel that will display the status of system

peration. It operates the air conditioning unit by two dry contacts relays and is not interfering with the air conditioning
controller. The A/C will receive the command to operate or shut off according to the total system demand for cooling or
heating. The controller receives operation commands from each zone and controls the air damper proportionally. The

system is equipped with quick connectors to ensure convenient and quick installation of the system elements. Package contents Power supply , Main board PCB, motor unit for by-pass damper, 8 black & red 6m long cables, installation and operation instructions. The Proportional Multi zone System ZC-207 is designed to control up to 7 zones with round ABS dampers (diam. 4”, 6”, 8”, 10” 12” or 14” ), By–Pass electrical proportional damper, 2 relays and communication port. The communication port allows connecting Additional controller to the main one. This feature allows connecting up to 14 zones to one system. The ZC-207 have indication panel that will display the status of system operation. It operates the air conditioning unit by two dry contact relays and is not interfering with the air conditioning controller. The A/C will receive the command to operate or shut off according to the total system demand for cooling or heating. The controller receives operation commands from each zone and controls the air damper proportionally. The system is equipped with quick connectors to ensure convenient and quick installation of the system elements. The controller C-207 automatically identifies the number of zones connected to it and the opening position of the dampers respectively, the controller will calculate the air conditioning load. According to the accumulation of the total openings of the dampers, the proportional electrical by-pass damper and air conditioner’s operation is adjusted to the required level of air

conditioning. Consequently, with the decrease in heat or cool load, the evaporator fan speed will decrease, the compressor

will stop its operation and in parallel, the by-pass damper will fully open to drain surplus air volume in the system and make an easy start for the fan in the next operation cycle. The main board C-207 controls: the evaporator fan speeds,

ne or two stage compressors, heat pump which operates

in the heating mode, condenser fan speeds and fan coil. Package contents Power supply, main board PCB, motor unit for by-pass damper, 7black&red 6m long cables, installation and operation instructions.2 sensors, c-130 panel control. k& d 6 l bl i t ll ti CODE# 1289207DK CODE# 1289207ZC

SLIDE 11

CODE# 128910KFD CODE# 1289650DD CODE# 128909

OPERATION KIT TYPE OPAL RC-11

The kit type OPAL RC-11 is an electronic control system which controls an electrical proportional damper. The system is based on a IR remote control unit that sends the operations commands to a wall mount IR receiver. The receiver is based on a strong micro-controller able to display the operating mode with 5 LEDs and to carry

ut the algorithm operation mode logic.

Main characteristics:

Setting timer
Remote control with “I feel” function
ID code
On/Off, sleep mode
Can be installed as an independent unit in any

existing air conditioning system

Cooling/Heating selector
Manual, automatic or turbo selector
Modern design
Quick and easy installation

Package contents Motor unit for damper, 6 m long RJ11 connection cable, batteries for the remote control, installation and

peration instructions.

OPERATION KIT TYPE OPAL 650-DD

The kit type OPAL 650DD is an electronic control unit for an electrical proportional damper that maintains a required room temperature. It can be installed in any existing air conditioning system. The unit is based on a micro-controller that carries out the user’s

instructions. The unit provides optimum control of the

desired working temperature according to the selected

peration mode.

Main characteristics:

Modern design
Display with back light
Flash mount thermostat for standard electrical box
Can be installed as an independent unit in any

existing air conditioning system

Ergonomic and easy to use
Cooling/Heating selector
Manual, automatic selector
Quick and easy installation

Package contents Motor unit for damper, connection RJ11 cable lg. 6 m, installation and operation instructions

OPERATION KIT TYPE OPAL C-128DD

The kit type OPAL C-128 is an electronic control unit for an electrical proportional damper that maintains a required room temperature. It can be installed in any existing air conditioning system. The unit is based on a micro-controller that carries out the user’s

instructions. The unit provides optimum control of the

desired working temperature according to the selected

peration mode.

Main characteristics:

Modern design
Can be installed as an independent unit in any

existing air conditioning system

Ergonomic and easy to use
Cooling/Heating selector
Manual, automatic selector
Quick and easy installation

Package contents Motor unit for damper, 6 m long RJ11 connection cable, installation and operation instructions.

DRY CONTACT FOR INVRTER A/C

For inverter A/C These cable are intended to be used for the connection of the dry contact from the ZC- 207DK of the multizone PCB to the dry contact of the ducted units Cable for Daikin unit 140130DK Cable for Mitsubishi unit 140130MS Cable for Sanyo unit 140130SN Cable for LG unit 140130LG Cable for Fujitsu unit 140130FJ

SLIDE 12

MULTI ZONE Kit ZC207DK 7 rooms+ By pass Opal RC-11 Kit Code # 128910KFD Opal 650DD KIT Code #1289650 DD Opal 128DD KIT Thermostat Code # 128909 Dampers Code # (4”) 100mm DM1104 (6”)160mm DM1106 (8”)200mm DM1108 10”)250mm DM1110 (12”)315mm DM1112 (14”)355mm DM1114 ZC 207 DK +PS200 Code # 1289207 DK Remote control +I.R receiver flush Mount Thermostat Wall Mount Thermostat 8 motor Cables 1 Motor Damper for bypass 1 RJ-11 cable 1 Motor Damper 1 RJ-11 cable 1 Motor Damper 1 RJ-11 cable 1 Motor Damper

2 Z O N E S 1 Room + 1 salon 1 + 2 O R 2 O R 2 + 3 2 D a m p e r s + 1 B Y- PA S S D a m p e r 3 Z O N E S 2 Room + 1 sal o n 1 + 3 O R 3 O R 3 + 4 3 D a m p e r s + 1 B Y- PA S S D a m p e r 4 Z O N E S 3 Room + 1 salon 1 + 4 O R 4 O R 4 + 5 4 D a m p e r s + 1 B Y- PA S S D a m p e r 5 Z O N E S 4 Room + 1 salon 1 + 5 O R 5 O R 5 + 6 5 D a m p e r s + 1 B Y- PA S S D a m p e r 6 Z O N E S 5 Room + 1 salon 1 + 6 O R 6 O R 6 + 7 6 D a m p e r s + 1 B Y- PA S S D a m p e r

SLIDE 13

DOUBLE DEFLECTION AIR SUPPLY GRILLES

13 13

The visible parts of the A/C system ducting are the air supply grilles covering the outlets which are usually wall-mounted near the ceiling and control the air distribution from the system (temperature range 0º up to 65ºC / 30 up to 140 ºF ). The air supply grilles consist of a row of adjustable louver blades in the front and a row of parallel blades in the back. In the front individual louvers are adjusted in each segment with a handle on the centre blade to adjust the air discharge angle in sideway direction. The back damper blades segment adjust the air discharge angle to up and down directions. Damper blades also control the air throw. Maximum airflow is obtained when blades are in straight position while a shorter throw is obtained when blades are in an inclined position. For a complete shut-off damper blades can be closed. For better distribution of the air we recommend to use our opposed blade dampers. The air supply grilles are made of non–toxic plastic ABS in standard glossy off-white color, preventing condensation, scratch and corrosion resistance, wipes clean, consistent color and wide range of colors availability. Sizes: double deflection supply grilles are built in a modular pattern and are supplied in 9 heights: 110, 150, 200, 220, 300, 330, 400, 440, 550 & 660 mm (4.5, 5.9, 7.9, 8.6, 11.8, 13, 15.7, 17, 21.5, 26” ).

SLIDE 14

DOUBLE DEFLECTION AIR SUPPLY GRILLES STANDARD

The Classic line grilles feature a clean smooth line and straight corners. Available in glossy white and pearl colors (RAL 9001).

h. 220 mm

CODE#

220x220 mm 11012222

220x330 mm

11012233

220x440 mm

11012244 220x660 mm 11012266 220x330 mm 11012233 220x440 mm 11012244 220x550 mm 11012255 220x660 mm 11012266 220x770 mm 11012277 220x880 mm 11012288 220x990 mm 11012299

h. 300 mm

300x300 mm 11013030 300x450 mm 11013045

300x600 mm

11013060

300x750 mm

11013075

300x900 mm

11013090

h. 330 mm

330x330 mm 11013333 330x440 mm 11013344 330x550 mm 11013355 330x660 mm 11013366 330x880 mm 11013388 330x990 mm 11013399 330x770 mm 11013377

h. 440 mm

CODE#

440x440 mm 11014444 440x550 mm 11014455 440x660 mm 11014466 440x770mm 11014477 440x880 mm 11014488 440x990 mm 11014499

h. 550 mm

550x550 mm 11015555 550x660 mm 11015565 550x770 mm 11015577 550x880 mm 11015588 550x990 mm 11015599

h. 660 mm

660x660 mm 11016666 660x770 mm 11016677 660x880 mm 11016688 660x990 mm 11016699

h. 110 mm

CODE#

110x110mm 11011111 110x220mm 11011122 110x330mm 11011133 110x440mm 11011144 110x550mm 11011155 110x660mm 11011166 110x770mm 11011177 110x880mm 11011188 110x990mm 11011199

h. 150 mm

150x200mm 11011520 150x300mm 11011530 150x350mm 11011535 150x400mm 11011540 150x500mm 11011550 150x600mm 11011560 150x650mm 11011565 150x700mm 11011570 150x800mm 11011580 150x900mm 11011590 150x1000mm 110115100

h. 200 mm

200x200mm 11012020 200x300mm 11012030 200x350mm 11012035 200x400mm 11012040 200x500mm 11012050 200x600mm 11012060 200x650mm 11012065 200x700mm 11012070 200x800mm 11012080 200x900mm 11012090 200x1000mm 110120100

SLIDE 15

COMBINED GRILLES

The combined grilles allow to integrate in one single product the air supply and the air return. The 600x200 and 440x220 mm models can be delivered along with the adapter already assembled onto the grilles.

CODE#

200x600 mm 111502060 200x600 mm with adapter 1115020601 200x800 mm 111502080 220x330 mm 220x440 mm with adapter 115022401

AIR SUPPLY GRILLES TYPE SUPER TECH

The Super Tech line is a new elegantly designed product that becomes an integral part in the appearance of the modern house, in addition to its functional advantages. The sizes are the Classic line supply grilles standard sizes and enable upgrading of existing grilles, already in use. Super Tech supply grilles are available in white, pearl and aluminum. A wider range of colors is available upon customer request.

h. 150 mm

CODE#

150x300 mm TE111530 150x400 mm TE111540 150x500 mm TE111550

h. 200 mm

200x300 mm TE112030 200x400 mm TE112040 200x500 mm TE112050

AIR SUPPLY GRILLES TYPE G

The frame of the Super G line is shaped with rounded and superfine pattern corners with the same dimensions of the Classic line

h. 150 mm

CODE#

150x300 mm SG111530 150x400 mm SG111540 150x500 mm SG111550

h. 220 mm

220x330 mm SG112233 220x220 mm SG112222

h. 300 mm

300x300 mm SG113030

h. 200 mm

200x300 mm SG112030 200x400 mm SG112040 200x500 mm SG112050

STRIP LINE - INJCETION

h. 110 mm

CODE#

110x800 mm 1179110800 110x1000 mm 11791101000 110x1200 mm 11791101200 110x1500 mm 11791101500 110x2000 mm 11791102000

h. 97 mm

CODE#

97x800 mm 117997800 97x1000 mm 1179971000 97x1200 mm 1179971200 97x1500 mm 1179971500 97x2000 mm 1179972000

STRIP LINE WITH BACK BLADE

h110MM 11799999 h.97mm 11799799

SLIDE 16

DOUBLE DEFLECTION AIR SUPPLY GRILLES

PERFORMANCE

OPENING VELOCITY [m/sec] 1,5 2 2,5 3 3,5 4 4,5 5 110x110 Air Flow [mc/h] 43 54 68 97 83 112 126 140 PL [Pa] 2 3 5 7 10 13 16 19 Throw [m] 1,8 2,2 2,6 2,9 3,3 3,6 3,8 4,1 Noise [dB(A)] 15 17 19 22 23 25 28 30 220x110 Airflow [mc/h] 83 112 140 194 165 223 252 277 PL [Pa] 2 4 6 8 10 13 17 20 Throw [m] 2,5 3,1 3,7 4,2 4,7 5,1 5,5 5,8 Noise [dB(A)] 17 19 22 24 26 28 30 31 330x110 Airflow [mc/h] 126 166 209 292 252 335 378 418 PL [Pa] 2 4 6 8 11 14 17 21 Throw [m] 3 3,7 4,3 4,9 5,4 5,9 6,4 6,8 Noise [dB(A)] 18 20 23 25 27 29 31 33 440x110 Airflow [mc/h] 166 223 277 389 335 446 500 558 PL [Pa] 2 4 6 8 11 14 18 22 Throw [m] 3,5 4,2 4,9 5,6 6,2 6,7 7,3 7,7 Noise [dB(A)] 19 21 24 26 28 31 33 35 300x150 Airflow [mc/h] 158 212 263 371 317 425 475 529 PL [Pa] 2 4 6 8 11 14 18 21 Throw [m] 3,4 4,1 4,8 5,4 6 6,6 7,1 7,6 Noise [dB(A)] 19 21 24 26 28 30 33 35 400x150 Air Flow [mc/h] 209 277 346 486 418 554 626 695 PL [Pa] 2 4 6 9 12 15 18 22 Throw [m] 4 4,8 5,5 6,2 6,9 7,5 8,1 8,6 Noise [dB(A)] 19 22 25 27 30 32 34 37 500x150 AirFlow [mc/h] 256 342 428 598 515 684 770 857 PL [Pa] 2 4 6 9 12 15 19 23 Throw [m] 4,5 5,3 6,2 6,9 7,7 8,4 9 9,6 Noise [dB(A)] 20 23 26 28 31 33 36 38 600x150 AirFlow [mc/h] 317 425 529 742 634 846 950 1058 PL [Pa] 3 4 7 9 12 16 19 23 Throw [m] 5,1 6 6,9 7,8 8,6 9,4 10,1 10,8 Noise [dB(A)] 21 24 27 30 33 35 38 40 800x150 AirFlow [mc/h] 382 489 594 738 630 864 990 1062 PL [Pa] 3 4 7 9 12 16 19 25 Throw [m] 5,1 6,1 7 7,8 8,7 9,5 10,2 10 Noise [dB(A)] 22 25 27 31 34 35 38,5 41 900x150 AirFlow [mc/h] 475 634 792 1108 950 1271 1429 1588 PL [Pa] 3 5 7 10 13 16 20 24 Throw [m] 6,5 7,6 8,7 9,8 10,8 11,7 12,6 13,5 Noise [dB(A)] 23 26 29 33 36 39 42 45 300x200 AirFlow [mc/h] 220 292 367 515 439 587 659 734 PL [Pa] 2 4 6 9 12 15 18 22 Throw [m] 4,1 4,9 5,7 6,4 7,1 7,7 8,3 8,9 Noise [dB(A)] 20 22 25 27 30 32 35 37 400x200 AirFlow [mc/h] 292 392 490 684 587 781 878 979 PL [Pa] 2 4 7 9 12 15 19 23 Throw [m] 4,8 5,8 6,6 7,5 8,3 9 9,7 10,3 Noise [dB(A)] 21 24 206 29 32 35 37 40 500x200 AirFlow [mc/h] 367 490 612 857 734 979 1102 1220 PL [Pa] 3 4 7 9 12 16 20 24 Throw [m] 5,5 6,6 7,5 8,5 9,3 10,2 11 11,7 Noise [dB(A)] 22 25 28 31 34 37 39 42 600x200 AirFlow [mc/h] 439 587 734 1026 878 1174 1321 1465 PL [Pa] 3 5 7 10 13 16 20 24 Throw [m] 6,2 7,3 8,4 9,4 10,3 11,2 12,1 12,9 Noise [dB(A)] 22 26 29 32 35 38 41 44 800x200 AirFlow [mc/h] 587 781 979 1368 1174 1566 1760 1955 PL [Pa] 3 4 7 9 12 16 20 24 Throw [m] 7,3 8,6 9,8 10,9 12,1 13,1 14,1 15,1 Noise [dB(A)] 23 27 31 34 38 41 44 47 900x200 AirFlow [mc/h] 659 878 1101 1541 1321 1760 1980 2200 PL [Pa] 2 4 7 9 12 16 19 23 Throw [m] 7,8 9,1 10,4 11,6 12,8 13,9 15 16 Noise [dB(A)] 24 28 31 35 39 42 45 48 220x220 AirFlow [mc/h] 166 223 277 389 335 446 500 558 PL [Pa] 2 4 6 8 11 14 18 22 Throw [m] 3,5 4,2 4,9 5,6 6,2 6,7 7,3 7,7 Noise [dB(A)] 19 21 24 26 28 31 33 35 440x220 AirFlow [mc/h] 331 446 554 777 670 893 1001 1116 PL [Pa] 2 47 7 9 12 16 19 23 Throw [m] 7 8,4 9,8 11,2 12,4 13,4 14,6 15,4 Noise [dB(A)] 20 22 25 27 30 33 35 38 PART NUMBER L1 L2 B1 B2 110x110 173 110 173 110 110x220 284 220 173 110 110x330 395 330 173 110 110x440 504 442 173 110 150x300 364 300 213 150 150x400 460 400 213 150 150x500 561 500 213 150 150x600 663 600 213 150 PART NUMBER L1 L2 B1 B2 150x800 863 800 213 150 150x900 963 900 213 150 200x300 363 300 263 200 200x400 465 400 263 200 200x500 562 500 263 200 200x600 664 600 263 200 200x800 863 800 263 200 200x900 964 900 263 200 220x220 284 220 284 220 220x440 504 444 284 222

L2 L1 H1 H2 B2 B1

SLIDE 17

RETURN AIR GRILLES

Our return air grilles with or without filter are manufactured by injection molding from ABS

plastic. This material is corrosion-resistant.

Insulating properties of ABS plastic prevent condensation making it ideal suitable for use with air conditioning systems both cool and heat (temperature range 0 to 65 °C / 30 to 140 °F). The attractive return air grilles blend in with room décor and can be mounted on the wall or the ceiling. Standard color is glossy off- white; other colors can be supplied for large quantities.

SLIDE 18

18 18

RETURN AIR GRILLES WITH FILTER

Return air grilles with filter are equipped with two pieces molded frames: outer frame for direct mounting to the wall or ceiling, inner removable frame with grille housing and filter drawer. Inner removable frame is always 20 mm. The filter has high resistance and is easy to clean (washable).

RETURN AIR GRILLES WITHOUT FILTER

Return air grille without filter are built from two

parts. The grille is injected as one piece unit which is

equipped with curved blades with 19 mm spacing and 30º down deflection and a frame. Three frame widths are available: narrow 20 mm, regular 30 mm and wide 40 mm. Other sizes available. Other sizes available.

h. 110 mm

code#

110 x220 mm 11841122 110 x330 mm 11841133 110 x440 mm 11841144

h. 150 mm

150 x300 mm 11841530 150 x350 mm 11841535 150 x400 mm 11841540

h. 200 mm

200 x700 mm 11842070

h. 220 mm

220 x220 mm 11842222 220 x330 mm 11842233 220 x440 mm 11842244 220 x550 mm 11842255 220 x660 mm 11842266 220 x880 mm 11843030

h.300 mm

300x300 11891122

h. 110 mm code#

110 x220 mm 11801122 110 x330 mm 11801133 110 x440 mm 11801144

h. 150 mm

150 x150 mm 11801515 150 x200 mm 11801520 150 x300 mm 11801530 150 x350 mm 11801535 150 x400 mm 11801540

h. 220 mm

220 x220 mm 11802222 220 x330 mm 11802233 220 x440 mm 11802244 220 x550 mm 11802255 220 x660 mm 11802266 220 x880 mm 11802288

h. 300 mm

300x300 mm 11803030

h. 330 mm

code#

330 x330 mm 11843333 430 x330 mm 11843343 330 x550 mm 11843355

h. 400 mm

400 x1200 mm 118440120 400 x400 mm 11844040 400 x600 mm 11844060 400 x800 mm 11844080

h. 440 mm

440 x440 mm 11844444

Altre

500 x600 mm 11845060 600 x600 mm (T bar) 11846060 525 x525 mm (T bar) 11845252

h. 330 mm

code#

330 x330 mm 1180333 330 x370 mm 11803337 330 x440 mm 11803344 330 x550 mm 11803355

h. 440 mm

440 x440 mm 11804444

h. 400 mm

400 x400 mm 11804040 400 x800 mm 11804080 400 x1200 mm 118040120

h. 600 mm

500 x600 mm 11806050 400 x600 mm 11806040 600 x600 mm 11806060

h. 520 mm

520 x520 mm (T bar) 1180525

SLIDE 19

Return air grilles with filter and adapter is used to return the air through the filter from the room to the indoor unit or open

space. The grille is safe and nicely designed.

#Code 150x150 mm 11841515 150x300 mm 11841530 220x220 mm 11842222 220x550 mm 11842255 300x300 mm 11843030 595x595 mm 11845252 400x600 11844060

RETURN AIR GRILLES FOR DOORS

This grille is manufactured by injection as one piece and it’s supplied in two units. Each unit is assembled on each side

f the lower part of the door. The grille enables air outlet

even if the door is closed. The grille will fit all kind of doors. #Code 110x330 mm 11801133 150x300 mm 11801530 150x350 mm 11801535 150x400 mm 11801540 220x220 mm 11802222 220x330 mm 11802233 220x440 mm 11802244 300x300 mm 11803030

EGG CRATE RETURN AIR GRILLES WITH FILTER

Return air grilles with filter are manufactured by injection

molding. The method for fixing the Egg Crate is screw fixing

through the flange face or through the flange neck. CODE# 150x150 mm 11861515 300x150 mm 11861530 200x200 mm 11862020 250x250 mm 11862525 300x300 mm 11863030 595x595 mm 11865995

RETURN WITH FILTER

SLIDE 20

RETURN AIR GRILLE WITH FILTER

CODICE L1 L2 B1 B2 H1 150x300

380 304 234 156 11

150x350

436 358 235 156 11

150x400

460 400 213 150 5

220x220

301 227 301 227 11

220x330

413 338 301 223 11

220x440

522 446 301 226 11

220x550

631 550 301 219 11

220x880

966 889 306 227 11

300x300

384 306 384 306 11

400x400

480 406 480 406 11

400x600

682 610 480 406 11

600x600

655 580 655 580 11

540x540

623 535 623 535 10

DIMENSIONS

SLIDE 21

STRIP LINE GRILLES

Plastic strip line grilles are used to accommodate architectural and aesthetic requirements. They are usually fitted in the side wall or to window sills and may be used for supply or return air applications. Louvers are of the fixed blade design. The “no drip” feature of the material used in their construction ensures elimination of condensate dripping. Additionally any RAL can be supplied. Our strip line adapters (plenums) are available as accessories for 4 to 9 slot versions and up. These are designed to save on additional fabrication and field labor costs by allowing for simple connection to flexible ducting

For long strip line (IOM AND UP) we provide in parts.

There are 2 sizes of frame: 10 or 20 mm. Thanks to the modular design the strip line grilles are available in any length

DIMENSIONS

No. of louvers

Neck height in mm 4 71 5 84 6 97 7 110 8 123 9 136 * Height can be increase every 13 mm.

SLIDE 22

LINEAR SLOT DIFFUSERS

Our plastic linear slot diffusers provide a combination of engineering excellence and architectural appeal in a single product. The geometric plastic slot construction contributes to clean and crisp straight lines without affecting the air distribution performance. These products can be applied to ceilings or high side wall locations. Since these diffusers feature an adjustable supply air pattern, they are intended for pre-setting by the installer for optimum airflow performance. Our plastic slot diffusers are very suitable for VAV applications as they can maintain stable horizontal air patterns over a wide range of air volumes; even down to low airflow rates. Aerodynamically shaped pattern controllers contribute to the performance stability while providing a full 180° of air pattern adjustment. A choice of 3 slot widths is available. The number of slots can range from 1 to 10 all in one piece

construction. The manufacturing process allows that almost any length can

be accommodated. The standard color is white. Options to supply any recognized RAL color exist for special orders subject to minimum quantity requirements being satisfied.Our slot adapter (plenums) are available as accessories for 2 to 3 slot versions. These are designed to save on additional fabrication and field labor costs by allowing for simple connection to flexible ducting.

n of engineering

For long slot (IOM AND UP) we provide in parts.

DIMENSIONS (mm)

No. of slots

B N 1 70 39 2 108 78 3 145 115 4 182 153 5 222 192 6 260 230

SLIDE 23

CEILING DIFFUSERS

Our ceiling diffusers are made by injection molding from ABS non-toxic plastic suitable for hot or cold air (0 to 65 °C / 30 to 140 °F). The attractive diffuser blends in with any white room decor, prevents condensation, has light weight and is scratch and corrosion resistant. Standard color is glossy off-white but other varieties of colors are available. The basic diffuser consists of three sections: the centre core, the frame and the adapter (plenum). The centre core distributes the air in a uniform distribution pattern. Low air discharge angles assure a draft free zone of occupancy. The out flowing air jet mixes rapidly with the room air, thereby equalizing temperature throughout the whole occupied space. The adapter determines the neck diameter and the frame determines face dimensions. Various neck and face dimension combinations are possible. Both neck diameter and face dimension are required for specification of diffuser size. The diffusers can be equipped with contiguously adjustable baffle damper. The baffle damper is subdivided into 3 lobes and is operated

Manually. The diffuser can be closed completely thereby shutting off space not in use. In the open position

the baffles are placed one behind the other obstructing only three narrow sectors which are 120° apart. Baffle opening and angular location of the lobes can be set by an easily accessible knob in the centre of the diffuser space. The diffuser fits the standard T-bar 595, 600and 625 mm or plaster ceiling. Our opposed blade dampers are available and recommended for better air flow control.

Our ceiling diffusers are available in 5 different configurations:

1. Square Ceiling Diffuser with or without baffle damper CEILING DIFFUSERS

2.Round Ceiling Diffuser with or without baffle damper 3.Square Ceiling Diffuser two ways 4.Square Ceiling Diffuser three ways 5.Square Ceiling Diffuser double deflection.

SLIDE 24

4 WAYS AIR PATTERN SQUARE DIFFUSERS

code#

330x330 mm 1150221 440X440 mm 1150301 595x595 mm opening 225x225 mm 1151221 T-BAR 595x595 mm opening 305x305 mm 1151301 T-BAR 595x595 mm opening 385x385 mm 1151381 T-BAR 595x595 mm opening 460x460 mm 1151451 T-BAR 625x625 mm opening 305x305 mm 1153301 T-BAR 625x625 mm opening 225x225 mm 1153221 T-BAR

SQUARE DIFFUSER WITH EGG CRATE

code#

595X595 mm opening 225x225 mm T-BAR 1153221 595X595 mm opening 305x305 mm T-BAR 1153301 595x595 mm opening 385x385 mm T-BAR 1153381

2 WAYS AIR PATTERN SQUARE DIFFUSER

code#

330x330 mm 1150122 440X440 mm opening 305x305 mm 1150302

3 WAYS AIR PATTERN SQUARE DIFFUSERS

code#

330X330 mm 1150223

ROUND DIFFUSERS

code#

Diam. 330 mm opening diam. 240 mm

1160201

Diam. 440 mm

1160261 Diam.585 mm opening diam. 350 mm 1160311 FOR T-BAR

585x585 mm 585 diam. opening diam. 350 mm

1161311 * can be provided with damper

SLIDE 25

duct-diam.

pening (mm)

NA cm2 velocity m/sec 2 2,5 3 3,5 4 5 6 7 8 8” (200) 314 Flow rate m3/h 234 292 349 410 468 583 702 817 932 225x225 PL Pa 4 8 12 17 22 34 48 65 83 Throw m 0,6 0,7 0,9 1 1,2 1,5 1,8 2,1 2,4 Noise dB(A) 20 23 25 28 31 36 41 45 50 10” (250) 490 Flow rate m3/h 364 457 547 637 731 911 1094 1278 1458 305x305 Flow rate m3/h 364 457 547 637 731 911 1094 1278 1458 PL Pa 6 10 15 21 27 42 59 78 100 Throw m 0,8 1 1,2 1,4 1,6 1,9 2,3 2,7 3,1 Noise dB(A) 20 24 28 31 34 40 46 50 54 12” (300) 707 Flow rate m3/h 526 655 788 918 1051 1314 1577 1840 2102 385x385 PL Pa 8 13 18 25 32 50 70 94 122 Throw m 0,9 1,2 1,4 1,7 1,9 2,4 2,8 3,3 3,8 Noise dB(A) 22 26 30 34 38 44 49 54 57 duct-diam.

pening (mm)

NA cm2 velocity m/sec 2 2,5 3 3,5 4 5 6 7 8 8” (200) 324 Flow rate m3/h 234 292 349 410 468 583 702 817 932 330 PL Pa 7 10 15 20 26 40 58 80 105 Throw m 0,7 1 1,2 1,4 1,6 2 2,3 2,5 2,7 Noise dB(A) 23 26 28 31 33 38 42 46 50 10” (250) 490 Flow rate m3/h 364 457 547 637 731 911 1094 1278 1458 440 PL Pa 10 14 20 27 36 56 80 110 144 Throw m 1,1 1,4 1,7 1,9 2,2 2,6 3 3,2 3,4 Noise dB(A) 25 29 32 35 37 43 48 52 56 10” (250) 490 Flow rate m3/h 526 655 788 918 1051 1314 1577 1840 2102 585 PL Pa 13 19 27 36 46 70 100 135 176 Throw m 1,4 1,8 2,1 2,4 2,7 3,2 3,6 3,9 4,1 Noise dB(A) 28 31 34 37 40 46 51 55 60

PERFORMANCE SQUARE DIFFUSERS PERFORMANCE ROUND DIFFUSERS

SLIDE 26

SLIDE 27

ADAPTERS (PLENUMS)

Adapters are used as connectors between supply grilles or ceiling diffuser and return air grilles on one side and to the flexible ducts in the other side. Large various combinations of adapters are available including different sizes and diameters of outlets to fit flexible ducts from 4’’-14’’. The connection to the flexible duct is either round or oval according to the size of the adapter. The various sizes of the adapters are of the various sizes of our grilles and are fit to contain opposed blade dampers for supply grilles or for ceiling diffusers. Adapters in angle of 90º as a solution for lack of space in the ceiling are also available. The adapters are manufactured by injection molding and from corrosion-resistant ABS plastic material. Insulating properties of this material prevent condensation making it ideal suitable for use with A/C systems that both cool and heat (temperature range 0 to 65ºC / 30º to 140 ºF). Special customer specifications are produced by vacuum forming as well as adapters for the indoor units of the existing A/C.

SLIDE 28

ADAPTERS FOR SUPPLY GRILLES

For grilles h. 110 mm CODE#

110 x110 mm diam. 100 mm (4”) 1200111104 110 x110 mm diam. 150 mm (6”) 1200111106 110 x220 mm diam. 100 mm (4”) 12001122040 110 x220 mm diam. 125 mm (5”) 12001122050 110 x220 mm diam. 150 mm (6”) 12001122060 110 x220 mm diam. 200 mm (8”) 12001122080 110 x330 mm diam. 125 mm (4”) 12001133040 110x330 mm diam. 150 mm (6”) 90º 120011330621 110 x330 mm diam. 150 mm (6”) 12001133060 110 x330 mm diam. 200 mm (8”) 12001133080 110 x330 mm diam. 250 mm (10”) 12001133100 110 x440 mm diam. 150 mm (6”) 12001144060 110 x440 mm diam. 200 mm (8”) 12001144080 110 x440 mm diam. 250 mm (10”) 12001144100 110 x550 mm diam. 150 mm (6”) 12001155060 110 x550 mm diam. 200 mm (8”) 12001155080 110 x550 mm diam. 250 mm (10”) 12001155100 110 x550 mm diam. 300 mm (12”) 12001155120 110 x660 mm diam. 150 mm (6”) 12001166060 110 x660 mm diam. 200 mm (8”) 12001166080 110 x660 mm diam. 250 mm (10”) 12001166100 110 x660 mm diam. 300 mm (12”) 12001166120 110 x770 mm diam. 200 mm (2x8”) 1200111188280 110 x770 mm diam. 200 mm (8”) 120011110080 110 x770 mm 1 connection diam. 200 mm e 1 connection

diam. 150 mm (1x8” + 1x6”)

120011770806 110 x880 mm diam. 200 mm (2x8”) 12001188280

For grilles h. 120 mm

120x1120 mm 1 connection diam. 200 mm e 1 connection

diam. 150 mm (1x8” + 1x6”)

120012112806

For grilles h. 130 mm

130x1120 mm 1 connection diam. 200 mm e 1 connection

diam. 250 mm (1x8” + 1x10”)

120013111281

For grilles h. 150 mm CODE#

150x150 mm diam. 150 mm (6”) 12001515060 200x150 mm diam. 100 mm (4”) 12001520040 200x150 mm diam. 150 mm (6”) 12001520060 300x150 mm diam. 100 mm (4”) 12001530040 300x150 mm diam. 150 mm (6”) 12001530060 300x150 mm diam. 200 mm (8”) 12001530080 300x150 mm diam. 250 mm (10”) 12001530100 300x150 mm diam. 300 mm (12”) 12001530120 300x150 mm diam. 150 mm (6”) 90° 12001530062 150x300 mm diam. 200 mm (8”) 90° 12001530082 350x150 mm diam. 150 mm (6”) 12001535060 350x150 mm diam. 200 mm (8” 12001535080 350x150 mm diam. 250 mm (10”) 12001535100 400x150 mm diam. 150 mm (6”) 120015340060 150x400 mm diam. 200 mm (8”) 90° 12001140821 400x150 mm diam. 200 mm (8”) 12001540080 400x150 mm diam. 250 mm (10”) 12001540100 400x150 mm diam. 300 mm (12”) 12001540120 450x150 mm diam. 200 mm (8”) 12001545100 450x150 mm diam. 250 mm (10”) 12001540100 480x150 mm diam. 250 mm (10”) 12001548100 500x150 mm diam. 200 mm (8”) 12001550080 150x500 mm diam. 200 mm (8”) 90° 120015500821 500x150 mm diam. 250 mm (10”) 12001550100 500x150 mm diam. 300 mm (12”) 12001550120 600x150 mm diam. 200 mm (8”) 12001550120 600x150 mm 1 connection diam. 200 mm (8”) and 1 connection diam. 250 mm (10”) 120015600810 600x150 mm diam. 250 mm (10”) 12001560100

600x150 mm 2 connections diam. 200 mm (2x8”) 12001560280

700x150 mm diam. 250 mm (10”) 12001570100 700x150 mm diam. 300 mm (12”) 12001570120

800x150 mm 2 connections diam. 200 mm (2x8”) 12001580280

For grilles h. 200 mm

200x200 mm diam. 100 mm (4”) 12002020040 200x200 mm diam. 125 mm (5”) 12002020050 200x200 mm diam. 150 mm (6”) 12002020060 200x200 mm diam. 200 mm (8”) 12002020080 300x200 mm diam. 150 mm (6”) 12002030060 300x200 mm diam. 150 mm (6”) 90° 120020300621 300x200 mm diam. 200 mm (8”) 12002030080 300x200 mm diam. 200 mm (8”) 90° 12002030082 300x200 mm diam. 250 mm (10”) 12002030100 350x200 mm diam. 200 mm (8”) 12002035080 400x200 mm diam. 100 mm (4”) 12002040040 400x200 mm diam. 150 mm (6”) 12002040060 400x200 mm diam. 150 mm (6”) 90° 120020400621 400x200 mm diam. 150 mm (6”) 90° 120020400622 400x200 mm diam. 200 mm (8”) 12002040080 400x200 mm diam. 200 mm (8”) 90º 12002040082 400x200 mm diam. 250 mm (10”) 12002040120 400x200 mm diam. 250 mm (10”) 90° 12002040102 400x200 mm diam. 300 mm (12”) 12002040120 500x200 mm diam. 150 mm (6”) 90° 120020500621 500x200 mm diam. 200 mm (8”) 12002050080

ADAPTERS ADAPTERS

SLIDE 29

500x200 mm diam. 200 mm (8”) 90º 12002050081 500x200 mm 1 connection diam. 200 mm (8”) and 1 connection diam. 250 (10”) 120020500810 500x200 mm diam. 250 mm (10”) 12002050100 500x200 mm diam. 300 mm (12”) 12002050120 500x200 mm diam. 200 mm (8”) 90° 12002050821 600x200 mm diam. 200 mm (8”) 12002060080 600x200 mm diam. 250 mm (10”) 12002060100 600x200 mm diam. 300 mm (12”) 12002060120 700x200 mm diam. 250 mm (10”) 12002070100

For grilles h. 220 mm

220x220 mm diam. 150 mm (6”) 12002222000 220x220 mm diam. 200 mm (8”) 12002222080 220x220 mm diam. 200 mm (8”) 120022220801 220x220 mm diam. 200 (8”) a 90° 12002222082 330x220 mm diam. 150 mm (6”) 12002233060 330x220 mm diam. 200 mm (8”) 12002233080 330x220 mm diam. 250 mm (10”) 12002233100 330x220 mm diam. 250 mm (10”) 90° 12002233102 330x220 mm diam. 300 mm (12”) 12002233120 440x220 mm diam. 150 mm (6”) 12002244060 440x220 mm diam. 200 mm (8”) 12002244080 440x220 mm diam. 250 mm (10”) 12002244100 440x220 mm diam. 300 mm (12”) 12002244120 550x220 mm diam. 200 mm (8”) 12002255080 550x220 mm diam. 250 mm (10”) 12002255100 550x220 mm diam. 300 mm (12”) 12002255120 660x220 mm diam. 250 mm (10”) 12002266100 660x220 mm diam. 200 mm (8”) 12002266080 660x220 mm diam. 250 mm (10”) 12002266100 660x220 mm diam. 300 mm (12”) 12002266120

For grilles h. 300 mm

300x300 mm diam. 150 mm (6”) 12003030060 300x300 mm diam. 150 mm (6”) 90° 12003030062 300x300 mm diam. 200 mm (8”) 12003030080 300x300 mm diam. 250 mm (10”) 12003030100 300x300 mm diam. 250 mm (10”) 90° 12003030102 300x300 mm diam. 300 mm (12”) 12003030120

For grilles h. 330 mm

330x330 mm diam. 150 mm (6”) 12003333060 330x330 mm diam. 200 mm (8”) 12003333080 330x330 mm diam. 250 mm (10”) 12003333100 330x330 mm diam. 300 mm (12”) 12003333120 440x330 mm diam. 250 mm (10”) 12003344100 440x330 mm diam. 250 mm (10”) 12003344101 440x330 mm diam. 300 mm (12”) 12003344120 440x330 mm diam. 300 mm (12”) 12003344121 550x330 mm diam. 250 mm (10”) 12003355100 550x330 mm diam. 300 mm (12”) 12003355120 550x330 mm diam. 350 mm (14”) 12003355140

For grilles h. 385 mm

385x385 mm diam. 300 mm (12”)

For grilles h. 400 mm

400x400 mm diam. 200 mm (8”) 12004040080 400x400 mm diam. 250 mm (10”) 12004040100 400x400 mm diam. 300 mm (12”) 12004040120 600x400 mm diam. 250 mm (10”) 12004060100 600x400 mm diam. 300 mm (12”) 12004060120 600x400 mm diam. 350 mm (14”) 12004060140 600x400 mm diam. 400 mm (16”) 12004060160

600x400 mm 4 connections diam. 200 mm (4x8”) 12004060380 600x400 mm 2 connections diam. 250 mm (2x10”) 12004060300 600x400 mm 2 connections diam. 300 mm (2x12”) 12004060320 800x400 mm 2 connections diam. 300 mm (2x12”) 12004080320 800x400 mm 2 connections diam. 350 mm (2x14”) 12004080390

For grilles h. 440 mm

440x440 mm diam. 200 mm (8”) 12004444080 440x440 mm diam. 250 mm (10”) 12004444100 440x440 mm diam. 300 mm (12”) 12004444120 440x440 mm diam. 350 mm (14”) 12004444140

For grilles h. 460 mm

460x460 mm diam. 200 mm (8”) 12004646080 460x460 mm diam. 300 mm (12”) 12004646120 460x460 mm diam. 350 mm (14”) 12004646141

For grilles h. 540 mm

540x540 mm diam. 150 mm (6”) 12005454060 540x540 mm diam. 200 mm (8”) 12005454080 540x540 mm 200 mm (2x8”) 12005454280 540x540 mm diam. 250 mm (10”) 12005454100 540x540 mm diam. 300 mm (12”) 12005454120 540x540 mm 300 mm (2x12”) 12005454200 540x540 mm diam. 350 mm (14”) 12005454140 540x540 mm 200 mm (2x8”) 12005454280 540x540 mm 250 mm (2x10”) 12005454300 540x540 mm 300 mm (2x12”) 12005454320 540x540 mm 350 mm (2x14”) 12005454340

For grilles h. 550 mm

550x550 mm- for egg create return air grille 12005555000

For grilles h. 600 mm

600x600 mm diam. 200 mm (8”) 12006060080 600x600 mm diam. 250 mm (10”) 12006060100 600x600 mm diam. 300 mm (12”) 12006060120 600x600 mm 250 mm (2x10”) 12006060300 600x600 mm 300 mm (2x12”) 12006060320 600x600 mm 350 mm (2x14”) 12006060340

For Strip line injection

110X1007 mm no srigot 1211101007 110X1007 mm 8”(200mm) 12111101007080 110X1007 mm 10”(250mm) 12111101007100 110X1007 mm 8”x2(200mmx2) 12111101007280 110X1007 mm 10”x2(250mmx2) 12111101007300 97X1007 mm no srigot 1211971007 97X1007 mm 8”(200mm) 1211971007080 97X1007 mm 10”(250mm) 1211971007100 97X1007 mm 8”x2(200mmx2) 1211971007280 97X1007 mm 10”x2(250mmx2) 1211971007300

ADAPTERS ADAPTERS

t 12 1211 11 1 10 101

SLIDE 30

Adapter for square diffuser 305 6” 12013030060 Adapter for square diffuser 305 8” 12013030080 Adapter for square diffuser 305 8” 90º 12013030082 Adapter for square diffuser 305 6”- 8” 90º 12013030083 Adapter for square diffuser 305 6” 90º 12013030062 Adapter for square diffuser 0pn.305 10” 90º 12013030102 Adapter for square diffuser 0pn.305 10” 12013030100 Adapter for square diffuser 0pn.305 12” 12013030120

Adapter for square diffuser 0pn.305 6” with edge 12013030460 Adapter for square diffuser 0pn.305 8” with edge 12013030480 Adapter for square diffuser 0pn.305 10” with edge

12013030500

Adapter for square diffuser 0pn.305 12” with edge

12013030520 Adapter for square diffuser 0pn.225 6” 12012222060 Adapter for square diffuser 0pn.225 6” 90º 12012222062 Adapter for square diffuser 0pn.225 8” 12012222080 Adapter for square diffuser 0pn.225 6”- 8” 120122220806 Adapter for square diffuser 0pn.225 8” 90º 12012222082 Adapter for square diffuser 0pn.225 10” 12012222100 Adapter for square diffuser 0pn.225 10” 90º 12012222102 Adapter for square diffuser 385 6” 12013838060 Adapter for square diffuser 385 6” 90º 12013838062 Adapter for square diffuser 385 8” 12013838080 Adapter for square diffuser 385 8” 90º 12013838082 Adapter for square diffuser 385 6- 8” 90º 12013838083 Adapter for square diffuser 385 10” 12013838100 Adapter for square diffuser 385 10” 90º 12013838102 Adapter for square diffuser 385 12” 12013838120 Adapter for square diffuser 385 12” 90º 12013838122 Adapter for square diffuser 460 10” 12014545100 Adapter for square diffuser 460 8”- 10” 120145451008 Adapter for square diffuser 460 10” 90º 12014545102 Adapter for square diffuser 460 12” 12014545120 Adapter for square diffuser 460 10”- 12” 120145451210

ADAPTERS FOR SQUARE CEILING DIFFUSERS

Adap. for O.B.D
Adap. for O.B.D damper 225 6”

12072222060

Adap. for opposed blade damper 225 8” 12072222080
Adap. for opposed blade damper 225 8” 90° 12072222082
Adap. for opposed blade damper 225 6” 90° (Multi) 12082222100
Adap. for opposed blade damper 225 10” 12072222100
Adap. for Roun. Diffuser
Adap. for Roun. Diff. 330 6” 90°

120233062

Adap. for Roun. Diff. 330 6”

120233060

Adap. for Roun. Diff. 330 8”

120233080

Adap. for Roun. Diff. 330 10”

120233100

Adap. for Roun. Diff. 440 6”

120244060

Adap. for Roun. Diff. 440 6” 90°

120244062

Adap. for Roun. Diff. 440 8”

120244080

Adap. for Roun. Diff. 440 10”

1202440800

Adap. for Roun. Diff. 440 6”-8” 90°

12024408062

Adap. for Roun. Diff. 440 8” 90°

120244082

Adap. for Roun. Diff. 440 10”

120244100

Adap. for Roun. Diff. 440 6”-8” with 595 Frame 1202440860
Adap. for Roun. Diff. 585 6”

120258060

Adap. for Roun. Diff. 585 8”

120258080

Adap. for Roun. Diff. 585 8” 90°

120258082

Adap. for Roun. Diff. 585 10”

120258100

Adap. for Roun. Diff. 585 10” 90°

120258102

Adap. for Roun. Diff. 585 12”

120258120

Adap. for Roun. Diff. 585 12”-10-8”

120258121008

Adap. for Roun. Diff. 585 12” 90°

120258122

Adap. for O.B.D 305 6”

12073030060

Adap. for O.B.D 305 6” 90º

12073030062

Adap. for O.B.D 305 8”

12083030080

Adap. for O.B.D 305 8” 90º (Multi)

12083030082

Adap. for O.B.D 305 10”

12073030100

Adap. for O.B.D 305 10” 90º

12073030102

Adap. for O.B.D 305 10” 90º (Multi)

12083030102

Adap. for O.B.D. 385 6”

12073838060

Adap. for O.B.D. 385 6” 90

12083838062

Adap. for O.B.D. 385 8”

12083838080

Adap. for O.B.D 385 8”90°

12073838082

Adap. for O.B.D 385 10”

12083838100

Adap. for O.B.D. 385 10”90°

12073838102

Adap. for O.B.D.385 12”

12083838120

Adap. O.B.D 385 12”90°

12083838122

SLIDE 31

OPENING SD (“/mm) L1 (mm) L2 (mm) B1 (mm) B2 (mm) H1 (mm) H2 (mm)

110x110 4 151 120 151 120 2 104 6 153 122 152 120 2 84 220x110 4 270 230 160 125 2 111 6 267 230 160 125 2 125 8 273 243 160 132 2 100 330x110 6 385 243 160 125 2 127 8 385 345 165 125 2 127 10 385 345 165 125 2 127 440x110 6 495 455 165 125 2 127 8 495 455 165 125 2 127 10 495 455 165 125 2 127 550x110 6 600 564 165 133 2 178 8 600 565 165 133 2 178 10 600 565 165 133 2 178 12 600 565 165 133 2 180 660x110 6 710 674 165 133 2 180 8 710 674 165 133 2 177 10 710 674 165 133 2 187 12 710 674 165 133 2 187 500x150 6 195 154 195 155 2 126 200x150 6 252 209 195 155 2 133 300x150 6 350 310 200 160 2 187 8 350 310 200 160 2 187 10 350 310 200 160 2 187 12 350 310 200 160 2 187 300x150 a 90° 8 350 310 200 160 2 187 300x200 8 350 310 250 210 2 187 400x200 10 450 410 255 215 2 187 220x220 8 270 232 70 232 2 125 440x220 10 490 451 270 230 2 187 660x220 12 710 675 275 245 2 150 300x300 8 350 310 350 310 2 187 10 350 310 350 310 2 190 400x400 12 455 415 450 415 2 200

ADAPTERS (PLENUMS) DIMENSIONS

L1 L2 SD B2 SD B1 H1 H2

SLIDE 32

Y elbow

Our Y elbows are manufactured using corrosion-resistant ABS plastic. The insulating properties of which prevent condensation making them ideal for use with heating/cooling air conditioning systems (temperature 0 to 65°C / 30 to 140°C). Frequently ordered models are manufactured by injection molding; other models made to customer specifications are produced by vacuum forming. Y elbows are a convenient and simple connector for branch-offs from flexible ducts. Slide the flexible duct

ver the elbow end and fasten it with a plastic bend suited to this purpose. The elbow is fitted with a collar to

secure the flexible duct. Y elbows have an equal angle of 120° between the branches. Thus the outlet branches are symmetrical to the common inlet branch axis resulting in an equal pressure drop for both outlet branches. Outlet branches are either equal to inlet branches or smaller. These Y elbows are uniquely designed and the elbow shell is split into two halves which are joined together on site. These stackable Y elbows ship compactly – saving storage space and shipping costs. Assembly is simple: slide the web into the slot, press the halves together until they click and the elbow is ready for use.

SLIDE 33

Y ELBOWS 3 WAYS

CODE#

Y elbow 3x”4 1300040404 Y elbow 3x”5 1300050505 Y elbow 2x”4/1x”6 1300060404 Y elbow 4”/5”/”6 1300060504 Y elbow 2x5”+1x6” 1300060505 Y elbow 3x”6 1300060606 Y Elbow 1x”8/2x”6 1300080606 Y Elbow 1x”6/2x”8 1300080806 Y Elbow 3x”8 1300080808 Y Elbow 1x”10/2x”6 1300100606 Y elbow1x”6/1x”8/1x”10 1300100806 Y Elbow 1x10/2x8 1300100808 Y Elbow 2x”10/1x”6 1300101006 Y elbow 2x”10/1x”8 1300101008 Y elbow 2x”10/1x”10 1300101010 Y Elbow 1x”12/2x”8 1300120808 Y Elbow 1x”12/1x”10/1x”8 1300121008 Y Elbow 1x12”/2x10” 1300121010 Y-elbow 2x”12/1x”8 1300121208 Y elbow3x”12 1300121212

Y-ELBOW 4 WAYS

1x250-300 / 3x200 (1x10”-12” / 3x8”) 13112080808

STAGE CONNECTORS

The stage connectors allow to properly connect the flexible ducts and, in particular to connect to each

ther different diameter flexible ducts.

CODE# 5” Reducer for Damper 6” 13020605

Stage Connector 4”- “6 for flexible duct 13020604 Connector “6 for flexible duct 13020606 Connector “8 for flexible duct 13020808 Connector “8 for flexible duct 130208081 Stage Connector 8”-10” for flexible duct 13021008 Stage Connector “6-8” for flexible duct 13020806 Connector “10 for flexible duct 13021010 Connector “12 for flexible duct 13021212 Stage Connector from “6 up to 12” for flexible duct 13021206 Connector 10”- “12 for flexible duct 13021210 Connector “14-14” for flexible duct 13021414

MULTIPURPOSE Y ELBOWS

300-250 / 2x250-200-150 mm (12”-10” / 2x10”-8”-6”) 130012100806 350-250 / 2x300-250-200 mm (14”-10” / 2x12”-10”-8”) 130014121008

CO 33

SLIDE 34

DUCT MANIFOLDS

Duct manifolds are manufactured using corrosion-resistant ABS plastic. The insulating properties

f this material prevent condensation making them ideal suited for use with heating/cooling air

conditioning systems (temperature 0 to 65°C / 30 to 140°C). Frequently ordered models are manufactured by injection molding; other models made to answer customer specifications are produced by vacuum forming. Duct manifolds serve as the air conditioning system distribution box and are installed between main ducts and flexible ducts or between A/C unit and flexible ducts. The duct manifolds are right-triangular shaped with air inlet at the base and flexible duct connections on the sides

f the triangle. Each side can contain 1 to 4 connections of various sizes, thus allowing air

distribution to between 2 to 6 end users. The inside of the manifold is lined with a polyethylene foam insulating sheet that covers all branch connections. Openings intended to be used must be cut out. Additional branches may be added later by opening closed outlets.

SLIDE 35

FLAT PLENUMS (FLAT HIGH & LOW CAPACITY) FOR A/C

CODE#

Duct ma.FLAT 2X10”/4X8” 240X900mm LG 50-60 12564000 Duct ma.FLAT-5x”8 260x1050mm 12530020102 Duct ma.FLAT-4x”8 + 1/10” 270x1167mm 12531172748110 Duct ma.FLAT- 485X800 mm 1253002023 Duct ma.FLAT-4x”8 295X850 mm 125329585048 Duct ma.FLAT-2x”8 /2x8” 285X850 mm 125300202 Duct ma.FLAT-2x”10 125300606 Duct ma.FLAT 10” 150X600 12531560100 Duct ma.FLAT 2X8” 150X600 Fujisu 12531560280 Duct ma.FLAT 2X10” 155X720 1253720155300 Duct ma.FLAT 2X12” 220X767 125376722320 Duct ma.FLAT 4x”8 /1x10” 285X1000 mm (with Damp.) 125310029481101 Duct ma.FLAT 2x”8 /2x10” 285X850 mm 125300206 Duct ma.FLAT 2x”8 /2x8” 235X885 mm 1253002021 Duct ma.FLAT 2x”8 200X910 mm 1253910200280 Duct Fujisu270X1140 mm 4X6”/8” 1X10”/12” 1X10”/8” ,125311427000 Duct ma.FLAT 2x”8 /2x8” 300X960 mm 1253002022 Duct ma.FLAT 5x”8 300X960 mm 1253002032 Duct ma.FLAT 4x”8/10/12 300X930 mm 1253481012 Duct ma.FLAT 3x”8 /1x10” 850x285mm 125300305 Duct ma.FLAT 1x”12 /2x12” 850x285mm 125300607 Duct ma.FLAT 3x”8 /1x8 / 1x8/10” “700x300mm(w.Damp.) 125330705810 Duct ma.FLAT2x”8/6+1x10”+2X8” 700x300mm BFQ 50 ,1253307010468 Duct ma.FLAT Daikin BFQ 60/70 12533095528810 Duct ma.FLAT 1x”14 /1x14” 850x285mm 125300808 Duct ma.FLAT 1000x300mm 1253030100 Duct ma.FLAT 4x”8 /1x10” 1000x285mm 12531002948110 Duct ma.FLAT 5x”8 /1x10” 1000x270mm 125311851553 Duct ma.FLAT 3x”8 /1x10”/1x12” 1040x300mm 125330110381 Duct ma.FLAT 3x”8 /1x10” 1000x300mm 12533010008310 Duct ma.FLAT 1x”8 /3x10” 1000x300mm (with Damp.) 1253301008310 Duct ma.FLAT 1x”12 1040x300mm 125330104120 Duct ma.FLAT 2X8”+2X10” 1x”12 1040x300mm PEREG 1253301042821010 Duct ma.FLAT 3X8”+1X10” 1x”12 1040x300mm 1253301043810120 Duct ma.FLAT 3x”8 /3x8” 1000x300mm 12530301000303 Duct ma.FLAT 4x”8 /4x8” 1000x300mm 12530301000404 Duct ma.FLAT 4x”8 /2x10” 1000x300mm 12530301000406 Duct ma.FLAT 5x”8 /1x10” 1000x300mm 125303010058110 Duct ma.FLAT 3x”8 /10”/12” 1040x320mm 125332104381012 Duct ma.FLAT 1180x320mm 12533711800 Duct ma.FLAT 4x8”/4x10” 1180x320mm 12533711848410 Duct ma.FLAT 4x8”/4x8” 1180x320mm 12533711888 Duct ma.FLAT 2x14”/2x12” 1145x380mm 125338115212214 Duct ma.FLAT 3x14”/1x12” 1110x580mm 12535811112314 Other dimensions available on request.

SLIDE 36

MODULAR DUCT MANIFOLD

The modular duct manifolds are made of two halves with various options of connections. This revolutionary product enables to drastically reduce the storage space since both parts of the modular duct manifold are completing each other according to the installer needs.

Duct manifold ( Low CFM capacity )

Duct ma.-L.c 3x”6/3x”6 125000101 Duct ma.-L.c 3x”6/2x”8 125000102 Duct ma.-L.c 3x”6/1x”10 125000105 Duct ma.-L.c 3x”6/1x”12 125000107 Duct ma.-L.c 3x”6/3x”10 125000105 Duct ma.-L.c 3x”6/1x”6+1X8” 125000121 Duct ma.-L.c 3x”6/1x”6+1X 10” 125000122 Duct ma.-L.c 3x”6/1x”8+1X 10” 125000123 Duct ma.-L.c 2x”8/2x”8 125000202 Duct ma.-L.c 2x”8/1x”10 125000205 Duct ma.-L.c 1x”8/1x”8+1X 10” 1X 10” 125000206 Duct ma.-L.c 2x”8/1x”12 125000207 Duct ma.-L.c 2x”8/1x”6/1x8” 125000221 Duct ma.-L.c 2x”8/1x”8/1x10” 125000223 Duct ma.-L.c 1x”10/1x”10 125000505 Duct ma.-L.c 1x”10/1x”12 125000507 Duct ma.-L.c 1x”12/1x”12 125000707 Duct ma.-L.c 1x”12/1x”8+1x10” 125000723

Duct manifold ( High CFM capacity )

Duct ma.-High.Cap. 3x”8/3x”8 125100303 Duct ma.-h.c 4x”8/2x”10 125100406 Duct ma.-h.c 3x”8/2x”8+1x10” 125100324 Duct ma.-h.c 4x”8/2x”8+1x10” 125100424 Duct ma.-h.c 4x”8/2x”8+1x12” 125100425 Duct ma.-h.c 4x”8/1x”10+1x12” 125100426 Duct ma.-h.c 4x”8/4x”8 125100404 Duct ma.-h.c 4x”8/2x”10 125100406 Duct ma.-h.c 4x”8/2x”12 125100408 Duct ma.-h.c 2x”10/2x”10 125100606 Duct ma.-h.c 2x”10/2x”12 125100608 Duct ma.-h.c 2x”10/1x”10+1x12” 125100626 Duct ma.-h.c 2x”12/2x”12 125100808 Duct ma.-h.c 1x”14/1x”14 125100909 Duct ma.-h.c 4x”8/4x”8 (Tadiran) 125500404

Modular Duct. Ma. (Half Duct)

Modular Duct. Ma. 3X8” (Half) 152003 Modular Duct. Ma. 4X8” (Half) 1252004 Modular Duct. Ma. 5X8” (Half) 1252005 Modular Duct. Ma. 2X10” (Half) 1252006 Modular Duct. Ma. 3X10” (Half) 1252007 Modular Duct. Ma. 2X12” (Half) 1252008 Modular Duct. Ma. 2X8”+1x10” (Half) 1252024 Modular Duct. Ma. 2X8”+1x12” (Half) 1252025 Modular Duct. Ma. 1X10”+1x12” (Half) 1252026

MANIFOLD EXTENSION AND FLOWING EQUALIZER

The manifold extension is lined with a polyethylene foam insulating sheet and has to be located between the evaporator and the duct manifold. It serves to centralize the air coming out of the evaporator. The flowing equalizer is located between the extension and the duct manifold and it serves for balancing the air distribution capacity Manifold extension dim. 423x390x270 mm Equalizer dim. 440x392x1 mm

”T” TYPE DUCT MANIFOLD

The T Type Duct Manifold is used for better air distribution for two Zones. Adapters with various

utlets are connected to the duct manifold.vvv

“T” plenum 12540000 Plenum for connections diam. 200 (8”) 12042530080 Plenum for connections diam. 250 (10”) 12042530100 Plenum for connections diam. 300 (12”) 12042530120 Plenum for 2 connections diam. 200 (2x8”) 12042530280

SLIDE 37

Plastic Footing for Out Door Unit

( Set of 4 Piece’s)

Code #

1205017

Elastic Bend

Code #

Elastic Bend For Metal Tunnel 8” 12600812 Elastic Bend For Metal Tunnel 10” 12601012 Elastic Bend For Metal Tunnel 12” 12601212

FLEX BELT

The “Flexbelt” is a clever innovation Feature to hold the flexible duct to ceiling . It’s came as a Kit which include also the loop’s and twine’s . It can be use with any diameter and type of flexible .

Code #

Flexbelt CONCEALED ACCESS DOOR General Code # 14199999

Special products

M

CONCEALED ACCESS DOOR

General Code #

14199999 *Order per size

FLOWING EQUALIZER ADAPTER FEATURE FOR STRIP LINE

This clever innovation Feature is for strip line adaptor , in order to provide an even air stream aboard the Strip line grill . By Putting this feature in any of the spigot, depending

f the adaptor length .

The Height is 97mm . no tools or glue required . easy and quick installation .

Code #

h. 97 mm

11739997 is a clever inn novation

SLIDE 38

SLIDE 39

ALL THE REASONS TO USE

™

L O N G L I F E P L A S T I C A I R C O N D I T I O N I N G A C C E S S O R I E S

™

Complete range of top quality & modular plastic grilles, diffusers, Y elbow, return air grilles, adapters, duct manifold, Opposed Blade dampers, manual and electric proportional dampers, controls and thermostats for A/C and Zone control system, all under one roof. For the air conditioning and ventilation industry. Long life products even under harsh environmental conditions. Corrosion-resistant, no condensation. Reduce cost and time in installation. Light weight. Fine engineering and control for even air distribution to all zones. Manufactured by injection moulding, strong and scratch-resistant. Over 500 standard products. The standard color is white but other colors can be supplied for large quantities.
