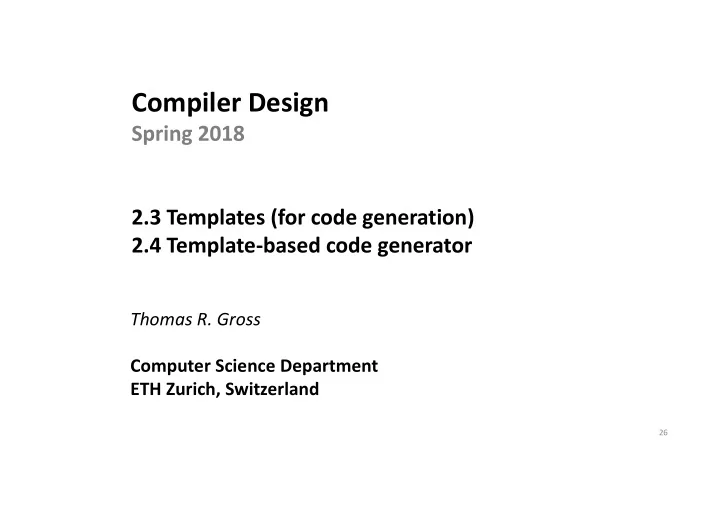

Compiler Design

Spring 2018 2.3 Templates (for code generation) 2.4 Template-based code generator

26

Thomas R. Gross Computer Science Department ETH Zurich, Switzerland

2.3 Templates

§ Templates decide how code generator behaves

§ “Quality” of code

§ Decide how each kind of IR node is handled

§ Simple (for now) § Minimal solution (for now)

§ Next: Produce a catalogue of templates

27

Ground rules

§ Set of rules to guide template design § Reflect machine properties and/or desire to keep CG simple

§ You could define your own rules

§ Rules for now:

1. All templates leave result in a register

§ Exception: ASSIGN nodes have no return value

2. All operands must be in a register

§ Lots of memory traffic for 32-bit x86 § Other options: (1) At least one operand must be in a register (2) At most one operand can be in memory

28

Data structures

§ reg_pool: Pool (list) of free registers § Methods

§ get_register() § free_register(Register register)

29

2.3.1 CONST

§ Value must be put into reg § Template

// bookkeeping // get a new register reg = reg_pool.getRegister() // code generation emit “movl $0x…, reg” // no more bookkeping return reg;

30

value v 0x…: hexadecimal representation of v

Potential problems

§ No register in reg_pool

§ Not today

§ Value ’v’ does not fit into movl instruction

§ v requires more than 32 bits § v exceeds limit of immediate in instruction

§ Options

§ Delegate problem to assembler

§ Can break v into pieces, shift/assembly in register

§ Allocate entry in .data segment, load from memory § Require that IR contains only constants that fit into movl

§ Front-end must deal with problem § Homework #1: Assume only values that fit

31

2.3.2 VAR

§ Recall:

§ VAR node on the left hand side of ASSIGN: delivers an address § VAR node on the right hand side of ASSIGN (anywhere in tree): delivers a value

§ Value is kept in a memory location (known to the compiler) § Later: Other storage classes

32

VAR (at RHS)

§ Value must be put into register

§ Similar to CONST node

§ Template

// bookkeeping // get a new register reg = reg_pool.getRegister() // code generation emit “movl name, reg” // name identifies location // no more bookkeping return reg;

33

Comment

§ Assume name maps to a known location

§ Various addressing modes exist § For now: Simple scheme is sufficient

34

VAR (at LHS)

§ Must deliver an address

§ For now: Enough to deliver a name

§ Template: Let parent use the name

§ Assume we have a method that returns the name for a VAR node § Only user so far: ASSIGN

35

37

OPERATOR

§ Result must be put into reg § Assume left and right evaluated into a register

§ reg_right § reg_left

§ Reuse one of the registers to hold result

§ Take reg_right

§ Free other register

§ No longer needed: reg_left

38

OP +

right

register reg_right

left

register reg_left

OPERATOR

§ Template

// bookkeeping // code generation emit “OP[Operator].txt reg_left, reg_right” // bookkeeping // free reg_left reg_pool.free_register(reg_left) // no more bookkeping return reg_right;

§ Could ask for a new register

§ Benefit: Keeps around values for longer § Not really an option with 32-bit x86 (limited # of registers)

39

2.3.4 ASSIGN

§ Value must be put into reg § Left hand side: Destination for a (named) variable

§ We can get the variable name § Use variable name in assembly instruction

§ Right hand side: result in register § No “return value”

40

=

VAR

A

right

register reg_right Memory location of variable A

2.3.4 ASSIGN

§ Template

// preparation // code generation emit “movl reg_right, name” // bookkeeping // free reg_right reg_pool.free_register(reg_right) // no more bookkeping return null;

41

2.4 Putting the CG together

§ Code for children must be generated before code for parents can be generated § codegen(Node n) { … }

§ Start with codegen(Root)

§ codegen(Node n)

§ Leafnode? Generate code § Not leafnode? Visit children

§ In which order?

§ Code for node n

43

Skeleton

Register codegen(Node n) { Register reg_right, reg_left; case (typeOf n) { ASSIGN: { reg_right = codegen(N.right_child); // Template 2.3.4 } VAR : // Template 2.3.2 CONST: //Template 2.3.1 OP: } }

45

Right child first

Register codegen(Node n) { Register reg_right, reg_left; case (typeOf n) { ASSIGN: { reg_right = codegen(N.right_child); // Template 2.3.4 } VAR : // Template 2.3.2 CONST: //Template 2.3.1 OP: { reg_right = codegen(N.right_child); reg_left = codegen(N.left_child); // Template 2.3.3 return reg_right; } } }

46

47

48

How does it work?

§ Examples

§ a = 1 § a = b + c § x = b + c + d + e

50

52

56

Compiler Design

Spring 2018 2.5 Dynamic programming code generation

1

Thomas R. Gross Computer Science Department ETH Zurich, Switzerland

Motivation: Recall “right child first”

Register codegen(Node n) { register reg_right, reg_left; case (typeOf n) { ASSIGN: { reg_right = codegen(N.right_child); // Template 2.3.4 } VAR : // Template 2.3.2 CONST: //Template 2.3.1 OP: { reg_right = codegen(N.right_child); reg_left = codegen(N.left_child); // Template 2.3.3 return reg_right; } } }

2

Discussion

§ We decided to

§ Use reg_right for the result of an operation § We decided to visit the right subtree first

§ We could have decided to

§ Visit the left subtree first § (Use reg_left for the result of an operation – won’t show that here)

8

Left child first

Register codegen(Node n) { register reg_right, reg_left; case (typeOf n) { ASSIGN: { reg_right = codegen(N.right_child); // Template 2.3.4 } VAR : // Template 2.3.2 CONST: //Template 2.3.1 OP: { reg_left = codegen(N.left_child); reg_right = codegen(N.right_child); // Template 2.3.3 return reg_right; } } }

9

How does it work (left-first)

§ Example

§ a = b + c + d + e

10

11

12

14

a = b + c + d + e reg_pool = {%eax,%ebx,%ecx,%edx}

Discussion

§ Using a smaller number of registers is better than using a larger number of registers

§ Right child first: 2 registers (%eax, %ebx) § Left child first: 4 registers (%eax, %ebx, %ecx, %edx)

§ Should we forget about “left child first”?

16

No evaluation order is the best

Find an assignment statement (with only + as operand and four

• perands on the right hand side) such that for this statement the

“visit left child first” strategy delivers a better result (smaller number of registers is needed) than the “visit right child first” strategy. You can jump right to the tree if you wish.

17

No evaluation order is the best

§ Example

§ x = (((z + w) + y) + v)

18

No evaluation order is the best

Left child first

19

= x * v + + y z w

20

No evaluation order is the best

Right child first

21

= x * v + + y z w

No evaluation order is the best

§ No strategy is best for all possible trees § Decide for each node how children should be evaluated § Idea: 2-step approach

Step 1: Determine strategy

§ Visit node § Determine which order is best (uses the smallest number of registers) § Record order (right first or left first)

Step 2: Generate code

§ Visit node § Look at result from first step to fix evaluation order

24

Dynamic programming code generation

§ Step 1 must determine both the number of registers needed and the evaluation order

§ need: number of registers § right_first: boolean (true/false)

§ If no difference, favor right first

§ We must make some assumptions

25

Simplifications (in machine model)

§ Assumptions

§ All registers are equal § All operations deliver result into a register § All operands/results require a single register § No optimizations (reuse of operands)

§ Real machines do not always meet these assumptions

§ Some offer new opportunities § Example: Take one operand from memory (later)

26

2.5 Dynamic programming code generation

§ Step 1 must determine both the number of registers needed and the evaluation order

§ need: number of registers § right_first: boolean (true/false)

§ If no difference, favor right first

§ Four kinds of nodes to consider

§ VAR: need = 1 § CONST: need = 1 § ASSIGN: need determined by right child § OPERATOR: see next slide

27

28

Key idea

§ To get smallest number of registers:

§ Evaluate larger subtree (expression) first § Keep result in register

§ Recall assumptions

§ All registers created equally

29

OPERATOR node

§ Case 1: right_child.need > left_child.need

§ right_first = § need =

§ Case 2: right_child.need < left_child.need

§ right_first = § need =

§ Case 3: right_child.need == left_child.need

§ right_first = § need =

30

OPERATOR node

§ Case 1: right_child.need > left_child.need

§ right_first = true § need = right_child.need

§ Case 2: right_child.need < left_child.need

§ right_first = false § need = left_child.need

§ Case 3: right_child.need == left_child.need

§ right_first = true § need = right_child.need + 1

31

Big picture

§ Idea: 2-step approach

Step 1: Determine strategy

§ Visit node § Determine which order is best (uses the smallest number of registers) § Record order (right first or left first)

Step 2: Generate code

§ Visit node § Look at result from first step to fix evaluation order

34

Step 2

Register codegen(Node n) {

register reg_right, reg_left; case (typeOf n) { ASSIGN: { reg_right = codegen(N.right_child); // Template 2.3.4 } VAR : // Template 2.3.2 CONST: //Template 2.3.1

OP: { if (right_first) { reg_right = codegen(N.right_child); reg_left = codegen(N.left_child); } else { // left first reg_left = codegen(N.left_child); reg_right = codegen(N.right_child); }

// Template 2.3.3 return reg_right; } } }

35

How does it work?

§ Example

§ x = (((a + b) + (h + j)) + d) + (e + (f + g))

36

37

What to do if there are not enough registers?

§ Punt it

§ OK for Homework 1 if the compiler exits gracefully

§ Other approaches (not required by Homework 1)

§ Free register

§ Later recompute (“rematerialize”) § Temporarily store value in memory (“spill”) – usually on stack

§ Restructure the tree

§ Recall that this step may change the semantics

41

Restructuring trees : x = b + c + d + e

x = b + c + d + e x = b + c + d + e

42

= x + + b c + d e = x + + + b e c d

43

What to do if there are not enough registers?

§ Punt it

§ OK for Homework 1 if the compiler exits gracefully

§ Other approaches (not required by Homework 1)

§ Free register

§ Later recompute (“rematerialize”) § Temporarily store value in memory (“spill”) – usually on stack

§ Restructure the tree

§ Recall that this step may change the semantics

§ Use special instructions § Leave some operand in memory

§ See next slides on code generator improvements

45

Improvements to the code generator

§ Idea: Look at target machine and try to find special instructions that cover more than one IR node § Produce better code

§ Fewer registers needed § Fewer instructions: Shorter code, (possibly) reduced execution time

46

Improvement #1

§ Some machines have an “increment” operation

§ E.g., inc on 32-bit x86

§ Example: x = x + 1

47

Generated code movl 0x1, %rax movl x, %rbx addl %rbx, %rax + x 1 … Improved code movl x, %rax inc %rax

Implementation

§ Extend template catalogue

§ Subcases for existing template § New templates

§ For OPERATOR: Look for CONST child

§ Possible restrictions on value § For addition/subtraction: allow 1/-1 § For multiplication: maybe allow 1, 2, 4, 8

§ Limit: your willingness to deal with details

49

Improvement #2

§ Observation: Some machines allow one operand in memory

§ E.g., on x86 the following instructions are available

ADD register, memory ADD memory, register

§ (So far we’ve used only

ADD register, register)

§ Idea: Use special instruction to leave an operand in memory

50

Example

So far: 2 operands in registers Improved: 1 operand in register

51

+ x + … … + x + … …

Example

So far: 2 operands in registers Improved: 1 operand in register

53

+ x + … … %eax movl x, %ebx addl %ebx, %eax + x + … … %eax addl x, %eax %ebx

Notes

§ Improvements not required by Homework 1

§ Goals of Homework 1: Correctness + ”optimal” # of registers § You can look into optimizations if you want

§ Emit code (instructions) to file

§ Or to a buffer § Can be processed before writing to file

§ Add hints to emitted code

§ IR node number § Line number that generated IR § Begin/end of a source language statement

54

Some admin issues

§ Homework 1

§ Description / fragment out

§ There will be a recitation session today

§ Room: ETF E 1 § Starts at 15:00 § Discussion of Homework 1 (“Simple code generator”) § Discussion of Javali framework
