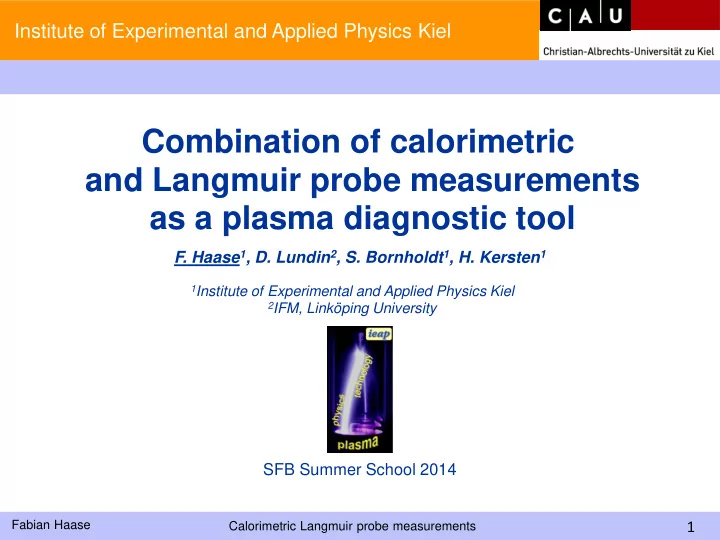

SLIDE 1

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

1

Combination of calorimetric and Langmuir probe measurements as a plasma diagnostic tool

F. Haase1, D. Lundin2, S. Bornholdt1, H. Kersten1

1Institute of Experimental and Applied Physics Kiel 2IFM, Linköping University

SFB Summer School 2014

SLIDE 2

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

2

Overview

1. Motivation 2. Diagnostic methods

1. Langmuir probe 2. Calorimetric probe

3. Experimental Setup 4. Results and discussion 5. Summary/Outlook

SLIDE 3

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

3

1. Motivation

SLIDE 4

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

4

PVD: thin film deposition using magnetron sputtering:

established for industrial purposes
wide range of materials that can be sputtered
knowledge of energy influx and internal plasma

parameters to customize coating process crucial:

– quality of film, physical and chemical properties – in contrast to CVD: treatment

f heat sensible materials
1. Motivation
J. A. Thornton, J. Vac. Sci. Technol. Vol. 11, No. 4, 1974

SLIDE 5

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

5

doing it old school:

thermal probe measurement: Langmuir measurement:

1. Motivation

SLIDE 6

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

6

Combination: enables splitting up the energy

influx into single contributions of the plasma species

before: long measurement time

goal: improvement of deposited film quality

1. Motivation

SLIDE 7

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

7

2. Diagnostic methods

SLIDE 8

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

8

2.1 Langmuir probe (Irving Langmuir 1926)

2. Diagnostic methods

SLIDE 9

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

9

widely used type of probe
determination of:

– floating potential – plasma potential – electron temperature – electron density – (ion temperature, ion density, EEDF)

2. Diagnostic methods - Langmuir probe

SLIDE 10

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

10

principle:

metal surface is

exposed into plasma

log probe current with

respect to probe voltage

2. Diagnostic methods - Langmuir probe

SLIDE 11

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

11

Langmuir probe characteristics

2. Diagnostic methods - Langmuir probe

SLIDE 12

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

12

floating potential: zero

crossing

plasma potential: inflection

point

2. Diagnostic methods - Langmuir probe

SLIDE 13

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

13

electron temperature:

from slope

plot ln(current) vs.

probe voltage:

calculation of electron

density:

2. Diagnostic methods - Langmuir probe

SLIDE 14

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

14

2.2 Calorimetric probe

2. Diagnostic methods

SLIDE 15

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

15

2. Diagnostic methods – calorimetric probe

setup:

metal plate (Cu) with high heat capacity
Type-K thermo couple connected to backside

SLIDE 16

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

16

2. Diagnostic methods – calorimetric probe

energy flux:

SLIDE 17

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

17

2. Diagnostic methods – calorimetric probe
record cooling and heating phase
calculate incoming power via:

assume: Pout is equal for heating and cooling phase!

heating: cooling: energy balance: energy influx:

SLIDE 18

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

18

2. Diagnostic methods – calorimetric probe

transient method:

Bornholdt et al., The European Physical Journal D, 67(8), 2013

SLIDE 19

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

19

3. Setup

SLIDE 20

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

20

Magnetron:

3. Setup

SLIDE 21

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

21

3. Setup

RF electrode pressure gauge gas flow control

LA 250

booster pump turbo pump DC magnetron probe

SLIDE 22

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

22

3. Setup

RF electrode calorimetric probe DC magnetron typical pressures: 0.1…10 Pa Pmag= 10…150 W

SLIDE 23

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

23

4. Discussion

SLIDE 24

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

24

5. Discussion

manual sweep:

Ag target

SLIDE 25

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

25

5. Discussion

manual sweep:

Ag target

SLIDE 26

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

26

5. Discussion

manual sweep: automatic sweep:

Ag target

SLIDE 27

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

27

5. Discussion

Gas: Kr p= 4.0 Pa Pmag= 100 W Ti target

SLIDE 28

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

28

5. Discussion

energy influx contributions:

Gas: Kr p= 4.0 Pa Pmag= 100 W Ti target

SLIDE 29

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

29

improving the film properties by a higher degree
f ionization:

mean free path of ionization (for a neutral):

mainly determined through the process gas:

Ionization potentials:

5. Discussion

SLIDE 30

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

30

5. Discussion

electron temperature and density:

P= 100 w Ti target

SLIDE 31

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

31

mean free path for ionization (normalized to Ar):

5. Discussion

SLIDE 32

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

32

deposition rates:

5. Discussion

SLIDE 33

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

33

5. Summary/Outlook

SLIDE 34

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

34

5. Summary/Outlook
Combination of those two methods is working
Langmuir data in good agreement with

calorimetric data

with Ne: Te is a factor 3 higher compared to Ar

and Kr Outlook:

investigate for Ag target
other contributions for better agreement?

SLIDE 35

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

35

Thank you for lending me your ear

SLIDE 36

Institute of Experimental and Applied Physics Kiel

Fabian Haase Calorimetric Langmuir probe measurements

36

sheath model

Appendix
