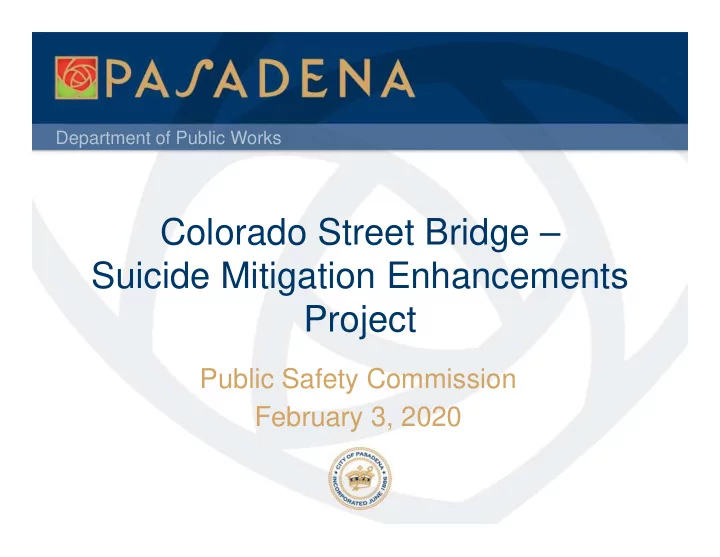

Colorado Street Bridge – Suicide Mitigation Enhancements Project

Public Safety Commission February 3, 2020

Department of Public Works

Project Background

• April 17, 2019 – Public Safety Committee

directed staff to re-evaluate and streamline the project’s environmental and design scope of work, and return with a condensed project schedule and reduced design cost

• May 15, 2019- The Public Safety

Committee recommended the award of contract to Donald MacDonald Architects

• May 20, 2019, City Council authorized

award of contract to Donald MacDonald Architects for environmental and design services

2

Department of Public Works

Task Force Recommendations

Design and Install:

• Full Length Vertical Barriers
• Minimum height above highest toehold of 7’-6”
• Extend both sides of the bridge for its entire length
• End Treatments
• Deter a person’s ability to walk the outside ledge to a location

where a jump would cause serious injury or death

• Complimentary Measures
• Work in concert with the measures above to mitigate suicides and

suicide attempts from the bridge to the greatest extent possible

3

Department of Public Works

Project Meetings

• September 9, 2019 – Stakeholder Meeting
• September 26, 2019 – Community Meeting – Solicit comments

and public input

• October 29, 2019 – Community Meeting – Present various

concepts and solicit feedback

• November 15, 2019 – Pasadena Heritage and stakeholders
• November 19, 2019 – Historic Preservation Commission

(Advisory Review)

• November 26, 2019 – Design Commission (Advisory Review)
• February 3, 2020 – Public Safety Committee

4

Department of Public Works

Guiding Principals of Design

5

Department of Public Works

Guiding Principal - Effectiveness

6

Department of Public Works

Guiding Principal - Effectiveness

7

Department of Public Works

Guiding Principle – Historic and Character Defining Features

8

Department of Public Works

Guiding Principle – Bridge Aesthetics

9

Department of Public Works

Secretary of the Interior’s Standards A2 Mesh

10

A2

Vertical Frame/Flexible Mesh (w/o Intermediate Posts)

14’

Department of Public Works

Secretary of the Interior’s Standards A2 Mesh

11

A2

Vertical Frame/Flexible Mesh (w/o Intermediate Posts)

Secretary of the Interior’s Standards A2 Mesh

Department of Public Works

Secretary of the Interior’s Standards A2 Mesh

A2

Vertical Frame/Flexible Mesh (w/o Intermediate Posts)

12

Department of Public Works

Secretary of the Interior’s Standards A2 Mesh

Vertical Frame/Flexible Mesh (w/o Intermediate Posts)

A2

13

Department of Public Works

Secretary of the Interior’s Standards A2 Mesh Ver 2

14

Vertical Frame/Rigid Mesh (w/ Intermediate Posts)

A2

14’

Department of Public Works

Secretary of the Interior’s Standards A2 Mesh Ver 2

Vertical Frame/Rigid Mesh (w/ Intermediate Posts)

A2

15

Department of Public Works

Secretary of the Interior’s Standards A2 Pickets

A2

Vertical Frame/Pickets

16

Department of Public Works

A2

Vertical Frame/Pickets

Secretary of the Interior’s Standards A2 Pickets

17

Department of Public Works

Secretary of the Interior’s Standards A2 Pickets

A2

Vertical Frame/Pickets

18

Department of Public Works

Secretary of the Interior’s Standards A2 Pickets

Vertical Frame/Pickets

A2

19

Department of Public Works

Secretary of the Interior’s Standards B2 Mesh

B2

Curved Frame/Rigid Mesh (w/Intermediate Posts)

20

13’

Department of Public Works

Secretary of the Interior’s Standards B2 Mesh

B2

Curved Frame/Rigid Mesh (w/Intermediate Posts)

21

Department of Public Works

Secretary of the Interior’s Standards B2 Mesh

B2

Curved Frame/Rigid Mesh (w/Intermediate Posts)

22

Department of Public Works

Secretary of the Interior’s Standards B2 Mesh

Curved Frame/Rigid Mesh (w/Intermediate Posts)

B2

23

Department of Public Works

Secretary of the Interior’s Standards B2 Mesh - Hybrid

24

B2

Hybrid Rigid Mesh (w/Intermediate Posts)

Department of Public Works

Secretary of the Interior’s Standards B2 Mesh - Hybrid

25

B2

Hybrid Rigid Mesh (w/Intermediate Posts)

Department of Public Works

Comparative Heights of the Options

26

Department of Public Works

Comparative Heights of the Options

27

Department of Public Works

Top of Barrier and Lights

28

Department of Public Works

Community Consensus

• Keep all alcoves open
• Position the barrier on top of the existing

balustrade

• Position the barrier on the bridge side of the lamp

poles to increase effectiveness

• Keep the existing lamps but modify the height to

maintain visibility on the bridge

29

Department of Public Works

Pros and Cons

30 A2 B2 Flexible Mesh Rigid Mesh Pickets Curved Rigid Mesh

• Effective
• Fewer vertical posts
• Doesn’t look institutional
• Maximizes transparency
• Contingent on finding an

acceptable flexible mesh pattern that prevents toe holds

• Effective
• Additional vertical posts

compared to flexible mesh

• Doesn’t look institutional
• Maximizes transparency
• Fewer vertical posts at

alcoves

• Contingent on finding an

acceptable rigid mesh pattern that prevents toe holds

• Less effective
• Introduction of

horizontal toe holds

• More traditional look
• Vertical rods present

limited transparency looking down the bridge

• Most effective
• Decorative look
• Contingent on

finding an acceptable flexible mesh pattern

Department of Public Works

Next Steps

31
