COLORADO STREET BRIDGE SUICIDE MITIGATION ENHANCEMENTS DONALD MACDONALD ARCHITECTS + GPA + BIGGS CARDOSA COMMUNITY OUTREACH MEETING #2 OCTOBER 29, 2019 COMPREHENSIVE PARNASSUS HEIGHTS PLAN MARCH 12, 2018 1 AGENDA Team Introductions

slide-1
SLIDE 1 1

COMPREHENSIVE PARNASSUS HEIGHTS PLAN

MARCH 12, 2018

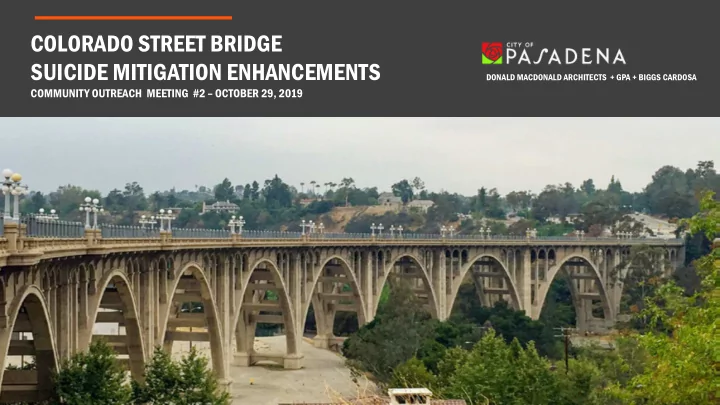

COLORADO STREET BRIDGE SUICIDE MITIGATION ENHANCEMENTS

DONALD MACDONALD ARCHITECTS + GPA + BIGGS CARDOSA COMMUNITY OUTREACH MEETING #2 – OCTOBER 29, 2019
slide-2
SLIDE 2

AGENDA

donald macdonald architects

Team Introductions 30 min Project Overview Guiding Principals Vertical Barrier Effectiveness Strategies Vertical Barrier Design Alternatives Breakout Session: 30 min

  • Vertical Barrier Design Options

Community Comment / Q&A 30 min

slide-3
SLIDE 3
  • Golden Gate Bridge Suicide Deterrent, San Francisco, California
  • Ironworkers Bridge, Vancouver, British Columbia
  • Cooper River Bridge, Charleston, South Carolina
INTRODUCTIONS:

DONALD MACDONALD ARCHITECTS TEAM

Suicide Deterrent Projects:

Bridge Architects

Project Overview

slide-4
SLIDE 4

PROJECT OVERVIEW

  • Task Force Research / Mitigation

Alternative Intervention Proposals  Full Length Vertical Barrier

  • Historic Precedent
  • Architectural Vulnerabilities
  • Alcoves
  • Pilasters and Balustrade
  • Ends / Approaches
  • Operations, Maintenance and First

Responder Impacts

slide-5
SLIDE 5

CONSTRUCTION CHRONOLOGY

slide-6
SLIDE 6
slide-7
SLIDE 7

Generative Design Guidelines – Design Criteria and Metrics

slide-8
SLIDE 8 donald macdonald architects

Guiding Principals

Historic and Character Defining Features

  • Retaining the existing

balustrade.

  • Retaining the light pedestals,

light poles and fixtures.

  • Retaining the alcoves and

maintain at least some of them useable for pedestrians

  • n the bridge.

Bridge Aesthetics

  • Complimenting the Beaux Arts

architecture, proportions, massing solids and voids.

  • Use of materials that provide

transparency, complimentary color and texture, and longevity.

  • Design sensitivity to both views
  • f the bridge, and from the

bridge.

Effectiveness

  • Establish an effective barrier

height.

  • Removing hand holds,

footholds, toe holds and other means of climbing advantage.

  • Sealing off the bridge ends.

Other Concerns:

  • Facilitate first responder's ability to communicate and access jumpers breaching the barrier
slide-9
SLIDE 9

Barrier Effectiveness – Climbability

Design Criteria - Establish barrier height to eliminate ability to stand on highest toe

hold to reach top of barrier

Metric - Height above highest Foothold ≥ 10’ Height above highest toehold ≥ 9’

donald macdonald architects

How High Can Someone Reach? A 6’-6” person can jump 10’ and reach 9’

slide-10
SLIDE 10

Barrier Effectiveness – Climbability

Design Criteria - Eliminate hand holds and toe holds as a means of climbing Metrics -

Space horizontal elements that can be grasped ≥ 9’ apart

donald macdonald architects
slide-11
SLIDE 11

Barrier Effectiveness – Climbability

Design Criteria -Eliminate ability to climb lamp poles / shimmy between pole and barrier / and other “parkour” methods of climbing / breaching the barrier Metric – Keep ”stretch & grasp” distances to top of barrier ≥ 7’

donald macdonald architects
slide-12
SLIDE 12 donald macdonald architects

Barrier Effectiveness –

Scoring system for climbability:

If top of barrier has overhang if lamp has climbing guard collar if material openings are too small for fingers to penetrate (1/2” or less) if top of barrier has horizontal elements within 7’
  • f top
if material openings are .5” to 1” if material openings are 1” or larger

+1 +1

  • .5

Scoring system for climbability: Barrier is 10’ or higher from highest foothold and 9’ from highest toehold. If the barrier is less than 10’ from the highest foothold but greater than 9’ from either the highest foothold or toehold.

3 2 +1

  • .5
  • 1
slide-13
SLIDE 13

Alcoves, Pilasters, Lamp Pole & Balustrade

Historic and Character Defining Features

Preserve Lamp Pedestal and Lamp Pole Prominence Preserve Balustrade Defining Features Preserve Alcove Openings at Some or All Occurrences

slide-14
SLIDE 14

11’-6”

slide-15
SLIDE 15
slide-16
SLIDE 16

13’

slide-17
SLIDE 17

13’

slide-18
SLIDE 18 8’ 2’ BARRIER WRAPS AROUND BACK SIDE OF PILASTER BARRIER WRAPS AROUND BACK SIDE OF PILASTER LAMP REMAINS AT ORIGINAL HEIGHT

9’

Condition at Bridge Ends

slide-19
SLIDE 19

Condition at Bridge Ends

slide-20
SLIDE 20

Design Alternatives

slide-21
SLIDE 21
slide-22
SLIDE 22 donald macdonald architects

1

slide-23
SLIDE 23 donald macdonald architects

2

slide-24
SLIDE 24 donald macdonald architects

2

slide-25
SLIDE 25 donald macdonald architects

3

slide-26
SLIDE 26 donald macdonald architects

‘A’ Panels

w/ posts at corbels

4

slide-27
SLIDE 27 donald macdonald architects donald macdonald chitects 5
slide-28
SLIDE 28 donald macdonald architects

6

slide-29
SLIDE 29

Rods

donald macdonald architects

7

slide-30
SLIDE 30

Rods

donald macdonald architects

7

slide-31
SLIDE 31

Pickets ‘A’ Panels

Pickets w/ posts at corbels

9

slide-32
SLIDE 32
slide-33
SLIDE 33

11

‘B’ Panels

Mesh w/ posts at corbels
slide-34
SLIDE 34
slide-35
SLIDE 35

13

slide-36
SLIDE 36

13

slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40

Breakout Discussion

slide-41
SLIDE 41 donald macdonald architects

Q & A

slide-42
SLIDE 42

Key Next Steps
