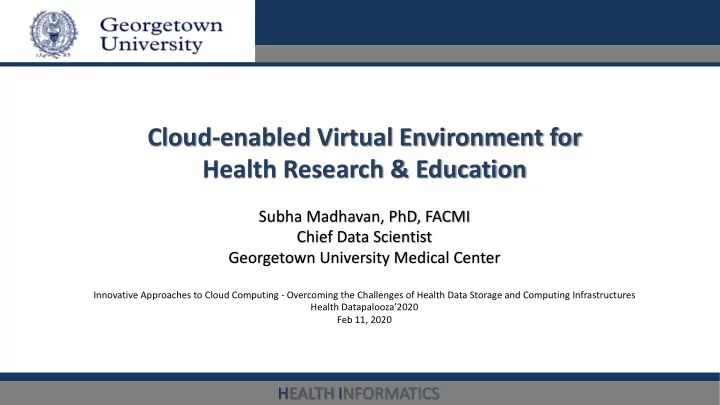

Cloud-enabled Virtual Environment for Health Research & Education

Subha Madhavan, PhD, FACMI Chief Data Scientist Georgetown University Medical Center

Innovative Approaches to Cloud Computing - Overcoming the Challenges of Health Data Storage and Computing Infrastructures Health Datapalooza’2020 Feb 11, 2020

HEALTH INFORMATICS

Challenges

Practical challenges of modern biomedical research:

• Ecosystem complex, governance, challenges
• Datasets are outgrowing local infrastructure, inhibiting researchers’ ability to

maintain them.

• Compute requirements to process these large datasets are exceeding local

capacity, inhibiting analysis.

• Downloading large scale data to a local computer for analysis may be more

difficult than bringing computational capability to where the data is located.

• Collaborating on research projects across organizations can be challenging

due to differences in local IT environments.

• Critical data sharing needs but Privacy and information security are

paramount

HEALTH INFORMATICS

Emerging solutions

HEALTH INFORMATICS

Challenges at Academic Medical Centers

• All GCP projects stand alone (no assigned Org)

– Users create stand alone non-GU identities – IT/ or self grants “Editor” rights to GCP projects – Users login with Google username/password

• Agreement needed for access to research credits (Institution)

– GCP billing accounts not tied to GU cost centers – No path to SSO for collaboration and access management

• IT control of GU Domain for G-Suite Org

– Enabled Identity and GCP services in G-Suite Org – Established SSO for G-Suite – Unified billing – still under development – Began migrating GCP Projects and Google Identities into G-Suite Org – On-boarding process for GCP not fully streamlined yet

HEALTH INFORMATICS

Why we need VRE? 3 primary uses

PHI

Restricted Access PI/ Study driven Tools/ Compute

Collaboration

Research networks Collaboration Tools/ Compute

Education

Training data sets Public data sets Tools/ Compute

HEALTH INFORMATICS Virtual Research Environment Running on Google Cloud Platform (GCP)

HEALTH INFORMATICS

Virtual Research Environment (VRE)

HEALTH INFORMATICS

DATA ANALYSIS AND COLLABORATION ON GCP

HEALTH INFORMATICS

Data Analysis with Jupyter Notebook

• Provides a nice user interface

for performing analysis, and data visualizations

• Supports Python and R
• Can be launched preinstalled
• n whatever size machine you

think you will need

– From 1 vCPU to 160 vCPU and 3.75 GB RAM to 3844 GB RAM

HEALTH INFORMATICS

Google BiqQuery

• Serverless Data Warehouse

– Allows you to setup a SQL data warehouse easily without any complicated configuration – Supports standard ANSI SQL and provides ODBC and JDBC drivers – Scales to petabyte scale easily

• Data governance and security

– Supports fine grained identity and access management – Encrypts all data at rest and in transit

• BigQuery ML

– Enables users to create and execute machine learning models in BigQuery using standard SQL queries

HEALTH INFORMATICS

BigQuery ML

• Models are trained and accessed in BigQuery using SQL
• Supported models in BigQuery ML

– Linear regression for forecasting – Binary logistic regression for classification – Multiclass logistic regression for classification. These models can be used to predict multiple possible values such as whether an input is "low-value," "medium-value," or "high-value.” – K-means clustering for data segmentation (beta) – TensorFlow model importing

• This feature allows you to create BigQuery ML models from previously-trained

TensorFlow models, then perform prediction in BigQuery ML

HEALTH INFORMATICS

Google Cloud AutoML

• Cloud AutoML Natural Language

– Classification

• Allows you to train your own model to classify documents according to labels you define

– Entity Extraction

• Allows you to train your own model to identify a custom set of entities within English language

text

– Sentiment Analysis

• Allows you to train your own model to analyze attitudes within English language text
• Cloud AutoML Video Intelligence

– Classification

• Allows you to train your own model to classify shots and segments in your videos according to

your own defined labels

– Object Tracking

• Allows you to train your own model to follow specific objects in your videos

HEALTH INFORMATICS

Google Cloud AutoML

• Cloud AutoML Vision

– Classification

• Allows you to train your own model to classify your images according to labels

that you define

– Object Detection

• Allows you to train your own model to detect and extract multiple objects and

provide information about those objects including its position in the image

HEALTH INFORMATICS

Using Google Cloud Storage for Massive Data Files

• Google Cloud Storage is a reasonably priced highly available and

durable storage solution

• Provides AES 256 bit encryption at rest for data stored

– Can be Google managed key or client managed key

• Supports Identity and Access Management (IAM) fine grained

control for access to the data

– Supports the use of groups for access as well

• This is a best practice and allows easy addition of users to the group as well as

removal

• Group is granted a role (Owner, Writer, Reader) and all members of the group have

access

HEALTH INFORMATICS

Secure Research Network

• Storage of PHI data requires additional security precautions

– Encrypted volumes for all Compute Instances – Encrypted Storage buckets

• Separate VPC with defined subnets and firewall rules

– Public and Private Subnets – All instances with PHI data on them must be in a private subnet without public IP – Connections to all instances must be done over encrypted protocols – Firewall rules should limit outside connections to specific CIDR ranges and protocols

HEALTH INFORMATICS

Secure Research Network

• Logging and Auditing

– All instances need to have logging enabled and logs exported to storage bucket for retention – Logs need to be regularly reviewed for unauthorized actions – IAM accounts need to be regularly audited to ensure only authorized users have access to resources

• Intrusion Detection and Prevention (IDS/IDP)

– Should have in place a system that performs Intrusion Detection and Prevention

• Looking at network traffic for unusual activity

HEALTH INFORMATICS

VRE Use Case #1

• Using GCP resources for Graduate Course Assignments

– Extracting and transforming large clinical datasets (MIMIC-III) for downstream statistical analysis

HEALTH INFORMATICS

Use Case #1: Dataset

• MIMIC III (Medical Information Mart for Intensive Care III)
• Free publicly available hospital database containing de-identified data from

approximately 40,000 patients

• Critical care units of the Beth Israel Deaconess Medical Center
• 53,423 distinct hospital admissions for adult patients (aged 16 years or above)

admitted to critical care units between 2001 and 2012

• Includes information such as demographics, vital signs, laboratory test results,

procedures, medications, clinical notes

HEALTH INFORMATICS

Use Case #1: MIMIC-III Tables

Table name Description ADMISSIONS Every unique hospitalization for each patient in the database (defines HADM_ID). CAREGIVERS Every caregiver who has recorded data in the database (defines CGID). CHARTEVENTS All charted observations for patients. DIAGNOSES_ICD Hospital assigned diagnoses, coded using the International Statistical Classification of Diseases and Related Health Problems (ICD) system. ICUSTAYS Every unique ICU stay in the database (defines ICUSTAY_ID). LABEVENTS Laboratory measurements for patients both within the hospital and in

• utpatient clinics.

NOTEEVENTS Deidentified notes, including nursing and physician notes, ECG reports, radiology reports, and discharge summaries. PATIENTS Every unique patient in the database (defines SUBJECT_ID). PRESCRIPTIONS Medications ordered for a given patient. PROCEDURES_ICD Patient procedures, coded using the International Statistical Classification

• f Diseases and Related Health Problems (ICD) system.

SERVICES The clinical service under which a patient is registered. TRANSFERS …. Patient movement from bed to bed within the hospital, including ICU admission and discharge. ….

More information: https://mimic.physionet.org/about/mimic/

HEALTH INFORMATICS

Use Case #1: GCP resources

• Uploaded MIMIC-III csv files to Google bucket
• Import csv files into a Postgres SQL server running on GCP
• Analyze data using R Studio and/or Jupyter Notebook running
• n GCP

HEALTH INFORMATICS

VRE Use Case #2

• Google Cloud AutoML Vision for Medical Image Classification

– Pneumonia Detection using Chest X-Ray Images – Develop an end-to-end medical image classification model using GCP resources

HEALTH INFORMATICS

Use Case #2: Dataset

• 5,232 chest X-ray images from children.
• 3,883 of those images are samples of bacterial (2,538) and

viral (1,345) pneumonia.

• 1,349 samples are healthy lung X-ray images.

HEALTH INFORMATICS

Use Case #2: Dataset

HEALTH INFORMATICS

Use Case #2: GCP resources

• Compute Engine: Scalable, high-performance VMs
• Cloud Storage: Object storage (buckets)
• AI Platform Notebooks: An enterprise notebook service (Jupyter)
• AutoML Vision: Train machine learning models to classify images

HEALTH INFORMATICS

Use Case #2: Sample AutoML Vision Results (After 2 hours of training)

HEALTH INFORMATICS

Use Case #2: Sample AutoML Vision

HEALTH INFORMATICS

VRE - Summary

• What we have accomplished in one year of the VRE

– Access to a scalable, secure and cost effective IT platform – Reduced redundancy and sys admin resources – Leverage the cloud and available tools/ resources to efficiently develop advanced solutions collaborate with researchers and research networks, providers, and health IT companies – Single platform for educational purposes

• Issues still to be addressed

– Systems to be migrated require resources: G-DOC, CTSA servers, REDCap, others – Need major upgrades and updates to be able to migrate – Some systems cannot be migrated b/c agreements with government agencies or for compliance reasons – No established policies or security controls and practices to meet HIPAA and Other Compliance Obligations – Little Understanding of the Shared Responsibility Model – Loss of Centralized Network Security Controls – How Do We Identify and Block Critical Threats?
