CLEVER: a CLoud-Enabled Virtual EnviRonment Francesco Tusa - - PowerPoint PPT Presentation

Introduction Middleware Architecture Middleware Development Conclusions

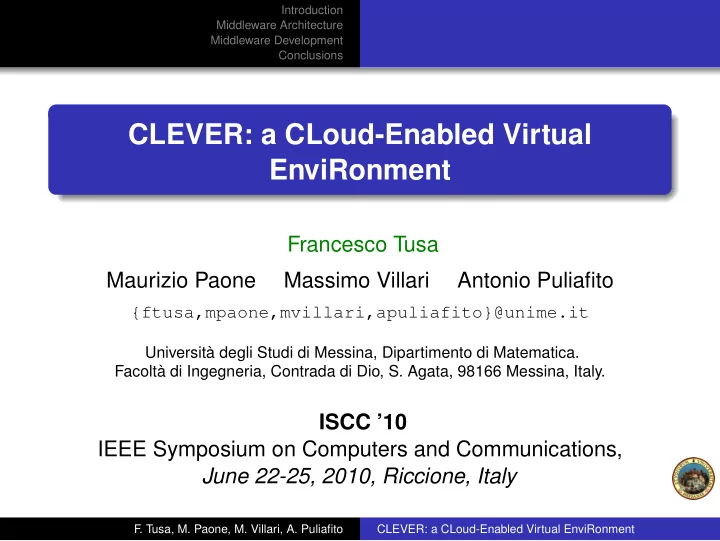

CLEVER: a CLoud-Enabled Virtual EnviRonment

Francesco Tusa Maurizio Paone Massimo Villari Antonio Puliafito

{ftusa,mpaone,mvillari,apuliafito}@unime.it

Università degli Studi di Messina, Dipartimento di Matematica. Facoltà di Ingegneria, Contrada di Dio, S. Agata, 98166 Messina, Italy.

ISCC ’10 IEEE Symposium on Computers and Communications, June 22-25, 2010, Riccione, Italy

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions

Outline

1

Introduction Inside the Cloud State of the art Our contribution

2

Middleware Architecture General Overview Middleware Components and Features

3

Middleware Development UML description Implementation

4

Conclusions

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions Inside the Cloud State of the art Our contribution

Summary

1

Introduction Inside the Cloud State of the art Our contribution

2

Middleware Architecture General Overview Middleware Components and Features

3

Middleware Development UML description Implementation

4

Conclusions

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions Inside the Cloud State of the art Our contribution

A cloud definition

“Cloud Computing is a large-scale distributed computing paradigm that is driven by economies of scale, in which a pool of abstracted, virtualized, dynamically-scalable, managed computing power, storage, platforms, and services are delivered on demand to external customers over the Internet.” [I. Foster et al. (2008)]

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions Inside the Cloud State of the art Our contribution

Three different cloud service levels

Virtualization technology for “abstracting resources”. Services to the customers mainly at three different levels: Iaas, PaaS and SaaS.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions Inside the Cloud State of the art Our contribution

A Cloud classification: Public, Private and Hybrid Clouds

Public Clouds Management of Virtual Machine instances within a proprietary infrastructure. Many different customers can run and control their own applications. Access from a remote interface using a specific protocol. Private Clouds Infrastructure owned by a single organization offering its internal computing resources to local users: do not “sell“ computing capacity. Open Source tools employment, dedicated operating environment offered to local users with high trust level. Hybrid Clouds A private cloud which adds to the local infrastructure more computing capacity with resources coming from an external public clouds. External resources access allowed over the Internet, using remote interfaces.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions Inside the Cloud State of the art Our contribution

Private/Hybrid Cloud middlewares: a reference stack

Features of Private/Hybrid cloud middlewares: Middleware for Virtual Infrastructure Management: essentially dynamic

• rchestrator of Virtual Environments (VEs).

Middleware for High-level Management: transforms existing infrastructures into an IaaS clouds with cloud-like interfaces; adds Security, Contextualization, Federation and other ”high-level” mechanisms.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions Inside the Cloud State of the art Our contribution

Private/Hybrid Cloud middlewares: existing solutions

Virtual Infrastructure Management Middlewares: OpenQRM and OpenNebula Deploy and manage VEs: individually or in groups needing parallel scheduling

• n local resources or external public clouds.

Automate VE setup regardless of the underlying virtualization layer. Lack mechanisms for building hybrid IaaS clouds: public cloud-like interfaces, the ability to deploy VMs on external clouds and other High-level functionalities. High-level Middlewares: Globus Nimbus and Eucalyptus Transform existing infrastructure into an IaaS cloud with cloud-like interfaces. Compatible with the Amazon EC2 or Web Services Resource Framework (WSRF) interfaces and offers self-configuring virtual cluster support. Include Cloud-like interfaces and higher-level functionalities for security, contextualization. Limited VI management capabilities: lack the features of middlewares specialized in VI management.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions Inside the Cloud State of the art Our contribution

A new cloud computing middleware: CLEVER Acts as a middleware for the management of Private and Hybrid cloud computing infrastructures. Specifically integrates VI Management layer functionalities. Tries to minimize the design and implementation issues of the existing solutions: integrates fault-tolerance and scalability features. Abstract low-level technologies using a plug-ins design. Provides simple and easily accessible interfaces:

Integration of security, contextualization and other high-level functionalities made available from higher level software components; Interconnection of different heterogeneous cloud computing infrastructures.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

Summary

1

Introduction Inside the Cloud State of the art Our contribution

2

Middleware Architecture General Overview Middleware Components and Features

3

Middleware Development UML description Implementation

4

Conclusions

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

Reference Scenario

Hierarchical reference stack Private/Hybrid cloud scenarios usually composed of a cluster of computers. Virtual Infrastructure Management layer functionalities arranged according to the physical infrastructure: Host Management and Cluster Management sub-layers.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

General Architecture on the reference scenario

N computing nodes containing one host level Management module: Host Manager. One node includes a cluster level Management module: Cluster Manager. External components: XMPP Server and Distributed Database. Middleware entities “talks” in an XMPP chat room exploiting the presence feature.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

CLEVER Architecture

Host Manager (HM) Communicates with the hosts’ OS, hypervisor and distributed file-system on which the VE disk-images are stored. Performs both physical resources and VEs monitoring. Runs VEs on the physical hosts even performing their migration. Cluster Manager (CM) Coordinates the HMs and performs operations on the Distributed Database. Acts as an interface between the clients and the HM. Performs the user VE disk-images management and the monitoring of the overall cluster state. At least one CM has to be deployed on each cluster: many of them should exist to enable fault-tolerance. A master CM will be in active state while the other ones will remain in a monitoring state: automatic active CM re-election.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

CLEVER Architecture: XMPP and Fault Tolerance

XMPP Offers a decentralized communication channel: more XMPP server could exists. Using more servers a central point of failure will not exist. Both CMs and HMs “talks” in a chat room exploiting the presence feature. Information about the cluster state (connected hosts) offered directly by the protocol. It is easy to add new nodes in the infrastructure: scalability. Distributed Database Database containing the overall set of information related to the middleware: the current state of the VEs, data related to the XMPP connection. Developed according to a well structured approach, for enabling fault tolerance features. Used by both the Active/Idle CMs and XMPP server(s).

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

Host Manager Components: Host Coordinator

Each HM component mapped an a different OS process: high modularity and fault tolerance. The core of the Host Manager: it coordinates all the HM internal components using a specific Internal Communication protocol based on Java Message Service (JMS). Through the CM interface communicates with the CMs exchanging XMPP chat messages on the specific room (VEs allocation, Monitoring State, etc.).

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

Host Manager: Monitor and Low-level components

Monitor: Resource usage monitoring for each host. Information organized and made available for the HM coordinator. Hypervisor Interface: middleware back-end to the host hypervisor. Different virtualization technologies could be employed using different plug-ins structure has to be developed. Image Manager: supply to the Hypervisor Interfaces the needed VE disk-image corresponding to a specific VE. Different plug-ins associated to different data access/transfer method. Network Manager: Gathers information about the host network state. Manages host network (OS level) according to the guidelines provided by the HM Coordinator: dynamic creation of network bridges, routing and firewalling rules.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

Cluster Manager Components: Cluster Coordinator

Each CM component mapped an a different OS process: high modularity and fault tolerance. The core of the Cluster Manager: like the HM Coordinator it coordinates all the CM internal components using a specific Internal Communication protocol based

• n Java Message Service (JMS).

Performs Virtual Environment deploying based on the cluster workload and features of each host. HMs Interface, Client Interface and External Cluster Interface for communicating

• n different XMPP chat with the cluster HMs, the cloud clients (or High-level

software) and other “federated” infrastructures.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions General Overview Middleware Components and Features

Cluster Manager: Low-level components

Database Manager: interacts with the database used to store information needed to the cluster handling. Database Manager must maintain the data strictly related to the cluster state. Performance Estimator: Analysis of the set of data collected from the Coordinator, in order to compute and provide a probable trend estimation of the collected measures. Image Manager: manages registration and upload within the Cluster Storage System of the VEs disk-images. The Storage Manager is used to perform the registration process of such files and manage the internal cluster distributed file system.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions UML description Implementation

Summary

1

Introduction Inside the Cloud State of the art Our contribution

2

Middleware Architecture General Overview Middleware Components and Features

3

Middleware Development UML description Implementation

4

Conclusions

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions UML description Implementation

Design state Whole system behavior described through UML: Use Case Diagrams: Global system, Middleware Initialization, VEs execution and VEs registration. Activity Diagrams: XMPP communication, Component Interaction, VE Migration, ... Class Diagram: one for each component and Internal Communication Protocol. Sequence Diagrams: VEs Migration, Inter-process Communication Protocol.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions UML description Implementation

Design state example: General Use Case

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions UML description Implementation

Design state example: Host Coordinator Class Diagram

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions UML description Implementation

Implementation State

Fully Implemented Components HM-CM Communication Protocol over XMPP Host Manager: Host Coordinator and Internal Communication Protocol Hypervisor Interface with Libvirt plugin Monitor Network Manager Cluster Manager: Cluster Coordinator and Internal Communication Protocol Partially Implemented Components Host Manager: Image Manager Cluster Manager: Storage Manager, Database Manager

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions

Summary

1

Introduction Inside the Cloud State of the art Our contribution

2

Middleware Architecture General Overview Middleware Components and Features

3

Middleware Development UML description Implementation

4

Conclusions

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions

A CLEVER summary

Mainly acts as “CLEVER“ Virtual Infrastructure Management cloud middleware. Exposes suitable interfaces at the High-level Management layer. Enables the integration of Public Cloud Interfaces, Contextualization, Security, Federation and other High-level functionalities. Using Monitoring, is able to perform best VEs allocation and migration. Thanks to its pluggable design, CLEVER grants scalability, modularity, flexibility. Abstraction from the underlying technologies. Fault Tolerance using more CMs. Presence concept exploited to know the state of the cluster: available hosts, disconnected hosts.

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions

Future Works Complete the middleware implementation with other remaining components already designed. Performance Analysis of the middleware, evaluating the

• verhead introduced by XMPP

. Compare the middleware performance with the VM allocation rate of the Hypervisor (OS tools/API).

• F. Tusa, M. Paone, M. Villari, A. Puliafito

CLEVER: a CLoud-Enabled Virtual EnviRonment

Introduction Middleware Architecture Middleware Development Conclusions

Questions and Answers
