Motivation Two-Cloud Setting PP k NN Classification Conclusion and Future Research Privacy-Preserving Query Processing over Encrypted Data in Cloud CS573 Data Privacy and Security Yousef M. Elmehdwi Department of Mathematics and Computer


slide-1

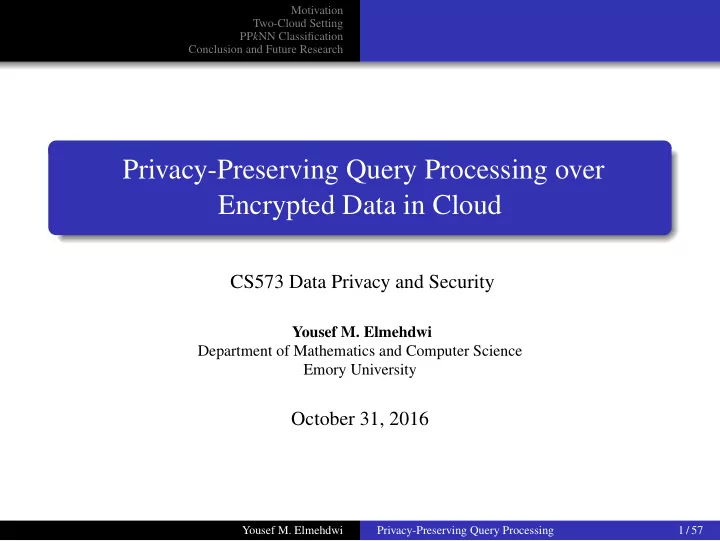

SLIDE 1

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research

Privacy-Preserving Query Processing over Encrypted Data in Cloud

CS573 Data Privacy and Security

Yousef M. Elmehdwi Department of Mathematics and Computer Science Emory University

October 31, 2016

Yousef M. Elmehdwi Privacy-Preserving Query Processing 1 / 57

slide-2
SLIDE 2

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Cloud Computing Computation over Encrypted Data

Cloud Computing

Definition Type of computing that relies on sharing computing resources rather than having local servers or personal devices to handle applications Outsourcing Data owner outsources its data as well as processing functionalities to a cloud Reduced management cost, less overhead of data storage, and improved quality of service Key Challenge Cloud cannot be fully trusted Protect data confidentiality query privacy, and data access patterns

Yousef M. Elmehdwi Privacy-Preserving Query Processing 2 / 57

slide-3
SLIDE 3

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Cloud Computing Computation over Encrypted Data

Cloud Computing 2

How to Ensure Data Confidentiality Data owners encrypt their data before outsourced to a cloud Key challenge: query processing over encrypted data without the cloud ever decrypting the data

Yousef M. Elmehdwi Privacy-Preserving Query Processing 3 / 57

slide-4
SLIDE 4

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Cloud Computing Computation over Encrypted Data

Computing on Encrypted Data

Basic idea Party P1 sends encrypted data to party P2 Party P2 performs some computation and returns the encrypted result to party P1 Party P1 decrypts to find out the answer Ways to perform computations on encrypted data Fully homomorphic encryption (impractical) Additive/Multiplicative homomorphic encryption schemes (Additive adopted in this work)

Yousef M. Elmehdwi Privacy-Preserving Query Processing 4 / 57

slide-5
SLIDE 5

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Cloud Computing Computation over Encrypted Data

The Goal of this Work

Develop distributed protocols to allow the cloud to perform queries directly over encrypted data During query processing, the cloud cannot infer any information about the outsourced data, the user queries, or data access patterns Such a protocol is termed as privacy-preserving query processing (PPQP)

Yousef M. Elmehdwi Privacy-Preserving Query Processing 5 / 57

slide-6
SLIDE 6

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Cloud Computing Computation over Encrypted Data

Desired Output and Security Guarantee

Basic formulation PPQP

  • C : T′, Bob : q
  • → Bob : qout

Input - T′ denotes the encrypted database and q the user query Output- qout denotes set of records that satisfies q Security requirements

1

Data confidentiality and query privacy

2

Privacy/Hide data access patterns

3

Output security

4

Information that can be inferred from input/output is not a security violation Other desirable requirements

1

End-user efficiency and correctness

Yousef M. Elmehdwi Privacy-Preserving Query Processing 6 / 57

slide-7
SLIDE 7

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Example: Insurance Company

Yousef M. Elmehdwi Privacy-Preserving Query Processing 8 / 57

slide-8
SLIDE 8

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Two-Cloud Environment

Basic Assumptions Existence of two cloud service providers denoted by C1 and C2 (e.g., Google and Amazon) Alice owns a database T of n records t1, . . . , tn and m attributes Alice generates two keys (pk,sk) based on the AH-ENC system Alice encrypts T attribute-wise, and sends the encrypted database T′ to C1 and sk to C2 Bob wants to execute his input query q = q1, . . . , qm on T′ in the cloud in a privacy-preserving manner C1 is the data host, who stores all uploaded (encrypted) data T′ C2 is called the key holder since it stores Alice’s private key sk

Yousef M. Elmehdwi Privacy-Preserving Query Processing 9 / 57

slide-9
SLIDE 9

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Architecture of Two-Cloud Setting Based Solution

Yousef M. Elmehdwi Privacy-Preserving Query Processing 10 / 57

slide-10
SLIDE 10

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Adopted Security Model

More realistic model: Secure multiparty computation (SMC) Parties collaboratively compute the functionality in a secure fashion without using a trusted third party In SMC, security means guaranteeing the correctness of the output as well as the privacy of the parties’ inputs

Yousef M. Elmehdwi Privacy-Preserving Query Processing 11 / 57

slide-11
SLIDE 11

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Adopted Adversarial Model

Adversarial model Generally specifies what an adversary or attacker is allowed to do during an execution of a secure protocol Common adversary models under SMC Semi-honest: follow the protocol faithfully, but can try to infer the secret information of the other parties from the data they see during the protocol execution Malicious: may do anything to infer secret information (e.g., input modification, sending the wrong values) In our work, we adopt the semi-honest adversary model

Yousef M. Elmehdwi Privacy-Preserving Query Processing 12 / 57

slide-12
SLIDE 12

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Justification of Use of Semi-Honest Model

Two reasons for adopting Semi-Honest Model Developing protocols under the semi-honest setting is an important first step towards constructing protocols with stronger security guarantees Both C1 and C2 were assumed to be two cloud service providers. Today, cloud service providers in the market are legitimate, well-known companies (e.g., Amazon, Google, and Microsoft). These companies maintain reputations that are invaluable assets that need to be protected at all costs. Thus, a collusion between them is highly unlikely as it will damage their reputation, which, in turn, affects their revenues.

Yousef M. Elmehdwi Privacy-Preserving Query Processing 13 / 57

slide-13
SLIDE 13

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Additive Homomorphic Probabilistic Encryption

Epk and Dsk be the encryption and decryption functions. Given m1,m2 ∈ ZN, the AH-ENC system exhibits the following properties. Homomorphic Addition Dsk

  • Epk(m1 + m2)
  • = Dsk
  • Epk(m1) ∗ Epk(m2)
  • Homomorphic Multiplication

Given a constant c and a ciphertext Epk(m1) Dsk

  • Epk(c ∗ m1)
  • = Dsk
  • Epk(m1)c

Probabilistic Let c1 = Epk(m1) and c2 = Epk(m2) Probability for c1 = c2 is very high even if m1 = m2 Semantic Security Given Epk(m1), an adversary cannot derive any information about m1

Yousef M. Elmehdwi Privacy-Preserving Query Processing 14 / 57

slide-14
SLIDE 14

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Sub-protocol

Secure Multiplication (SM) SM

  • C1 : Epk(a), Epk(b)
  • ,
  • C2 : sk
  • C1 : Epk(a ∗ b)
  • , C2 : ∅
  • Input : Epk(a), Epk(b), and private key sk

Output : encryption of a ∗ b Secure Squared Euclidean Distance (SSED) SSED

  • C1 : Epk(X), Epk(Y)
  • ,
  • C2 : sk
  • C1 : Epk(|X − Y|2)
  • , C2 : ∅
  • Input : X and Y are m-dimensional vectors, and private key sk , where

Epk(X) = Epk(x1), . . . , Epk(xm), Epk(Y) = Epk(y1), . . . , Epk(ym) Output : encryption of squared Euclidean distance between X and Y

Yousef M. Elmehdwi Privacy-Preserving Query Processing 15 / 57

slide-15
SLIDE 15

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Sub-Protocols 2

Secure Bit-OR (SBOR) SBOR

  • C1 : Epk(o1), Epk(o2)
  • ,
  • C2 : sk
  • C1 : Epk(o1 ∨ o2)
  • , C2 : ∅
  • Input : o1 and o2 are two bits, and sk is private key sk

Output : encryption of the boolean OR operation between o1 and o2 Secure Bit-Decomposition (SBD) SBD

  • C1 : Epk(z)
  • ,
  • C2 : sk
  • C1 : [z]
  • , C2 : ∅
  • Input : Epk(z) such that 0 ≤ z < 2l and sk is private key

Output : [z] =

  • Epk(z1), . . . , Epk(zl)
  • SBD: Example

Let z = 5, l = 3. SBD

  • Epk(5), sk
  • → [z] =
  • Epk(1), Epk(0), Epk(1)
  • Yousef M. Elmehdwi

Privacy-Preserving Query Processing 16 / 57

slide-16
SLIDE 16

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

New Secure Minimum Sub-Protocol

Secure Minimum (SMIN) SMIN(C1 : (u′, v′), C2 : sk) → (C1 : [min(u, v)], Epk(smin(u,v)), C2 : ∅) Input:

u′ =

  • [u], Epk(su)
  • , v′ =
  • [v], Epk(sv)
  • , and sk is private key

[u] (resp., [v]) denotes the encryption of individual bits of binary representation of u (resp., v) su (resp., su) denotes the secret corresponding to u (resp., v)

Output:

[min(u, v)]: encryptions of individual bits of minimum between u and v Epk(smin(u,v)): encryptions of secret corresponds to minimum of u and v

SMIN: Example

Let u′ =

  • [5], Epk(s5)
  • and v′ =
  • [3], Epk(s3)
  • , where [5] =
  • Epk(1), Epk(0), Epk(1)
  • ,

[3] =

  • Epk(0), Epk(1), Epk(1)
  • ⇒SMIN(u′, v′)=
  • [3], Epk(s3)
  • Yousef M. Elmehdwi

Privacy-Preserving Query Processing 17 / 57

slide-17
SLIDE 17

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

New Secure Minimum out of n numbers Sub-Protocol

Secure Minimum out of n numbers (SMINn) SMINn(C1 : (θ1, . . . , θn), C2 : sk) → (C1 : [dmin], Epk(sdmin), C2 : ∅) Input:

∀n

i=1 θi =

  • [di], Epk(sdi)
  • and sk is private key

[di]: encryption of individual bits of binary representation of di for 1 ≤ i ≤ n sdi: secret corresponding to di for 1 ≤ i ≤ n

Output:

[min(d1, . . . , dn)] = [dmin]: encryptions of individual bits of global minimum Epk(smin(d1,...,dn)) = Epk(sdmin): encryptions of secret corresponds to global minimum

SMAX and SMAXn

Similarly, one can design SMAX and SMAXn to compute the global maximum

Yousef M. Elmehdwi Privacy-Preserving Query Processing 18 / 57

slide-18
SLIDE 18

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

New Secure Frequency Sub-Protocol

Secure Frequency (SF) SF(C1 : (Λ, Λ′), C2 : sk) →(C1 : Epk

  • f(c1)
  • , . . . , Epk
  • f(cw)
  • , C2 : ∅)

Input:

Λ =

  • Epk(c1), . . . , Epk(cw)
  • , Λ′ =
  • Epk(c′

1), . . . , Epk(c′ k)

  • , and sk is

private key

Output:

Epk

  • f(cj)
  • : encryption of the frequency of cj in the list c′

1, . . . , c′ k, for

1 ≤ j ≤ w cj’s are unique and c′

i ∈ {c1, . . . , cw} for 1 ≤ i ≤ k

SF: Example

(i.e., w = 3 and k = 6), Λ = Epk(2), Epk(3), Epk(5) and Λ′ = Epk(3), Epk(2), Epk(3), Epk(2), Epk(5), Epk(2) ⇒ SF(Λ, Λ′) →

  • Epk
  • f(2)
  • = Epk(3), Epk
  • f(3)
  • = Epk(2), Epk
  • f(5)
  • = Epk(1)
  • Yousef M. Elmehdwi

Privacy-Preserving Query Processing 19 / 57

slide-19
SLIDE 19

Motivation Two-Cloud Setting PPkNN Classification Conclusion and Future Research Overview Security model Privacy-preserving primitives Proving Security of SM

Proving Security Under The Semi-Honest Model

Key ideas Information deduced from the messages in the real execution image of a protocol should be computationally indistinguishable from the information deduced based on the corresponding messages in the simulated view For this, all the intermediate messages seen by an adversary during the execution of a protocol should be either random or pseudo-random To prove a protocol is secure under semi-honest model, it required to show that the execution image of a protocol does not leak any information regarding the private inputs of participating parties / we need to show that the simulated execution image of that protocol is computationally indistinguishable from its actual execution image An execution image generally includes the messages exchanged and the information computed from these messages

Yousef M. Elmehdwi Privacy-Preserving Query Processing 20 / 57
