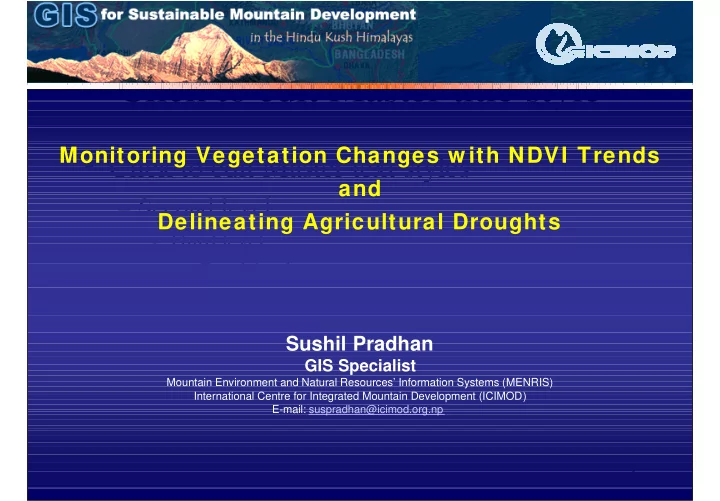

Monitoring Vegetation Changes w ith NDVI Trends and Delineating Agricultural Droughts

Sushil Pradhan

GIS Specialist

Mountain Environment and Natural Resources’ Information Systems (MENRIS) International Centre for Integrated Mountain Development (ICIMOD) E-mail: suspradhan@icimod.org.np

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

3

Monitoring of vegetation pattern is important as it is related to crop production levels, and to perennial vegetation/rangeland production Need to improve basic understanding of dynamics of the vegetation cover changes Methodology to map and monitor land cover and vegetation behavior by remote sensing is useful

Background

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

4

Study of Greenness using annual and seasonal NDVI (Normalized Difference Vegetation Index) 10 days’ time series SPOT Vegetation satellite images (1km x 1km) 1998 – 2004 (7 years) Background

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

5

SPOT Vegetation Satellite Image

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

6

NDVI Calculation Method

GRID NDVI Calculations ArcView Script

Individual NDVI GRIDs NDVI = - 0.1 + (0.00400 x G) Where, G = individual GRIDs exported from individual images.

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

7

Normalized Difference Vegetation Index (NDVI) Referred as “Greenness” maps Indicative of the amount of green vegetation on earth’s surface Allows to compare spatial and temporal variability in the amount and condition of vegetation Useful to monitor seasonal development of vegetation it responds to rainfall and other factors affecting growth and production

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

8

NDVI Maps

January 21, 2003 February 21, 2003 June 21, 2003

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

17

10-Day’s Vegetation Pattern Changes of Myanmar

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

18

Vegetation Growth Trend Analysis, 1999 - 2004

Vegetation Growing Trend of MYANMAR 1999 - 2004

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

Jan-99 Mar-99 May-99 Jul-99 Sep-99 Nov-99 Jan-00 Mar-00 May-00 Jul-00 Sep-00 Nov-00 Jan-01 Mar-01 May-01 Jul-01 Sep-01 Nov-01 Jan-02 Mar-02 May-02 Jul-02 Sep-02 Nov-02 Jan-03 Mar-03 May-03 Jul-03 Sep-03 Nov-03 Jan-04 Mar-04 May-04 Jul-04 Sep-04 Nov-04 Months/Years

Vegetation Indices

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

19

Comparison of growing seasons

Best Growing season –October and November Dry season – June and July Basis for detailed analysis

Monthly Vegetation Growth Pattern of MYANMAR 1999 - 2004

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8

Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Months

Vegetation Indices

1999 2000 2001 2002 2003 2004

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

22

Agricultural Vegetation Anomalies

1999 2000 2001 2002 2003 2004

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

23

Drought Analysis

Shows the most severe dryness occurred for different locations – the worst growing season of the six-year period Derived by selecting the minimum of six annual maximum NDVI values, i.e. the lowest greenness value of the six primary growing seasons Provides insight into the annual variability of precipitation, resulting in drought-induced vegetation production anomalies

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

24

Drought Analysis (1999 – 2004)

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

25

Vegetation Monitoring - Afghanistan

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

26

Vegetation Monitoring - Bhutan

2003 December 21 2003 December 11 2003 December 1 2003 November 21 2003 November 11 2003 November 1 2003 October 21 2003 October 11 2003 October 1 2003 September 21 2003 September 11 2003 September 1 2003 August 21 2003 August 11 2003 August 1 2003 July 21 2003 June1 2003 May 11 2003 April 11 2003 March 1 2003 February 1 2003 January 1

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

27

Vegetation Monitoring– TAR/China

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

28

Vegetation Monitoring – HP, India

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

38

Agricultural Vegetation Anomalies - Nepal

Nepal Nepal Nepal Nepal

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

39

Rainfall 1998 Rainfall 1999

Annual Precipitation

Rainfall 2000

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

40

Correlation Analysis: Low Agricultural Production with Precipitation, 1999 77% are within poor rainfall zone

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

42

Rangeland Management

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

43

Rangeland Management

Click to edit Master title style

• Click to edit Master text styles

– Second level

• Third level

– Fourth level » Fifth level

44

Conclusion
