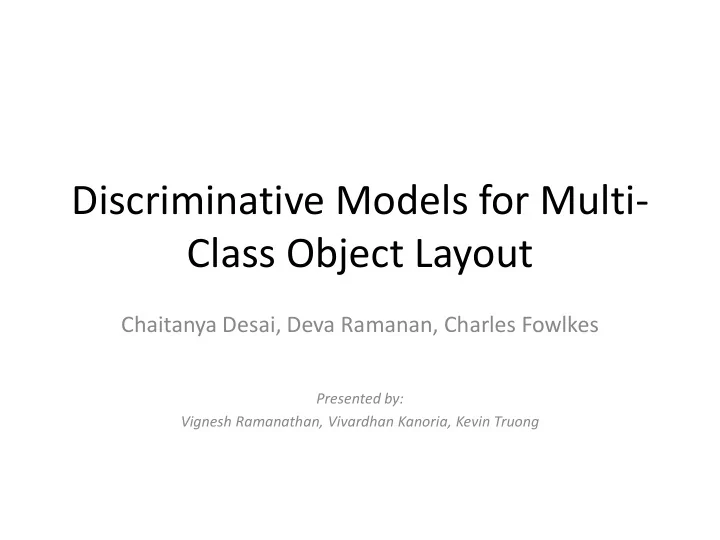

Discriminative Models for Multi- Class Object Layout

Chaitanya Desai, Deva Ramanan, Charles Fowlkes

Presented by: Vignesh Ramanathan, Vivardhan Kanoria, Kevin Truong

Introduction Why another Object Detector?

Issues with other Detectors:

• Binary 0-1 classification model for each image

window and object class, independent of the remaining image and objects present in it

• Heuristic post processing to improve

performance of detectors on datasets, e.g. Non Maximal Suppression

Interactions between Objects

• 1. Activation

Intra Class – Textures of Objects

[17] Y. Liu, W. Lin, and J. Hays. Near-regular texture analysis and

• manipulation. ACM Transactions on Graphics, 23(3):368–376, 2004

Between Class – Spatial Cueing

Interactions between Objects

• 2. Inhibition

Intra Class – Non Maximal Suppression Between Class – Mutual Exclusion

Interactions between Objects

• 3. Global Properties

Between Class – Co-occurrence At most 1 biker per bike Intra Class – Total Counts At most 1 Sydney Opera House

Summary of Spatial Interactions Modeled

Within Class Between Class Activation Textures of Objects Spatial Cueing Inhibition Non Maximal Suppression Mutual Exclusion Global Expected Counts Co-occurrence

Contributions of Multi-Class Object Layout

• The object layout framework formulates

detection as a structured prediction task for an entire image rather than a binary classification task on sub-windows

• The model learns all of the listed spatial

interactions, in addition to learning local appearance statistics

Problem Formulation

The objective is to train a model to detect multiple classes of objects in test images given training images with annotated bounding boxes for each class specified

learning Model Parameters Test Image Inference

Model Formulation

Suppose we wish to model 𝐿 different object classes. The vector of object labels is 𝑚𝑏𝑐𝑓𝑚𝑡: 𝑍 = 𝑧𝑗: 𝑗 = 1 … 𝑁 , 𝑧𝑗𝜗 0 … 𝐿 ; 0 = background Construct the image pyramid Let 𝑁 be the total number of sub-windows. An image 𝑌 is represented by a set of features 𝑦𝑗: 𝑌 = 𝑦𝑗: 𝑗 = 1 … 𝑁

𝒚𝒋 = 𝑰𝑷𝑯 𝑮𝒇𝒃𝒖𝒗𝒔𝒇𝒕 𝒛𝒋 = 𝟒 (𝒊𝒗𝒏𝒃𝒐)

Task: Model should predict all labels Y, given an image X

Spatial Interaction Model

The spatial configuration of a window 𝑘 with respect to a window 𝑗 is encoded as follows:

𝑒𝑗𝑘 = 𝑂𝑓𝑏𝑠? 𝐺𝑏𝑠? 𝐵𝑐𝑝𝑤𝑓? 𝑃𝑜𝑢𝑝𝑞? 𝐶𝑓𝑚𝑝𝑥? 𝑂𝑓𝑦𝑢 − 𝑢𝑝? 50% 𝑃𝑤𝑓𝑠𝑚𝑏𝑞? ; j=1 j=2 𝑒𝑗1 = 1 ; 𝑒𝑗2 = 1 1

𝑒𝑗𝑘 is a 7 dimensional sparse binary vector: The first 6 components depend only on the relative location of the center of window j with respect to window i.

Model Parameters

The score of labeling an image X with labels Y is: 𝑇 𝑌, 𝑍 = 𝜕𝑧𝑗,𝑧𝑘

𝑈 𝑗,𝑘

𝑒𝑗𝑘 + 𝜕𝑧𝑗

𝑈 𝑗

𝑦𝑗 ; where 𝜕𝑏,𝑐 and 𝜕𝑑 are model parameters.

Sum over all pairs of windows Sum over all windows

• 𝜕𝑏,𝑐 captures spatial interactions between object classes a and b
• 𝜕𝑑 captures local appearance characteristics of object class c
• 𝜕𝑏,𝑐 = 7 × 1; 𝑏, 𝑐 ∈ 0 … 𝐿 × 0 … 𝐿
• 𝜕𝑑 = 𝑇𝑗𝑨𝑓 𝑝𝑔 𝐺𝑓𝑏𝑢𝑣𝑠𝑓 𝑦𝑗 𝐼𝑃𝐻, 𝑓𝑢𝑑. ; 𝑑 𝜗 0 … 𝐿
• Append a 1 to each 𝑦𝑗 to learn biases between classes
• Assign 𝜕0 and 𝜕0,1 and 𝜕1,0 to be 0

Inference: NP Hard

To get the desired detection, we need to compute: arg 𝑛𝑏𝑦𝑍 𝑇 𝑌, 𝑍 = arg 𝑛𝑏𝑦𝑍 𝜕𝑧𝑗,𝑧𝑘

𝑈 𝑗,𝑘

𝑒𝑗𝑘 + 𝜕𝑧𝑗

𝑈 𝑗

𝑦𝑗 i.e. Find the labeling 𝑍 that maximizes the score S for image 𝑌, given learnt model parameters 𝜕 There are (𝐿 + 1)𝑁 possible values for 𝑍 This is NP hard.

Inference: Greedy Forward Search Algorithm

• 1. Initialize all labels to 0 (i.e. background)
• 2. Repeatedly change the label of window 𝑗 to class 𝑑, where:

𝑗, 𝑑 is the window-class pair that maximizes the increase in score S(X,Y)

• 3. Stop when all windows have been instanced or step 2 causes

a decrease in score

• Effectiveness was tested on small scale problems where

the brute force solution was easily computed

• The score for the greedy forward search algorithm was

found to be quite close to the actual solution

• The two solutions typically differed in the labels of 1-3

windows

Greedy Forward Search: Details

Initialize 𝐽 = ; Set of instanced windows 𝑇 = 0; ∆ 𝑗, 𝑑 = 𝜕𝑑

𝑈𝑦𝑗 ; Change in score

Repeat: 1. 𝑗∗, 𝑑∗ = arg 𝑛𝑏𝑦(𝑗,𝑑)∉𝐽 ∆ 𝑗, 𝑑

• 2. 𝐽 = 𝐽 ∪

𝑗∗, 𝑑∗

• 3. 𝑇 = 𝑇 + ∆ 𝑗∗, 𝑑∗
• 4. ∆ 𝑗, 𝑑 = ∆ 𝑗, 𝑑 + 𝜕𝑑∗,𝑑

𝑈

𝑒𝑗∗,𝑗 + 𝜕𝑑,𝑑∗

𝑈

𝑒𝑗,𝑗∗ Stop when: ∆ 𝑗∗, 𝑑∗ < 0 or all windows have been instanced

CRF Formulation - Scoring

• Model 𝑄(𝑍|𝑌) as a CRF with pairwise potentials between 𝑍 and each 𝑌

being exponential in 𝑇 𝑌, 𝑍 , i.e. 𝑄 𝑍 𝑌 =

1 𝑎(𝑌) 𝑓𝑇(𝑌,𝑍)

• A natural choice for scoring each detection is the log odds ratio between

probability of detecting a class c versus detecting any other class: 𝑛 𝑧𝑗 = 𝑑 = 𝑚𝑝𝑕 𝑄(𝑧𝑗 = 𝑑|𝑌) 𝑄(𝑧𝑗 ≠ 𝑑|𝑌) = 𝑚𝑝𝑕 𝑄(𝑧𝑗 = 𝑑, 𝒛𝒔|𝑌)

𝒛𝒔

𝑄(𝑧𝑗 = 𝑑′, 𝒛𝒕|𝑌)

𝒛𝒕,𝒅′≠𝑑

• Assume that both marginals are dominated by their largest terms. These

are given by: 𝑠∗ = arg 𝑛𝑏𝑦𝑠 𝑇 𝑌, 𝑧𝑗 = 𝑑, 𝑧𝑠 𝑡∗ = arg 𝑛𝑏𝑦𝑡,𝑑′≠𝑑 𝑇 𝑌, 𝑧𝑗 = 𝑑′, 𝑧𝑡

• Then the log odds ratio is given by:

𝑛 𝑧𝑗 = 𝑑 ≈ 𝑚𝑝𝑕

𝑄 𝑧𝑗=𝑑,𝑧𝑠∗ 𝑌 𝑄 𝑧𝑗=𝑑∗,𝑧𝑡∗ 𝑌

= 𝑇 𝑌, 𝑧𝑗 = 𝑑, 𝑧𝑠∗ − 𝑇 𝑌, 𝑧𝑗 = 𝑑∗, 𝑧𝑡∗
