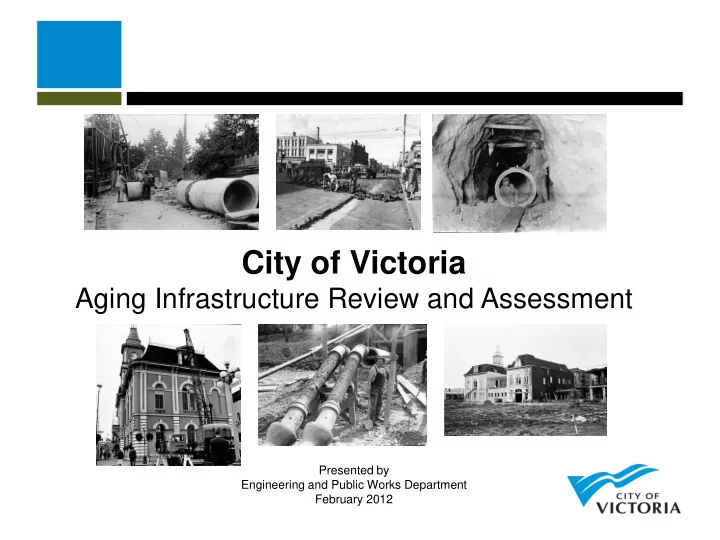

City of Victoria

Aging Infrastructure Review and Assessment

Presented by Engineering and Public Works Department February 2012

Presentation Outline

• Infrastructure Definition and Examples
• City of Victoria Infrastructure
• Infrastructure Inventory
• Infrastructure Assessment and Challenges
• Condition Assessment
• Master Planning Studies
• Asset Management Strategy
• Conclusions

Infrastructure

Definition Municipal infrastructure is the collection of various physical assets which are managed and maintained by a municipality to provide services or benefits to its residents and businesses.

City of Victoria Infrastructure

Examples

• Parks, Public Art, Trails, Trees, Shoreline,
• Roads, Sidewalks, Plazas, Streetlights, Bridges,
• Vehicles, Machinery, Tools,
• Underground Pipes, Pump stations, Hydrants,
• Civic Facilities, Furniture, Computers.

City of Victoria Infrastructure

• Our municipal infrastructure is vital in sustaining the

economic, environmental, social and cultural life of the community.

• The quality of life enjoyed by City’s citizens is directly

related to the condition of the infrastructure, such as the condition of our roads.

• The Engineering Department manages approximately $1.7

billion in infrastructure, excluding land value.

• The City’s infrastructure is amongst the oldest in

Canada, with some built prior to the turn of the last century.

• Much of it is nearing, or has exceeded, the end of its

design life.

• A multi-faceted approach is required to maintain it in

good condition.

• Development of Master Plans and an Integrated Asset

Management Strategy have started.

City of Victoria Infrastructure

Infrastructure Inventory

Infrastructure Type Description

Civic Facilities 70 buildings and ancillary structures Water System 329 km of main, 19,500 services Storm Drain System 255 km of main, 10,000 services Sanitary Sewer System 241 km of main, 14,000 services Roads and Sidewalks 278 km of road, 453 km of sidewalks Fleet and Equipment 262 vehicles and equipment Street Lights 6,473 units and 728 cluster lights Bridges Johnson Street, Point Ellice, Gorge Road

Civic Facilities

City Hall Parkades Community Centres Fire Stations Police Station

Civic Facilities Challenges

• Need to upgrade buildings to meet current code for

safety, health, seismic and working conditions.

• Need to minimize risk and liability with aging buildings.
• Continuous increase in the cost of repairing and

replacing civic facilities (historically >inflation)

• Need to preserve historical and heritage buildings and

structures.

• Rationalize and review our service delivery and

programming needs in the city.

Water System

Fire Hydrants Services Mains Pump Stations

Water System - Age Profile

10,000 20,000 30,000 40,000 50,000 60,000 Prior to 1900 1900- 1909 1910- 1919 1920- 1929 1930- 1939 1940- 1949 1950- 1959 1960- 1969 1970- 1979 1980- 1989 1990- 1999 2000- 2005 Year of Installation Length of Pipe Installed(m)

Water System Challenges

• Water mains first installed in the late 1800’s
• It is expected that 60% of all pipes will need to be

renewed within the next 40 to 50 years.

• A major portion of the downtown (high pressure) fire

system will need to be renewed in the next 10 years to provide improved seismic resilience.

• The cost of repairing and replacing the water system

has increased dramatically over the past several years (>inflation).

Water System

• Significant system improvement have been made in the past three years

including a $10 million renewal of the large diameter steel watermains.

• A total of over $20 million has been invested in the last 10 years on water

main renewal. This amounts to over 28km of main or 8% of the system.

Steel Water main Renewal

Storm Drain System

Mains Catch Basins Manholes Outfall

Storm Drain System - Age Profile

10,000 20,000 30,000 40,000 50,000 60,000 70,000

Prior to 1900 1900- 1909 1910- 1919 1920- 1929 1930- 1939 1940- 1949 1950- 1959 1960- 1969 1970- 1979 1980- 1989 1990- 1999 2000- 2007

Year of Installation Length of Pipe Installed(m)

Storm Drains

• Storm drains first installed in the late 1800’s
• The majority of storm drains have now been inspected using CCTV
• cameras. Condition assessment results indicate the majority of

pipes, 89% are in average to very good condition, however, 11% of the pipes are in poor or near failure condition.

• It is expected that 80% of all pipes will need to be renewed within the

next 40 to 50 years.

• Cost of repairing and replacing the storm drain system has increased

significantly over the last several years (>inflation).

• Our commitments to monitor and control the quality of storm water

discharges is increasing (i.e., Bowker Creek).

Sanitary Sewer System

Pump Stations Manholes Mains

Sanitary Sewer System - Age Profile

20,000 40,000 60,000 80,000 100,000 120,000

Prior to 1900 1900- 1909 1910- 1919 1920- 1929 1930- 1939 1940- 1949 1950- 1959 1960- 1969 1970- 1979 1980- 1989 1990- 1999 2000- 2007

Year of Installation Length of Pipe Installed(m)

Sanitary Sewer System Challenges

• Sanitary Sewers first installed in the late 1800’s
• The majority of sanitary sewer pipes have now been inspected using CCTV
• cameras. Condition assessment results indicate that the majority of the pipes,

92% are in average to very good condition, however, 8% of the pipes are in poor or near failure condition.

• It is expected that 82% of all pipes will need to be renewed within the next 40

to 50 years.

• The cost of repairing and replacing the sewer system has increased

significantly (>inflation).

• A high percentage of extraneous water is entering the sewer system (inflow

and infiltration).

• Increased development densities are resulting in capacity demand.

Road and Sidewalk Network

Roads Sidewalks

Road and Sidewalk Network Challenges

• Heightened expectations re. smooth surface conditions.

More frequent maintenance is needed to manage safety/liability issues (trip hazards/potholes).

• Previous maintenance deferrals have resulted in an

increased scope of work for required repairs.

• Component costs for repairs (oil, aggregates, etc) is

increasing a rate greater than inflation.

Street Lighting & Traffic Signals

Cobra Fixtures Cluster Fixtures Davit Fixtures

Street Lighting & Traffic Signal Challenges

• Non-galvanized street light poles have exceeded their

design life (20 years).

• Larger traffic signal heads increases pole loading.
• Road users requests for increased services (audible

pedestrian signals, countdown signals) increases inventory.

• Aging infrastructure results in increased service calls /
• utages and increased safety and liability issues.

Infrastructure Replacement Cost

Infrastructure Type Current Replacement Cost

Civic Facilities $ 209,000,000 Water System $ 262,000,000 Storm Drain System $ 362,000,000 Sanitary Sewer System $ 312,000,000 Roads / Sidewalks / Traffic Signals $ 350,000,000 Bridges / Road Support Structures $ 200,000,000 Street Lighting $ 13,000,000 All $1,708,000,000

Condition Assessment

Infrastructure Type Average Assessed Condition 2010 Average Assessed Condition 2012

Civic Facilities Fair Fair Water System Fair Fair Storm Drain System Poor Fair Sanitary Sewer System Poor Fair Roads Good Good

Master Planning Studies

• Master Planning Studies:
• Water System Master Plan
• Storm Drain Master Plan
• Sanitary Sewer Master Plan
• Road Network Plan
• Facilities Capital Plan
• Urban Forest Plan
• Parks Master Plan
• Asset Management Strategy

Asset Management Strategy

• The City is currently developing an Integrated Asset

Management Strategy. Asset Management Definition An integrated approach involving planning, finance, engineering and operations to effectively manage existing and new infrastructure to maximize benefits, reduce risks and provide satisfactory levels of service to community users in a socially, environmentally, and economically sustainable manner.

Asset Management Strategy … Cont’d

• Asset management is a business strategy to help the

City address the problems of aging infrastructure and improve long-term planning and finance options.

• Asset management is a series of process and

information improvements that enable you to see not

• nly the likely consequences of the decisions you take

today - but also of the actions you don’t take.

• When you are armed with a knowledge of the

consequences you can make better decisions.

Asset Management Strategy … Cont’d

• Asset Management processes and decisions will…
• Assist Council in making informed and fiscally prudent decisions.
• Enhance Customer experience
• Proactively support and facilitate economic development and

innovation

• Proactively support cost efficiency and financial sustainability
• Proactively support the protection and maintenance of a healthy

environment for current and future generations

• Proactively support safety, durability and energy efficiency of

built environments

• Optimize Capital Budgeting – prioritize projects and improve the

understanding of current and future funding needs.

• Infrastructure is critical to the economic, environmental,

social and cultural sustainability of the City.

• The quality of life enjoyed by the City’s citizens is

directly related to the condition of the infrastructure.

• The City’s infrastructure is amongst the oldest in

Canada.

• Much of the infrastructure is nearing the end of, or is

exceeding, its design life.

Conclusions

Conclusions … Cont’d

These challenges can be addressed by continuing current initiatives:

• applying asset management principles.
• applying new technology.
• implementing industry best-practices.
• Undertaking a review of all City infrastructure (i.e.

Recreation Amenities, Parks, Technology, Equipment, Lands, Traffic Control, Streets, Waste Management Equipment, Public Art, Etc.).

• Building up the Reserve Funds.

“… only asking for more money and not changing the manner in which infrastructure as an asset is treated, maintained, rehabilitated and built for future needs, is an incomplete and inadequate approach..”

Infrastructure Funding Council Manitoba May 2011
