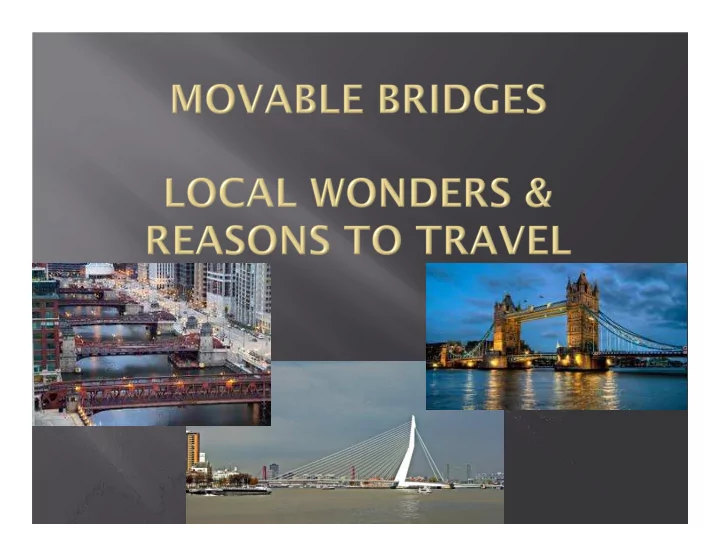

Chicago Type, Double Leaf, Trunnion, Bascule Bridge

  • Chicago Type – design evolved from research in late 1890’s

by the Chicago Bridge Department to find a patent free design for both land and water based traffic

  • Double Leaf – two leaves that span the river
  • Trunnion –essentially an axle; bridges rotate vertically

about trunnions

  • Bascule – “seesaw” in French; family of draw bridges that

use counterweights to assist in the vertical movement of bridge leaves

slide-3
SLIDE 3

First Generation

(1902-1910)

slide-4
SLIDE 4

Second Generation (Beaux Arts - 1910-1930)

slide-5
SLIDE 5

Third Generation (Art Deco - 1935-1950)

slide-6
SLIDE 6

Fourth Generation (Modern)

slide-7
SLIDE 7

Interesting Facts:

  • Rack and pinion lubricated with graphite, not grease
slide-8
SLIDE 8

Interesting Facts:

  • Thermal expansion can affect bridge operation.
slide-9
SLIDE 9

Interesting Facts:

  • Navigation lights required by Federal Law
  • green when fully open = safe passage for vessels
  • red all other positions
slide-10
SLIDE 10

Interesting Facts:

  • The bridges are fitted with two or more 125 horsepower

motors

  • The depth of the bridge pits that hold the counterweights:

37 ft – 66 ft (reference point uppermost sidewalk)

  • Cost to operating the bridges (estimate): $4,000 - $10,000
  • Time to operate the bridges: 8 – 10 minutes
  • CDOT maintenance program:
  • biannual inspections
  • annual power washing
  • painting at least 1x every 10 years
slide-11
SLIDE 11

Draw Bridge

Flying Drawbridge

Slauerhoff Bridge (Leeuwarden, the Netherlands)

slide-12
SLIDE 12

Bascule Bridge

Rolling Bascule Bridge

slide-13
SLIDE 13

Folding Bridge

Hörn Bridge (Kiel, Germany)

slide-14
SLIDE 14

Curling Bridge

slide-15
SLIDE 15

Vertical-lift Bridge

(Table Bridge is similar)

Pont Jacques Chaban-Delmas (Bordeaux, France)

slide-16
SLIDE 16

Retractable Bridge

slide-17
SLIDE 17

Submersible Bridge

slide-18
SLIDE 18

Tilt Bridge

Gateshead Millennium Bridge (Newcastle, England)

slide-19
SLIDE 19

Swing Bridge

Puente de la Mujer (Buenos Aires, Argentina)

slide-20
SLIDE 20

Transporter Bridge

Vizcaya Bridge (Biscay, Spain)

slide-21
SLIDE 21

Tacoma Narrows Bridge

(Tacoma Narrows strait of Puget Sound - Washington)

slide-22
SLIDE 22

Tacoma Narrows Bridge

“Galloping Gertie” November 7, 1940

https://www.youtube.com/watch?v=XggxeuFDaDU https://www.youtube.com/watch?v=lXyG68_caV4

slide-23
SLIDE 23

Hyatt Regency Hotel Walkway

(Walkways over Atrium – Kansas City, Missouri)

slide-24
SLIDE 24

Hyatt Regency Hotel Walkway

July 17, 1981

https://www.youtube.com/watch?v=LJoLFLlYfa4

slide-25
SLIDE 25

Bataan Corregidor Memorial Bridge May 28, 1949

slide-26
SLIDE 26

Bataan Corregidor Memorial Bridge May 28, 1949

https://www.youtube.com/watch?v=RAQ4CSGtaIg

slide-27
SLIDE 27

Bataan Corregidor Memorial Bridge

slide-28
SLIDE 28

Bataan Corregidor Memorial Bridge

slide-29
SLIDE 29

Bataan Corregidor Memorial Bridge

slide-30
SLIDE 30

Bataan Corregidor Memorial Bridge

slide-31
SLIDE 31

Bataan Corregidor Memorial Bridge

slide-32
SLIDE 32

Bataan Corregidor Memorial Bridge
