Centrality determination in MPD at NICA: Glauber model application Petr Parfenov 1,2 , Dim Idrisov 1 , Ilya Segal 1 , Vinh Luong 1 , Ilya Selyuzhenkov 1,3 , Arkadiy Taranenko 1 , Aleksandr Ivashkin 2 1 NRNU MEPhI, 2 INR RAS, 3 GSI for MPD

slide-1
SLIDE 1

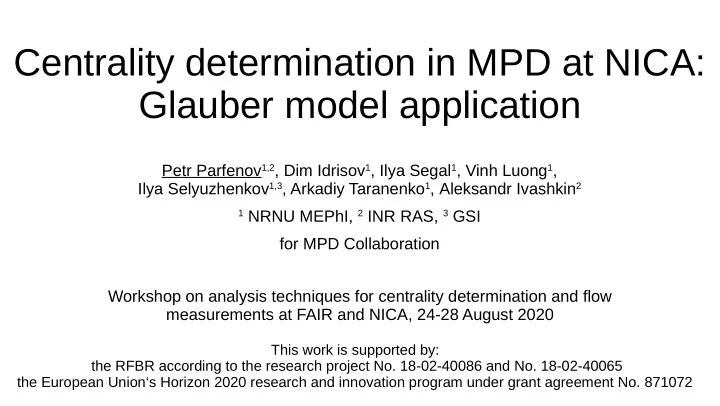

Centrality determination in MPD at NICA: Glauber model application

Workshop on analysis techniques for centrality determination and flow measurements at FAIR and NICA, 24-28 August 2020

This work is supported by: the RFBR according to the research project No. 18-02-40086 and No. 18-02-40065 the European Union‘s Horizon 2020 research and innovation program under grant agreement No. 871072

Petr Parfenov1,2, Dim Idrisov1, Ilya Segal1, Vinh Luong1, Ilya Selyuzhenkov1,3, Arkadiy Taranenko1, Aleksandr Ivashkin2

1 NRNU MEPhI, 2 INR RAS, 3 GSI

for MPD Collaboration

slide-2
SLIDE 2

2

Outline

  • Introduction
  • Centrality framework implementation in MPD

– Fitting procedure using MC Glauber – Comparison of the initial geometry parameters between colliding systems,

energies and models (UrQMD, SMASH, PHSD and MC Glauber)

  • Direct impact parameter reconstruction method
  • Initial state of HIC: comparison of eccentricities
  • Summary and outlook
slide-3
SLIDE 3

3

Motivation

Evolution of matter produced in heavy-ion collisions depend on its initial geometry Centrality procedure maps initial geometry parameters with measurable quantities This allows comparison of the future MPD results with the data from other experiments (RHIC BES, NA49/NA61 scans) and theoretical models

  • Collision geometry:

impact parameter, number of participating nucleons, number of binary NN collisions, etc.

  • Measurable quantities:

multiplicity of the produced charged particles, energy of the spectators

slide-4
SLIDE 4

4

BES programs

Many new experimental results at NICA energy range (√sNN=4-11 GeV) will be done during STAR (RHIC) and NA61/SHINE (SPS) BES This will require comparison of the future MPD measurements with the RHIC/SPS

STAR BES-II program

Beam energy (GeV/nucleon) √sNN (GeV) Run Time Species Number Events 9.8 19.6 4.5 weeks Au+Au 400M MB 7.3 14.5 5.5 weeks Au+Au 300M MB 5.75 11.5 5 weeks Au+Au 230M MB 4.6 9.1 4 weeks Au+Au 160M MB 31.2 7.7 (FXT) 2 days Au+Au 100M MB 19.5 6.2 (FXT) 2 days Au+Au 100M MB 13.5 5.2 (FXT) 2 days Au+Au 100M MB 9.8 4.5 (FXT) 2 days Au+Au 100M MB 7.3 3.9 (FXT) 2 days Au+Au 100M MB 5.75 3.5 (FXT) 2 days Au+Au 100M MB

slide-5
SLIDE 5

5

Centrality in STAR experiment

  • Uncorrected charged particle

multiplicity distribution in TPC (|η|<0.5)

  • Comparison with

MC Glauber simulations

  • Fitted using

two-component model:

  • Phys. Rev. C 86 (2012) 54908

dN ch d η |

η=0

=n pp[(1−x)N part/2+xN coll]

Similar centrality estimator is needed in MPD (NICA) for comparisons with experimental results from STAR (RHIC) See talk by S. Esumi

slide-6
SLIDE 6

6

Centrality determination in MPD (NICA)

  • Multiplicity of produced charged

particles in Time Projection Chamber (TPC) |η|<1.5

  • Energy of the spectators deposited

in Forward Hadron Calorimeter (FHCal) 2<|η|<5

slide-7
SLIDE 7

7

Charged particle multiplicity in MPD

Simulated data sets:

  • UrQMD 3.4, SMASH 1.7, PHSD 4.0

– Au+Au, Nev=500k, √sNN=5, 7.7, 11.5 GeV – Bi+Bi, Nev=500k, √sNN=5, 7.7, 11.5 GeV

  • Full realistic reconstruction of UrQMD

generated events in MPDROOT framework with GEANT4 Hadron selection:

  • |η|<0.5
  • pT>0.15 GeV/c
slide-8
SLIDE 8

8

Integrating the CBM Centrality framework

Input multiplicity distribution MC Glauber data Evaluate Na: Na = fNpart+(1-f)Ncoll Evaluate χ2 Minimize χ2 to find f, μ, k

  • PHOBOS MC-Glauber v3.2: https://tglaubermc.hepforge.org/downloads/
  • This centrality framework was developed in CBM (tested on existed experimental data from NA49,

NA61/SHINE and HADES experiments):

Klochkov, Selyuzhenkov, EPJ Web Conf. 182 (2018) 02132

  • CBM centrality framework: git.cbm.gsi.de/pwg-c2f/analysis/centrality
  • Implemantation for MPD: https://github.com/IlyaSegal/NICA

Call NBD(μ,k) x Na Build multiplicity fitting function

slide-9
SLIDE 9

9

MC Glauber fit: h± multiplicity

MC Glauber fit is in the good agreement with simulated input for the wide multiplicity range

f=0.24, k=2, μ=0.71, χ2=1.24±0.06, M=(15,380)

slide-10
SLIDE 10

10

√sNN=5 GeV 10-20% 0-10% 20-30% 30-40% √sNN=7.7 GeV 10-20% 0-10% 20-30% 30-40% √sNN=11.5 GeV 10-20% 0-10% 20-30% 30-40% Events in multiplicities M ± ΔM have impact parameter in range b ± σb

b vs Nch & Nch centrality classes

slide-11
SLIDE 11

11

√sNN=5 GeV √sNN=7.7 GeV

b distribution in centrality classes

√sNN=11.5 GeV

slide-12
SLIDE 12

12

√sNN=5 GeV √sNN=7.7 GeV

Npart distribution in centrality classes

√sNN=11.5 GeV

slide-13
SLIDE 13

13

√sNN=5 GeV √sNN=7.7 GeV

Ncoll distribution in centrality classes

√sNN=11.5 GeV

slide-14
SLIDE 14

14

<b> vs centrality: MC Glauber vs UrQMD

Reasonable agreement between MC Glauber and UrQMD

slide-15
SLIDE 15

15

b vs centrality: different models

Similar behavior for different models

Centrality, % Centrality, %

slide-16
SLIDE 16

16

Centrality framework: Bi+Bi vs Au+Au

Similar behavior between Au+Au and Bi+Bi UrQMD 3.4 UrQMD 3.4 UrQMD 3.4

slide-17
SLIDE 17

17

Gausian & gamma function mapping of multiplicity to impact parameter

Probability of N ch for fixed b:

  • Gaussian approach

(Phys.Rev. C97 (2018) no.1, 014905): P( Nch|cb)= 1 σ (cb) exp( −(Nch−N ch)

2

2σ(cb)

2 )

  • Approach using gamma distribution

(Phys.Rev. C98 (2018) no.2, 024902): P( Nch|cb)= 1 Γ(k(cb))θ

k Nch k (cb)−1e −n θ

where cb – centrality defined from impact parameter: cb= 1 σinel∫

b

Pinel(b')2π b' db'≃ πb

2

σinel

Phys.Rev. C97 (2018) no.1, 014905 Phys.Rev. C98 (2018) no.2, 024902

slide-18
SLIDE 18

18

Fit function

Probability function for multiplicity distribution: P(N ch)=∫

1

P( N ch|cb)d cb Parameters for Gaussian approach: N ch(cb)=N knee⋅exp(−∑

i=1 3

aicb

i), σ(cb)=σ (0)√

N ch(cb) Nch(0) Free parameters: N knee,σ (0),ai. Parameters for gamma-function approach: k(cb)=kmax⋅exp(−∑

i=1 4

aicb

i), θ=const (k(cb)θ≡Nch(cb), √k(0)θ≡σ (0))

Free parameters: k max,θ,ai. UrQMD 3.4 Probability function fit reproduces Nch distribution from the model

slide-19
SLIDE 19

19

Reconstruction of b

  • Find probability of b for fixed Nch using Bayes’ theorem:

P(b|Nch)= P(N ch|b)P(b) P(n) = P(N ch|cb) 2π b σinel Pinel(b) P(n) = 2 π b σinel P(n) P( Nch|b), where Pinel(b)≃1, σinel=685fm2, cb≃ π b2 σinel Experimental centrality: c(Nch)=∫

N ch ∞

P(N 'ch)d N ' ch

Main steps to reconstruct b from Nch:

–

Fit normalized multiplicity distribution with P(Nch)

–

Define centrality c(Nch)

–

Construct P(b|Nch) using Bayes’ theorem using parameters from the fit

UrQMD, Au+Au √sNN=7.7 GeV

slide-20
SLIDE 20

20

b vs centrality: comparison with MC Glauber

Reasonable agreement with MC Glauber

UrQMD, Au+Au, √sNN=7.7 GeV UrQMD, Au+Au, √sNN=11.5 GeV

slide-21
SLIDE 21

21

Npart: MC Glauber vs. UrQMD

Larger differences for Npart between MC Glauber and UrQMD at lower energies

slide-22
SLIDE 22

22

Eccentricity εn

  • Eccentricity characterizes initial-state spatial

anisotropy

  • In MC Glauber, εn defined as a εpart in the

center‑of-mass system of the participant nuclei at passing time tpass (Phys.Rev. C81 (2010) 054905):

  • ε2 is system dependent
  • ε3 is system independent

εn=√⟨r

2cos(nφ)⟩ 2+⟨r 2 sin(nφ)⟩ 2

⟨r

2⟩

MC-Glauber predicts weak energy dependence

slide-23
SLIDE 23

23

Eccentricity comparison: Glauber vs. UrQMD

Large difference for ε2 between MC Glauber and UrQMD at lower energies

slide-24
SLIDE 24

24

Summary and next steps

  • MC Glauber based procedure for centrality determination is established

– UrQMD at two energies (√sNN=5, 7.7, 11.5 GeV) are under study – Fit reproduces charged particle multiplicity with chosen parameters

  • Extracted relation between model parameters (b, Npart, Ncoll) and multiplicity

centrality classes

– Impact parameter from MC Glauber and UrQMD (SMASH, PHSD) in given centrality

classes are in reasonable agreement for different models and colliding systems

  • First comparison with the new method proposed by J. Ollitrault shows reasonable

agreement with standard method based on MC Glauber

– Comparison with the new improved method based on Gamma function is in progress

  • Comparison of the εn between MC Glauber and UrQMD shows notable difference
slide-25
SLIDE 25

25

Thank you for your attention!

slide-26
SLIDE 26

26

Backup

slide-27
SLIDE 27

27

Glauber Model configuration

Input to the model

  • Inelastic NN cross section

–

σNN=29.3 mb for √sNN=5.0 GeV

–

σNN=29.7 mb for √sNN=7.7 GeV

–

σNN=31.2 mb for √sNN=11.5 GeV

  • Colliding nuclei

–

“Au(197,79)”+”Au(197,79)”

  • C. Loizides, J. Nagle and P. Steinberg, SoftwareX 1-2 (2015) 13-18

Used TGlauberMC-3.2 version from tglaubermc.hepforge.org

Output from the model

  • TNtuple with model parameters:

– Impact parameter b – Number of participating in the

collision nucleons Npart

– Number of NN collisions Ncoll – Participant eccentricity εn – etc.

In progress: comparison MC Glauber with GLISSANDO arXiv:1901.04484 [nucl-th]

slide-28
SLIDE 28

28

Centrality framework configuration

NBD Equation: Pμ , k(n)= Γ(n+k) Γ(n+1)Γ(k)⋅( μ k)

n

(

μ k+1)

n+k

Fitting region: N ch={ (10−235), √sNN=5.GeV (20−310), √sNN=7.7 GeV (15−380), √sNN=11.5GeV Normalization of the total number of events: N ev

reco

N ev

MC Glauber = 1

10 Parameter range: f =(0−1), f step=0.01 k=(0−50), k step=1 Fitting function for charged particle multiplicity: N ch(f ,μ,k)=Pμ,k(n)⋅

[f N part+(1−f )N coll]

slide-29
SLIDE 29

29

Fit parameters f,k vs χ2

f=0.24, k=2, μ=0.71, χ2=1.24±0.06, M=(15,380) f=0, k=14, μ=0.31, χ2=1.46±0.12, M=(20,310) f=0, k=8, μ=0.23, χ2=2.04±0.10, M=(10,235)

slide-30
SLIDE 30

30

MC Glauber fit: h± multiplicity

MC Glauber fit is in the good agreement with simulated input for the large multiplicity region

f=0, k=14, μ=0.31, χ2=1.46±0.12, M=(20,310)

slide-31
SLIDE 31

31

<b> vs centrality: Glauber vs SMASH

Reasonable agreement between MC Glauber and SMASH

slide-32
SLIDE 32

32

<b> vs centrality: Glauber vs PHSD

Reasonable agreement between MC Glauber and PHSD

slide-33
SLIDE 33

33

Comparison of the UrQMD, PHSD, SMASH and MC Glauber parameters

slide-34
SLIDE 34

34

Generated vs reconstructed UrQMD

Reasonable agreement between reconstructed data and pure model

slide-35
SLIDE 35

35

b vs centrality: MC Glauber vs UrQMD

Reasonable agreement between MC Glauber and UrQMD

slide-36
SLIDE 36

36

b vs centrality: Glauber vs PHSD

slide-37
SLIDE 37

37

b vs centrality: all models

slide-38
SLIDE 38

38

Reconstructing the impact parameter of nucleus-nucleus collisions

based on the work of R. Rogly and G. Giacalone

Phys.Rev. C97 (2018) no.1, 014905 Phys.Rev. C98 (2018) no.2, 024902

slide-39
SLIDE 39

39

Gaussian approach: b distribution

New method √sNN=7.7 GeV New method √sNN=11.5 GeV

slide-40
SLIDE 40

40

b vs centrality: method comparison

Reasonable agreement between two methods √sNN=7.7 GeV √sNN=11.5 GeV

slide-41
SLIDE 41

41

Gaussian approach: fitting procedure

Fit reproduces charge particle multiplicity from pure UrQMD

slide-42
SLIDE 42

42

Γ-function approach: fitting procedure

Fit reproduces charge particle multiplicity from reco UrQMD √sNN=7.7 GeV √sNN=11.5 GeV

slide-43
SLIDE 43

43

Γ-function approach: b distribution

Comparison with method based on MC Glauber is in progress √sNN=7.7 GeV √sNN=11.5 GeV b, fm b, fm

slide-44
SLIDE 44

44

Eccentricity comparison

slide-45
SLIDE 45

45

Eccentricity comparison

slide-46
SLIDE 46

46

Eccentricity comparison

slide-47
SLIDE 47

47

Eccentricity comparison

slide-48
SLIDE 48

48

Eccentricity comparison

slide-49
SLIDE 49

49

Eccentricity comparison

slide-50
SLIDE 50

50

Eccentricity comparison

slide-51
SLIDE 51

51

Energy comparison: ε2

slide-52
SLIDE 52

52

Energy comparison: ε3

slide-53
SLIDE 53

53

Energy comparison: ε2

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-54
SLIDE 54

54

Energy comparison: ε3

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-55
SLIDE 55

55

Eccentricity comparison

slide-56
SLIDE 56

56

Eccentricity comparison

slide-57
SLIDE 57

57

Eccentricity comparison

slide-58
SLIDE 58

58

Npart comparison

slide-59
SLIDE 59

59

Energy comparison: ε2

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-60
SLIDE 60

60

Energy comparison: ε3

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-61
SLIDE 61

61

MC-Glauber

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-62
SLIDE 62

62

MC-Glauber

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-63
SLIDE 63

63

MC-Glauber

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-64
SLIDE 64

64

UrQMD

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-65
SLIDE 65

65

UrQMD

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-66
SLIDE 66

66

UrQMD

Ratio: ecc(√sNN)/ecc(4.5 GeV)

slide-67
SLIDE 67

67

System comparison: MC-Glauber

Small difference between Au+Au and Bi+Bi

slide-68
SLIDE 68

68

System comparison: UrQMD

Small difference between Au+Au and Bi+Bi
