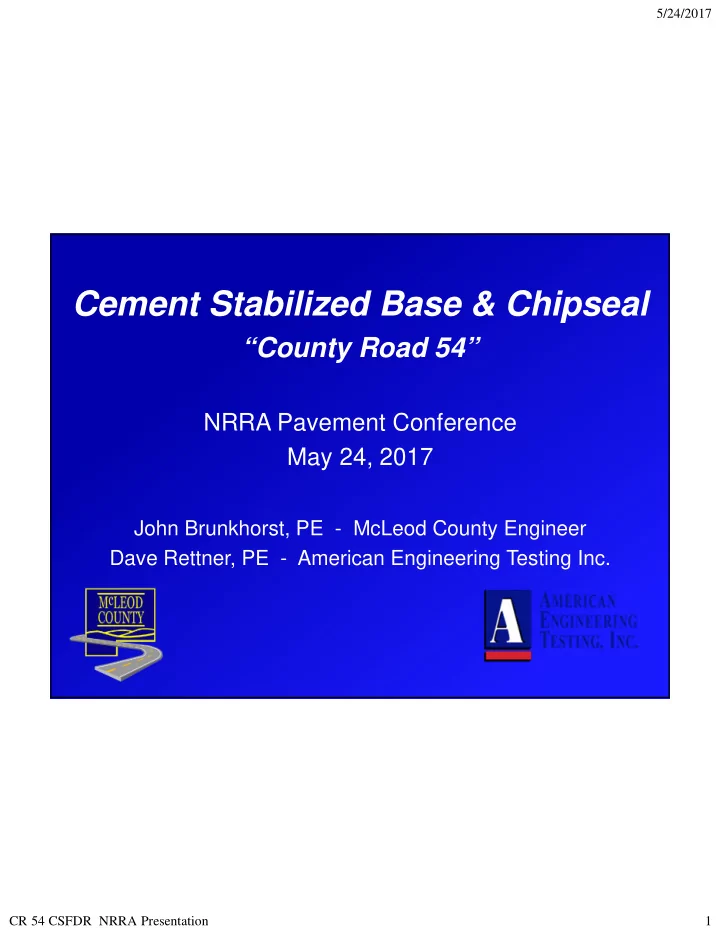

5/24/2017 Cement Stabilized Base & Chipseal County Road 54 NRRA Pavement Conference May 24, 2017 John Brunkhorst, PE - McLeod County Engineer Dave Rettner, PE - American Engineering Testing Inc. CR 54 CSFDR NRRA Presentation 1

slide-1
SLIDE 1

5/24/2017 CR 54 CSFDR NRRA Presentation 1

Cement Stabilized Base & Chipseal

“County Road 54”

NRRA Pavement Conference May 24, 2017

John Brunkhorst, PE - McLeod County Engineer Dave Rettner, PE - American Engineering Testing Inc.

slide-2
SLIDE 2

5/24/2017 CR 54 CSFDR NRRA Presentation 2

  • 1. Background
  • 2. Project Overview
  • 3. Construction Highlights
  • 4. Design Process
  • 5. Construction and Performance Testing
  • 6. Costs
  • 7. Lessons Learned
  • 8. Next Steps

T

  • pic s
slide-3
SLIDE 3

5/24/2017 CR 54 CSFDR NRRA Presentation 3

Located approximately 60 miles west of the Twin Cities

Where is McLeod County?

slide-4
SLIDE 4

5/24/2017 CR 54 CSFDR NRRA Presentation 4

County Road 54 (CR 54)

~ 6 miles South of Hutchinson, MN

Where is Project?

PROJECT LOCATION

Length: ~1 mile

slide-5
SLIDE 5

5/24/2017 CR 54 CSFDR NRRA Presentation 5

County Road 54

  • Gravel Road
  • Primarily serves rural housing development
  • Seasonal agricultural traffic
  • ~ 200 ADT
  • County Funded (non State Aid route)

BAC KG RO UND

slide-6
SLIDE 6

5/24/2017 CR 54 CSFDR NRRA Presentation 6

CR 54 Issues

  • ~$5,000 Annually for Dust Control (CaCl2)
  • Washboards (due to speed/braking)
  • Frequent Blading Required
  • No Funding for traditional base and surfacing

Goals for CR 54

  • Dust Free Road
  • Washboard Free
  • Stand up to Agricultural Traffic
  • Cost Effective

BAC KG RO UND

slide-7
SLIDE 7

5/24/2017 CR 54 CSFDR NRRA Presentation 7

2014 Prime/Seal Project

  • CR 54
  • Township Housing Development
  • Nearby County Park
  • Portions of CR 54 began to break up in fall

2015 Reclamation & Tiling Project

  • CR 54

BAC KG RO UND – Pa st Effo rts

slide-8
SLIDE 8

5/24/2017 CR 54 CSFDR NRRA Presentation 8

NO W WHAT ?

slide-9
SLIDE 9

5/24/2017 CR 54 CSFDR NRRA Presentation 9

Cement Stabilized Full Depth Reclamation (CSFDR) Double Chip Seal & Fog Seal Project Goal – Find the most cost effective optimal cement content and stabilization depth.

  • 4 Test Sections
  • Varying Cement Contents
  • Varying Stabilization Depths
  • Short Section of Single Chip Seal
  • 4% Cross Slope

2016

slide-10
SLIDE 10

5/24/2017 CR 54 CSFDR NRRA Presentation 10

PRO JEC T O VERVIEW

Section 1 Section 2 Section 3 Section 4 Cement Content 8 % 7 % 6 % 5 % Stabilization Depth 10” 10” 8” 8” Tack Coat 1300’ 1300’ 1300’ 1300’ Double Chip Seal 1300’ 1300’ 1300’ 1200’ Single Chip Seal

  • 100’

Fog Seal 1300’ 1300’ 1300’ 1300’

slide-11
SLIDE 11

5/24/2017 CR 54 CSFDR NRRA Presentation 11

C O NST RUC T IO N Spreading Cement

slide-12
SLIDE 12

5/24/2017 CR 54 CSFDR NRRA Presentation 12

C O NST RUC T IO N Spreading Cement

slide-13
SLIDE 13

5/24/2017 CR 54 CSFDR NRRA Presentation 13

C O NST RUC T IO N Cement Incorporation

slide-14
SLIDE 14

5/24/2017 CR 54 CSFDR NRRA Presentation 14

C O NST RUC T IO N Cement Incorporation

slide-15
SLIDE 15

5/24/2017 CR 54 CSFDR NRRA Presentation 15

C O NST RUC T IO N Cement Incorporation

slide-16
SLIDE 16

5/24/2017 CR 54 CSFDR NRRA Presentation 16

C O NST RUC T IO N Breakdown Rolling

slide-17
SLIDE 17

5/24/2017 CR 54 CSFDR NRRA Presentation 17

C O NST RUC T IO N Breakdown Rolling

slide-18
SLIDE 18

5/24/2017 CR 54 CSFDR NRRA Presentation 18

C O NST RUC T IO N Initial Blading

slide-19
SLIDE 19

5/24/2017 CR 54 CSFDR NRRA Presentation 19

C O NST RUC T IO N Finish Rolling

slide-20
SLIDE 20

5/24/2017 CR 54 CSFDR NRRA Presentation 20

C O NST RUC T IO N Finish Rolling & Final Trimming

slide-21
SLIDE 21

5/24/2017 CR 54 CSFDR NRRA Presentation 21

C O NST RUC T IO N Final Trimming

slide-22
SLIDE 22

5/24/2017 CR 54 CSFDR NRRA Presentation 22

C O NST RUC T IO N Finished CSFDR

slide-23
SLIDE 23

5/24/2017 CR 54 CSFDR NRRA Presentation 23

C O NST RUC T IO N Finished CSFDR

slide-24
SLIDE 24

5/24/2017 CR 54 CSFDR NRRA Presentation 24

Seal Coat – Broom prep C O NST RUC T IO N

slide-25
SLIDE 25

5/24/2017 CR 54 CSFDR NRRA Presentation 25

Tack Coat C O NST RUC T IO N

slide-26
SLIDE 26

5/24/2017 CR 54 CSFDR NRRA Presentation 26

Seal Coat – First Layer C O NST RUC T IO N

slide-27
SLIDE 27

5/24/2017 CR 54 CSFDR NRRA Presentation 27

C O NST RUC T IO N Seal Coat – Second Layer

slide-28
SLIDE 28

5/24/2017 CR 54 CSFDR NRRA Presentation 28

C O NST RUC T IO N Seal Coat – Second Layer

slide-29
SLIDE 29

5/24/2017 CR 54 CSFDR NRRA Presentation 29

8/23/16

C O NST RUC T IO N Fog Seal (sorry no pics )

slide-30
SLIDE 30

5/24/2017 CR 54 CSFDR NRRA Presentation 30

DESIG N PRO C ESS

  • Two mix designs
  • One for 8 inch SFDR section, one for 10 inch SFDR

section

  • Relative proportions of gravel to subgrade were

different due to reclamation depths

  • 8” Section Proctor 127.3 pcf at 9.1% moisture
  • 10” Section Proctor 122.6 pcf at 10.5% moisture
  • Target Unconfined Compressive Strength of 250-300

psi at 14 days

slide-31
SLIDE 31

5/24/2017 CR 54 CSFDR NRRA Presentation 31

DESIG N PRO C ESS

  • Two mix designs
  • 8” Section
  • 5% Cement Content at OMC
  • 272 psi UCS
  • 10” Section
  • 7% Cement Content at OMC
  • 267 psi UCS
slide-32
SLIDE 32

5/24/2017 CR 54 CSFDR NRRA Presentation 32

DESIG N PRO C ESS

  • After lab work was completed the roadways

were graveled and graded, so the roadway had more gravel than the mix designs contained.

  • Likely result was going to be higher strength

than the original mix design

slide-33
SLIDE 33

5/24/2017 CR 54 CSFDR NRRA Presentation 33

C O NST RUC T IO N & PERFO RMANC E T EST ING

  • Field Testing
  • Nuclear Gauge for Moisture and Density
  • Water was added to soil as necessary to achieve

(or approach) optimum moisture content

  • Rolling Patterns were performed
  • Several Each Day to account for variability in the

roadway materials

  • Density and moisture was checked during

compaction

  • Density was typically >98% of rolling pattern

density

slide-34
SLIDE 34

5/24/2017 CR 54 CSFDR NRRA Presentation 34

C O NST RUC T IO N & PERFO RMANC E T EST ING

  • Field Testing
  • DCP testing was performed post construction for

strength verification

  • Target strengths (minimums)
  • CBR of 20 in 2 days
  • CBR of 50 in 7 days
  • Strengths measured greatly exceeded the targets
slide-35
SLIDE 35

5/24/2017 CR 54 CSFDR NRRA Presentation 35

C O NST RUC T IO N & PERFO RMANC E T EST ING

slide-36
SLIDE 36

5/24/2017 CR 54 CSFDR NRRA Presentation 36

C O NST RUC T IO N & PERFO RMANC E T EST ING

  • Performance Testing
  • Ground Penetrating Radar
  • Falling Weight Deflectometer
  • IRI
  • Performed October, 2016
slide-37
SLIDE 37

5/24/2017 CR 54 CSFDR NRRA Presentation 37

C O NST RUC T IO N & PERFO RMANC E T EST ING

  • GPR - Sections were constructed thicker than

plan

  • 10 inch sections
  • Section 1 – 14.5 inches
  • Section 2 – 14.6 inches
  • 8 inch Sections
  • Section 3 – 11.1 inches
  • Section 4 – 10.1 inches
slide-38
SLIDE 38

5/24/2017 CR 54 CSFDR NRRA Presentation 38

C O NST RUC T IO N & PERFO RMANC E T EST ING

  • FWD Results
  • Significant strength increase over non-stabilized

roadway – all stabilized sections > 10 tons

  • No direct correlation between cement content and

strength

Section Length Thickness Modulus Load Capacity feet in. ksi tons/axle South Gravel 1300 4.8 16.7 4.8 1 1300 14.5 362.1 20.0 2 1300 14.6 560.9 21.8 3 1300 11.1 438.6 19.0 4 1300 10.1 280.4 10.8 North Gravel 1300 7.6 16.4 5.4

slide-39
SLIDE 39

5/24/2017 CR 54 CSFDR NRRA Presentation 39

C O NST RUC T IO N & PERFO RMANC E T EST ING

  • Ride Quality Results
  • IRI of stabilized sections was significantly higher

than the unstabilized gravel roadway on both ends of the project

Section Length IRI feet in./mi. South Gravel 1300 84.8 1 1300 293.2 2 1300 237.4 3 1300 204.4 4 1300 210.9 North Gravel 1300 149.6

slide-40
SLIDE 40

5/24/2017 CR 54 CSFDR NRRA Presentation 40

C RAC K SURVEY - SPRING 2017

slide-41
SLIDE 41

5/24/2017 CR 54 CSFDR NRRA Presentation 41

C RAC K SURVEY - SPRING 2017

slide-42
SLIDE 42

5/24/2017 CR 54 CSFDR NRRA Presentation 42

C RAC K SURVEY - SPRING 2017

slide-43
SLIDE 43

5/24/2017 CR 54 CSFDR NRRA Presentation 43

C RAC K SURVEY - SPRING 2017

Transverse Cracks Longitudinal Cracks Section 1 28 3 Section 2 43 12 Section 3 41 6 Section 4 35 7

slide-44
SLIDE 44

5/24/2017 CR 54 CSFDR NRRA Presentation 44

SPRING 2017 1 Year Old

slide-45
SLIDE 45

5/24/2017 CR 54 CSFDR NRRA Presentation 45

SPRING 2017 1 Year Old

slide-46
SLIDE 46

5/24/2017 CR 54 CSFDR NRRA Presentation 46

SPRING 2017 1 Year Old

slide-47
SLIDE 47

5/24/2017 CR 54 CSFDR NRRA Presentation 47

CSFDR Cost/Mile Cost/SY

  • Cement

$ 51,300 $ 3.12

  • Stabilization

$ 16,300 $ 0.99

  • Laydown/Compaction *

$ 15,000 $ 0.93

CHIP SEAL

  • Tack Coat

$ 3,100 $ 0.19

  • 3/8” Seal

$ 22,900 $ 1.40

  • 1/4” Seal

$ 20,000 $ 1.22

  • Fog Seal

$ 3,300 $ 0.20

TOTAL ~$ 132,000 ~$ 8

* County Roller Operators

C O ST S

slide-48
SLIDE 48

5/24/2017 CR 54 CSFDR NRRA Presentation 48

L ESSO NS L EARNED Ride

  • Finish longer sections
  • Tough to correct after project
  • Likely include Ride Spec in Future
slide-49
SLIDE 49

5/24/2017 CR 54 CSFDR NRRA Presentation 49

L ESSO NS L EARNED Subgrade

  • Need Good Drainage
  • Continue Centerline Tile

Residential Driveways

  • Figure out Transition
  • Potential Plowing Damage

Future Projects

  • No County Operators, One Contract
  • Ensure Samples Match Existing Conditions
  • 2nd Seal – Year 2 or later
slide-50
SLIDE 50

5/24/2017 CR 54 CSFDR NRRA Presentation 50

NEXT ST EPS Finish CR 54

  • 1 mile 2017
  • 2 miles 2018

Continue to Monitor More Planned

  • ~14 Miles in 5-Year Plan

Good Tool in Tool Box for Right Road

  • $140,000/mile vs. Traditional Paving ~$450,000+
slide-51
SLIDE 51

5/24/2017 CR 54 CSFDR NRRA Presentation 51

QUESTIONS?
