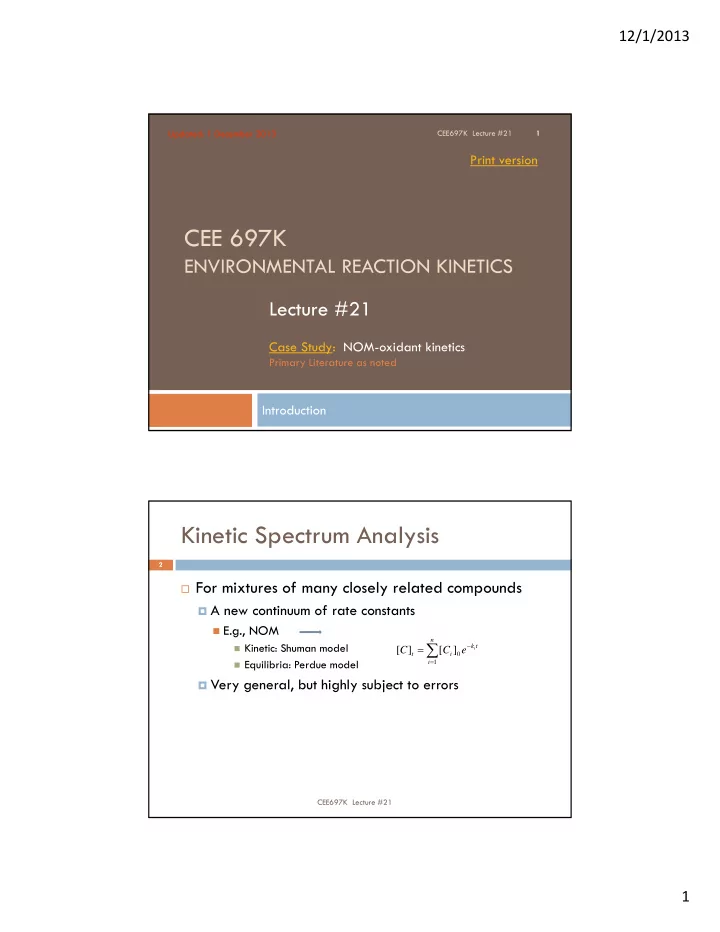

CEE 697K

ENVIRONMENTAL REACTION KINETICS

Introduction

CEE697K Lecture #21 1

Updated: 1 December 2013

Print version

Lecture #21

Case Study: NOM-oxidant kinetics

Primary Literature as noted

Kinetic Spectrum Analysis

CEE697K Lecture #21

2

 For mixtures of many closely related compounds  A new continuum of rate constants  E.g., NOM

 Kinetic: Shuman model  Equilibria: Perdue model

 Very general, but highly subject to errors



 



n i t k i t

i

e C C

1

] [ ] [

SLIDE 2

12/1/2013 2

3

Factors affecting DBP levels

 Raw water NOM levels (e.g., TOC)  Specific precursor content of the RW NOM  NOM removal  Disinfection regime  type & dose  location in plant  contact time & temp  pH  Degradation in DS (affects some)

CEE697K Lecture #21

NOM Origins

Aquifer Lake

Upper Soil Horizon Lower Soil Horizon

Sediment & Gravel in Lake Bed

Litter Layer

Algae

CEE697K Lecture #21

4

SLIDE 3

12/1/2013 3

Practical Management Question: Which is the more important source?

 allochthonous  autochthonous

r

CEE697K Lecture #21

5

An Aquatic Humic “Structure”

COOH O COOH COOH COOH HOOC HOOC HO OH COOH H3CO OH Hydroxy Acid Aromatic Dicarboxylic Acid Aromatic Acid Aliphatic Acid Aliphatic Dicarboxylic Acid Phenolic-OH HO

From Thurman, 1985

CEE697K Lecture #21

6

SLIDE 4

12/1/2013 4

7  Chlorination of Resorcinol  From Boyce & Hornig, 1983  All structures identified by GC/MS

except those in brackets

Chorine + Aromatics

CEE697K Lecture #21

8

Aliphatics: Haloform Reaction



RLS is deprotonation (k1) under many conditions



Many LFERs exist for estimating Kas

 E.g., Perrin et al., 1982 

Then relate k1 to Ka

CH3 C O CH3 H+ CH3 C O CH2

CH3 C

O CH2

[

]

CH3 C O CH2Cl

HOCl

CH3 C O CHCl2

HOCl

CH3 C O CCl 3 CH3 C O CCl3 OH CH3 C O OH CH3 C O CHCl3

OH
CCl 3
O -

OH- H2O HOCl H2O

CEE697K Lecture #21

SLIDE 5

12/1/2013 5

An Aquatic Humic “Structure”

COOH O COOH COOH COOH HOOC HOOC HO OH COOH H3CO OH Hydroxy Acid Aromatic Dicarboxylic Acid Aromatic Acid Aliphatic Acid Aliphatic Dicarboxylic Acid Phenolic-OH HO

From Thurman, 1985

CEE697K Lecture #21

9

NOM Fractions: Mass Balance

HA 8% HPL-N 25% HPO-B 2% W-HPO-A 4% HPO-N 7% FA 42% HPL-A 9% HPL-B 3%

10

HA 0% FA 29% W-HPO- 16% HPO-B 0% uHPL-A 22% HPL-B 5% HPL-N 11% HPL-A 15% HPO-N 2%

Forge Pond Granby, MA Northeast MA Tap Water

HPL= Hydrophilic HPO= Hydrophobic A= Acids B= Bases N= Neutrals

W= Weak u= ultra

10 CEE697K Lecture #21

SLIDE 6

12/1/2013 6

Absorbance

f Acid

Fractions

11

Wavelength (nm)

200 250 300 350 400 450 500 550 600 650

Sp. Abs. (L/m/mg-C)

0.1 1 10 Weak Hydrophobic Acids Hydrophilic Acids Humic Acid Fulvic Acid

Same DOC

254 nm

CEE697K Lecture #21

Formation Potentials of NOM Fractions

12

 FP

 High dose  Forces

reaction to endpoint

Neutrals

TTHMFP (µg/mg-C)

10 20 30 40 50 60 70

Hydrophobic

Bases Acids Neutrals Bases Weak Acids Humic Acid Fulvic Acid

Hydrophilic

12 CEE697K Lecture #21

SLIDE 7

12/1/2013 7

Leaching Experiments

White Pine Red Maple White Oak

Aged leaves from 3 locations in Wachusett watershed

CEE697K Lecture #21

13 14

 Level 2

ecoregions

CEE697K Lecture #21

SLIDE 8

12/1/2013 8

Leaching Time (days)

2 4 6 8

UV254 Absorbance (cm-1)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 SUVA (L/mg-C/m) 1 2 3 4 5 6 7 8 9 Maple UV Oak UV Pine UV Maple SUVA Oak SUVA Pine SUVA

Leaching of leaves

 Dark  Non-sterile

conditions

 Substantial slow

leaching of

rganics

100

254 x

DOC UV SUVA       

CEE697K Lecture #21

15

Leaching: Sp-THAAFP

 Filtered leachate  Chlorinated &

analyzed for THAAs

 Mostly

trichloroacetic acid

 THAA yield

divided by DOC

 Specific THAA

(precursors)

Specific THAA Formation for Leaching Study

Dark Maple #1 Dark Maple #2 Dark Oak #1 Dark Oak #2 Dark Pine #1 Dark Pine #2 Light Maple Light Oak Light Pine D.Biocide Maple D.Biocide Oak

Specific THAA Formation (g/mg-TOC)

20 40 60 80 100 120 140 160 180

CEE697K Lecture #21

16

SLIDE 9

12/1/2013 9

Lignin Monomers

 Aromatic structures  from CuO

degradation

 Syringyl  Vanillyl  Cinnamyl

COOH OH 4-Hydroxy- benzoic acid COOH OH Vanillic acid CHO OH 4-Hydroxy- benzaldehyde COOH OH CH3O OCH3 Syringic acid CHO OH Vanillin CO OH CH3 4-Hydroxy- acetophenone CHO OH CH3O OCH3 Syringaldehyde CO OH CH3 OCH3 COOH OH COOH OH OH CH3O OCH3 Acetovanilione 4-Hydroxy- cinnamic acid CO CH3 Acetosyringone OCH3 Ferulic acid OCH3 OCH3

CEE697K Lecture #21

17 18

Lignin

From: Perdue & Ritchie, 2004 CEE697K Lecture #21

SLIDE 10

12/1/2013 10

Other plant products

Pyruvate Acetate Water Soluble Acids Porphyrins Amino Acids Nucleic Acids

Misc. N & S

compounds Proteins Shikimic Acid Carbohydrates Saponifiable Liquids Unsaponifiable Liquids Mevalonic acid Terpenoids Steroids Flavonoids Aromatic Compounds

From: Robinson, 1991

Activated non-N precursors Nitrogenous precursors CEE697K Lecture #21

19

Aromatic Amines



Proposed degradation pathway for 3-amino benzoic acid.

C NH2 O OH

1, 2, or 3 chlorinations initially

NH2 Cl Cl Cl COOH NCl2 Cl NH2 Cl Cl COOH Cl Cl OH

And or chlorination of the amine

OH NH2 Cl Cl COOH Cl Cl Cl2 COOH Cl Cl O Cl Cl COOH Cl Cl Cl Cl O OH OH OH Cl Cl Cl Cl Cl COOH OHl Cl O COOH Cl Cl O Cl Cl COOH Cl Cl O Cl Cl

NCl2H

Cl Cl O Cl Cl OH O OH Cl Cl O Cl Cl O OH HO COOH Cl Cl O Cl Cl COOH Cl Cl Cl Cl Cl Cl COOH Cl Cl O Cl Cl COOH Cl Cl O Cl Cl Cl Cl O Cl Cl Cl HO HO HO Cl

CO2

O OH O Cl OH O Cl Cl Cl HOOC Cl Cl

Initial decarboxylation that we would predict for the para substituted compound is less likly here because the intermediate is not resonance stabilized

CEE697K Lecture #21

20

SLIDE 11

12/1/2013 11

Aromatic Amines

0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 0.08 Anthranilic acid 3 Aminobenzoic acid 4 Aminobenzoic acid M/M 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 M-Cl/M THMs HAAs HANs TOX Unknown TOX

THMs 38% Unknow n TOX 16% HAA6 45% HANs 1%

Anthranilic Acid

THMs 25% Unknow n TOX 58% HAA6 15% HANs 2%

3-Aminobenzoic Acid

THMs 31% HAA6 15% HANs 3% Unknow n TOX 51%

4-Aminobenzoic Acid

6.0 7.7 7.8

Cl2 Demand (M/ M)

CEE697K Lecture #21

21 22

THM Precursors (g/mg-C)

0.01 0.1 1 10 100 1000 10000

TriHAA Precursors (g/mg-C)

0.01 0.1 1 10 100 1000 Aromatics Nucleic Bases Simple Aliphatics Amino Acids Amino Sugars

 Wide

range for models

 Narrow

range for NOM

10-90%ile range for NOM

Compare with Model Compounds

CEE697K Lecture #21

SLIDE 12

12/1/2013 12

23

Elemental Ratios

From: Perdue & Ritchie, 2004

 Van Krevelen Plot

CEE697K Lecture #21 24

Molecular Weight

100 1000 10000 100000

Charge Density @ pH 7 (meq/g-C)

25
20
15
10
5

5 10

Hydrophilic Bases Hydrophobic Bases Neutrals Hydrophilic Acids Weak Hydrophobic Acids Humic Acid Fulvic Acid

from: Bezbarua and Reckhow, 1995

Size and Charge Relationships for NOM Fractions

CEE697K Lecture #21

SLIDE 13

12/1/2013 13



Van Krevelen diagram for the Dismal Swamp DOM, compound classes are represented by the circles

verlain on the plot. The distinctive lines in the plot denote the following chemical reactions: (A)

methylation/demethylation, or alkyl chain elongation; (B) hydrogenation/dehydrogenation; (C) hydration/condensation; and (D) oxidation/reduction.

25

Sleighter & Hatcher, 2007 [J. Mass Spec. 42:559]

CEE697K Lecture #21

Fate & Transport:

 Watershed  Natural system  Physical processes  Chemical processes  Biological processes  Water Treatment Plant  Engineered System  Physical processes  Chemical processes  Biological processes

“Full-scale monitoring “Lab-scale simulation Fundamental Testing

CEE697K Lecture #21

26

SLIDE 14

12/1/2013 14

Time (Days)

20 40 60 80 100

DOC F ti R

)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 Phase 1 (Co=6.7 mg/L) Phase 2 (Co=5.4 mg/L) Phase 3 (Co=7.9 mg/L)

Biodegradation of leaf leachate

 ~ 50% biodegradable

 Bacteria grow

preferentially on NOM <3000 amu

CEE697K Lecture #21

27

Leaching & Biodegradation

Cumulative Frequency

0.0 0.2 0.4 0.6 0.8 1.0

Specific THMFP (g/mg-C)

20 40 60 80 100 120

Specific THM-SDS (g/mg-C)

10 20 30 40 50 60

Pre-exponential Term (a)

0.0 0.1 0.2 0.3 0.4 0.5 0.6 Surface Waters Groundwaters

Maple Oak Pine

CEE697K Lecture #21

28

SLIDE 15

12/1/2013 15

29

Transport & Soil Properties

 Case study: TOC & soil properties  Parallel watersheds in Australia (Cotsaris et al., 1994)  Clearwater Creek, high clay content: 2.5 mg/L TOC  Redwater Creek, sandy soil: 31.7 mg/L TOC  Presumed Attenuated of TOC by adsorption to clay

soils

 Impacts on specific NOM components & precursors ??

CEE697K Lecture #21 Effect of Bank Filtration on Precursors

DOC (mg/L)

1 2 3 4 5

THMFP/DOC (g/mg)

20 40 60 80 100 Ohio River Wabash River Missouri River

Subsurface processes

 River Bank Filtration  Weiss et al., 2001

 AWWA ACE

 Groundwater recharge  Aiken & others Ratio climbs over very short distances and then declines

CEE697K Lecture #21

30

SLIDE 16

12/1/2013 16

The Future: Higher MW DBPs

 NOM research  ESI with Ultra High-

Resolution Fourier Transform Ion Cyclotron Resonance Mass Spectrometry

 Benefits  Unambiguous molecular

formulae

CEE697K Lecture #21

31

32 m/z

900 800 700 600 500 400 300

Abundance

12 11 10 9 8 7 6 5 4 3 2 1

Raw Water - Winnipeg

0.00E+00 5.00E+01 1.00E+02 1.50E+02 2.00E+02 2.50E+02 3.00E+02 3.50E+02 4.00E+02 150 250 350 450 550 650 m/z Intensity

ve ion

+ ve ion

ESI -TOF MS ESI -FTI CR MS

Same: comparison side-by-side

CEE697K Lecture #21

SLIDE 17

12/1/2013 17

33 m/z

425 420 415 410 405 400 395 390

Abundance

7 6 5 4 3 2 1

CEE697K Lecture #21

36

 Comparative study of 5 oxidants  Looked at rates of removal for micropollutants for

each

 Compared to bulk oxidant demand

Lee, Y. and U. von Gunten (2010). "Oxidative transformation of micropollutants during municipal wastewater treatment: Comparison of kinetic aspects of selective (chlorine, chlorine dioxide, ferrate(VI), and ozone) and non-selective oxidants (hydroxyl radical)." Water Research 44(2): 555-566.

SLIDE 19

12/1/2013 19

Rate constants vs pH

CEE697K Lecture #21

37

 ss

Fig. 1. pH dependent second-order rate constants (k) for the reaction of the oxidants, chlorine (HOCl), chlorine dioxide

(ClO2), ferrateVI (HFeO4

−), hydroxyl radicals (HO), and ozone (O3)

Lee, Y. and U. von Gunten (2010). Water Research 44(2): 555-566. CEE697K Lecture #21

38

 Fours species

Fig. 2. Consumption kinetics of the selective oxidants, (a) ozone, (b) ferrateVI, (c) chlorine, and (d) chlorine dioxide, in a

secondary wastewater effluent (RDWW) at pH 8. Symbols represent measured data and lines connect each data point to show the trend.

Oxidant Residuals

Lee, Y. and U. von Gunten (2010). Water Research 44(2): 555-566.

SLIDE 20

12/1/2013 20

CEE697K Lecture #21

39

 gd

Fig. 3. Logarithm of the residual concentrations (log(c/c0)) of selected micropollutants as a function of oxidant doses in a

secondary wastewater effluent (RDWW) at pH 8: (a) EE2, (b) SMX, (c) CBZ, (d) ATL, and (e) IBP. Symbols represent measured data and lines connect each data point to show the trend. The lines for hydroxyl radicals represent the linear regression of

data. For the selective oxidants, the reaction time of 1 h was given to simulate realistic treatment conditions.

Micropollutant Destruction

Lee, Y. and U. von Gunten (2010). Water Research 44(2): 555-566. CEE697K Lecture #21

40

 cs

Fig. 4. Effect of (a) ammonia (NH4

+) and (b) nitrite (NO2 −) on the transformations of EE2 during treatment of a secondary

wastewater effluent (RDWW) by different oxidants at pH 8. Preliminary experiments were conducted to determine the

xidant dose for each oxidant to achieve a 80% transformation of EE2 in RDWW without additionally spiked ammonia

and nitrite. They were 20 μM for chlorine, 3 μM for chlorine dioxide, 8 μM for ozone, 8 μM for ferrateVI, and 37 μM for hydroxyl radicals. Symbols represent measured data and lines connect each data point to show the trend. Lee, Y. and U. von Gunten (2010). Water Research 44(2): 555-566.

SLIDE 21

12/1/2013 21

Ferrate reaction with surface waters

 25 µM ferrate dose, pH 6.2

Time (min)

5 10 15 20 25 30

Ferrate Concentration (M)

5 10 15 20 25 30

Ferrate Concentration (mg/L as Fe)

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 pH 6.2 Buffered Blank Houston TX pH 6.2 Palmer MA pH 6.2 Readsboro VT pH 6.2

From: Jiang et al., 2013

CEE697K Lecture #21

41

Low Dose, High pH

Time (min)

Model for pollutant oxidation

CEE697K Lecture #21

47

 Simple 2nd order kinetics  Pollutant (P) reacts with an oxidant (O)  Integrate but keep [O] time variable  And you end up with an expression in terms of CT

dt
Po

Pt

pH

6.0 6.5 7.0 7.5 8.0 8.5

Fraction Remaining

0.0 0.2 0.4 0.6 0.8 1.0 ethynlestradiol sulfamethoxazole bromide Sulfide Nitrite Phenol Analine

Kinetic Analysis, high dose

 50 µM dose, Houston Water

 Alkyl alcohols  Alkyl amines  sulfides

CEE697K Lecture #21

48

SLIDE 25

12/1/2013 25

Kinetic Analysis, low dose

pH

6.0 6.5 7.0 7.5 8.0 8.5

Fraction Remaining

0.0 0.2 0.4 0.6 0.8 1.0 ethynlestradiol sulfamethoxazole bromide Sulfide Nitrite Phenol Analine

 25 µM dose, Houston Water

 Alkyl alcohols  Alkyl amines  sulfides

CEE697K Lecture #21

49

The “problems” with ozone

CEE697K Lecture #21

50

Many important secondary oxidants, especially OH radical Ozone decomposition in real waters does not match predictions

SLIDE 26

12/1/2013 26

Mechanistic model is “off”

CEE697K Lecture #21

51

 Initiation

reaction rate constant must be “adjusted” to match actual data

Elovitz, M. S. and U. Von Gunten (1999). "Hydroxyl Radical Ozone Ratios During Ozonation Processes. I-the R-Ct Concept." Ozone-Science & Engineering 21(3): 239-260.

A simpler view: Direct & Indirect Pathways

52

O3

·OH

High pH UV light H2O2 H2O, O2 H2O, O2 Direct Reaction Indirect Reaction NOM VOCs Fe/Mn Oxidized Products Oxidized Products

Use of peroxide with ozone is an “advanced oxidation process” (AOP) Bicarbonate Classic “ozone demand” Decomposition

Natural waters cause ozone decomposition to varying degrees without any added initiators

CEE697K Lecture #21

SLIDE 27

12/1/2013 27

Ozone Loss: focus on NOM

0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 1 2 3 4 5 Specific UV Absorbance 5-min ozone consumption (mg/mg-C)

53

» Ozone loss in first 5 minutes

 fulvic acids  data from Legube

et al., 1989

Organic Demand in colored waters

– Empirical stoichiometric approach

Direct reaction with NOM, Doesn’t really account for “decomposition”

CEE697K Lecture #21

Ozone loss: focus on decomposition

 Incorporating Inorganic Reactions:

Semi-empirical kinetic approach

 First-order decay in solution  Specific ozone loss rate (w) in s -1  Yurteri & Gurol (1988)  Orta de Velasquez et al. (1994)

t initial O O

e C C

 



,

3 3

54

Log pH TOC Alk       356 0 66 0 61 0 42 . . . log . log Log pH Abs TOC Alk        393 0 24 0 75 108 019

254

. . . log . log . log

Takes inorganic matrix into account, and allows for variable contact times, but treats all DOC as the same

] [ ] [

3 3

O dt O d   

CEE697K Lecture #21

SLIDE 28

12/1/2013 28

Ozonation of trace organics: Direct Rcn

CEE697K Lecture #21

55  Shut down OH radical formation to isolate

molecular ozone (O3) rate.

 Oxidation of nitroimidazoles during ozonation.  [Nitroimidazole]0 = 10 mg/L., T = 298 K.  pH = 2; [t-BuOH] = 0.1 M  (♢), MNZ; (□), DMZ; (▵), TNZ; (○), RNZ.

Sanchez-Polo, M., J. Rivera-Utrilla, et al. (2008). "Removal of pharmaceutical compounds, nitroimidazoles, from waters by using the ozone/carbon system." Water Research 42(15): 4163-4171.

Indirect Rcn: But we can’t measure OH

CEE697K Lecture #21

56

 If you can’t measure them directly maybe you can do

it indirectly

 Use small amounts of a “probe compound”  Sacrificial reactant that is easy to measure and selective  Benzene (Hoigne & Bader, 1979) by GC  p-chlorobenzoic acid is now more common  Easy to measure by HPLC  5x10-9 M-1s-1 with OH radical, but ≤0.15 M-1s-1 with O3

Hoigne, J. and H. Bader (1979). "Ozonation of Water - Oxidation-Competition Values of Different Types of Waters Used in Switzerland." Ozone- Science & Engineering 1(4): 357-372.

SLIDE 29

12/1/2013 29

Competitive kinetics with probe

CEE697K Lecture #21

57

 Pollutant (P) and probe compound (pCBA)

1
If you know kp and want to

estimate oxidation of P: If you want to determine kp from measurements of P:

Determining OH rate constants

CEE697K Lecture #21

58

 Fig. 3. Determination of OH radical reaction constant.  pH = 9; T = 298 K; [nitroimidazole]0 = 7 × 10−5 M;

[pCBA]0 = 7.25 × 10−5 M. (♢), MNZ; (□), DMZ; (▵), TNZ; (○), RNZ.

Sanchez-Polo, M., J. Rivera-Utrilla, et al. (2008). "Removal of pharmaceutical compounds, nitroimidazoles, from waters by using the ozone/carbon system." Water Research 42(15): 4163-4171.

SLIDE 30

12/1/2013 30

Can we simplify a bit?

CEE697K Lecture #21

59

 Oxidation competition values  Based on relatively linear pseudo-1st order loss rate for

micropollutants (i.e., ln(P/Po) vs t gives a straight line)

 Expected if aggregate OH reacting substances do not

undergo appreciable depletion during ozonation

 Ozone decomposition produces a uniform yield of OH

ver time and ozone dose (typically ~0.5M/M)

Hoigne, J. and H. Bader (1979). "Ozonation of Water - Oxidation-Competition Values of Different Types of Waters Used in Switzerland." Ozone- Science & Engineering 1(4): 357-372.

Oxidation-competition method

CEE697K Lecture #21

60

 First assume a near constant OH yield from ozone

decomposition so that monitoring loss of ozone provides an estimate of the OH reactions taking place

 Then all OH produced either reacts with the target

pollutant (M) or the background matrix (Si) and the two are in direct competition

 And the fraction reacting with M is:

∑

From: Hoigne & Bader, 1979

SLIDE 31

12/1/2013 31

Using M as a probe

CEE697K Lecture #21

61

 Now:  Where the oxidation-competition value is defined as:  And as we’ve shown previously  We can now use  to estimate loss of “P” by simply measuring

O3

Δ
∑

Δ Ω ∑

Ω ∑

Δ
Δ

Ω

Δ

Ω

Production rate of OH radicals Fraction of OH that reacts with M And rearranging: This is what we can actually measure

r

Field Values

CEE697K Lecture #21

62

 Values of  have

been measured on many natural waters

Hoigne, J. and H. Bader (1979). "Ozonation of Water - Oxidation- Competition Values of Different Types of Waters Used in Switzerland." Ozone-Science & Engineering 1(4): 357-372.

SLIDE 32

12/1/2013 32

Some complications

CEE697K Lecture #21

63

 Yet they noted an initial reaction that did not

conform to their simple model

RCT concept

CEE697K Lecture #21

64

 Recall from the discussion on simple consecutive

reactions:

 The ratio of the concentrations of intermediate to the

reactant approaches a constant, when kii>>ki

 Now consider A to be ozone and B to be OH radical, and

we get:

ii i i ii i

k k k k k A B    ] [ ] [ C B A

ii i

k k

   

≝

SLIDE 33

12/1/2013 33

RCT concept

CEE697K Lecture #21

65

 Elovitz & Von Gunten, 1999  Use the same competitive OH reaction approach with a

probe compound as Hoigne & Bader

Elovitz, M. S. and U. Von Gunten (1999). "Hydroxyl Radical Ozone Ratios During Ozonation Processes. I-the R-Ct Concept." Ozone-Science & Engineering 21(3): 239-260.

However, instead of measuring O3, they chose to record the full ozone CT

RCT concept II

CEE697K Lecture #21

66

 The simple 2nd order model is:  Rearranging and integrating we get:  Which gives the final form used in experimental

evaluation:

≝

SLIDE 34

12/1/2013 34

RCT concept III

CEE697K Lecture #21

67

 Simple model system

Elovitz, M. S. and U. Von Gunten (1999). "Hydroxyl Radical Ozone Ratios During Ozonation Processes. I-the R-Ct Concept." Ozone-Science & Engineering 21(3): 239-260.

RCT concept IV

CEE697K Lecture #21

68

 Lake Zurich water  Apparent 2-stage

kinetics

 1st stage may or may not

be linear

Elovitz, M. S. and U. Von Gunten (1999). "Hydroxyl Radical Ozone Ratios During Ozonation Processes. I-the R-Ct Concept." Ozone-Science & Engineering 21(3): 239-260.

SLIDE 35

12/1/2013 35

Incorporating both pathways

CEE697K Lecture #21

69

 The expanded 2nd order model is:  Rearranging and integrating we get:  or:

≝

both pathways II

CEE697K Lecture #21

70

 Porrentruy Water

Elovitz, M. S. and U. Von Gunten (1999). "Hydroxyl Radical Ozone Ratios During Ozonation Processes. I-the R-Ct Concept." Ozone-Science & Engineering 21(3): 239-260.

SLIDE 36

12/1/2013 36

CEE697K Lecture #21

71

both pathways III

Elovitz, M. S. and U. Von Gunten (1999).

 Natural waters

Role of Temperature

CEE697K Lecture #21

72

 Increase in RCT

Elovitz, M. S., U. Von Gunten, et al. (2000). "Hydroxyl Radical/Ozone Ratios During Ozonation Processes. II. The Effect of Temperature, pH, Alkalinity, and DOM Properties." Ozone-Science & Engineering 22(2): 123-150.

SLIDE 37

12/1/2013 37

Role of pH

CEE697K Lecture #21

73

Elovitz, M. S., U. Von Gunten, et al. (2000). "Hydroxyl Radical/Ozone Ratios During Ozonation Processes. II. The Effect of Temperature, pH, Alkalinity, and DOM Properties." Ozone-Science & Engineering 22(2): 123-150.

 Increase in RCT

Role of Bicarbonate

CEE697K Lecture #21

74

Elovitz, M. S., U. Von Gunten, et al. (2000). "Hydroxyl Radical/Ozone Ratios During Ozonation Processes. II. The Effect of Temperature, pH, Alkalinity, and DOM Properties." Ozone-Science & Engineering 22(2): 123-150.

 Decrease in RCT

SLIDE 38

12/1/2013 38

Similar approach used for AOPs

CEE697K Lecture #21

75

 Advanced oxidation processes  UV with H2O2

Rosenfeldt, E. J. and K. G. Linden (2007). "The R-OH,R-UV concept to characterize and the model UV/H2O2 process in natural waters." Environmental Science & Technology 41(7): 2548-2553.

CEE697K Lecture #21

76

 To next lecture
