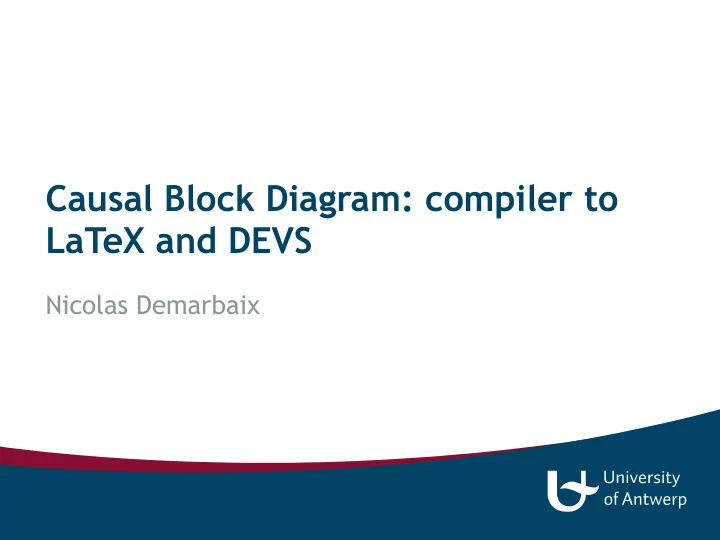

Causal Block Diagram: compiler to LaTeX and DEVS Nicolas Demarbaix - PowerPoint PPT Presentation

Dec 09, 2022 •15 likes •145 views

Causal Block Diagram: compiler to LaTeX and DEVS Nicolas Demarbaix Overview Introduction Theoretical background Design 2 Introduction 3 Introduction Why ? Clear and detailed description in LaTeX Verifying model using

Causal Block Diagram: compiler to LaTeX and DEVS Nicolas Demarbaix
Overview • Introduction • Theoretical background • Design 2
Introduction 3
Introduction Why ? • Clear and detailed description in LaTeX • Verifying model using PypDEVS 4
Introduction How ? • CBD to Intermediate Language • Export to LaTeX / Transform to DEVS 5
Technical background 6
Technical background Intermediate Language • Dependency Graph model in AtomPM • Construct Strong Components • Solve algebraic loops 7
Technical background CBD to DEVS mapping • Strong Component -> Atomic Devs • Links between blocks in component -> Internal • Links between blocks outside component -> External 8
Technical background Dynamic Rate Change (Optionally) • Error = Strict Derivative - Flexible Derivative • Based on error, change rate of blocks Christis, N., 2012-2013. Research internship 2: Hybrid systems. 9
Design 10
Design 11
Design 12
Questions?
