(D)rain for Life project conference, Prnu 29.11.2013 SUDS in existing urban context: case case stu study dy Vr Vru, , Estonia Jekaterina Balicka, Gen Mandre, Ottar Tamm Estonian University of Life Sciences Location in the context of

slide-1
SLIDE 1

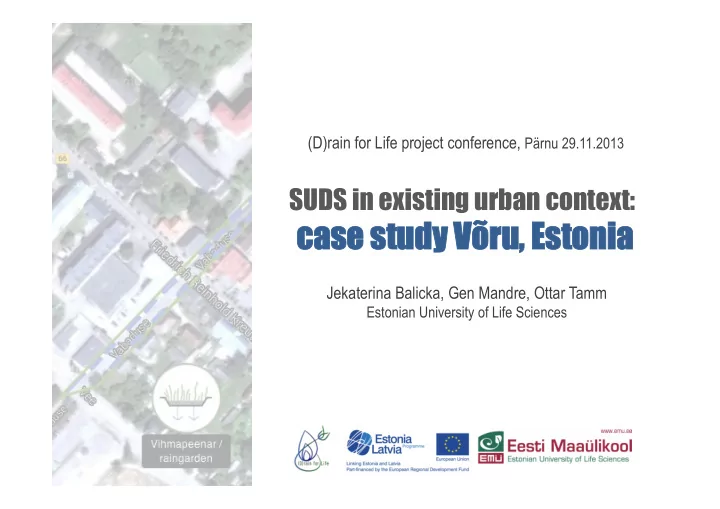

SUDS in existing urban context:

case case stu study dy Võr Võru, , Estonia

(D)rain for Life project conference, Pärnu 29.11.2013 Jekaterina Balicka, Gen Mandre, Ottar Tamm

Estonian University of Life Sciences

slide-2
SLIDE 2

Location in the context of Estonia

slide-3
SLIDE 3
  • Võru locates in valley Hargla between Otepää Upland and Upland Haanja
  • City passes St.Petersburg-Pskov-Riga-Tallinn rail and Luhamaa road
  • There are three lakes at the city territory - Tamula (229 ha), Kubija (15,9 ha) ja

Kubija Veskijärv (1,7 ha)

  • Population + 13 482 people living in Võru and 36 403 people in the county (2012)
  • Town of 14 km²

Main characteristics of Võru

slide-4
SLIDE 4

Location of case study area

slide-5
SLIDE 5
slide-6
SLIDE 6

Unreformed ¡public ¡land ¡ Private ¡land ¡ Municipal ¡land ¡ Public ¡land ¡

Land ownership

slide-7
SLIDE 7

Terrain

slide-8
SLIDE 8

Problem with stormwater and melting water caused streets and beach errosion In case of extreme rain event rainwater causes the flooding of the street and enters the lake unpurified

Tartu street

slide-9
SLIDE 9

In case of extreme rain event rainwater causes the flooding of the street and area between Tartu and Vabaduse streets in the lower part of the area

Vabaduse street

slide-10
SLIDE 10

Vabaduse street

Big amount of covered surface resulting the flooding of remaining area

slide-11
SLIDE 11
  • Varying groundwater level
  • Low infiltration capacity due to the high number of surfaced area
  • Polluted runoff (salt, traffic pollution) enters the lake unfiltered
  • Erosion
  • Runoff delay to increase evaporation and infiltration
  • Runoff water purification
  • Instruments to stop erosion
  • Instruments to stop flooding

Challenges Needs

slide-12
SLIDE 12
slide-13
SLIDE 13
  • 1. Raingardens
slide-14
SLIDE 14
  • 1. Raingardens
slide-15
SLIDE 15
  • 1. Raingardens
slide-16
SLIDE 16
  • 2. Open vegetated drains
slide-17
SLIDE 17
  • 3. Dry infiltration basin and system of ditches
slide-18
SLIDE 18
  • 4. Cobblestone stripe
slide-19
SLIDE 19

Runoff calculations Calculated discharge

To ¡Tartu ¡street ¡ ¡ Q ¡= ¡436 ¡l/s ¡ ¡ To ¡Vabaduse ¡street ¡ Q ¡=136 ¡l/s ¡ ¡ Reten@on ¡pond ¡ ¡ ¡ ¡

Q=249+Vabaduse ¡street ¡ ¡Q ¡ =385 ¡l/s ¡

slide-20
SLIDE 20
  • EVS 848:2003 Municipal sewer system
  • EVS 847:2003 Municipal water supply

USED ¡STANDARDS/NORMS ¡

Q = q × k Ψ × A , where

  • k ¡Ψ ¡– ¡runoff ¡coefficient, ¡depends ¡on ¡surface; ¡
  • A-­‑ ¡watershed ¡area ¡(ha); ¡
  • q ¡– ¡calculated ¡rain ¡intensity ¡l/s ¡(ha). ¡

¡

USED ¡PARAMETERS ¡

  • t – rain endurance 20 min/60 min
  • Stormwater recurrence p = 5 years
slide-21
SLIDE 21

www.drainforlife.eu ¡

slide-22
SLIDE 22
slide-23
SLIDE 23

(D)rain for Life project conference, Pärnu 29.11.2013

Project team of Estonian University of Life Sciences: Valdo Kuusemets, project leader valdo.kuusemets@emu.ee Gen Mandre, project manager gen.mandre@emu.ee Jekaterina Balicka, landscape architect jekaterina.balicka@emu.ee Ottar Tamm, researcher ottar.tamm@emu.ee Lauri Lokko, researcher lauri.lokko@emu.ee
