Carbon Literacy for Communities www.keepscotlandbeautiful.org/ccf Keep Scotland Beautiful; what we do Sustainable development education Provide education initiatives for children, young people and educators Local environmental quality Provide

slide-1

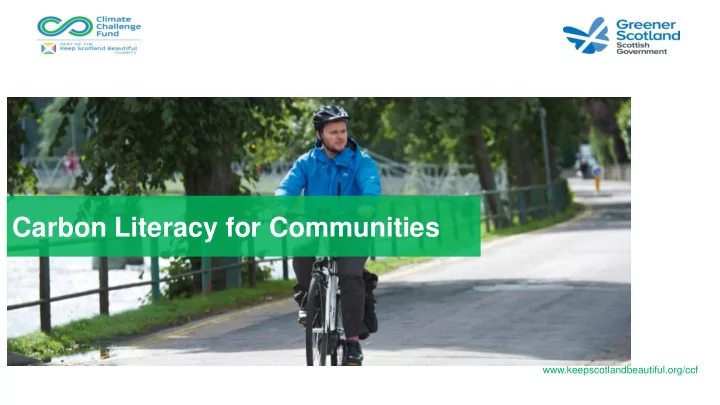

SLIDE 1

www.keepscotlandbeautiful.org/ccf

Carbon Literacy for Communities

slide-2
SLIDE 2

www.keepscotlandbeautiful.org/ccf

Keep Scotland Beautiful; what we do

Sustainable development education Provide education

initiatives for children, young people and educators

Local environmental quality

Provide advice support and training to help create and maintain cleaner and safer local areas

Sustainability and climate change

Work to help people to reduce carbon emissions and adapt to impacts of climate change

Environmental services

Help organisations meet environmental commitments and responsibilities

slide-3
SLIDE 3

www.climatechallengefund.org

The Climate Challenge Fund

The Climate Challenge Fund is a Scottish Government grant programme that provides funding and support for community-led organisations to run projects that reduce local carbon emissions, helping to tackle climate change. Since it was launched in 2008 the CCF has funded over 1,100 projects including:

  • energy efficiency improvements to community owned buildings and home energy efficiency advice
  • lower carbon travel options
  • community growing initiatives
  • schemes to tackle waste
slide-4
SLIDE 4

www.climatechallengefund.org

Training and support

Keep Scotland Beautiful manages and administers the Climate Challenge Fund on behalf of the Scottish Government. Keep Scotland Beautiful has staff that support CCF applicants and those awarded grants. Keep Scotland Beautiful also offer free training, events and support to help communities across Scotland build their capacity to tackle climate change. www.keepscotlandbeautiful.org/ccf

slide-5
SLIDE 5

www.keepscotlandbeautiful.org/ccf

Carbon Literacy

  • Day One – Understanding

and Communicating Climate Change

  • Day Two – Low Carbon

Behaviours

“Carbon literacy means having an instinctive understanding of the carbon impacts of our activities, and being able to make informed choices about the most energy and resource efficient and lower carbon options available to us.” Carbon Literacy Project

slide-6
SLIDE 6

www.keepscotlandbeautiful.org/ccf

Carbon Literacy

Certification – Fill in short assessment You will also be asked: 1. What we need to do to become carbon neutral 2. Personal and Group carbon reducing action and why significant.

slide-7
SLIDE 7

www.keepscotlandbeautiful.org/ccf

Icebreaker Talk to the person next to you. Tell each other one thing you know for certain about climate change, and one thing you’re not so sure about?

slide-8
SLIDE 8

www.keepscotlandbeautiful.org/ccf

Aims of today

  • Examine the scientific basis for climate change
  • Explore the potential impacts of rising greenhouse gasses and a

changing climate

  • Learn about communicating climate change and practice some

techniques for doing so

slide-9
SLIDE 9

www.keepscotlandbeautiful.org/ccf

Structure of the day

  • Morning –looking at the science behind climate change; and

how our climate is changing already. What is being done about it?

  • Lunch
  • Afternoon – Myth busting and thinking about how we

communicate the climate case

slide-10
SLIDE 10

www.keepscotlandbeautiful.org/ccf

Why is climate change happening?

slide-11
SLIDE 11

www.keepscotlandbeautiful.org/ccf

The Greenhouse Effect

  • Greenhouse gases

(GHGs)naturally occur in Earth’s atmosphere

  • Without GHGs the

average global temperature would be around 30ºC lower than it is today.

  • Human activity

increasing concentration of GHGs

slide-12
SLIDE 12

www.keepscotlandbeautiful.org/ccf

Natural Carbon cycle – low human impact

SOURCES SINKS

slide-13
SLIDE 13

www.keepscotlandbeautiful.org/ccf

Altered Carbon balance

SINKS SOURCES

slide-14
SLIDE 14

www.keepscotlandbeautiful.org/ccf

Causes of Climate Change

slide-15
SLIDE 15

www.keepscotlandbeautiful.org/ccf

Causes of climate change

  • Increase in greenhouse gas emissions – this causes the

natural blanket around the atmosphere to ‘thicken’ trapping in more heat.

  • Greenhouse gases = Carbon Dioxide (CO2), Methane

(CH4), Nitrous Oxide (N2O).

Fact: Since start of industrial era levels of main greenhouse gases increased (CO2 – 40%; CH4 – 150% and N2O – 20%)

slide-16
SLIDE 16

www.keepscotlandbeautiful.org/ccf

The Science Bit

slide-17
SLIDE 17

www.keepscotlandbeautiful.org/ccf

Svante August Arrhenius (1859 – 1927)

  • The first person to predict that emissions of carbon

dioxide from the burning of fossil fuels and other combustion processes were large enough to cause global warming in 1896 “…any doubling of the percentage of carbon dioxide in the air would raise the temperature of the earth's surface by 4°…we may hope to enjoy ages with more equable and better climates, especially as regards the colder regions of the earth, ages when the earth will bring forth much more abundant crops than at present, for the benefit of rapidly propagating mankind.”

slide-18
SLIDE 18

www.keepscotlandbeautiful.org/ccf

In 1927 wrote:

"[The unchecked burning of fossil fuels] would have a sort of greenhouse effect“ "The net result is the greenhouse becomes a sort of hot-house."

Alexander Graham Bell

slide-19
SLIDE 19

www.keepscotlandbeautiful.org/ccf

1922 1912 1988

slide-20
SLIDE 20

www.keepscotlandbeautiful.org/ccf

Evidence – The Keeling Curve

Current level: 410 PPM Keeling Curve on Twitter

slide-21
SLIDE 21

www.keepscotlandbeautiful.org/ccf

Ice Cores

source:http://en.wikipedia.org/wiki/Ice_core source: http://planetearth.nerc.ac.uk/news/story.aspx?id=609

  • Ice cores contain

information about temperature and gases

  • Antarctica – ice cores

can stretch back 800,000 years

Darker layers winter Arrowed layers summer

slide-22
SLIDE 22

www.keepscotlandbeautiful.org/ccf

Ice Cores - Evidence

2019 level 410ppm

slide-23
SLIDE 23

www.keepscotlandbeautiful.org/ccf

This graph, based on the comparison of atmospheric samples contained in ice cores and more recent direct measurements, provides evidence that atmospheric CO2 has increased since the Industrial Revolution. (Credit: Vostok ice core data/J.R. Petit et al.; NOAA Mauna Loa CO2 record.). Taken from http://climate.nasa.gov/evidence/

Start of industrial revolution

slide-24
SLIDE 24

www.keepscotlandbeautiful.org/ccf

Earthbook

http://imgs.xkcd.com/comics/earth_temperature_timeline.png

slide-25
SLIDE 25

www.keepscotlandbeautiful.org/ccf

Tea and coffee break

slide-26
SLIDE 26

www.keepscotlandbeautiful.org/ccf

Climate Justice

slide-27
SLIDE 27

www.keepscotlandbeautiful.org/ccf

Carbon emissions - current

http://www.carbonmap.org/#Emissions

slide-28
SLIDE 28

www.keepscotlandbeautiful.org/ccf

Carbon emissions - historical

slide-29
SLIDE 29

www.keepscotlandbeautiful.org/ccf

People at Risk

slide-30
SLIDE 30

www.keepscotlandbeautiful.org/ccf

Development vs. Climate Change

  • “The right to development is an

inalienable human right by virtue of which every human person and all peoples are entitled to participate in, contribute to, and enjoy economic, social, cultural and political development, in which all human rights and fundamental freedoms can be fully realized.” (Article 1.1, Declaration on the Right to Development)

  • Sustainable Development Goals

(SDGs)

slide-31
SLIDE 31

www.keepscotlandbeautiful.org/ccf

The Carbon Budget

slide-32
SLIDE 32

www.keepscotlandbeautiful.org/ccf

Current Impacts and Evidence

slide-33
SLIDE 33

www.keepscotlandbeautiful.org/ccf

Intergovernmental Panel on Climate Change

slide-34
SLIDE 34

www.keepscotlandbeautiful.org/ccf

IPCC

  • Warming of the climate system is unequivocal, and

since the 1950s, many of the observed changes are unprecedented over decades to millennia.

  • In the Northern Hemisphere, 1983–2012 was likely

the warmest 30-year period of the last 1400 years.

  • Global surface temperature change for the end of the

21st century is likely to exceed 1.5 C relative to 1850 to 1900.

  • It is likely to exceed 2°C for high emissions scenarios
slide-35
SLIDE 35

www.keepscotlandbeautiful.org/ccf

  • Global average temperature is 1C warmer; this is greater over

land and 2-3 times greater at the poles.

  • We’re not locked in to 1.5C warming (yet!)
  • The difference between 1.5C warming and 2C is significant
  • Limiting warming to 1.5C is technically feasible – but a huge

challenge

  • We can limit warming AND meet the Sustainable Development

Goals (if we focus on reducing energy demand) 2018 - Special Report on Climate Change at 1.5C

The Intergovernmental Panel on Climate Change (IPCC)

slide-36
SLIDE 36

www.keepscotlandbeautiful.org/ccf

Climate Stripes – Global average temperature 1850-2017

slide-37
SLIDE 37

www.keepscotlandbeautiful.org/ccf

Climate Stripes – Scotland 1884-2018

slide-38
SLIDE 38

www.keepscotlandbeautiful.org/ccf

Melting Ice - Sea

Source: http://www.skepticalscience.com/Global-Warming-in-a-Nutshell.html

slide-39
SLIDE 39

www.keepscotlandbeautiful.org/ccf

Melting Ice - Sea

slide-40
SLIDE 40

www.keepscotlandbeautiful.org/ccf

Melting Ice - Glacial Retreat

http://climate.nasa.gov/state_of_flux#Qori-Kalis-930px-80-v2.jpg

Qori Kalis glacier, Peru

slide-41
SLIDE 41

www.keepscotlandbeautiful.org/ccf

Sea Level Rise

  • Melting of glaciers

and Antarctic and Greenland ice sheets

  • Thermal expansion
  • Sea levels rising at a

rate of 1.7 mm per year

  • Thousands of coastal

cities and whole islands at risk.

Fact: Average global sea level rose 0.19m over a period between 1901-2010

slide-42
SLIDE 42

www.keepscotlandbeautiful.org/ccf

Nature

Polar Bears in Hudson Bay, Canada 1,200 polar bears Hunt on the ice during Spring Put on 50-75% of their body fat in these months But: Ice in Hudson Bay melts 3 weeks earlier now Less chance for the bears to feed Come on to shore 10kg lighter

Not just Polar Bears at risk, the IUCN have identified many species that are affected by climate change The report can be found at http://cmsdata.iucn.org/downloads/ species_and_climate_change.pdf

Source: www.hngn.com

slide-43
SLIDE 43

www.keepscotlandbeautiful.org/ccf

Nature

Puffins in the UK

Warmer temperatures in the seas around the UK mean that sand eels, the main food of puffins, are moving north. Storms and coastal erosion also have an impact on puffin populations and they are now on the IUCN ‘red list’.

https://en.wikipedia.org/wiki/File:Fratercula_arctica_- Skomer_Island,_Wales_-flying_with_fish_in_beak-8.jpg

https://en.wikipedia.org/wiki/Sand_eel#/media/File:Flickr_- _Rainbirder_-_Back_from_a_fishing_trip.jpg

slide-44
SLIDE 44

www.keepscotlandbeautiful.org/ccf

The Impacts of climate change – how is our weather going to change and how is it changing already? TITLE (Arial 24pt Bold)

slide-45
SLIDE 45

www.keepscotlandbeautiful.org/ccf

Recent Trends

  • Average temp. increase of 0.5°C (since

1914

  • Temp. increase in all seasons in all parts of

Scotland (since 1961)

  • Heavy rainfall events increased – in

particular Northern and Western parts

  • 25% reduction in number of frost days

(since 1961)

  • Growing season starts 3 weeks earlier

(compared to 1961)

http://www.sniffer.org.uk/files/9313/4183/7426/Climate_Trends_Handbook_for _web.pdf

slide-46
SLIDE 46

www.keepscotlandbeautiful.org/ccf

Future predictions – Scotland (example)

If we experience 1.6 degree Celsius warming If we experience 4.3 degree Celsius warming

slide-47
SLIDE 47

www.keepscotlandbeautiful.org/ccf

Extreme Weather Stories

slide-48
SLIDE 48

www.keepscotlandbeautiful.org/ccf

Extreme Weather - Flooding

  • “90% certain that mid-

latitudes and wet tropical regions” will experience more frequent and/or intense rainfall events

  • On average, 8 more heavy

rainfall days per winter in Scotland since 1961.

slide-49
SLIDE 49

www.keepscotlandbeautiful.org/ccf

Extreme Weather - Heatwaves

  • Summer 2003 record breaking heatwave in

Europe.

  • Many European countries experienced their

highest temperature on record.

  • According to Met Office this period of extreme

heat is thought to be warmest for up to 500 years

Source: www.paulotavares.net

slide-50
SLIDE 50

www.keepscotlandbeautiful.org/ccf

Consequences

slide-51
SLIDE 51

www.keepscotlandbeautiful.org/ccf

What Can We Do?

slide-52
SLIDE 52

www.keepscotlandbeautiful.org/ccf

What Can We Do?

  • Mitigation – efforts to cut or prevent the emission of greenhouse gases
  • Adaptation – lower the risks associated with impacts of climate change
slide-53
SLIDE 53

www.keepscotlandbeautiful.org/ccf

The Paris Agreement

COP21 = 21st Conference of the Parties UNFCCC = United Nations Framework Convention on Climate Change

Photo Credit: "Paris vue d'ensemble tour Eiffel" by Taxiarchos228, cropped and modified by Poke2001 - Paris-pano-wladyslaw.jpg. Licensed under CC BY 3.0 via Wikimedia Commons - https://commons.wikimedia.org/wiki/File:Paris_vue_d%27ensemble_tour_Eiffel.jpg#/media/File:Paris_vue_d%27ensemble_tour_Eiffel.jpg
slide-54
SLIDE 54

www.keepscotlandbeautiful.org/ccf

Mitigation - Aim

To keep average global temperature rise well below 2°c, and to pursue efforts to limit temperature increase to 1.5°c

slide-55
SLIDE 55

www.keepscotlandbeautiful.org/ccf

Mitigation in Scotland

  • 74% of the electricity generated in Scotland comes from renewables (figure

from 2018) – target is 100% by 2020

  • 3% of Scotland’s warmth, in 2012, came from biomass, solar thermal

panels, energy from waste and heat pumps – target is 11% by 2020

  • Across all sectors in Scotland waste sent to landfill has dropped from over

7 million tonnes in 2003 to just over 4 million tonnes in 2013.

slide-56
SLIDE 56

www.keepscotlandbeautiful.org/ccf

Adaptation - Aim

To increase ability to adapt to climate change impacts and foster climate resilience and low emissions development

slide-57
SLIDE 57

www.keepscotlandbeautiful.org/ccf

Adaptation in Scotland

  • Scottish Climate Change Adaptation programme sets out what

government, businesses, and society are doing to become more climate ready.

  • The Climate Change (Scotland) Act 2009 - makes legal arrangements

about climate change mitigation and adaption.

  • Adaptation Scotland - provides advice and support to help ensure that

Scotland is prepared for, and resilient to, the impacts of climate change.

slide-58
SLIDE 58

www.keepscotlandbeautiful.org/ccf

Adaptation in Scotland

slide-59
SLIDE 59

www.keepscotlandbeautiful.org/ccf

Lunch!

slide-60
SLIDE 60

www.keepscotlandbeautiful.org/ccf

Myth Busters – dealing with myths, denials and excuses

www.bloomberg.com/graphics/2015-whats-warming-the-world/

slide-61
SLIDE 61

www.keepscotlandbeautiful.org/ccf

Communicating the Climate Case – how concerned are you?

slide-62
SLIDE 62

www.keepscotlandbeautiful.org/ccf

Food prices to double due to loss of pollinators by 2030.

slide-63
SLIDE 63

www.keepscotlandbeautiful.org/ccf

90% of Coral reefs to disappear by 2050.

slide-64
SLIDE 64

www.keepscotlandbeautiful.org/ccf

Historic sites at risk from sea level rise and flooding.

slide-65
SLIDE 65

www.keepscotlandbeautiful.org/ccf

Communicating the Climate Case

slide-66
SLIDE 66

www.keepscotlandbeautiful.org/ccf

What is the biggest challenge you face when talking to people about climate change?

slide-67
SLIDE 67

www.keepscotlandbeautiful.org/ccf

Knowledge-Action Gap

slide-68
SLIDE 68

www.keepscotlandbeautiful.org/ccf

George Marshall

slide-69
SLIDE 69

www.keepscotlandbeautiful.org/ccf

What’s Important?

  • Who’s the Messenger? – Who is telling me this is a problem? Are they

like me? Are they convinced?

  • What’s the story? – Does is fit into my world-view? Does it talk to my

values? Does it challenge my identity?

  • Is it relevant? – What’s this got to do with my life, where I live and the

things I think are important?

  • How can I help? – What can I do? How will that be a positive thing?
slide-70
SLIDE 70

www.keepscotlandbeautiful.org/ccf

Values

slide-71
SLIDE 71

www.keepscotlandbeautiful.org/ccf

The Power of I….

  • I am like you …
  • I believe that the climate is changing because …
  • I was not always like this. What changed me was …
  • When I think of climate change I feel …
  • I am doing …
  • It’s not always easy …
  • But doing something feels…
slide-72
SLIDE 72

www.keepscotlandbeautiful.org/ccf

Tea and Coffee

slide-73
SLIDE 73

www.keepscotlandbeautiful.org/ccf

slide-74
SLIDE 74

www.keepscotlandbeautiful.org/ccf

slide-75
SLIDE 75

www.keepscotlandbeautiful.org/ccf

slide-76
SLIDE 76

www.keepscotlandbeautiful.org/ccf

slide-77
SLIDE 77

www.keepscotlandbeautiful.org/ccf

slide-78
SLIDE 78

www.keepscotlandbeautiful.org/ccf

Climate Conversations

Step-by-step approach to help people to engage with the issue of climate change and enjoy being part of a conversation. A 70-minute conversation with a group of approximately five to ten people. Guide includes: 1. A Script to guide you in facilitating the conversation 2. Materials to aid the conversation 3. A Checklist to help you remember everything you’ll need.

http://www.greenerscotland.org/why-live- greener/climateconversation

slide-79
SLIDE 79

www.keepscotlandbeautiful.org/ccf

Round-Up and Tomorrow

  • What is climate change
  • Why is climate change happening
  • Evidence for link between carbon and climate

change

  • Observed impacts
  • Impact on weather/UK climate
  • What can we do
  • Myth busters
  • Communicating climate change
slide-80
SLIDE 80

www.keepscotlandbeautiful.org/ccf

And Finally……
