Capacity value of intermittent generators
Preliminary findings
Market Regulations May 2018
1

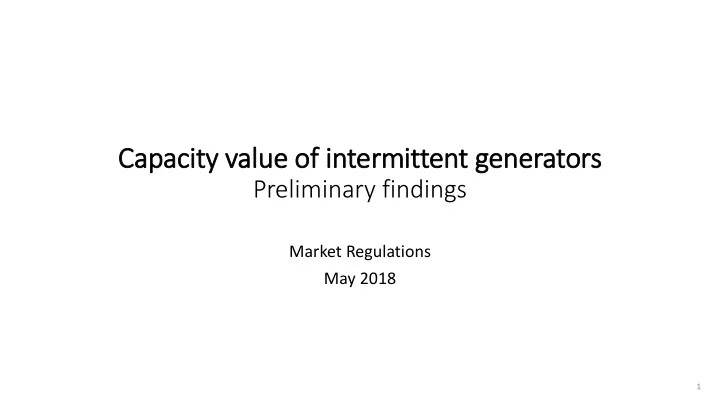

Capacity value of intermittent generators Preliminary findings - - PowerPoint PPT Presentation
Capacity value of intermittent generators Preliminary findings Market Regulations May 2018 1 Outline 1. Introduction 2. Capacity value assessment methods 3. Current method 4. Current issues in the SWIS Page 2 1.Introduction Page 3
Market Regulations May 2018
1
Page 2
Page 3
Page 4
Page 5
0% 10% 20% 30% 40% 50% 60% 100 200 300 400 500 600 2005-06 2006-07 2007-08 2008-09 2009-10 2010-11 2011-12 2012-13 2013-14 2014-15 2015-16 2016-17 2017-18 2018-19 2019-20 Capacity credits proportion of installed capacity (%) Capacity (MW) Installed Capacity Certified Capacity Accredited capacity as share of installed capacity
Use of average output Current risk-based method
6
500 1000 1500 2000 2500 3000 3500 100 200 300 400 500 600 700 800 900 1000
Load (MW) Interval
LOLP = 10% Available firm capacity 2,400 MW
7
500 1000 1500 2000 2500 3000 3500 100 200 300 400 500 600 700 800 900 1000
Load (MW) Interval
Load (MW) Net load
LOLP = 10%
Effective Load Carrying Capability (ELCC) = 100 MW Capacity value = 100% of the installed capacity
2,300 MW
8
500 1000 1500 2000 2500 3000 3500 100 200 300 400 500 600 700 800 900 1000
Load (MW) Interval
Load (MW) Net load
πΉππ·π·β100 ππ ELCC is close to mean output of the generator
9
500 1000 1500 2000 2500 3000 3500 100 200 300 400 500 600 700 800 900 1000
Load (MW) Interval
Load (MW) Net load
500 ππ
πΉππ·π· β 470 ππ ELCC is close to 47% of mean
10
MW)
500 1000 1500 2000 2500 3000 3500 100 200 300 400 500 600 700 800 900 1000
Load (MW) Interval
Load (MW) Net load
πΉππ·π· β 0 ππ
11
1000 1250 1500 1750 2000 2250 2500 2750 3000 3250 3500 3750 0% 5% 10% 15% 20% 25% 30% 35% 40% 45% 50% 55% 60% 65% 70% 75% 80% 85% 90% 95% 100%
Demand (MW) % Time demand exceeded
Load Duration Curve Net load duration curve Net Load
12
2750 3000 3250 3500 3750 0.0% 0.5% 1.0% 1.5% 2.0% 2.5%
Demand (MW) % Time demand exceeded
Load Duration Curve Net load duration curve Net Load
13
Source: Milligan et al. 2017, Capacity value assessments of wind power
Page 14
Page 15
analysis
16
Base System Base System
+ additional resource 1000 MW
LOLE=1.5 day in ten years LOLE=0.8 day in ten years Base System Base System Decreased load
Increased load +100 MW LOLE=1 day in ten years
+ additional resource 1000 MW
ELCC = 400 MW
17
peak load above the one in ten year peak forecast
demand/high-risk periods
18
Page 19
(set to 0.000)
20
21
Jurisdiction Reliability criteria Method PJM 1 in 10 year LOLE Approximate Time-based Mean output during peak periods SWISS Hybrid:
Approximate Risk-based Adjusted mean output during peak net load (LSG) NYISO 1 in 10 year LOLE Approximate Time-based Mean output during peak intervals ISO-NE 1 in 10 year LOLE Approximate Time-based, also allows for intervals with system- wide shortages California ISO 1 in 10 year LOLE Approximate Time-based Mean capacity during peak intervals (70% exceedance factor) MISO 1 in 10 year LOLE Fundamental analysis Calculation of system-wide ELCC Allocation of ELCC to individual wind farms based
22
For 2018-19, MISO uses the average
ELCC=15.2% 5% 45% Wind penetration (% of peak load) ELCC (%) 2006 2008 2017 20XX 2018 penetration of wind (~14%)
23
estimate of ELCC (than approx. methods)?
24
Page 25
system adequacy and security
Page 26
relevant (noting the increased penetration of IGs)
by the ERA
27
during not highest peak periods increases
periods:
theory)
28
historical performance
29
since last review
for retirement,
emerging technologies
30
calculate K&U values in the interim.
constrained network access, plus ancillary service review findings
31
