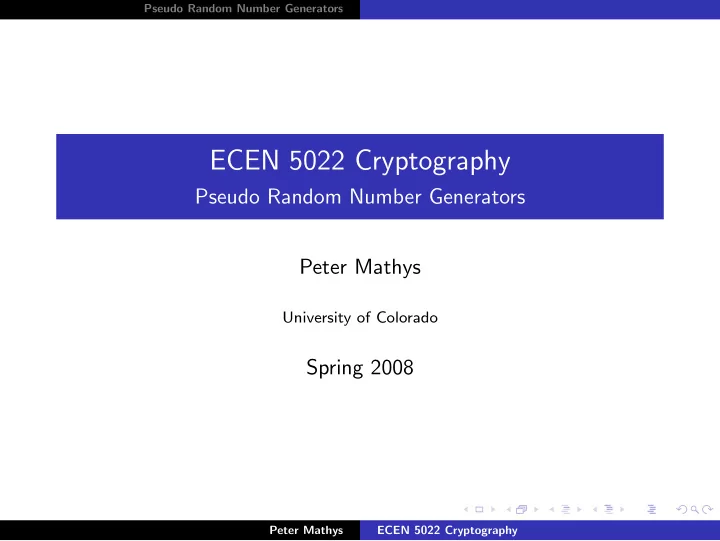

Pseudo Random Number Generators

ECEN 5022 Cryptography

Pseudo Random Number Generators Peter Mathys

University of Colorado

Spring 2008

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Random Number Generation

◮ Random numbers are needed for many different purposes in

engineering and computer science, e.g., to run simulations, to generate random passwords, etc.

◮ True sequences of random symbols can be obtained by

flipping coins, measuring a radioactive source, using a noise diode, etc.

◮ Often there are some very specific requirements for a random

• sequence. For instance, for debugging purposes it is essential

that a “random” sequence can be repeated.

◮ Pseudo-random number generators (PRNG) are widely

used for computer simulations as well as cryptographic purposes, because they can be easily implemented using

• computers. But the requirements for cryptography are

different than for general purpose computing.

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Middle Square Method

◮ Around 1946 John von Neumann came up with the “middle

square method” for generating random numbers. Suppose you have an 8-digit number, e.g., si = 60684258. Keep the middle 4 digits as xi = 6842. Compute the next number as si+1 = x2

i = 46812964 and thus xi+1 = 8129. ◮ What are the properties of the sequence xi, xi+1, . . .? Will it

continue forever? Will it die out? What statistical properties does it have?

◮ Here is an example sequence, obtained by using 4-digit

numbers and keeping the middle two numbers after each squaring 42, 76, 77, 92, 46, 11, 12, 14, 19, 36, 29, 84, 5, 2, 0, 0, . . .

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Middle Square Method

◮ Here is another example using 4-digit numbers and keeping

the middle two xi = 57 → 572 = 3249 → xi+1 = 24 → 242 = 0576 → xi+2 = 57 → 572 = 3249 → . . .

◮ Moral of the story: Some theory is needed to make good

PRNGs with predictable properties.

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Linear Congruential Method

◮ The linear congruential method generates the sequence

x0, x1, x2, . . . using the recursion xi+1 = a xi + c (mod m) , where m is the modulus (often a power of 2 or 10), a is the multiplier, c is the increment, and x0 is the seed.

◮ Theorem. The sequence x0, x1, x2, . . . has period of length m

(which is the maximum) iff (i) gcd(c, m) = 1 , (ii) b = a − 1 is multiple of p for every p dividing m , (iii) b is multiple of 4 if m is multiple of 4 .

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Example

◮ Example: m = 100, a = 41, c = 7, x0 = 5, produces the

sequence 5 12 99 66 13 40 47 34 1 48 75 82 69 36 83 10 17 4 71 18 45 52 39 6 53 80 87 74 41 88 15 22 9 76 23 50 57 44 11 58 85 92 79 46 93 20 27 14 81 28 55 62 49 16 63 90 97 84 51 98 25 32 19 86 33 60 67 54 21 68 95 2 89 56 3 30 37 24 91 38 65 72 59 26 73 7 94 61 8 35 42 29 96 43 70 77 64 31 78 5 which has period 100.

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Linear Feedback Shift Register

−cL

• cL-1

−c2 −c1 + + + s0 s1 sL−2 sL−1 · · · · · · L s0, s1, s2, . . . sL

◮ Linear feedback shift register (LFSR) of length L. Uses initial

state (s0, s1, . . . sL−1) and connection polynomial C(D) = cL DL + . . . + c2 D2 + c1 D + 1 to produce output sequence s0, s1, s2, . . ..

◮ Arithmetic is computed modulo p for some prime number p.

Very often p = 2 and then the output is binary.

◮ The maximum period of the output sequence is pL − 1. It is

achieved when C(D) is a primitive polynomial modulo p.

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Linear Feedback Shift Register

◮ Recursion: sL = − L−1 i=0 si cL−i. ◮ Initial condition: s0, s1, . . . sL−1. ◮ Define: S(D) = ∞ i=0 si Di (D: delay operator). Then

S(D) = s0 + s1 D + . . . + sL−1 DL−1

• =P(D)

+ ∞

j=0 sL+j DL+j

= P(D) − ∞

j=0

L−1

i=0 si+j cL−i Dj+L

= P(D) − ∞

k=0

k−L+1

j=k

sk cL−k+j Dj+L−k Dk = P(D) − ∞

k=0 sk

k−L+1

j=k

cL−k+j DL−k+j

• =C(D)−1

Dk = P(D) − S(D)

• C(D) − 1
• =

⇒ S(D) = P(D) C(D)

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Examples

◮ Some primitive connection polynomials for p = 2 are

D3 + D2 + 1, D4 + D3 + 1, D5 + D3 + 1, D6 + D5 + 1 .

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Berlekamp-Massey Algorithm

n = M ? Output <C(D), L> STOP n ← n + 1 No length change x ← x + 1 Length change L ← n + 1 − L C∗(D) ← T(D) δ∗ ← δ x ← 1 No length change x ← x + 1 2L ≤ n ? T(D) ← C(D) C(D) ← C(D) − δ δ∗−1 Dx C∗(D) δ = 0 ? δ ← sn + c1 sn−1 + . . . + cL sn−L Get sn Get M Initialize C(D) ← 1 C∗(D) ← 1 L ← 0 δ∗ ← 1 n ← 0 x ← 1 START Berlekamp-Massey Algorithm Input is sequence {si}M−1

i=0

• f length M

δ is next discrepancy (desired symbol minus generated symbol) T(D) : Temp storage C∗(D), δ∗ : Conn poly and discrepancy before last length change x : Number of symbols since last length change no yes no yes no yes

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Berlekamp-Massey Algorithm

◮ The Berlekamp-Massey algorithm computes ¡c(D), L¿ and

(s0, s1, . . . sL−1) from 2L contiguous LFSR output symbols.

◮ Do not use a LFSR output directly in a cryptosystem (unless

you want it to be broken easily).

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Using a Block Cipher

IV Si−1 EK(.) K

• Si

Output

◮ Any secure block cipher encryption function EK(.) can be

used in output feedback mode (OFB) to generate a (reasonably) secure pseudo-random sequence.

◮ IV is the initialization vector (can be transmitted publicly). ◮ If block cipher encrypts blocks of size B, use full block size B

in feedback path. Output B or less symbols per iteration.

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Toy Example

◮ A block cipher with B output bits obtained from B input bits

can be regarded as a permutation of the numbers 0, 1, 2, . . . , 2B − 1.

◮ An example of a permutation for B = 4 is

π = „0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 7 14 1 15 9 6 3 2 10 13 5 11 8 4 12 «

◮ Setting IV = 0 yields the sequence

0,7,2,1,14,12,8,10,5,6,3,15,0, . . . Period: 12

◮ But setting IV = 4 only yields the sequence

4,9,13,4, . . . Period: 3

◮ And setting IV = 11 only yields

11,11,11, . . . Period: 1

Peter Mathys ECEN 5022 Cryptography

Pseudo Random Number Generators

Blum, Blum, Shub PRNG

◮ Let n = p q where p, q are large primes satisfying p ≡ 3

(mod 4) and q ≡ 3 (mod 4). Use a seed x0 to generate the sequence x0, x1 = x2

0, x2 = x2 1, . . .

(mod n) Output the least significant bit of each xi to obtain a secure binary random sequence (based on difficulty of computing square roots modulo n = p q if p, q are not known).

◮ Example: p = 11, q = 19, x0 = 4 yields the sequence

xi = {4, 16, 47, 119, 158, 93, 80, 130, 180, 5, 25, 207, 4, . . .}

◮ The pseudo-random bit sequence is

0, 0, 1, 1, 0, 1, 0, 0, 0, 1, 1, 1, 0, . . ..

Peter Mathys ECEN 5022 Cryptography
