Convolutional Codes

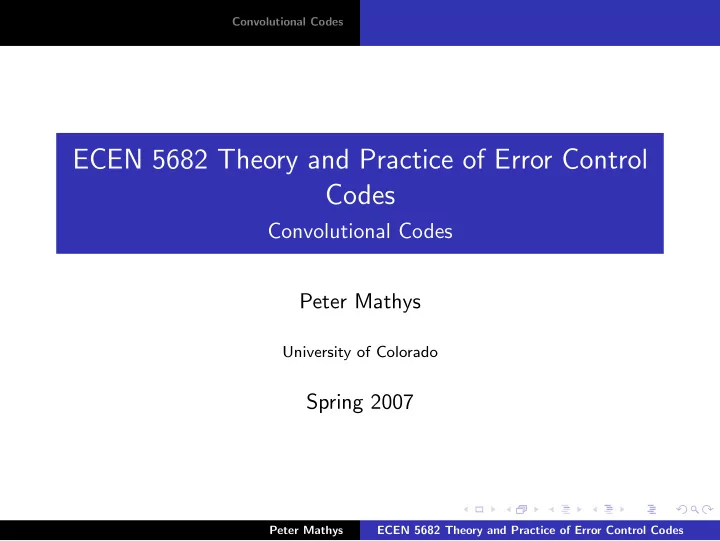

ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Peter Mathys

University of Colorado

Spring 2007

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Basic Definitions, Convolutional Encoders

Linear (n, k) block codes take k data symbols at a time and encode them into n code symbols. Long data sequences are broken up into blocks of k symbols and each block is encoded independently of all

• thers. Convolutional encoders, on the other hand, convert an

entire data sequence, regardless of its length, into a single code sequence by using convolution and multiplexing operations. In general, it is convenient to assume that both the data sequences (u0, u1, . . .) and the code sequences (c0, c1, . . .) are semi-infinite sequences and to express them in the form of a power series.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The power series associated with the data sequence u = (u0, u1, u2, . . .) is defined as u(D) = u0 + u1 D + u2 D2 + . . . =

∞

• i=0

ui Di , where u(D) is called the data power series. Similarly, the code power series c(D) associated with the code sequence c = (c0, c1, c2, . . .) is defined as c(D) = c0 + c1 D + c2 D2 + . . . =

∞

• i=0

ci Di . The indeterminate D has the meaning of delay, similar to z−1 in the z transform, and D is sometimes called the delay operator.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

A general rate R = k/n convolutional encoder converts k data sequences into n code sequences using a k × n transfer function matrix G(D) as shown in the following figure.

D e m u x Convolutional Encoder G(D) . . . . . . M u x Fig.1 Block Diagram of a k-Input, n-Output Convolutional Encoder u(D) u(1)(D) u(k)(D) c(1)(D) c(n)(D) c(D)

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

The data power series u(D) is split up into k subsequences, denoted u(1)(D), u(2)(D), . . . , u(k)(D) in power series notation, using a demultiplexer whose details are shown in the figure below.

u(D) − → (u0, u1, . . . , uk−1, uk, uk+1, . . . , u2k−1, u2k, u2k+1, . . . , u3k−1, . . .) u(1) u(1)

1

u(1)

2

u(2) u(2)

1

u(2)

2

u(k) u(k)

1

u(k)

2

. . . . . . . . . . . . − → u(1)(D) . . . . . . . . . . . . − → u(2)(D) . . . . . . . . . . . . − → u(k)(D) Fig.2 Demultiplexing from u(D) into u(1)(D), . . ., u(k)(D)

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

The code subsequences, denoted by c(1)(D), c(2)(D), . . . , c(n)(D) in power series notation, at the output of the convolutional encoder are multiplexed into a single power series c(D) for transmission over a channel, as shown below.

→ c(D) (c0, c1, . . . , cn−1, cn, cn+1, . . . , c2n−1, c2n, c2n+1, . . . , c3n−1, . . .) c(1) c(1)

1

c(1)

2

c(2) c(2)

1

c(2)

2

c(n) c(n)

1

c(n)

2

. . . . . . . . . . . . c(1)(D) → . . . . . . . . . . . . c(2)(D) → . . . . . . . . . . . . c(n)(D) → Fig.3 Multiplexing of c(1)(D), . . ., c(n)(D) into Single Output c(D)

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: A q-ary generator polynomial of degree m is a polynomial in D of the form g(D) = g0 + g1 D + g2 D2 + . . . + gm Dm =

m

• i=0

gi Di , with m + 1 q-ary coefficients gi. The degree m is also called the memory order of g(x).

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Consider computing the product (using modulo q arithmetic)

c(D) = u(D) g(D) .

Written out, this looks as follows

c0 + c1 D + c2 D2 + . . . = = (g0 + g1 D + g2 D2 + . . . + gm Dm) (u0 + u1 D + u2 D2 + . . .) = = g0u0 + g0u1 D + g0u2 D2 + . . . + g0um Dm + g0um+1 Dm+1 + g0um+2 Dm+2 + . . . + g1u0 D + g1u1 D2 + . . . + g1um−1 Dm + g1um Dm+1 + g1um+1 Dm+2 + . . . + g2u0 D2 + . . . + g2um−2 Dm + g2um−1 Dm+1 + g2um Dm+2 + . . . . . . . . . . . . + gmu0 Dm + gmu1 Dm+1 + gmu2 Dm+2 + . . .

Thus, the coefficients of c(D) are

cj =

m

X

i=0

gi uj−i , j = 0, 1, 2, . . . , where uℓ = 0 for ℓ < 0 ,

i.e., the code sequence (c0, c1, c2, . . .) is the convolution of the data sequence (u0, u1, u2, . . .) with the generator sequence (g0, g1, . . . , gm).

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

A convenient way to implement the convolution cj =

m

• i=0

gi uj−i , j = 0, 1, 2, . . . , where uℓ = 0 for ℓ < 0 , is to use a shift register with m memory cells (cleared to zero at time t = 0), as shown in following figure.

• · · ·

g0 g1 g2 gm + + + · · · m memory cells Fig.4 Block Diagram for Convolution of u(D) with g(D) . . . , u2, u1, u0 . . . , c2, c1, c0

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

A general k-input, n-output convolutional encoder consists of k such shift registers, each of which is connected to the outputs via n generator polynomials. Definition: A q-ary linear and time-invariant convolutional encoder with k inputs and n outputs is specified by a k × n matrix G(D), called transfer function matrix, which consists of generator polynomials g(ℓ)

h (D), h = 1, 2, . . . , k, ℓ = 1, 2, . . . , n, as follows

G(D) =       g(1)

1 (D)

g(2)

1 (D)

. . . g(n)

1 (D)

g(1)

2 (D)

g(2)

2 (D)

. . . g(n)

2 (D)

. . . . . . . . . g(1)

k (D)

g(2)

k (D)

. . . g(n)

k (D)

      . The generator polynomials have q-ary coefficients, degree mhℓ, and are of the form g(ℓ)

h (D) = g(ℓ) 0h + g(ℓ) 1h D + g(ℓ) 2h D2 + . . . + g(ℓ) mhℓh Dmhℓ .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Define the power series vectors u(D) = [u(1)(D), u(2)(D), . . . , u(k)(D)] , c(D) = [c(1)(D), c(2)(D), . . . , c(n)(D)] . The operation of a k-input n-output convolutional encoder can then be concisely expressed as c(D) = u(D) G(D). Each individual

• utput sequence is obtained as

c(ℓ)(D) =

k

• h=1

u(h)(D) g(ℓ)

h (D) .

Note: By setting u(h)(D) = 1 in the above equation, it is easily seen that the generator sequence (g(ℓ)

0h , g(ℓ) 1h , g(ℓ) 2h , . . . , g(ℓ) mhℓh) ,

is the unit impulse response from input h to output ℓ of the convolutional encoder.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The total memory M of a convolutional encoder is the total number of memory elements in the encoder, i.e., M =

k

• h=1

max

1≤ℓ≤n mhℓ .

Note that max1≤ℓ≤n mhℓ is the number of memory cells or the memory order of the shift register for the input with index h. Definition: The maximal memory order m of a convolutional encoder is the length of the longest input shift register, i.e., m = max

1≤h≤k max 1≤ℓ≤n mhℓ .

Equivalently, m is equal to the highest degree of any of the generator polynomials in G(D).

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The constraint length K of a convolutional encoder is the maximum number of symbols in a single output stream that can be affected by any input symbol, i.e., K = 1 + m = 1 + max

1≤h≤k max 1≤ℓ≤n mhℓ .

Note: This definition for constraint length is not in universal use. Some authors define constraint length to be the maximum number

• f symbols in all output streams that can be affected by any input

symbol, which is nK in the notation used here.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Encoder #1. Binary rate R = 1/2 encoder with constraint length K = 3 and transfer function matrix G(D) =

• g(1)(D)

g(2)(D)

• =
• 1 + D2

1 + D + D2 . A block diagram for this encoder is shown in the figure below.

• +

+ + Fig.5 Binary Rate 1/2 Convolutional Encoder with K = 3 . . . , u2, u1, u0 . . . , c(2)

2 , c(2) 1 , c(2)

. . . , c(1)

2 , c(1) 1 , c(1) Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

At time t = 0 the contents of the two memory cells are assumed to be zero. Using this encoder, the data sequence u = (u0, u1, u2, . . .) = (1, 1, 0, 1, 0, 0, 1, 1, 1, 0, 1, 0 . . .) , for example, is encoded as follows

u = 110100111010... uD2 = 110100111010...

• c(1) = 111001110100.....

u = 110100111010... uD = 110100111010... uD2 = 110100111010...

• c(2) = 100011101001.....

After multiplexing this becomes

c = (c0 c1, c2 c3, c4 c5, . . .) = (c(1) c(2)

0 , c(1) 1

c(2)

1 , c(1) 2

c(2)

2 , . . .)

= (11, 10, 10, 00, 01, 11, 11, 10, 01, 10, 00, 01, . . .) .

The pairs of code symbols that each data symbol generates are called code frames.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: Consider a rate R = k/n convolutional encoder, let u = (u0 u1 . . . uk−1, uk uk+1 . . . u2k−1, u2k u2k+1 . . . u3k−1, . . .) = (u(1) u(2) . . . u(k)

0 , u(1) 1

u(2)

1

. . . u(k)

1 , u(1) 2

u(2)

2

. . . u(k)

2 , . . .) ,

and let c = (c0 c1 . . . cn−1, cn cn+1 . . . c2n−1, c2n c2n+1 . . . c3n−1, . . .) = (c(1) c(2) . . . c(n)

0 , c(1) 1

c(2)

1

. . . c(n)

1 , c(1) 2

c(2)

2

. . . c(n)

2 , . . .) .

Then the set of data symbols (uik uik+1 . . . u(i+1)k−1) is called the i-th data frame and the corresponding set of code symbols (cin cin+1 . . . c(i+1)n−1) is called the i-th code frame for i = 0, 1, 2, . . . .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Encoder #2. Binary rate R = 2/3 encoder with constraint length K = 2 and transfer function matrix G(D) = " g (1)

1 (D)

g (2)

1 (D)

g (3)

1 (D)

g (1)

2 (D)

g (2)

2 (D)

g (3)

2 (D)

# = " 1 + D D 1 + D D 1 1 # A block diagram for this encoder is shown in the figure below.

• +

+ + + + Fig.6 Binary Rate 2/3 Convolutional Encoder with K = 2 . . . , u(1)

2 , u(1) 1 , u(1)

. . . , u(2)

2 , u(2) 1 , u(2)

. . . , c(1)

2 , c(1) 1 , c(1)

. . . , c(2)

2 , c(2) 1 , c(2)

. . . , c(3)

2 , c(3) 1 , c(3)

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

In this case the data sequence u = (u0 u1, u2 u3, u4 u5, . . .) = (11, 01, 00, 11, 10, 10, . . .) , is first demultiplexed into u(1) = (1, 0, 0, 1, 1, 1, . . .) and u(2) = (1, 1, 0, 1, 0, 0, . . .), and then encoded as follows

u(1) = 100111... u(1)D = 100111... u(2)D = 110100...

• c(1) = 101110....

u(1)D = 100111... u(2) = 110100...

• c(2) = 100111....

u(1) = 100111... u(1)D = 100111... u(2) = 110100...

• c(3) = 000000....

Multiplexing the code sequences c(1), c(2), and c(3) yields the single code sequence

c = (c0 c1 c2, c3 c4 c5, . . .) = (c(1) c(2) c(3)

0 , c(1) 1

c(2)

1

c(3)

1 , . . .)

= (110, 000, 100, 110, 110, 010, . . .) .

Because this is a rate 2/3 encoder, data frames of length 2 are encoded into code frames of length 3.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: Let u = (u0, u1, u2, . . .) be a data sequence (before demultiplexing) and let c = (c0, c1, c2, . . .) be the corresponding code sequence (after multiplexing). Then, in analogy to block codes, the generator matrix G of a convolutional encoder is defined such that c = u G . Note that G for a convolutional encoder has infinitely many rows and columns. Let G(D) = [g(ℓ)

h ] be the transfer function matrix of a

convolutional encoder with generator polynomials g(ℓ)

h (D) = m i=0 g(ℓ) ih Di, h = 1, 2, . . . , k, ℓ = 1, 2, . . . , n, where m

is the maximal memory order of the encoder. Define the matrices

Gi = 2 6 6 6 6 4 g (1)

i1

g (2)

i1

. . . g (n)

i1

g (1)

i2

g (2)

i2

. . . g (n)

i2

. . . . . . . . . g (1)

ik

g (2)

ik

. . . g (n)

ik

3 7 7 7 7 5 , i = 0, 1, 2, . . . , m .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

In terms of these matrices, the generator matrix G can be conveniently expressed as (all entries below the diagonal are zero) G =               G0 G1 G2 . . . Gm . . . G0 G1 . . . Gm−1 Gm . . . G0 . . . Gm−2 Gm−1 Gm . . . ... . . . . . . . . . G0 G1 G2 . . . G0 G1 . . . G0 . . . ...               . Note that the first row of this matrix is the unit impulse response (after multiplexing the outputs) from input stream 1, the second row is the unit impulse response (after multiplexing the outputs) from input stream 2, etc.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Encoder #1 has m = 2, G0 =

• 1

1

• ,

G1 =

• 1
• ,

G2 =

• 1

1

• ,

and thus generator matrix G =        11 01 11 00 00 00 . . . 00 11 01 11 00 00 . . . 00 00 11 01 11 00 . . . 00 00 00 11 01 11 . . . . . . . . . . . . . . . . . . . . .        . Using this, it is easy to compute, for example, the list of (non-zero) datawords and corresponding codewords shown on the next page.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

u = (u0, u1, . . .) c = (c0 c1, c2 c3, . . .) 1,0,0,0,0,... 11,01,11,00,00,00,00,... 1,1,0,0,0,... 11,10,10,11,00,00,00,... 1,0,1,0,0,... 11,01,00,01,11,00,00,... 1,1,1,0,0,... 11,10,01,10,11,00,00,... 1,0,0,1,0,... 11,01,11,11,01,11,00,... 1,1,0,1,0,... 11,10,10,00,01,11,00,... 1,0,1,1,0,... 11,01,00,10,10,11,00,... 1,1,1,1,0,... 11,10,01,01,10,11,00,... One thing that can be deduced from this list is that most likely the minimum weight of any non-zero codeword is 5, and thus, because convolutional codes are linear, the minimum distance, called minimum free distance for convolutional codes for historical reasons, is dfree = 5.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Encoder #2 has m = 1, G0 = 1 1 1 1

• ,

G1 = 1 1 1 1

• ,

and therefore generator matrix G =                101 111 000 000 000 . . . 011 100 000 000 000 . . . 000 101 111 000 000 . . . 000 011 100 000 000 . . . 000 000 101 111 000 . . . 000 000 011 100 000 . . . 000 000 000 101 111 . . . 000 000 000 011 100 . . . . . . . . . . . . . . . . . .                .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

The first few non-zero codewords that this encoder produces are u = (u0 u1, . . .) c = (c0 c1 c2, . . .) 10,00,00,... 101,111,000,000,... 01,00,00,... 011,100,000,000,... 11,00,00,... 110,011,000,000,... 10,10,00,... 101,010,111,000,... 01,10,00,... 011,001,111,000,... 11,10,00,... 110,110,111,000,... 10,01,00,... 101,100,100,000,... 01,01,00,... 011,111,100,000,... 11,01,00,... 110,000,100,000,... 10,11,00,... 101,001,011,000,... 01,11,00,... 011,010,011,000,... 11,11,00,... 110,101,011,000,...

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The code generated by a q-ary convolutional encoder with transfer function matrix G(D) is the set of all vectors of semi-infinite sequences of encoded symbols c(D) = u(D) G(D), where u(D) is any vector of q-ary data sequences. Definition: Two convolutional encoders with transfer function matrices G1(D) and G2(D) are said to be equivalent if they generate the same codes. Definition: A systematic convolutional encoder is a convolutional encoder whose codewords have the property that each data frame appears unaltered in the first k positions of the first code frame that it affects. Note: When dealing with convolutional codes and encoders it is important to carefully distinguish between the properties of the code (e.g., the minimum distance of a code) and the properties of the encoder (e.g., whether an encoder is systematic or not).

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Neither encoder #1 nor encoder #2 are systematic. But the following binary rate 1/3 encoder, which will be called encoder #3, with constraint length K = 4 and transfer function matrix G(D) =

• 1

1 + D + D3 1 + D + D2 + D3 , is a systematic convolutional encoder. Its generator matrix is G =        111 011 001 011 000 000 000 . . . 000 111 011 001 011 000 000 . . . 000 000 111 011 001 011 000 . . . 000 000 000 111 011 001 011 . . . . . . . . . . . . . . . . . . . . . . . .        . Note that the first column of each triplet of columns has only a single 1 in it, so that the first symbol in each code frame is the corresponding data symbol from the data sequence u.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Much more interesting systematic encoders can be obtained if one allows not only FIR (finite impulse response), but also IIR (infinite impulse response) filters in the encoder. In terms of the transfer function matrix G(D), this means that the use of rational polynomial expressions instead of generator polynomials as matrix elements is allowed. The following example illustrates this. Example: Encoder #4. Binary rate R = 1/3 systematic encoder with constraint length K = 4 and rational transfer function matrix G(D) =

• 1

1 + D + D3 1 + D2 + D3 1 + D + D2 + D3 1 + D2 + D3

• .

A block diagram of this encoder is shown in the next figure.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

G(D) = » 1 1 + D + D3 1 + D2 + D3 1 + D + D2 + D3 1 + D2 + D3 – . +

• +

+ +

• +

Fig.7 Binary Rate 1/3 Systematic Convolutional Encoder with K = 4 u(D) c(1)(D) c(2)(D) c(3)(D)

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Encoder State Diagrams

Convolutional encoders have total memory M. Thus, a time-invariant q-ary encoder can be regarded as a finite state machine (FSM) with qM states and it can be completely described by a state transition diagram called encoder state diagram. Such a state diagram can be used to encode a data sequence of arbitrary

• length. In addition, the encoder state diagram can also be used to
• btain important information about the performance of a

convolutional code and its associated encoder.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Encoder state diagram for encoder #1. This is a binary encoder with G(D) = [1 + D21 + D + D2] that uses 2 memory cells and 22 = 4 states. With reference to the block diagram in Figure 5, label the encoder states as follows: S0 = 00 , S1 = 10 , S2 = 01 , S3 = 11 , where the first binary digit corresponds to the content of the first (leftmost) delay cell of the encoder, and the second digit corresponds to the content of the second delay cell. At any given time t (measured in frames), the encoder is in a particular state S(t). The next state, S(t+1), at time t + 1 depends on the value of the data frame at time t, which in the case of a rate R = 1/2 encoder is just simply ut. The code frame c(1)

t

c(2)

t

that the encoder outputs at time t depends only on S(t) and ut (and the transfer function matrix G(D), of course). Thus, the possible transitions between the states are labeled with ut/c(1)

t

c(2)

t . The

resulting encoder state diagram for encoder #1 is shown in the following figure.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

S0 S1 S2 S3 Fig.8 Encoder State Diagram for Binary Rate 1/2 Encoder with K = 3 1/11 1/10 0/10 0/11 0/01 1/00 0/00 1/01

To encode the data sequence u = (0, 1, 0, 1, 1, 1, 0, 0, 1, . . .), for instance, start in S0 at t = 0, return to S0 at t = 1 because u0 = 0, then move on to S1 at t = 2, S2 at t = 3, S1 at t = 4, S3 at t = 5, S3 at t = 6 (self loop around S3), S2 at t = 7, S0 at t = 8, and finally S1 at t = 9. The resulting code sequence (after multiplexing) is c = (00, 11, 01, 00, 10, 01, 10, 11, 11, . . .) .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Encoder state diagram for encoder #2 with G(D) =

• 1 + D

D 1 + D D 1 1

• and block diagram as shown in Figure 6. This encoder also has

M = 2, but each of the two memory cells receives its input at time t from a different data stream. The following convention is used to label the 4 possible states (the upper bit corresponds to the upper memory cell in Figure 6) S0 = 0 0 , S1 = 1 0 , S2 = 0 1 , S3 = 1 1 . Because the encoder has rate R = 2/3, the transitions in the encoder state diagram from time t to time t + 1 are now labeled with u(1)

t

u(2)

t /c(1) t

c(2)

t

c(3)

t

. The result is shown in the next figure.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

S0 S1 S2 S3 Fig.9 Encoder State Diagram for Binary Rate 2/3 Encoder with K = 2

10/101 11/001 01/000 00/100 01/100 10/001 11/110 00/011 01/011 11/010 10/110 00/111 00/000 10/010 11/101 01/111

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: The figure on the next slide shows the encoder state diagram for encoder #4 whose block diagram was given in Figure

• 7. This encoder has rational transfer function matrix

G(D) =

• 1

1 + D + D3 1 + D2 + D3 1 + D + D2 + D3 1 + D2 + D3

• ,

and M = 3. The encoder states are labeled using the following convention (the leftmost bit corresponds to the leftmost memory cell in Figure 7) S0 = 000 , S1 = 100 , S2 = 010 , S3 = 110 , S4 = 001 , S5 = 101 , S6 = 011 , S7 = 111 .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

S0 S1 S2 S5 S3 S7 S6 S4 Fig.10 Encoder State Diagram for R = 1/3, K = 4 Systematic Encoder 1/111 1/100 0/011 1/101 0/001 1/110 0/000 1/111 0/011 1/101 0/010 0/001 0/010 1/100 0/000 1/110

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Trellis Diagrams

Because the convolutional encoders considered here are time-invariant, the encoder state diagram describes their behavior for all times t. But sometimes, e.g., for decoding convolutional codes, it is convenient to show all possible states of an encoder separately for each time t (measured in frames), together with all possible transitions from states at time t to states at time t + 1. The resulting diagram is called a trellis diagram. Example: For encoder #1 with G(D) =

• 1 + D2

1 + D + D2 and M = 2 (and thus 4 states) the trellis diagram is shown in the figure on the next slide.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

• S0

S1 S2 S3 t = 0 t = 1 t = 2 t = 3 t = 4 t = 5 · · · Fig.11 Trellis Diagram for Binary Rate 1/2 Encoder with K = 3 00 00 00 00 00 11 11 11 11 11 01 01 01 01 10 10 10 10 11 11 11 00 00 00 10 10 10 01 01 01 11 10 10 00 01

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Note that the trellis always starts with the all-zero state S0 at time t = 0 as the root node. This corresponds to the convention that convolutional encoders must be initialized to the all-zero state before they are first used. The labels on the branches are the code frames that the encoder outputs when that particular transition from a state at time t to a state at time t + 1 is made in response to a data symbol ut. The highlighted path in Figure 11, for example, coresponds to the data sequence u = (1, 1, 0, 1, 0, . . .) and the resulting code sequence c = (11, 10, 10, 00, 01, . . .) .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Viterbi Decoding Algorithm

In its simplest and most common form, the Viterbi algorithm is a maximum likelihood (ML) decoding algorithm for convolutional

• codes. Recall that a ML decoder outputs the estimate ˆ

c = ci iff i is the index (or one of them selected at random if there are several) which maximizes the expression pY|X(v|ci) , over all codewords c0, c1, c2, . . . . The conditional pmf pY|X defines the channel model with input X and output Y which is used, and v is the received (and possibly corrupted) codeword at the output of the channel. For the important special case of memoryless channels used without feedback, the computation of pY|X can be considerably simplified and brought into a form where metrics along the branches of a trellis can be added up and then a ML decision can be obtained by comparing these sums. In a nutshell, this is what the Viterbi algorithm does.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: A channel with input X and output Y is said to be memoryless if p(yj|xj, xj−1, . . . , x0, yj−1, . . . , y0) = pY |X(yj|xj) . Definition: A channel with input X and output Y is used without feedback if p(xj|xj−1, . . . , x0, yj−1, . . . , y0) = p(xj|xj−1, . . . , x0) . Theorem: For a memoryless channel used without feedback pY|X(y|x) =

N−1

• j=0

pY |X(yj|xj) , where N is the length of the channel input and output vectors X and Y. Proof: Left as an exercise.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The ML decoding rule at the output Y of a discrete memoryless channel (DMC) with input X, used without feedback is: Output code sequence estimate ˆ c = ci iff i maximizes the likelihood function pY|X(v|ci) =

N−1

• j=0

pY |X(vj|cij) ,

• ver all code sequences ci = (ci0, ci1, ci2, . . .) for i = 0, 1, 2, . . . .

The pmf pY |X is given by specifying the transition probabilities of the DMC and vj are the received symbols at the output of the

• channel. For block codes N is the blocklength of the code. For

convolutional codes we set N = n (L + m), where L is the number

• f data frames that are encoded and m is the maximal memory
• rder of the encoder.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The log likelihood function of a received sequence v at the channel output with respect to code sequence ci is the expression log

• pY|X(v|ci)
• =

N−1

• j=0

log

• pY |X(vj|cij)
• ,

where the logarithm can be taken to any basis.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The path metric µ(v|ci) for a received sequence v given a code sequence ci is computed as µ(v|ci) =

N−1

• j=0

µ(vj|cij) , where the symbol metrics µ(vj|cij) are defined as µ(vj|cij) = α

• log[pY |X(vj|cij)] + f (vj)
• .

Here α is any positive number and f (vj) is a completely arbitrary real-valued function defined over the channel output alphabet B. Usually, one selects for every y ∈ B f (y) = − log

• min

x∈A pY |X(y|x)

• ,

where A is the channel input alphabet. In this way the smallest symbol metric will always be 0. The quantity α is then adjusted so that all nonzero metrics are (approximated by) small positive integers.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: A memoryless BSC with transition probability ǫ < 0.5 is characterized by pY |X(v|c) v = 0 v = 1 c = 0 1 − ǫ ǫ c = 1 ǫ 1 − ǫ minc pY |X(v|c) ǫ ǫ Thus, setting f (v) = − log[min

c

pY |X(v|c)], yields f (0) = f (1) = − log ǫ .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

With this, the bit metrics become µ(v|c) v = 0 v = 1 c = 0 α(log(1−ǫ)− log ǫ) c = 1 α(log(1−ǫ)− log ǫ) Now choose α as α = 1 log(1 − ǫ) − log ǫ , so that the following simple bit metrics for the BSC with ǫ < 0.5 are obtained µ(v|c) v = 0 v = 1 c = 0 1 c = 1 1

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: The partial path metric µ(t)(v|ci) at time t, t = 1, 2, . . ., for a path, a received sequence v, and given a code sequence ci, is computed as µ(t)(v|ci) =

t−1

• ℓ=0

µ(v(ℓ)|c(ℓ)

i ) = tn−1

• j=0

µ(vj|cij) , where the branch metrics µ(v(ℓ)|c(ℓ)

i ) of the ℓ-th branch,

ℓ = 0, 1, 2, . . ., for v and a given ci are defined as µ(v(ℓ)|c(ℓ)

i ) = (ℓ+1)n−1

• j=ℓn

µ(vj|cij) .

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

The Viterbi algorithm makes use of the trellis diagram to compute the partial path metrics µ(t)(v|ci) at times t = 1, 2, . . . , N for a received v, given all code sequences ci that are candidates for a ML decision, in the following well defined and organized manner. (1) Every node in the trellis is assigned a number that is equal to the partial path metric of the path that leads to this node. By definition, the trellis starts in state 0 at t = 0 and µ(0)(v|ci) = 0. (2) For every transition from time t to time t + 1, all q(M+k) (there are qM states and qk different input frames at every time t) t-th branch metrics µ(v(t)|c(t)

i ) for v given all t-th

codeframes are computed.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

(3) The partial path metric µ(t+1)(v|ci) is updated by adding the t-th branch metrics to the previous partial path metrics µ(t)(v|ci) and keeping only the maximum value of the partial path metric for each node in the trellis at time t + 1. The partial path that yields the maximum value at each node is called the survivor, and all other partial paths leading into the same node are eliminated from further consideration as a ML decision candidate. Ties are broken by flipping a coin. (4) If t + 1 = N (= n(L + m) where L is the number of data frames that are encoded and m is the maximal memory order

• f the encoder), then there is only one survivor with

maximum path metric µ(v|ci) = µ(N)(v|ci) and thus ˆ c = ci is announced and the decoding algorithm stops. Otherwise, set t ← t + 1 and return to step 2.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Theorem: The path with maximum path metric µ(v|ci) selected by the Viterbi decoder is the maximum likelihood path. Proof: Suppose ci is the ML path, but the decoder outputs ˆ c = cj. This implies that at some time t the partial path metrics satisfy µ(t)(v|cj) ≥ µ(t)(v|ci) and ci is not a survivor. Appending the remaining path that corresponds to ci to the survivor cj at time t thus results in a larger path metric than the one for the ML path cj. But this is a contradiction for the assumption that cj is the ML path. QED Example: Encoder #1 (binary R = 1/2, K = 3 encoder with G(D) = [1 + D2 1 + D + D2]) was used to generate and transmit a codeword over a BSC with transition probability ǫ < 0.5. The following seqence was received: v = (10, 10, 00, 10, 10, 11, 01, 00, . . .) . To find the most likely codeword ˆ c that corresponds to this v, use the Viterbi algorithm with the trellis diagram shown in Figure 12.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

• S0

S1 S2 S3 · · · v : 10 10 00 10 10 11 01 00

1 1 2 2 1 3 4 3 4 4 5. 5. 6 5 7 7 7 7 9 9 8. 8. 10 10 11 10 12 13 11. 11.

X X X X X X X X X X X X X X X X X X X X X X X X Fig.12 Viterbi Decoder: R = 1/2, K = 3 Encoder, Transmission over BSC

00 00 00 00 00 00 00 00 11 11 11 11 11 11 11 11 01 01 01 01 01 01 01 10 10 10 10 10 10 10 11 11 11 11 11 11 00 00 00 00 00 00 10 10 10 10 10 10 01 01 01 01 01 01 11 10 01 10 11 11 01 00

At time zero start in state S0 with a partial path metric µ(0)(v|ci) = 0. Using the bit metrics for the BSC with ǫ < 0.5 given earlier, the branch metrics for each of the first two brances are 1. Thus, the partial path metrics at time t = 1 are µ(1)(10|00) = 1 and µ(1)(10|11) = 1.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Continuing to add the branch metrics µ(v(1)|c(1)

i ), the partial path metrics

µ(2)((10, 10)|(00, 00)) = 2, µ(2)((10, 10)|(00, 11)) = 2, µ(2)((10, 10)|(11, 01)) = 1, and µ(2)((10, 10)|(11, 10)) = 3 are obtained at time t = 2. At time t = 3 things become more interesting. Now two branches enter into each state and only the one that results in the larger partial path metric is kept and the other one is eliminated (indicated with an “X”). Thus, for instance, since 2 + 2 = 4 > 1 + 0 = 1, µ(3)((10, 10, 00)|(00, 00, 00)) = 4 whereas the alternative path entering S0 at t = 3 would only result in µ(3)((10, 10, 00)|(11, 01, 11)) = 1. Similarly, for the two paths entering S1 at t = 3 one finds either µ(3)((10, 10, 00)|(00, 00, 11)) = 2 or µ(3)((10, 10, 00)|(11, 01, 00)) = 3 and therefore the latter path and corresponding partial path metric survive. If there is a tie, e.g., as in the case

• f the two paths entering S0 at time t = 4, then one of the two paths is

selected as survivor at random. In Figure 12 ties are marked with a dot following the value of the partial path metric. Using the partial path metrics at time t = 8, the ML decision at this time is to choose the codeword corresponding to the path with metric 13 (highlighted in Figure 12), i.e., ˆ c = (11, 10, 01, 10, 11, 11, 01, 00, . . .) = ⇒ ˆ u = (1, 1, 1, 0, 0, 1, 0, 1, . . .).

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Definition: A channel whose output alphabet is the same as the input alphabet is said to make hard decisions, whereas a channel that uses a larger alphabet at the output than at the input is said to make soft decisions. Note: In general, a channel which gives more differentiated output information is preferred (and has more capacity) than one which has the same number of output symbols as there are input symbols, as for example the BSC. Definition: A decoder that operates on hard decision channel

• utputs is called a hard decision decoder, and a decoder that
• perates on soft decision channel outputs is called a soft decision

decoder.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Example: Use again encoder #1, but this time with a soft decision channel model with 2 inputs and 5 outputs as shown in the following figure.

• @

∆ ! 1 1 Input X Output Y Fig.13 Discrete Memoryless Channel (DMC) with 2 Inputs and 5 Outputs

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

The symbols “@” and “!” at the channel output represent “bad” 0’s and “bad” 1’s, respectively, whereas “∆” is called an erasure (i.e., it is uncertain whether ∆ is closer to a 0 or a 1, whereas a bad 0, for example, is closer to 0 than to 1). The transition probabilities for this channel are pY |X(v|c) v = 0 v = @ v = ∆ v =! v = 1 c = 0 0.5 0.2 0.14 0.1 0.06 c = 1 0.06 0.1 0.14 0.2 0.5 After taking (base 2) logarithms

log2[pY |X(v|c)] v = 0 v = @ v = ∆ v =! v = 1 c = 0 −1.00 −2.32 −2.84 −3.32 −4.06 c = 1 −4.06 −3.32 −2.84 −2.32 −1.00 − log2[minc pY |X(v|c)] 4.06 3.32 2.84 3.32 4.06

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

Using µ(v|c) = α

• log2[pY |X(v|c)] − log2[min

c pY |X(v|c)]

• with α = 1 and rounding to the nearest integer yields the bit

metrics µ(v|c) v = 0 v = @ v = ∆ v =! v = 1 c = 0 3 1 c = 1 1 3 The received sequence v = (11, !@, @0, ∆0, 1!, 00, ∆0, 10, . . .) , can now be decoded using the Viterbi algorithm as shown in Figure 14 on the next page.

Peter Mathys ECEN 5682 Theory and Practice of Error Control Codes

Convolutional Codes Basic Definitions, Convolutional Encoders Encoder State Diagrams Viterbi Decoding Algorithm

• S0

S1 S2 S3 · · · v : 11 !@ @0 ∆0 1! 00 ∆0 10

6 1 1 6 8 6 10 11 9 11 14 12 13 16 15 16 17 22 22 20 20 25 23 23 25 28 28 31 29

X X X X X X X X X X X X X X X X X X X X X X X X Fig.14 Viterbi Decoder: R = 1/2, K = 3 Encoder, 2-Input, 5-Output DMC

00 00 00 00 00 00 00 00 11 11 11 11 11 11 11 11 01 01 01 01 01 01 01 10 10 10 10 10 10 10 11 11 11 11 11 11 00 00 00 00 00 00 10 10 10 10 10 10 01 01 01 01 01 01 11 01 00 10 10 00 10 10

Clearly, the Viterbi algorithm can be used either for hard or soft decision decoding by using appropriate bit metrics. In this example the ML decision (up to t = 8) is ˆ c = (11, 01, 00, 10, 10, 00, 10, 10, . . .) , corresponding to ˆ u = (1, 0, 1, 1, 0, 1, 1, 0, . . .).
