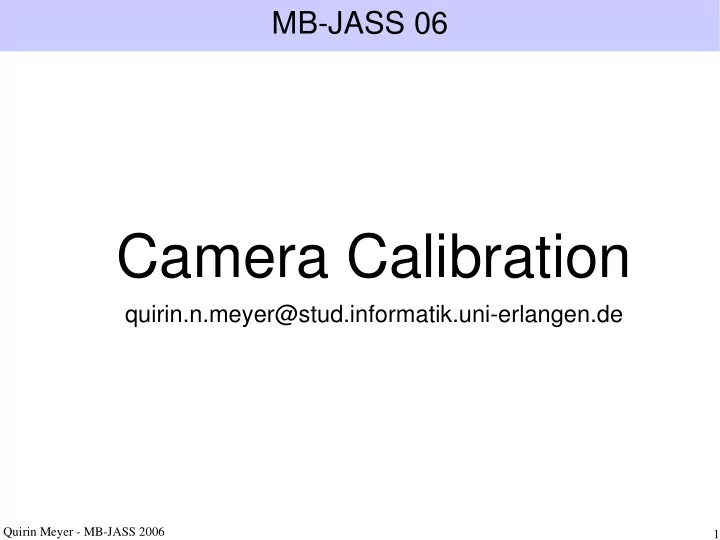

MB-JASS 06 Camera Calibration quirin.n.meyer@stud.informatik.uni-erlangen.de Quirin Meyer - MB-JASS 2006 1 Outline Motivation Camera Projective Mapping Homogeneous coordinates Calibration Application to C-Arm CT Quirin

slide-1
SLIDE 1

Quirin Meyer - MB-JASS 2006 1

MB-JASS 06

Camera Calibration

quirin.n.meyer@stud.informatik.uni-erlangen.de

slide-2
SLIDE 2

Quirin Meyer - MB-JASS 2006 2

Outline

  • Motivation
  • Camera
  • Projective Mapping
  • Homogeneous coordinates
  • Calibration
  • Application to C-Arm CT
slide-3
SLIDE 3

Quirin Meyer - MB-JASS 2006 3

Motivation

  • C-Arm CT
  • Detector and X-ray source rotate around patient
  • Up to 220 Degrees
  • Application: Intervention (e.g. During operations)
slide-4
SLIDE 4

Quirin Meyer - MB-JASS 2006 4

Motivation

  • Difficulties when applying C-ARM CT
  • Detector and source trajectory not an ideal circle arc (ideal

Feldkamp geometry vs. Irregular Feldkamp geometry)

  • Perturbed by mechanical quantities
  • Inertia
  • Gravity
  • Deviations are not negligible and must be corrected
  • Applying regular Feldkamp algorithm for reconstruction

exhibits artifacts

slide-5
SLIDE 5

Quirin Meyer - MB-JASS 2006 5

Camera

  • Pinhole camera model
  • Reflected light from the object shines through the pinhole
  • Gets projected onto the image screen
  • Note that directions get flipped

pinhole screen image

  • bject
slide-6
SLIDE 6

Quirin Meyer - MB-JASS 2006 6

Camera

  • Geometric pinhole model

C p X=(X,Y,Z)T x X Y Z x y

  • How to calculate the coordinates of x = (x,y)T
slide-7
SLIDE 7

Quirin Meyer - MB-JASS 2006 7

Camera

  • Projective Mapping
  • Consider 2D representation

Z Y y f C p X=(X,Y,Z)T

  • Analogously:
slide-8
SLIDE 8

Quirin Meyer - MB-JASS 2006 8

Camera

  • Question: What to do with the nonlinearity?
  • Answer: Use homogeneous coordinates
  • 3D projective space
  • Mapping
  • Equivalence of two homogeneous points:
slide-9
SLIDE 9

Quirin Meyer - MB-JASS 2006 9

Camera

  • Remember:
  • x in homogeneous coordinates:
  • Find suitable linear mapping
slide-10
SLIDE 10

Quirin Meyer - MB-JASS 2006 10

Camera

  • Refinement:
  • Move the origin of the image coordinate system away from the

principle point p

C p X=(X,Y,Z)T x X Y Z x y x y

slide-11
SLIDE 11

Quirin Meyer - MB-JASS 2006 11

Camera

  • Refinement:
  • Number of pixels in unit distance: mx, my
  • Pixel axises are not perpendicular: skew factor s required:
slide-12
SLIDE 12

Quirin Meyer - MB-JASS 2006 12

Camera

  • Calibration matrix K
  • Encodes intrinsic parameters (5 DOF)
  • Optical
  • Geometric
  • Invariant of camera movement and position
slide-13
SLIDE 13

Quirin Meyer - MB-JASS 2006 13

Camera

  • Ps: Projection-model matrix:
  • Decompostion of Matrix P' into Ps and K:
  • Until now: Camera is at fixed location
  • Goal: Camera can be arbitrary placed in the World

Coordinate System

slide-14
SLIDE 14

Quirin Meyer - MB-JASS 2006 14

  • Note that R must be orthogonal
  • Examples of R
  • Rotation Matrix around principal axis
  • Ridged body movement of Camera
  • Rotation/Orientation: Matrix
  • Translation: Vector
  • Moving of a vertex by a rigid body mapping:

Camera

slide-15
SLIDE 15

Quirin Meyer - MB-JASS 2006 15

Camera

  • Creating appropriate camera matrix
  • Assume camera is located at c' in world coordinates with an
  • rientation defined by R
  • x 3D point in world coordinates
  • xcam same point in camera coordinate system:
  • Therefore set:
slide-16
SLIDE 16

Quirin Meyer - MB-JASS 2006 16

Camera

  • Make use of homogeneous coordinates to get rid of the

addition:

  • Now a single vertex can be transformed by one matrix

multiplication

  • Note that vertex must be extended to homogeneous coordinates
slide-17
SLIDE 17

Quirin Meyer - MB-JASS 2006 17

Camera

  • Parameter in the matrix D: extrinsic parameters
  • Degrees of freedom
  • Rotation
  • Axis, i.e. Direction, 2 DOF
  • Angle 1 DOF
  • Translation
  • Vector: 3 DOF
  • --> totally 6 Degrees of freedom for rigid body motion
slide-18
SLIDE 18

Quirin Meyer - MB-JASS 2006 18

Camera

  • Transforming a point from world coordinate system into

image coordinate system:

  • Getting image coordinates: perform perspective divide

(i.e. convert homogeneous coordinates into euclidean coordinates)

slide-19
SLIDE 19

Quirin Meyer - MB-JASS 2006 19

Camera

  • Properties of projection matrices
  • Matrix is unique up to constant value
  • Lines map to pines, plans to planes
  • Line segments do not map to line segments
  • Does not preserve parallelism
  • Preserves cross ratio
  • 4 planes:

p1 p2 p3 p4

slide-20
SLIDE 20

Quirin Meyer - MB-JASS 2006 20

Camera

  • Summary
  • Pinhole camera: Projection Matrix
  • Intrinsic parameters (Geometry and optical properties)
  • Extrinsic Parameters (Location and Orientation)
  • Use of homogeneous coordinates
  • Projection matrix plus perspective Divide transforms world

coordinates into image coordinates

slide-21
SLIDE 21

Quirin Meyer - MB-JASS 2006 21

Calibration

  • Given: intrinsic and extrinsic parameters: Create projection

matrix

  • Given: Projection matrix – How to retrieve parameters
  • RQ-Decomposition
  • Q orthogonal matrix, which is R (orientation)
  • R upper right diagonal matrix, which is K
  • Algorithmically: Givens rotation
  • Location c of camera
  • Solve:
slide-22
SLIDE 22

Quirin Meyer - MB-JASS 2006 22

Calibration

  • Other quantities retrieved through P
  • Vanishing points
  • Column vectors of
  • Principle Point
  • Principle Ray
  • Principle Plane
slide-23
SLIDE 23

Quirin Meyer - MB-JASS 2006 23

Calibration

  • “Process of estimating the intrinsic and extrinsic parameters
  • f a camera” [0]
  • Here: Estimating projection matrix P
  • Linear approach
  • Remember:
  • Perspective divide:
slide-24
SLIDE 24

Quirin Meyer - MB-JASS 2006 24

Calibration

  • Multiply out
  • Perspective divide:
  • Multiply denominator:
slide-25
SLIDE 25

Quirin Meyer - MB-JASS 2006 25

Calibration

  • One correspondence
slide-26
SLIDE 26

Quirin Meyer - MB-JASS 2006 26

Calibration

  • Take N corresponding points in image spage and world

space:

  • For every correspondence point make a matrix Ai:
  • Matrix A assembled out has
  • 12 columns
  • 2N rows
  • Remember: Camera has 11 DOF, while (p1,p2,p3)T has 12
  • Set:
slide-27
SLIDE 27

Quirin Meyer - MB-JASS 2006 27

Calibration

  • rank(A)=11
  • If rank(A)=12: Ap=0 --> single solution p=0
  • If at least 6 points are given rank(A) = 11
  • Restrictions:
  • Points may not be coplanar (if all points are coplanar rank(A) = 8)
  • Points may not lie on a twisted cubic (--> rank(A) < 11)
  • Due to noise: more than 6 points must be provided
  • System is usually overdetermined
  • Minimize:
  • + normalization constrain
slide-28
SLIDE 28

Quirin Meyer - MB-JASS 2006 28

Calibration Algorithm

Given N corresponding points: Find: Matrix P such that: For each correspondence create Ai Assemble matrix A out of Ai Use singular value decomposition: A=UDVT Pick the singular vector p corresponding to the smallest singular value

  • Direct Linear Transformation Algorithm (DLT)
slide-29
SLIDE 29

Quirin Meyer - MB-JASS 2006 29

Summary

  • Now we know
  • What a camera is and how it is described in terms of projective

mappings

  • Out of a camera matrix we can calculate the extrinsic and intrinsic

parameters

  • Given a set of world coordinates and a corresponding set of image

coordinates we can calculate the matrix P

slide-30
SLIDE 30

Quirin Meyer - MB-JASS 2006 30

C-Arm CT

  • C-Arm CT
  • Detector and X-ray source

rotate around patient

  • Up to 220 Degrees
  • Step: 0.4 degrees
  • i.e. 550 projections
  • Table can moved (not

considered here)

  • Application: Intervention (e.g. During operations)
slide-31
SLIDE 31

Quirin Meyer - MB-JASS 2006 31

C-Arm CT

  • Difficulties when applying C-ARM CT
  • Detector and source trajectory not an ideal circle arc (ideal

Feldkamp geometry vs. Irregular Feldkamp geometry)

  • Perturbed by mechanical quantities
  • Inertia
  • Gravity
  • Deviations are not negligible and must be corrected
  • Applying regular Feldkamp algorithm results in artifacts
slide-32
SLIDE 32

Quirin Meyer - MB-JASS 2006 32

C-Arm CT

  • Quantification of errors [7]:
  • Distance of camera position position to origin of volume

coordinate system

  • Ideal: r = 745mm
slide-33
SLIDE 33

Quirin Meyer - MB-JASS 2006 33

C-Arm CT

  • The good news: Errors are reproducible/deterministic
  • Allows offline calibration:
  • Determine deviations from ideal
  • Use phantom
  • Typically done once a year for real C-Arm devices
  • Estimate projection matrices Pi for all locations of the C-Arm
  • Estimation of P see above
slide-34
SLIDE 34

Quirin Meyer - MB-JASS 2006 34

C-Arm CT

  • Estimation of P in practice:
  • Place marker phantom in C-Arm CT
  • Use 100 – 150 corresponding points
slide-35
SLIDE 35

Quirin Meyer - MB-JASS 2006 35

C-Arm CT

  • Marker phantom
slide-36
SLIDE 36

Quirin Meyer - MB-JASS 2006 36

C-Arm CT

  • For reconstruction: Backprojection in homogeneous

coordinates

For every projection i For every voxel (vx,vy,vz) (x,v,w)= P[i] * (vx,vy,vz,1) u = x/w; v = y/w; Backproject(u, v);

  • Note that no decomposition of P is required
slide-37
SLIDE 37

Quirin Meyer - MB-JASS 2006 37

C-Arm CT

  • Optimization: Incremental implementation
  • Voxel position:
  • Transformation:
  • Precalculation of:
  • Algorithm almost incremental (besides perspective divide)
slide-38
SLIDE 38

Quirin Meyer - MB-JASS 2006 38

Summary

  • Calibration of C-Arm CT Scanners
  • For every location on the arc, calculate projection matrix
  • Use those projection matrices while reconstructing
  • Can be implemented efficiently
slide-39
SLIDE 39

Quirin Meyer - MB-JASS 2006 39

Discussion

What questions do you have?

slide-40
SLIDE 40
