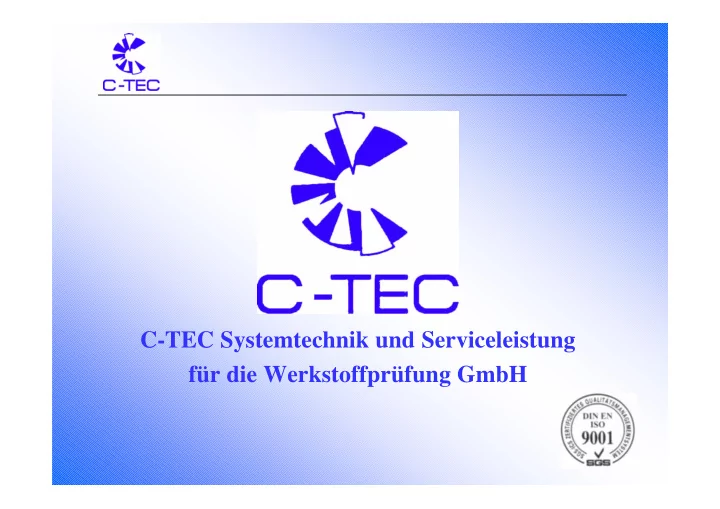

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

SLIDE 2

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

SLIDE 3

The Origin of the company C-TEC:

Foundation in 1994
Commercial basis: development of „Pipeline Crawlers“
In 1995 the first C-TEC Crawler was sold to SGS

(after nearly one year of fulltime development)

Frequent enquiries of customers made C-TEC extend their

product range and range of services to react fast on the demands

f the international NDT market - now there are:
Pipeline Crawlers, Column Scanners, X-Ray Sets of any kind,

Ultrasonic Sets and Equipment, Protective Screen Measures (x- ray protection), Hardness Gauges, Field Gauges, Ultraviolet Equipment, Tank Floor Testers (TFTs) etc.

Repair, Inspection and Calibration are carried out mainly in the
wn workshop

Actually the whole range of Actually the whole range of NDT NDT products is covered products is covered! !

SLIDE 4

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

C-TEC product range & service

Pipeline Crawlers Calibration Manufacturing Sale Repair

SLIDE 5

Pipeline Crawlers

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

SLIDE 6

P i p e l i n e C r a w l e r Type C200: Type C400:

SLIDE 7

P i p e l i n e C r a w l e r C 2

Technical Details

Pipeline diameter from 8 to 24 inches (200 to 600 mm)
Length of pipeline crawler 1700 mm (battery carriage, drive unit

and x-ray tube) - Connection: easy removable click-in sockets!

X-Ray tube: ICM SITE-X C1603 (50 - 160 kV, 1 - 3 mA)
Total weight of crawler 44 kg
Maximum gradient angle within pipeline 30°
Battery pack of crawler contains 4 gel batteries (maintenance-

free) with an output of together about 48 V/12 Ah

2 Drive batteries in case that battery pack fails to drive crawler
ut of the pipeline - output 24 V/4 Ah

SLIDE 8

P i p e l i n e C r a w l e r C 4

Technical Details

Pipeline diameter from 16 to 64 inches (400 to 1600 mm)
Length of pipeline crawler 3000 mm (battery carriage, drive unit

and x-ray tube) - Connection: easy removable click-in sockets!

X-Ray tube:

ICM SITE-X C3003 (90 - 300 kV, 1 - 5 mA)

ICM SITE-X C2254 (70 - 225 kV, 1 - 4 mA)

Total weight of crawler 178 kg (with C3003) or 175 kg (with C2254)
Maximum gradient angle within pipeline 30°
Battery pack of crawler contains 10 gel batteries (maintenance-

free) with an output of together about 120 V/18 Ah

2 Drive batteries in case that battery pack fails to drive crawler out
f the pipeline - output 24 V/18 Ah

SLIDE 9

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

C-TEC product range & service

Pipeline Crawlers X-Ray Units Calibration Manufacturing Sale Repair

SLIDE 10

X-Ray Units

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

SLIDE 11

ICM X-RAY UNITS

SLIDE 12

Service range of C-TEC Sale

ICM x-ray units with energy range of 160 - 300 kV/3 - 6 mA new and 2nd hand x-ray units of all other manufacturers

(e. g. Yxlon (Philips/Andex), Seifert, Gilardoni, Scanray, Toshiba etc.)

C-TEC => your link to all manufacturers

Service

Annual inspection including certificate, BGV A2 inspection Focal spot and energy measuring including certificate General repair (big stock of spare parts available)

Rental

SLIDE 13

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

C-TEC product range & service

Pipeline Crawlers X-Ray Units Column Scanning Devices Calibration Manufacturing Sale Repair

SLIDE 14

Column Scanning Devices

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

SLIDE 15

C-TEC „C-SCAN“ Column Scanning Device

SLIDE 16

Advantages of the „C-SCAN“

SLIDE 17

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

C-TEC product range & service

Pipeline Crawlers X-Ray Units Other Services in NDT Column Scanning Devices Calibration Manufacturing Sale Repair

SLIDE 18

C-TEC Systemtechnik und Serviceleistung für die Werkstoffprüfung GmbH

Other Services in NDT

SLIDE 19

How can we be of assistance How can we be of assistance to to you you? ?

C-TEC is covering (nearly) the whole range of products for Non-Destructive Testing (NDT):

Ultrasonic Equipment
X-Ray Equipment
Wallthickness Gauges
Gamma Ray Equipment
Magnetic Inspection
UV Lamps
Field Measuring Gauges
Hardness Gauges
Brightness Intesity Metres
Densitometres
Dose Metres
Charger (of all kind)
Signs/Plates
Protective Screen Measures
Adhesive Tape/Material
and much more ....

SLIDE 20

How can we keep How can we keep you you informed informed? ?

C-TEC always delivers the proper documentation for your files - no matter what kind of work was carried out:

Sample! Sample! Sample!

SLIDE 21

We are looking forward We are looking forward to to welcoming you welcoming you! !

C C-

TEC Systemtechnik & Serviceleistung Systemtechnik & Serviceleistung für die Werkstoffprüfung GmbH für die Werkstoffprüfung GmbH
