SLIDE 1

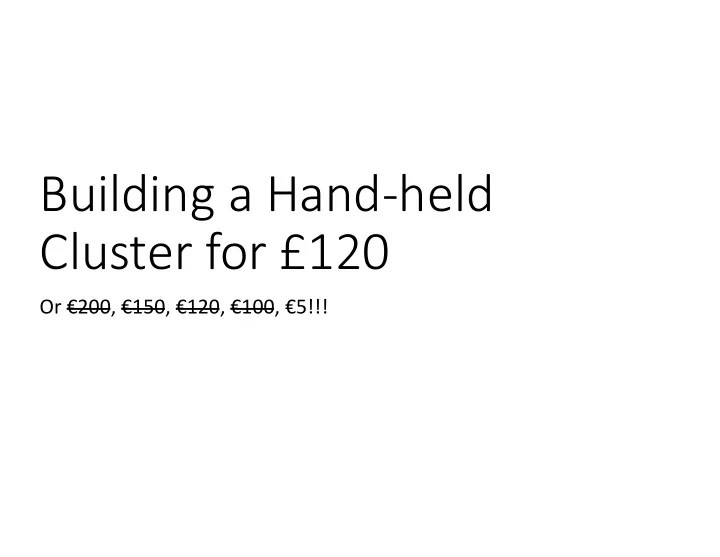

Building a Hand-held Cluster for £120

Or €200, €150, €120, €100, €5!!!

SLIDE 2

Inspira;on

2016 CPA Copenhagen Fringe presenta:on - Distributed Compu:ng on a (:ny) Budget: Building a Raspberry Pi Zero Microcluster Richard Miller I went home wan:ng to have one, but I’m lazy and didn’t want to do wiring and driver wri:ng.

SLIDE 3

SLIDE 4

Shopping List

Cluster HAT Kit £89.99

1 x Cluster HAT
4 x Raspberry Pi Zero
4 x 16 GB Micro SD Card

Raspberry Pi 2 £30

Pi 3 has dynamic switching and may step down due to the heat

16GB Micro SD Card for Pi £10 Ethernet Cable and Power Supply (you probably have this lying around)

SLIDE 5

OS Install and Startup

Cluster HAT website has Raspian images for each node. Enables gadget mode on the Pi Zeros (USB connec:vity). Pi 2 is controller; Zeros are p1, p2, p3, p4. Power by USB to the Pi 2. 2V required. Ethernet into a switch, or cross-over cable to your laptop

Laptop can also power the whole system.

SLIDE 6

Interac;ng with the System

ssh into the controller. Four commands provided:

1. clusterhat on pX
2. clusterhat off pX
3. clusterhat on all
4. clusterhat off all

Once on we can ssh directly via the names. Useful to setup some other names in your /etc/hosts file.

SLIDE 7

MPI Setup

We need to create a super user on each machine with no password. I used mpiuser. Use ssh-keygen and ssh-copy-id to setup passwordless login. Then install MPI

sudo apt install mpich

SLIDE 8

Network File Storage Setup

Install NFS on the controller.

sudo apt install nfs-kernel-server

Login to the controller as mpiuser (or whatever name you used). Make a directory to share files. Then add a line to /etc/exports. For example:

/home/mpiuser/cloud *(rw, sync, no_root_squash, no_subtree_check)

Then update the exported filesystem

sudo exporls –a

And restart the NFS server

sudo service nfs-kernel-server restart

SLIDE 9

Connec;ng the Clients

On each Pi Zero. Login as mpiuser (or equivalent). Install the NFS client.

sudo apt install nfs-common.

Make the shared folder and then mount it.

sudo mount –t nfs controller:/home/mpiuser/<name> ~/<name>

Can add to the mounts if you don’t mind a slightly slower startup.

SLIDE 10

Demo

SLIDE 11

Summary

Anyone can build there own cluster rela:vely cheaply, and now you can build a handheld one to. Performance isn’t great, but that isn’t the point. You can explore ideas wherever you go. Happy to discuss further if anyone wants.
