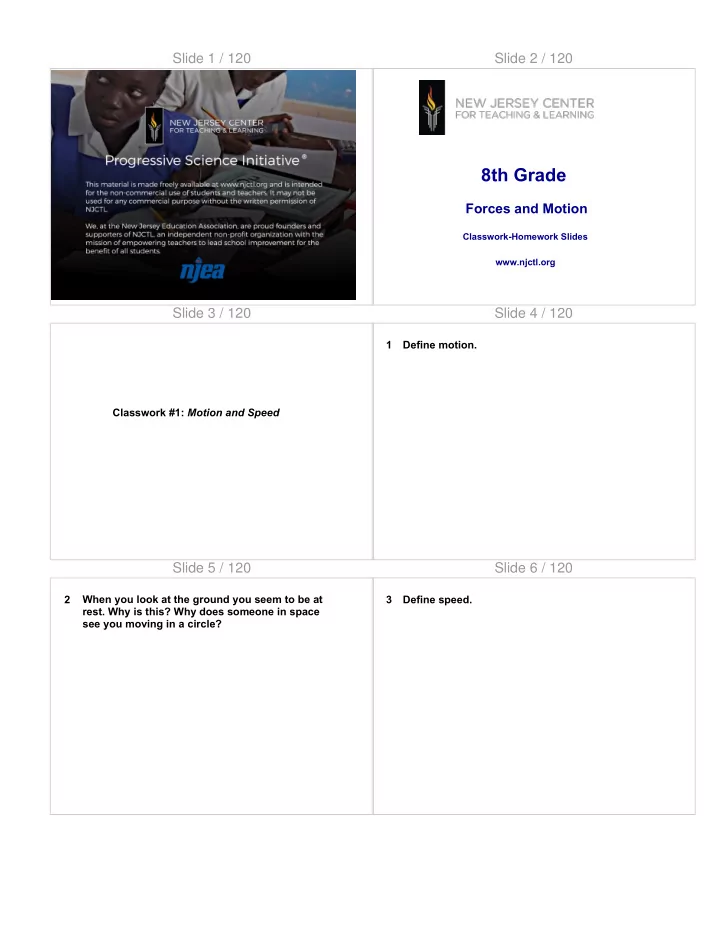

SLIDE 1 Slide 1 / 120 Slide 2 / 120
8th Grade
Forces and Motion
Classwork-Homework Slides www.njctl.org
Slide 3 / 120
Classwork #1: Motion and Speed
Slide 4 / 120
1 Define motion.
Slide 5 / 120
2 When you look at the ground you seem to be at
- rest. Why is this? Why does someone in space
see you moving in a circle?
Slide 6 / 120
3 Define speed.
SLIDE 2 Slide 7 / 120
4 What is the formula for measuring the speed of an
Slide 8 / 120
5 Lance Armstrong can ride his bicycle at speeds of 15 m/s. If he is traveling at this speed, how long will it take him to travel 81.9 meters? Show your work.
Slide 9 / 120
6 John is growing another crop of corn this year. He plows a row of his field in 90 seconds. If each row is 384 meters long, how fast does John drive his tractor? Show your work.
Slide 10 / 120
7 Julia is learning how to ride her tricycle. It takes her 10 seconds to go from one end of the driveway to the other. If she travels at 3 m/s, how far does she travel? Show your work.
Slide 11 / 120
Homework #1: Motion and Speed
Slide 12 / 120
8 How can you tell that an object is in motion?
SLIDE 3 Slide 13 / 120
9 What is a frame of reference?
Slide 14 / 120
10 How long does it take a snail to travel a distance
- f 3 ft at 0.1 ft/sec? Show your work.
Slide 15 / 120
11 How far does a cat run if it travels at a speed of 3 m/s for 25 seconds? Show your work.
Slide 16 / 120
12 A racecar driver frequently drives her racecar at 67 m/s for as long as she can. If she drives her car at that speed for 22 seconds, how far will she travel? Show your work.
Slide 17 / 120
13 Everyone in Paperville needs their newspaper before 6 a.m. on Monday. If it takes the delivery boy 3 hours to deliver the papers at 12 m/s, what is the distance of the paper route in Paperville? Show your work. (HINT: convert 3 hours to seconds before using the speed equation)
Slide 18 / 120
Classwork #2: Speed and Velocity
SLIDE 4 Slide 19 / 120
The 100m dash is a sprint race in track and field competitions where athletes are timed on how long it takes them to sprint a distance of 100m. It has been an Olympic sport since 1896. The table below shows some of the record setting times achieved by athletes running the 100m dash. Use the data table to answer the questions.
Slide 20 / 120
Time (s) Name Country Date 9.572 Usain Bolt Jamaica August 16, 2009 9.683 Usain Bolt Jamaica August 16, 2008 9.72 Usain Bolt Jamaica May 31, 2008 9.74 Asafa Powell Jamaica September 9, 2007 9.762 Asafa Powell Jamaica August 18, 2006 9.763 Asafa Powell Jamaica June 11, 2006 9.766 Justin Gatlin USA May 12, 2006 9.768 Asafa Powell Jamaica June 14, 2005 9.78 Tim Montgomery USA September 14, 2002 9.79 Maurice Green USA June 6, 1999 9.835 Donovan Bailey Canada July 27, 1996 9.85 Leroy Burrell USA July 6, 1994 9.86 Carl Lewis USA August 25, 1991 9.90 Leroy Burrell USA June 14, 1991 9.92 Carl Lewis USA September 24, 1988
Slide 21 / 120
14 According to the table, who holds the current world record for finishing the 100 m sprint the fastest?
Slide 22 / 120
15 By how much time did Tim Montgomery beat the previous world record holder?
Slide 23 / 120
16 The first recorded world record is 10.8 seconds set by Luther Cary (USA 1891). How much time has been taken off the world record since it was first set in 1891?
Slide 24 / 120
17 At what average speed did Asafa Powell run the 100 m in 2007? Show your work.
SLIDE 5 Slide 25 / 120
18 Usain Bolt broke the world record on May 31, 2008. He then broke his own world record about two months later. What was his average speed on each day? Show your work for both days.
Slide 26 / 120
19 Can you use the table to calculate instantaneous speeds? How about velocities? Explain why or why not.
Slide 27 / 120
20 How much faster (in terms of average speed) did Leroy Burrell run on June 14, 1991 to break the record set by Carl Lewis on September 24, 1988? Show your work.
Slide 28 / 120
21 If an athlete were to run the 100 m dash at a speed
- f 10.5 m/s, would they beat Usain Bolt's current
world record? Justify your answer.
Slide 29 / 120
22 What was Justin Gatlin's average speed on the day that he broke the world record? Show your work.
Slide 30 / 120
23 Calculate the speed achieved by Maurice Green in
- 1999. At this average speed, how long would it
take Maurice to run 315 meters? Show your work.
SLIDE 6
Slide 31 / 120
Homework #2: Speed and Velocity
Slide 32 / 120
24 What is the difference between average speed and instantaneous speed?
Slide 33 / 120
25 Can average speed ever be equal to instantaneous speed? Explain.
Slide 34 / 120
26 What is the average speed of a dog that runs 100 m in 30 s? Show your work.
Slide 35 / 120
27 Describe two examples of average speed and two examples of instantaneous speed.
Slide 36 / 120
28 The Admiral train is traveling east at 100 mph and the Alamo train is traveling west at 100 mph. Do they have the same speed? Do they have the same velocity? Explain why or why not.
SLIDE 7 Slide 37 / 120
29 Train A leaves New York for California at the same time Train B leaves California for New York. They are 2900 miles apart. They both travel at an average speed of 120 mph. A What is the velocity of train A? B What is the velocity of train B?
C How long will it take before they meet? Show your work.
Slide 38 / 120
Homework #3: Graphing Motion
Slide 39 / 120
30 It is Field Day at your school and everyone is ready for the potato sack race. Each grade has selected one person to enter the race. There are nine checkpoints along the racecourse. The table below shows how long it took each student to get to each checkpoint. Graph the motion of the three contestants using a separate color/line pattern for each contestant. Be sure to plot position on the y- axis and time on the x-axis and label each axis.
Slide 40 / 120
Name 10m 20m 30m 40m 50m 60m 70m 80m 90m Susie (6th) 4s 9s 11s 15s 21s 23s 28s 32s 37s Joe (7
th)
5s 15s 19s 24s 29s 33s 36s 41s 46s Thomas (8th) 6s 8s 11s 15s 20s 24s 28s 31s 35s
Slide 41 / 120
31 Who won the race? Explain how you can tell from the graph.
Slide 42 / 120
32 Who had the fastest speed from 0- 30m? Justify your answer with speed calculations for each student.
SLIDE 8 Slide 43 / 120
33 Who had the fastest speed from 0-60m? Justify your answer with speed calculation for each student.
Slide 44 / 120
Classwork #3: Acceleration
Slide 45 / 120
34 Define acceleration.
Slide 46 / 120
35 Write the formula for measuring the acceleration
- f an object. Be sure to explain what each part of
the equation is.
Slide 47 / 120
36 What is the SI unit of measurement for acceleration?
Slide 48 / 120
37 Explain 3 different ways that an object can accelerate.
SLIDE 9 Slide 49 / 120
38 What is the acceleration of a car that starts at rest and increases its speed to 10 m/s in 2 seconds? Show your work.
Slide 50 / 120
39 What is the acceleration of an object that starts at 10 m/s and slows to 2 m/s in 4 seconds? Show your work.
Slide 51 / 120
40 Describe the speed and velocity of an object whose motion is shown in the speed vs time graph below:
Slide 52 / 120
41 Describe the speed and velocity of an object whose motion is shown in the position vs time graph below. What happens to the distance covered during each 5 second time interval?
Slide 53 / 120
Homework #4: Acceleration
Slide 54 / 120
42 A student runs at constant speed on a circular
- racetrack. Does the student accelerate? Justify
your answer.
SLIDE 10
Slide 55 / 120
43 A car increases its speed. Is this acceleration positive or negative? Explain.
Slide 56 / 120
44 What is the acceleration of a rocket that is traveling at 20 m/s and increases its velocity to 40 m/s in 4 seconds? Show your work.
Slide 57 / 120
45 What is the acceleration of a dragster that deploys a parachute when travelling at 33 m/s and slows to rest in 11 seconds? Show your work.
Slide 58 / 120
46 Describe the speed of an object whose motion is shown in the speed vs time graph below:
Slide 59 / 120
47 Describe the speed of an object whose motion is shown in the position vs time graph below. What happens to the distance covered during each 5 second time interval?
Slide 60 / 120
Classwork #4: Forces and Friction
SLIDE 11 Slide 61 / 120
48 Define a force.
Slide 62 / 120
49 What do forces do to objects? Describe an example.
Slide 63 / 120
50 What is the “BIG IDEA” about the relationship between forces and acceleration?
Slide 64 / 120
51 What is the unit for measuring force in the SI system of measurement?
Slide 65 / 120
52 Determine the net force in the diagram seen
- below. Show how you came up with your answer.
Slide 66 / 120
53 Define friction and explain its effect on motion.
SLIDE 12
Slide 67 / 120
54 What is static friction?
Slide 68 / 120
Homework #5: Forces and Friction
Slide 69 / 120
55 A force is a push or a pull acting on an object. How do forces affect motion when the forces are a) balanced? b) unbalanced?
Slide 70 / 120
56 What happens to the motion of any object that feels an unbalanced force?
Slide 71 / 120
57 What types of friction occur when you ride a bike through a puddle? Justify your answer.
Slide 72 / 120
Classwork #5: Gravity and Equilibrium
SLIDE 13 Slide 73 / 120
58 In your own words, define the law of gravitation.
Slide 74 / 120
59 What is the formula for measuring the weight of any object? Identify each part of the formula.
Slide 75 / 120
60 Explain why the weight of a barbell is smaller on the moon than on Earth.
Slide 76 / 120
61 What happens to the force of gravity as any 2
- bjects move farther apart?
Slide 77 / 120
62 When is an object said to be in free fall? Give an example.
Slide 78 / 120
63 Define equilibrium and relate it to forces .
SLIDE 14
Slide 79 / 120
64 Calculate the net force acting on the block in the diagram seen below. Show your work. What is the direction of the net force?
Slide 80 / 120
Homework #6: Gravity and Equilibrium
Slide 81 / 120
65 As we move away from the center of the Earth, what happens to the force of gravity?
Slide 82 / 120
66 Explain why Jupiter’s gravitational constant is stronger than Mercury’s gravitational constant.
Slide 83 / 120
67 What is the weight of a 99 kg man on Earth? Show your work.
Slide 84 / 120
68 What happens to the motion of any object that feels an unbalanced force?
SLIDE 15
Slide 85 / 120
69 If an object is in equilibrium, then the forces must be ___________________?
Slide 86 / 120
70 Calculate the net force acting on the block seen in the diagram below. Show your work.
Slide 87 / 120
71 Is the object in #70 in equilibrium? Explain.
Slide 88 / 120
Classwork #6: Newton's First Law
Slide 89 / 120
72 Who were the early scientists that first studied/explained motion?
Slide 90 / 120
73 What were some of the advances that Sir Isaac Newton made in the area of physics?
SLIDE 16
Slide 91 / 120
74 Define Newton’s 1st law of motion and give an everyday example of Newton's 1st law of motion at work.
Slide 92 / 120
75 What is the relationship between an object’s mass and the amount of inertia it exhibits? Give an example to answer this question.
Slide 93 / 120
Homework #7: Newton's First Law
Slide 94 / 120
76 Define inertia.
Slide 95 / 120
77 Which object has more inertia? A running boy or an automobile at rest? Why?
Slide 96 / 120
78 In your own words, explain an example of Newton’s 1st law of motion for moving and non- moving objects.
SLIDE 17
Slide 97 / 120
Classwork #7: Newton's Second Law
Slide 98 / 120
79 How does applying a force to an object affect its motion?
Slide 99 / 120
80 What is the acceleration of a 100 kg canoe that feels a force of 1000N? Show your work.
Slide 100 / 120
81 Suppose the canoe in problem #80 is loaded to have a total mass of 500kg, but the force stays the same at 1000N. Will the canoe slow down or speed up? Why? Justify your answer by calculating the new acceleration. Show your work.
Slide 101 / 120
82 A tennis ball with a mass of 0.314 kg, is accelerated at a rate of 164 m/s2 when hit by a professional tennis player. What force does the player’s tennis racket exert on the ball? Show your work.
Slide 102 / 120
83 You push a friend sitting on a swing. She has a mass of 50 kg and accelerates at a rate of 4 m/s 2. Find the force you exerted. Show your work.
SLIDE 18
Slide 103 / 120
84 You want to push another friend to accelerate them at the same rate of 4 m/s2. This friend has a mass of 70 kg. Will you push as hard as you did in #83? Why or why not? Justify your answer by calculating the new force. Show your work.
Slide 104 / 120
Homework #8: Newton's Second Law
Slide 105 / 120
85 You pull on a box with 50 N of force. Your friend pulls on an identical box with 100 N of force. Compare the motion of both boxes. Explain your answer.
Slide 106 / 120
86 A person uses 50 N of force to push a cart. If the mass of the cart increases, but the person uses the same amount of force, what is the effect on the resulting acceleration?
Slide 107 / 120
87 What is the acceleration of a 1000 kg car that feels a force of 5000 N? Show your work.
Slide 108 / 120
88 What force causes a 1 m/s 2 acceleration of a 5 kg bowling ball? Show your work.
SLIDE 19 Slide 109 / 120
89 What is the mass of an object that accelerates at a rate of 3 m/s2 when acted upon by a 30 N force? Show your work.
Slide 110 / 120
90 A worker drops his hammer off the roof of a
- house. The hammer has a mass of 9 kg, and
gravity accelerates it at the usual 9.8 m/s 2. What is the gravitational force acting on the hammer? What is the weight of the hammer? Show your work.
Slide 111 / 120
Homework #9: Newton's Third Law
Slide 112 / 120
91 Explain how a rocket works using Newton's third law of motion.
Slide 113 / 120
92 Compare and contrast momentum and inertia.
Slide 114 / 120
93 Compare the momentum of a fly and a train travelling at the same velocity.
SLIDE 20
Slide 115 / 120
94 How does sitting in your chair relate to Newton's 3rd law of motion?
Slide 116 / 120
95 A dog digs a hole in the ground by pushing dirt back with his paws. Describe an action reaction pair in this scenario.
Slide 117 / 120
96 What is the momentum of a 13 kg shot put travelling at 3 m/s? Show your work.
Slide 118 / 120
97 What is the momentum of the same shot-put travelling at 1.5 m/s? Show your work.
Slide 119 / 120
98 If the velocity of an object is cut in half, what happens to the momentum of the object? How about if it is doubled?
Slide 120 / 120
99 Define “conservation of momentum” and give an example of this principle in the real world.
