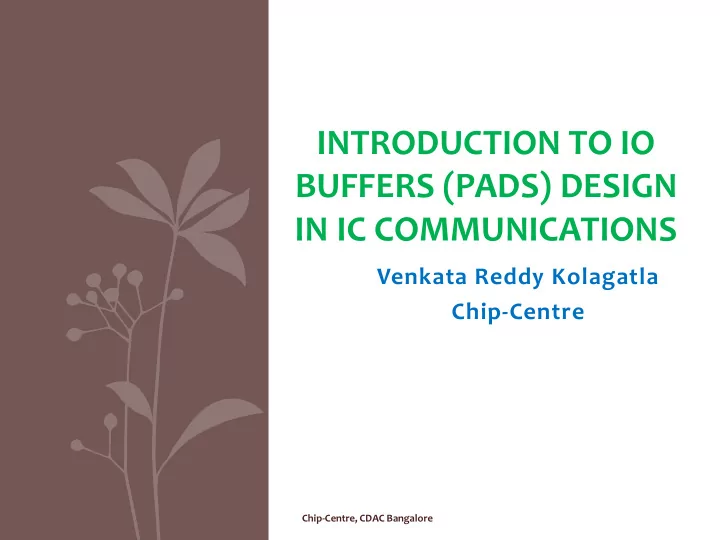

BUFFERS (PADS) DESIGN IN IC COMMUNICATIONS Venkata Reddy Kolagatla - - PowerPoint PPT Presentation

INTRODUCTION TO IO BUFFERS (PADS) DESIGN IN IC COMMUNICATIONS

Venkata Reddy Kolagatla Chip-Centre

Chip-Centre, CDAC Bangalore

Topics Covered

• Basic Block diagram of IO communication – Introduction to IOs
• Buffered Vs Unbuffered
• Introduction to RC circuits
• Drive Strength Requirements of IC at particular speed with

specified load

• Typical Driver Architecture
• OCD area dependency/crunch on pad
• OCD design for different drive strengths
• Process control of a driver
• Basic Input buffer (Receiver) design

Chip-Centre, CDAC Bangalore

Basic block diagram of IO Communication & Introduction to IOs

Chip-Centre, CDAC Bangalore

Generic Diagram of IO communication (IC to IC Communication)

Printed Wiring Board Buffers package package Receiver Data generator CMOS IC1 CMOS IC2

Chip-Centre, CDAC Bangalore

Introduction to IOs

• Input/Output (IO) circuits enable a chip to communicate with the

external world.

• They are placed at the periphery of a chip and provide an interface

between the chip and the external world.

• As the internal circuitry grows in speed and efficiency, it processes

data faster.

• Matching IO circuits, in terms of speed and bandwidth, are critical

to make sure that the processing power and efficiency of the internal circuitry or the core circuitry is best used.

• The electrical signal outside the chip is unknown and possibly

unsafe for the internal circuitry.

• IOs help isolate the chip from such an environment and helps

convert the external signal to a form where the internal circuit can process it.

Chip-Centre, CDAC Bangalore

Types of IOs

• The term ‘buffer’ is used alternately for “IO”, since IOs does not

perform any logic operation on the signals!!

• Depending on the type of application, IOs can be classified into

different types.

• Input
• Output (2 states or 3 states)
• Bi – directional

Chip-Centre, CDAC Bangalore

Input Buffer

• The input buffer passes external data to the core.
• It performs the level conversion from the external voltage to the

core voltage level.

• It helps improve the signal by performing some kind of signal

conditioning.

• ESD diodes associated with the input buffer help protect Integrated

circuit (IC) chips from damage due to ESD events.

VCC VSS

PAD

To Internal circuitry

Chip-Centre, CDAC Bangalore

Output Buffer

• The output buffer passes data from the core to the external world which is usually

another component on the Printed Circuit Board (PCB) through a track.

• It performs level conversion from the core level voltage to the IO level output

voltage (the motherboard voltage level).

• Output buffers can be either 2-state or 3-state depending on the application. For a

3-state buffer, the three states are logic low, logic high and high impedance.

• A 3-state buffer will have an enable signal which facilitates achieving high

impedance (Hi-Z) at the PAD

• ESD diodes associated with the output buffer also help protect ICs from damage

due to ESD events.

VCC VSS

PAD

From Internal circuitry From Internal circuitry

Chip-Centre, CDAC Bangalore

Bi-directional Buffer

• A bi-directional buffer functions as both an input and an output buffer.
• The enable signal which comes from the core determines if the buffer

needs to be configured as an input buffer or an output buffer.

• It is designed such that when enabled as an input buffer, the PAD is at a

high impedance state.

• There can be designs where both an input and an output buffer have

separate enable signals.

PAD

From Internal circuitry From Internal circuitry VCC VSS To Internal circuitry

Chip-Centre, CDAC Bangalore

Buffered Vs Unbuffered

Chip-Centre, CDAC Bangalore

Buffered Vs Unbuffered

Characteristics Buffered Unbuffered

Propagation Delay Low High Noise Immunity/Margin Excellent Good Output Impedance Constant Variable Output transition time Constant Variable Output oscillation for slow inputs Yes No Input Capacitance Low High

Chip-Centre, CDAC Bangalore

Introduction to RC Circuits

Chip-Centre, CDAC Bangalore

RC Circuit

Chip-Centre, CDAC Bangalore

Low Pass RC – Circuit : Square Wave Input

Chip-Centre, CDAC Bangalore

RC Charging Table – Low Pass RC

Time Constant RC Value % of maximum Voltage Current

0.5 time constant 0.5T = 0.5RC 39.30% 60.70% 0.7 time constant 0.7T = 0.7RC 50.30% 49.70% 1.0 time constant 1T = 1RC 63.20% 36.80% 2.0 time constants 2.0T = 2.0RC 86.50% 13.50% 2.2 time constants 2.2T = 2.2RC 90% 10.30% 3.0 time constants 3.0T = 3.0RC 95.00% 5.00% 4.0 time constants 4.0T = 4.0RC 98.20% 1.80% 5.0 time constants 5.0T = 5.0RC 99.30% 0.70%

Chip-Centre, CDAC Bangalore

If Period = 10RC

Chip-Centre, CDAC Bangalore

If Period = 16RC

Chip-Centre, CDAC Bangalore

If Period = 4RC

Chip-Centre, CDAC Bangalore

Understanding it in frequency domain

Chip-Centre, CDAC Bangalore

Understanding it in frequency domain

Chip-Centre, CDAC Bangalore

High Pass RC – Circuit : Square Wave Input

Chip-Centre, CDAC Bangalore

0.00 50.00 100.00 150.00 200.00 250.00 1GHz 1GHz 1GHz 1GHz 1GHz 2GHz 2GHz 2GHz 2GHz 2GHz 3GHz 3GHz 3GHz 3GHz 3GHz 4GHz 4GHz 4GHz 4GHz 4GHz 1pF 2.5pF 5pF 10pF 20pF 1pF 2.5pF 5pF 10pF 20pF 1pF 2.5pF 5pF 10pF 20pF 1pF 2.5pF 5pF 10pF 20pF

Drive Strength(Ω) Speed with Load Cap.

Drive Strength Requirement

R - calc if 4.4RC as T R - calc if 10RC as T

Chip-Centre, CDAC Bangalore

Output Buffer/Driver/Transmitter Design

Chip-Centre, CDAC Bangalore

Basic O/P Buffer - Architecture

• O/p 0 -> 1 : depends on PUN (Pull Up Network)
• O/p 1-> 0 : depends on PDN (Pull Down Network)
• To ensure the loading doesn’t affect the internal data.
• O/p drivers are large drivers that send a signal off chip (OCD).
• The widths of these devices in the range of 400 to 1000um (L would be

around 0.24u to 0.6u).

• The size will depend on the frequency, power, voltage levels, current

drive, functionality, etc.. of the buffer itself.

• These large transistors must be laid out with great attention in detail,

because the area that they will require is highly sensitive and they can directly affect the chip size.

• The width of the bond pad o/p connection is based on many

considerations : electro migration, resistance of the metal, impedance and inductance of the package connection, and equal load between the o/p transistors, among the all.

• In general o/p buffers are supplied with special or isolated power lines

that are not connected to any other transistors and are connected directly to independent power pads, issues in minimizing the power supply resistance to these transistors.

Chip-Centre, CDAC Bangalore

Architecture of a Driver(O/P Buffer)

Pre Driver PU PD

PAD Data CL Gnd Gnd Gnd Vccq Vccq PU PD PVT Slew CW Gnd CW = Bond wire cap + Via cap + layer cap + Next IC’s i/p cap CL = Bond pad cap + wire cap + Self device cap Current Design IC

Chip-Centre, CDAC Bangalore

Progressive Sizing – Pre Driver requirement

• We cannot use a big inverter to drive a large output capacitance

because, who will drive the big inverter

• The signal that has to drive the output cap will now see a larger

gate capacitance of the BIG inverter.

• So this results in slow rise or fall times .
• A unit inverter can drive approximately an inverter that's 4 times

bigger in size.

• So say we need to drive a cap of 64 unit inverter then we try to

keep the sizing like say 1,4,16,64 so that each inverter sees a same ratio of output to input cap.

• This is the prime reason behind going for progressive sizing.

Chip-Centre, CDAC Bangalore

Drive Strength Calculations

• Let us say 1.2v, with 1Gbps to drive 5pF load
• Assume that a minimum of 25ohm drive strength is required
• So, (*** R , Idrive , R α 1/width of the transistor α 1/Idrive )

𝐽 =

𝑊𝑑𝑑𝑟/2 𝑆

=

1.2/2 25 = 24mA

• Let us say per micron width of a transistor (for both Pmos & nmos),

I = 48uA, total of 500u is required in pull up and in pull down to achieve 25ohm drive strength.

• According to GDR(Geometric Design Rules), a transistor should not

exceed a 10u(assume) width for a particular technology.

• So we have to connect such type of transistors in parallel as many needed

accordingly, in order to get the specified drive strength.

Chip-Centre, CDAC Bangalore

Typical Driver

PD M1 M2 M3 M4 PU M5 M6 M7 M8 GND Vccq

IOx

Chip-Centre, CDAC Bangalore

Typical Driver Design

VCC VSS

PAD

From Internal circuitry From Internal circuitry

500u 250u Typically length would depend on the technology node – It is better to have maximum length such that it should have less leakage. Now

• > PVT control ?
• > tri-state control ?
• > Design of diff. types of drive strengths?
• > drive strength calculated at Vcc/2, why?

Chip-Centre, CDAC Bangalore

Input Buffer/Receiver Design

Chip-Centre, CDAC Bangalore

Definitions

• Good receiver circuits (input buffers) in CMOS chips are required in

any high-speed, board-level design to change the distorted signals transmitted between chips (because of the imperfections in the interconnecting signal paths) into well-defined digital signals with the correct pulse widths and amplitudes.

• Input buffers are circuits that take a chip's input signal, with

imperfections such as slow rise and fall times, and convert it into a clean digital signal for use on-chip.

• If the buffer doesn't "slice" the data in the correct position, timing

errors can occur.

• If the input signal is sliced too high or too low, the output signal's

width is incorrect.

• In high-speed systems this reduces the timing budget in the system

and can result in errors.

Chip-Centre, CDAC Bangalore

Basic Requirements

• The ‘switching point’ voltage is defined as the voltage at which the input and

the output transitions from logic high to logic low or vice versa

• If the switching point is too high, the output data has good low noise margin
• If the switching point is too low, the output data has high noise margin
• If the buffer doesn’t slice the data at the correct time instants, timing errors

can occur i.e., the bits of data at the output of the buffer gets distorted.

Chip-Centre, CDAC Bangalore

Signal Noise and Removal Possibilities

• Noise can be removed from a signal with a circuit who has

different switching points for low-high and high-low transition.

Hysteresis

Chip-Centre, CDAC Bangalore

Schmitt – Trigger Circuit

• The CMOS inverter circuit can be easily modified to obtain an

inverting Schmitt-trigger circuit to reduce input-signal noise.

Chip-Centre, CDAC Bangalore

For Ex..

• Design and simulate a Schmitt trigger using the short-channel

CMOS process with VSPL = 400 mV and VSPH = 700 mV

• W1L2/W2L1 = ((1-0.7)/(0.7-0.25))^2 = 0.444, Assume L1=L2=1u

W1 = 10u and W2 = 22.5u

• W5L6/W6L5 = ((0.4)/(1-0.4-0.25))^2 = 1.3, Assume L5=L6=1u

W6 = 20u and W5 = 26u

• M3 and M4, we can set to 10/1 and 20/1(β3 ≥ β1 or β2/ β4 ≥ β5 or β6)

Chip-Centre, CDAC Bangalore

Applications of Schmitt Trigger

• A pulse with ringing is a common voltage waveform encountered in buses
• r lines interconnecting systems.
• If this voltage is applied directly to a logic gate or inverter input with a

VSP of 0.5 V, the output of the gate will vary with the period of the ringing

• n top of the pulse.
• Using a Schmitt trigger with properly designed switching points can

eliminate this problem.

Chip-Centre, CDAC Bangalore

A New Project Design Methodology

• Understand the root cause of all problems (signal-integrity, power-

integrity, IO pad area requirements, slew-rates, pad cap etc..) and the general guidelines to minimize these problems.

• Translate the general guidelines into specific design rules for each

specific custom product.

• Predict performance early in the design cycle by creating

equivalent electrical circuit models for each component, critical net, and the entire system and by performing local and system- level simulation.

• Optimize the performance of the design for cost, schedule, and

risk by modeling and simulating at every step of the design cycle, especially at the beginning.

• Use characterization measurements throughout the design cycle

to reduce the risk and increase confidence of the quality of the predictions.

Chip-Centre, CDAC Bangalore

Source: Eric Bogatin Lectures

REFERENCES

Chip-Centre, CDAC Bangalore

References

• https://uta-ir.tdl.org/uta-

ir/bitstream/handle/10106/24772/Abraham_uta_2502M_12777.pdf?sequence=1

• http://www.rnbs.hiroshima-

u.ac.jp/RCNS/lecture/pdf/HJM_H20/OHP_CMOS_4(H20-5-2).pdf

• http://download.intel.com/education/highered/signal/ELCT762/Class17_18_IBIS_io_

buffer_class.ppt

• https://www.u-

cursos.cl/usuario/9553d43f5ccbf1cca06cc02562b4005e/mi_blog/r/CMOS_Circuit_D esign__Layout__and_Simulation__3rd_Edition.pdf

• http://www.ti.com/lit/an/scha004/scha004.pdf
• http://www.oldfriend.url.tw/article/SI_PI_book/Signal%20and%20Power%20Integrit

y%20-%20Simplified_2nd_Eric%20Bogatin_Prentice%20Hall%20PTR_2010.pdf

• https://www.google.co.in/url?sa=t&rct=j&q=&esrc=s&source=web&cd=1&cad=rja&

uact=8&ved=0ahUKEwiLjfqX0KjUAhVMvo8KHQ1SBisQFgghMAA&url=http%3A%2F% 2Fdownload.intel.com%2Feducation%2Fhighered%2Fsignal%2FELCT762%2FClass07_ Using_Transmission_lines.ppt&usg=AFQjCNHaQAuOtX5kbH6C0T6qIs6dvyHJig

Chip-Centre, CDAC Bangalore
