Broadband Facts, Fiction, and Broadband Facts, Fiction, and Urban Myths Urban Myths Rod Tucker Rod Tucker National Broadband Network National Broadband Network Wireless Passive Optical Network (PON) Point of Interconnect Splitter

slide-1
SLIDE 1

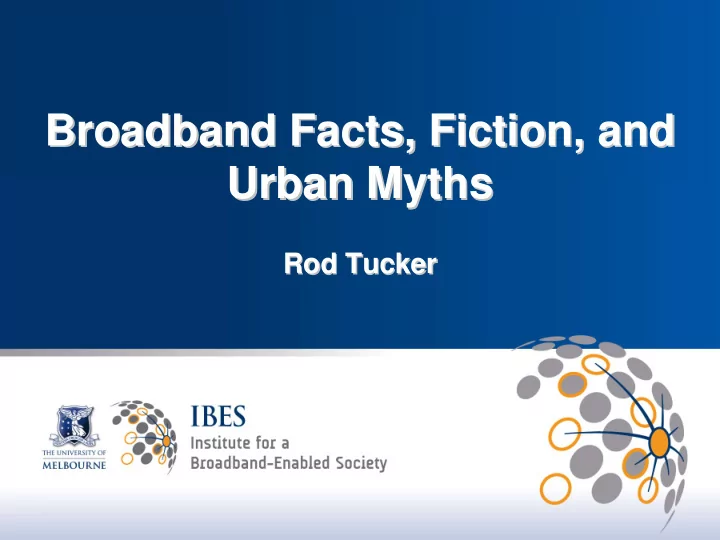

Broadband Facts, Fiction, and Broadband Facts, Fiction, and Urban Myths Urban Myths

Rod Tucker Rod Tucker

slide-2
SLIDE 2

Telephone Exchange Fibre

National Broadband Network National Broadband Network

  • 100 Mb/s to ~ 93% of Australia (fibre)
  • 12 Mb/s to remainder (wireless and satellite)
  • Fibre upgrade path to >1 Gb/s (PON) and >10 Gb/s (PtP)

Splitter Passive Optical Network (PON) Point to Point Fibre (PtP) Point of Interconnect NBN Backhaul Competitive Backhaul Wireless

slide-3
SLIDE 3

Summary Summary 93% 93% Fibre Fibre Coverage Coverage

Source: NBNCo

slide-4
SLIDE 4

Summary Summary

  • Access technologies
  • Fibre
  • Copper
  • Hybrid Fibre Coax
  • Wireless
  • Telecommunications 101
  • The electromagnetic spectrum
  • Shared media and contention
  • Debunking some urban myths
slide-5
SLIDE 5

Splitter

Fiber to the Premises (FTTP)

Cabinet

Fiber to the Node (FTTN)

Cu Fiber

Hybrid Fibre Coax (HFC)

Coaxial Cable

RF Amp

Wireless

Fiber

Splitter

Access Network Technologies Access Network Technologies

Telephone Exchange

Micro-cell

slide-6
SLIDE 6

Electromagnetic Spectrum Electromagnetic Spectrum

10 m 1 m 10 cm 1 cm 100 μm 1 mm 10 μm 1 μm 10 nm 1 nm 1017 1016 1015 1014 1013 1012 109 108 1011 107 106

Radio TV Cell

FM UHF 100 MHz 1 MHz 1 GHz 10 MHz AM Wireless Internet

Micro- waves Infra- red Visible Ultra- violet

Fibre (shared or dedicated) 150 THz 250 THz Wavelength Frequency (Hz) 100,000 GHz 1010 100 nm HF Wireless (shared) Copper pair (dedicated) 0 MHz ~20 MHz (strongly length-dependent) 100 m Coaxial cable (shared)

A single fibre has about 10,000 times the capacity of the entire radio frequency spectrum

slide-7
SLIDE 7

Sharing the Wireless Spectrum Sharing the Wireless Spectrum

Source: Bell Labs, 1984 Cell

slide-8
SLIDE 8

Shared Wireless Spectrum Shared Wireless Spectrum

3G Towers, 2010

slide-9
SLIDE 9

Some Urban Myths Some Urban Myths

  • No-one will ever use 100 Mb/s to the home
  • Wireless can provide 100 Mb/s to the home
  • Future advances in wireless will make FTTP obsolete
  • Advanced DSL will provide 100 Mb/s to the home
  • FTTH is environmentally unfriendly
  • Australia is taking a risk in going to FTTP before the rest of the world
slide-10
SLIDE 10

Backhaul Progress over 125 Years Backhaul Progress over 125 Years

2010

Copper and Microwaves Optical Fibre

20% p.a. 30% p.a.

slide-11
SLIDE 11

50% p.a. (kb/s) Historical trends continue Broadband demand stops

Source: NBNCo

slide-12
SLIDE 12

No No-

  • one will ever
  • ne will ever…

…. .

"The Americans have need of the telephone, but we do not. We have plenty of messenger boys.“

  • - Sir William Preece, chief engineer of the British Post Office, 1876

"I think there is a world market for maybe five computers."

  • - Thomas Watson, Chairman of IBM, 1943

"There is no reason anyone would want a computer in their home."

  • - Ken Olson, president and founder of Digital Equipment Corp., 1977

"But what...is it good for?“

  • - Engineer at the Advanced Computing Systems Division of IBM, 1968,

commenting on the microchip

slide-13
SLIDE 13

Some Urban Myths Some Urban Myths

  • No-one will ever use 100 Mb/s to the home
  • Wireless can provide 100 Mb/s to the home
  • Future advances in wireless will make FTTP obsolete
  • Advanced DSL will provide 100 Mb/s to the home
  • FTTH is environmentally unfriendly
  • Australia is taking a risk in going to FTTP before the rest of the world
slide-14
SLIDE 14

100 Mb/s FTTP with Micro 100 Mb/s FTTP with Micro-

  • Cells

Cells

slide-15
SLIDE 15

100 Mb/s Wireless Broadband 100 Mb/s Wireless Broadband

Each tower is fed by a fibre Beware the fine print!

slide-16
SLIDE 16

Some Urban Myths Some Urban Myths

  • No-one will ever use 100 Mb/s to the home
  • Wireless can provide 100 Mb/s to the home
  • Future advances in wireless will make FTTH obsolete
  • Advanced DSL will provide 100 Mb/s to the home
  • FTTH is environmentally unfriendly
  • Australia is taking a risk in going to FTTH before the rest of the world

Wireless is nearing its fundamental limits. It is ideal for providing mobility, but its capacity is severely limited. Beware the fine print!

slide-17
SLIDE 17

Some Urban Myths Some Urban Myths

  • No-one will ever use 100 Mb/s to the home
  • Wireless can provide 100 Mb/s to the home
  • Future advances in wireless will make FTTH obsolete
  • Advanced DSL will provide 100 Mb/s to the home
  • FTTH is environmentally unfriendly
  • Australia is taking a risk in going to FTTH before the rest of the world
slide-18
SLIDE 18

DSL Downstream Bitrate vs. Distance DSL Downstream Bitrate vs. Distance

20 40 60 80 100 120 1 2 3 4 5

Distance, km Theoretical Speed Mb/s

ADSL2+ VDSL2

X

100 Mb/s VDSL2 range limited to ~ 50 m, at best Requires active nodes in the field

slide-19
SLIDE 19

Some Urban Myths Some Urban Myths

  • No-one will ever use 100 Mb/s to the home
  • Wireless can provide 100 Mb/s to the home
  • Future advances in wireless will make FTTH obsolete
  • Advanced DSL will provide 100 Mb/s to the home
  • FTTH is environmentally unfriendly
  • Australia is taking a risk in going to FTTH before the rest of the world
slide-20
SLIDE 20

30 Peak Access Rate (Mb/s) Power Per User (W) 1 1000 FTTP 100 20 10 10

32 Customers M = 1

Power Consumption in Access Networks Power Consumption in Access Networks

M = 1

FTTP is “greenest” FTTN

M= 1 Wireless M= 10 20 users per sector M = 1

HFC

M= Oversubscription

PtP

M = 1

slide-21
SLIDE 21

Some Urban Myths Some Urban Myths

  • No-one will ever use 100 Mb/s to the home
  • Wireless can provide 100 Mb/s to the home
  • Future advances in wireless will make FTTH obsolete
  • Advanced DSL will provide 100 Mb/s to the home
  • FTTH is environmentally unfriendly
  • Australia is taking a risk in going to FTTH before the rest of the world
slide-22
SLIDE 22

Fibre Penetration by Country Fibre Penetration by Country

Penetration

Source: FTTH Council AP, 2010

slide-23
SLIDE 23

Broadband Deployment in Japan Broadband Deployment in Japan

Source: Japan Ministry of Internal Affairs and Communication, 2010

slide-24
SLIDE 24

Time to Fibre Time to Fibre “ “Maturity Maturity” ”

slide-25
SLIDE 25

Institute for a Institute for a Broadband Enabled Society Broadband Enabled Society

slide-26
SLIDE 26

– Education and Learning – Health and Wellbeing – Network Deployment and Economics – Social Infrastructure and Communities – Service and Business Transformation

IBES Research Themes IBES Research Themes

slide-27
SLIDE 27
  • Fully-functional FTTP test-bed, including core infrastructure
  • Equipment donated by industry
  • Interconnected (nationally and internationally) through AARNet
  • Research &Development tool
  • For researchers: Technology and application development and testing
  • For industry: Configure, test, optimize and customize applications
  • For SMEs: Incubator facilities
  • Integration and interoperability testing for higher layer technologies
  • Configuration of applications vertically through the technology stack

(> Layer 2)

  • Input to industry standards relating to broadband applications and services

IBES IBES Testbed Testbed lab lab

slide-28
SLIDE 28

Using the Internet for Travel Replacement Using the Internet for Travel Replacement

Source: CISCO, 2008

Video Conferencing

slide-29
SLIDE 29

Travel Replacement Travel Replacement – – Greenhouse Impact Greenhouse Impact

~200 kg/person return 2 X 0.1 Gb/s for 8 hours = 1 TB ~2 kg/person Air Travel Video Conferencing

Melbourne Sydney Business Meeting

slide-30
SLIDE 30

Platinum Sponsors Gold Sponsors Sponsors Test-Bed Partner Connectivity Partner

Enabling industry and academia to align interests and work more closely to drive innovation

IBES Industry Partner Program IBES Industry Partner Program

slide-31
SLIDE 31

Green Internet

www.greentouch.org

  • IBES is a founding member of the GreenTouchTM

initiative

  • Global consortium, launched January 12
  • Bell Labs (Alcatel Lucent), Telifonica, Huawei, AT&T, China Mobile, Freescale

Semiconductor, University of Melbourne (IBES), MIT, Stanford

  • Aim: To deliver the architecture, specifications, roadmap, and key

components needed to dramatically reduce energy consumption of telecommunications networks.

  • Outcomes:

– Reinvention of today’s communications networks – Reductions in carbon footprint and operating cost – Opportunities to bring innovative new ideas, products and solutions to market
