Brent Oblinger, Zhangfeng (Leo) Liu, Beverly Bulaon & Lisa Fischer USDA Forest Service Pacific Southwest Region Forest Health Protection Objective Provide estimates of tree mortality levels at the local scale using simple GIS tools

SLIDE 1

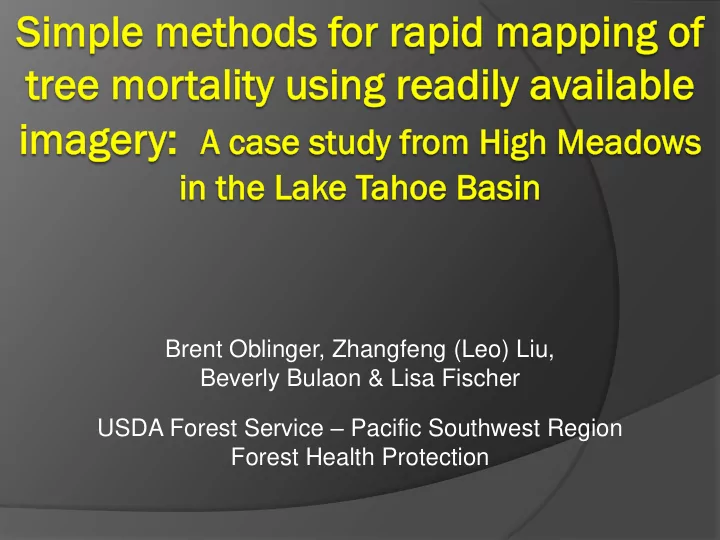

Brent Oblinger, Zhangfeng (Leo) Liu, Beverly Bulaon & Lisa Fischer USDA Forest Service – Pacific Southwest Region Forest Health Protection

SLIDE 2

Objective Provide estimates of tree mortality levels at the local scale using simple GIS tools

SLIDE 3

SLIDE 4

High Meadows in 2010

SLIDE 5

NAIP Imagery

CA : 2005, 2009, 2010 & NV: 2006, 2010

University of Nevada, Reno Keck Library

SLIDE 6

Planned Acquisition of NAIP Imagery

SLIDE 7

Mapping Methods

I. Visually rate tree mortality levels

across a grid

II. Digitize tree mortality polygons

using visual interpretation

III. Use remote sensing software to

classify and map tree mortality

SLIDE 8

I. Visually rate tree mortality levels

across a grid

SLIDE 9

Grid for Visual Interpretation (1 acre cells) 2005 NAIP Image 2010 NAIP Image

SLIDE 10

Example: Percent Mortality Throughout the Canopy (included older and recent mortality) : None visible – trace or single crown : 2 tree crowns – 25% of total canopy present appears dead : 26% - 50% of total canopy appears dead : 51% - 75% of total canopy appears dead : 76% - 100% of total canopy appears dead

Develop Severity Rating Scheme for Visual Interpretation

f Grid Cells

SLIDE 11

Map % Mortality Throughout the Canopy

___Legend___

SLIDE 12

20 40 60 80 100 120 140 160

None Visible- Single Tree Crown >Single Crown

25% of Total

Canopy Cover 26% - 50% of Total Canopy Cover 51% - 75% of Total Canopy Cover 76% - 100% of Total Canopy Cover

Number of cells (of 256 total)

2005 2010

Comparing % Mortality Throughout the Canopy in 2005 to 2010

SLIDE 13

II. Digitize tree mortality polygons

using visual interpretation

SLIDE 14

20 acres with mortality of 256 acres in project area 79 acres with mortality of 256 acres in project area

Delineation of tree mortality after manually drawing polygons

SLIDE 15

III. Use remote sensing software to

classify and map tree mortality

SLIDE 16

Image Classification with Remote Sensing Software

 Tools now within

ArcGIS make classification available to more users

 Supervised

classification example

SLIDE 17

Image Classification Results

Mapped mortality after image classification ( 29 acres ) Mapped mortality after digitizing ( 20 acres )

vs.

SLIDE 18

Simple Less time required Less precise mapping Multiple options for data collection Very Simple More time required More precise mapping Provides presence / absence of mortality data

Grid Approach Digitizing Approach Image Classification Approach

More Advanced Less time mapping but more time correcting errors Moderate precision-to- more precise mapping Provides presence / absence of mortality data

SLIDE 19
