slide-1
SLIDE 1

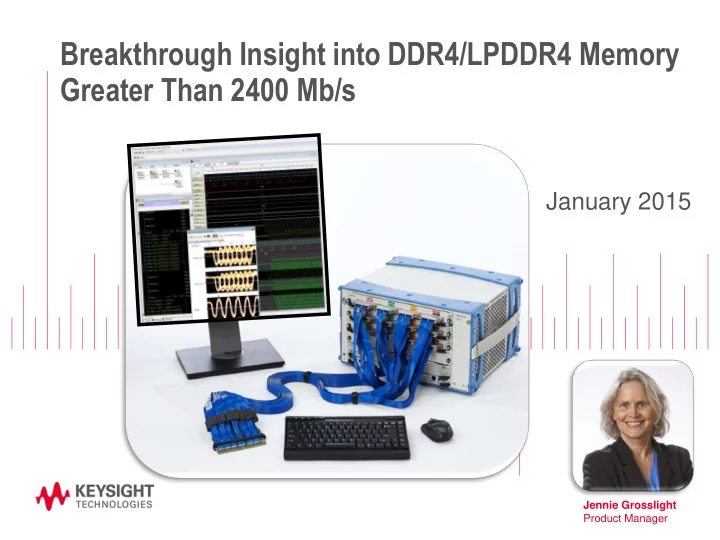

Breakthrough Insight into DDR4/LPDDR4 Memory Greater Than 2400 Mb/s

Jennie Grosslight Product Manager

January 2015

slide-2
SLIDE 2

Page 2

Agenda

– Overview

  • Benefits and challenges for DDR4 and LPDDR4 >2400Mb/s
  • Breakthrough Insight Gained from Logic Analyzer

– Techniques to address debug and validation challenges

  • DDR Eye Scan insight
  • DDR4 >3.1 Gb/s DIMM system
  • Tuning tool
  • Waveforms and Burst Trigger
  • View Initialization
  • Follow the initialization signal flow
  • Compliance and Performance Tools

– Successful logic analyzer probing techniques for higher data rates – DDR Solution Overview, Recommendations, & Q&A

slide-3
SLIDE 3

Page

DDR4 and LPDDR4 Benefits

  • Up to 30-40% power savings over DDR3
  • More power control (power savings and reliability improvement)
  • Targeting 3.2Gbps data rate …(possibly higher improves bandwidth)
  • Higher density (double # of banks)
  • More error checking (improves reliability)
  • Lower price than LPDDR3 (this will make DDR4 attractive to some

mobile applications).

DDR4 Benefits

  • Up to 40% power efficiency over DDR4 & greater than 40% over

LPDDR3 in standby

  • LVSTL interface with VSSQ termination
  • Enables data rates over 3.2Gb/s
  • Increases bandwidth per pin
  • Single Data Rate CA signals = easier to maintain good signal

integrity

LPDDR4 Benefits

3

slide-4
SLIDE 4

Page

DDR4 and LPDDR4 Design Challenges

  • Faster data rates and smaller signal swings
  • Extreme space constraints
  • New protocols with new features require new

memory controllers

  • Memory controllers must be smarter
  • Power management features need to be

understood to optimize systems.

  • Risk that systems will not behave as designed

Maintaining signal integrity at higher data rates with smaller signal swings is a significant challenge

“How will I maximize the benefits?”

4

slide-5
SLIDE 5

Page

Capturing DDR4 and LPDDR4 at Higher Data Rates

Data Rate (Mb/s)

2015 -

Majority new designs will be in this range

DQ capture over 2400Mb/s is particularly challenging

500 1000 1500 2000 2500 3000 3500 4000 4500 2013 2014 2015 2016

LPDDR4 LPDDR3 DDR4 DDR3

5

2400 Mb/s

slide-6
SLIDE 6

Page

2013 2015

Data Rate

DDR4 and LPDDR4 Challenges

Data Valid Windows Shrinking

  • Data Rates Increasing
  • Signal swing decreasing
  • Signal integrity variations between systems

Read DDR4 1600

Data valid windows scanned on U4154B logic analyzers with FS2510 DDR4 DIMM interposer on different DDR4 targets.

Read DDR4 1867

DDR4 3120, 2400 and 1600 eyes were less than 200mV at the DDR4 interposer!

Read DDR4 2400 Read DDR4 3120

6

slide-7
SLIDE 7

Page

Breakthrough capture of DDR4 or LPDDR4 at highest data rates

7

  • 3 modules
  • M9505A chassis
  • M9536A embedded controller
  • FS2510 DDR4 DIMM

Interposer (with FS1070 kit for DDR4

> 2.5Gb/s)

Proven DDR4 capture >3.1Gb/s Proven LPDDR4 capture at 3.2Gb/s

U4154B system configuration for DDR4 DIMM capture over 2.5Gb/s:

U4154B system configurations vary for DDR2/3/4 and LPDDR/2/3/4 technologies and probing use models.

slide-8
SLIDE 8

Page

  • Asynchronous to system under test
  • High Resolution is most useful >2400Mb/s

Timing modes – See when events happen

  • Synchronous to clock from system
  • Enables most powerful SW tools

State mode – Follow signal flow – see what happened

  • Unique qualified views of all ADD/CMD/DQ/DQS

DDR eye scan mode – eye diagrams

Sept 18, 2012

Insight Gained from Logic Analyzer

8

slide-9
SLIDE 9

Page

Benefit: Highest Confidence in Measurement Accuracy

Superior Insight into Bus Level Signal Integrity – Quickly view signals relative to each other

  • Complete view of address and

data lines – Bus Level Signal Integrity Insight

  • Overlay mode
  • Signal Trace Mode

– Capture data valid windows 100 ps by 100 mv

9

slide-10
SLIDE 10

Page

Validate and Debug DDR3/4 or LPDDR3/4

Powerful system for test and validation – High Resolution around trigger event

  • Timing Zoom

– State Mode functional Validation

  • Synchronous to clock in

system under test – Up to 200M deep traces

  • Industry deepest logic

analyzer trace on DDR/LPDDR data

10

State Waveforms

slide-11
SLIDE 11

Page

Achieve Greater Insight Faster

Full Suite of Software Productivity Tools

– Compliance Testing

  • DDR2/3/4 and LPDDR/2/3/4

– System Performance Analysis

  • DDR2/3/4 and LPDDR/2/3/4

– Real Time and Custom Violation Measurements

  • Memory and General Purpose

Applications – DDR and LPDDR Decoder Tools

  • Protocol Decoding and Insight

11

State Waveforms

slide-12
SLIDE 12

Page

LPDDR4 - Speed Change

12

LPDDR4 Timing Zoom waveform – entering slower speed

Clock turns on for 6 cycles before CKE enabled

CA, BA, DQ, and DQS low unless driven high Active 1 -2 sequence

Insight Gained from Logic Analyzer

slide-13
SLIDE 13

Page

Follow the LPDDR4 signal flow

13

Decoder output from State mode trace in listing view

Data Burst

  • f 16

Active 1 -2 sequence Data captured

  • n rising and

falling edges when over 2.5Gb/s

Row and Column address decoded

Insight Gained from Logic Analyzer

slide-14
SLIDE 14

Page 14

Agenda

– Overview

  • Benefits and challenges for DDR4 and LPDDR4 >2400Mb/s
  • Breakthrough Insight Gained from Logic Analyzer

– Techniques to address debug and validation challenges

  • DDR Eye Scan insight
  • DDR4 >3.1 Gb/s DIMM system
  • Tuning tool
  • Waveforms and Burst Trigger
  • View Initialization
  • Follow the initialization signal flow
  • Compliance and Performance Tools

– Successful logic analyzer probing techniques for higher data rates – DDR Solution Overview, Recommendations, & Q&A

slide-15
SLIDE 15

Page

Challenge: Eye openings on DDR4 > 3.1Gb/s

Next Steps:

  • Take trace to inspect ODT operation
  • Cross trigger scope to check for ISI

Eye Scan Insight:

  • Potential ODT setting
  • issue. Threshold of first

bit in burst has less swing than remainder of burst.

  • Could also be ISI

(inter-symbol interference)

  • Overdriving DDR4 DRAM

to 1.4V could cause damage.

15

slide-16
SLIDE 16

Page

Challenge: System Signal Integrity

16

DDR4 >3.1Gb/s DIMM system

Eye Scan Insight:

  • DQS2 has less swing

than other DQS Next Steps:

  • Check DQS DRAM

drive strength, termination and trace routing

slide-17
SLIDE 17

Page

Challenge: Achieving Correct Signal Transitions

Next Steps:

  • SW work around:

– Do not use BG1 = 1 – Limits address space

  • Long term: HW fix required

Eye Scan Insight DDR4 Bank group 1 Transitioning incorrectly

Symptom: Data Corruption on

DDR4 system

17

slide-18
SLIDE 18

Page

Challenge: Strobe Alignment

January 2014

Eye Scan Insights:

  • DQS2 & DQS3 not in alignment

with DQS0 & DQS1

  • DQS3 pre-amble is wrong, low

to high instead of High to low. Eye Scan Settings:

Burst Scan, No back-to-back

Symptom:

  • Data corruption on

LPDDR3 system Next Steps:

  • Check driver circuitry and SW
slide-19
SLIDE 19

Page

Challenge: Setting up measurements quickly

19

Tuning tool – DDR Setup Assistant

Used DDR setup assistant with 10 simple steps to setup State mode measurements

slide-20
SLIDE 20

Page

Challenge: Triggering on sequential events at high speeds

20

DDR4 > 3.1Gbps Waveforms and Burst Trigger

State waveforms - Rising & Falling edge samples DQ 7-0 (TZ) in label designates Timing Zoom, High resolution Timing waveforms

slide-21
SLIDE 21

Page

Challenge: Capturing initialization sequences

  • 4M State

Waveform, initialization sequence

  • Trigger

stores only valid commands and enough samples after a Read or Write to capture data bursts.

21

Example: DDR4 >3.1Gb/s Initialization

slide-22
SLIDE 22

Page

Capturing System Initialization … continued

22

Follow the initialization signal flow of DDR4 3.2Gb/s system

slide-23
SLIDE 23

Page

Challenge: Functional Compliance Testing

23

Compliance and Performance Tools

Compliance Tools

  • Post process
  • Real time

Performance Analysis

  • Provides bus statistic

information.

  • Provides histogram view on

number of access at a specific memory address

slide-24
SLIDE 24

Page 24

Agenda

– Overview

  • Benefits and challenges for DDR4 and LPDDR4 >2400Mb/s
  • Breakthrough Insight Gained from Logic Analyzer

– Techniques to address debug and validation challenges

  • DDR Eye Scan insight
  • DDR4 >3.1 Gb/s DIMM system
  • Tuning tool
  • Waveforms and Burst Trigger
  • View Initialization
  • Follow the initialization signal flow
  • Compliance and Performance Tools

– Successful logic analyzer probing techniques for higher data rates – DDR Solution Overview, Recommendations, & Q&A

slide-25
SLIDE 25

Page

DDR4 x4/x8 BGA interposer Soft Touch Pro Mid-Bus Probing DDR4 SODIMM Interposer DDR4 DIMM interposer LPDDR3 POP interposer Specialty probing from Keysight User designs probing into system under test

Proven Probing Techniques to Capture Highest Data Rates

Industry standard interposers = Designed and available! Follow Design guidelines! Run simulations!

Joint technical effort to meet specific needs

MemCon

25

slide-26
SLIDE 26

Page

DDR4 Interposers

  • Ease of connection
  • Direct connect to U4154B
  • Low profile - Minimal loading
  • Support UDIMM or RDIMM
  • Timing and State analysis
  • Support DDR Setup Assistant and

DDR Eye Scan

FS2510: DDR4 DIMM interposer FS2512B: DDR4 1867 SODIMM interposer

FS2510 Proven DDR4 >3.1Gb/s simultaneous Read and Write capture with FS1070 conversion kit

26

slide-27
SLIDE 27

Page

  • Designed for DDR4 < and > 2400
  • Three flex wings:
  • Bend up to 180 deg
  • Recommended bend radius of 1.27MM if

flex is bent at rigid portion of interposer

  • ZIF doors and GND plane on back

side of wings

  • Requires two E5849A DDR4 ZIF cables

DDR4 x4/x8 BGA Interposer – W4633A

MemCon Aug 6, 2013

27

slide-28
SLIDE 28

Page

DDR4 BGA Interposer Side View with Riser

Riser, Interposer, and DRAM stack up:

DRAM Interposer Riser or

  • ptional

socket PC Board

28

slide-29
SLIDE 29

Page

  • SW configurations are different for < > 2.5Gb/s
  • Because trigger sequencer operates up to 2.5GHz
  • Below 2.5Gb/s clock U4154B using both edges of CK0
  • Above 2.5Gb/s clock U4154B using one edge of CK0
  • Dual sample mode used for DQ Rising edge and falling edge

samples

  • Double probing of DQ signals used for simultaneous R/W data capture with

independent thresholds

  • For > 2.5Gb/s - Use Rising and Falling Read / Write Data labels in

waveform

  • Decoder re-assembles Rising and Falling samples
  • Above 2.5Gb/s State mode capture of CK0, CK1, and DQS don’t toggle
  • They are only sampled once on each clock cycle.
  • Timing Zoom and DDR eye scan used to view CK0, CK1, and DQS

Probing Techniques: U4154B State Mode > 2.5Gb/s

Considerations for designing mid-bus probing

29

slide-30
SLIDE 30

Page

  • Run simulations on entire system with and without probing.

Ensure loading on system will be tolerated Ensure adequate eye for logic analyzer data valid window (minimum 100ps x 100mV for Keysight U4154B)

  • Ensure signal routing meets logic analyzer requirements

Clock routed to clock input Clock qualifier (CKE) routing into clock qualifier inputs Route RESET to clock input on Pod 7 of clocking module as clock qualifier

Probing Techniques: U4154B State Mode > 2.5Gb/s

Considerations for designing mid-bus probing continued…

30

slide-31
SLIDE 31

Page

Probing Techniques: U4154B State Mode > 2.5Gb/s

Considerations for designing mid-bus probing continued…

Use Keysight DDR Config Creator Tool to simplify and ensure:

  • Proper labels for SW tools, DDR

triggers and DDR setup assistant

  • Proper scan windows for State

mode

  • Provides scan triggers for State

mode setting sample positions

31

slide-32
SLIDE 32

Page

  • Placing the Soft Touch connectors close to the DRAM generally provides

better eyes than mid-bus:

  • Drivers in the DRAM are typically weaker than the Memory controller drivers
  • Location near the DRAM minimizes reflections
  • Ideal locations would be ADD/CMD/DQ Write at DRAM and DQ Read at

memory controller

  • Use flow-through routing whenever possible.
  • Keep stubs from inner trace layers to pads (using vias) to a minimum in

number and length.

  • Stubs increase loading and reflections resulting in degraded eyes.
  • Distance between buried Tip R and mid-bus probe will act as a low pass filter

and degrade the bandwidth of signals into the logic analyzer.

Probing Techniques: U4154B State Mode > 2.5Gb/s

Mid-Bus Routing Recommendations

32

slide-33
SLIDE 33

Page 33

Agenda

– Overview

  • Benefits and challenges for DDR4 and LPDDR4 >2400Mb/s
  • Breakthrough Insight Gained from Logic Analyzer

– Techniques to address debug and validation challenges

  • DDR Eye Scan insight
  • DDR4 >3.1 Gb/s DIMM system
  • Tuning tool
  • Waveforms and Burst Trigger
  • View Initialization
  • Follow the initialization signal flow
  • Compliance and Performance Tools

– Successful logic analyzer probing techniques for higher data rates – DDR Solution Overview, Recommendations, Q&A

slide-34
SLIDE 34

Page

Connect Acquire View & Analyze

Comprehensive DDR4 / LPDDR4 Insight with U4154B

BGA interposers Mid-Bus & specialty Probing Waveforms Listing with Decoders DDR Protocol Compliance Performance Analysis

Bus Level Signal Integrity Insight

Capture highest data rates! 4 Gb/s Capture smallest eyes! 100mV x 100ps at probe point. Sequential Triggers up to 2.5GHz or 4Gb/s! 12.5GHz Timing Zoom 256k deep Up to 200M deep traces DIMM / SODIMM Interposers

34

slide-35
SLIDE 35

Page

Solutions to succeed for DDR4 and LPDDR4

35

Broad coverage for DDR4 and LPDDR4 design and test solutions

Physical Layer Simulation with DDR4 specific tools Physical Layer Compliance Test Measurements and Debug Functional Compliance Test Measurements and Debug Physical Layer Signal Injection

MSOX9130A Infiniium Series scope with N6462A DDR4 Compliance Software U4154B system

slide-36
SLIDE 36

Page

Breakthrough Digital and Analog Signal Display

36

  • One instrument with time

correlated digital and analog view.

  • Best separation of

Read/Write eyes for parametric measurements.

  • Simultaneous capture of

16 ADD/CMD and 4 DQS/DQ

MSO mixed signal oscilloscope

slide-37
SLIDE 37

Page

Logic Analyzer and MSO

37

Complementary solutions used to debug faster

Features Logic Analyzer MSO Simultaneous View of Digital and Analog signals

  • Requires an external scope, via View Scope

for up to 4 analog

  • One box solution with cross

trigger and tight correlation.

  • 16 ADD/CMD digital
  • 4 DQS/DQ Analog

Functional validation Complete View all ADD/CMD/DQ/DQS

  • Functional Compliance Tests
  • Address/command/control and data validation

Partial view

  • 16 command and address

(depending on number of digital channels connected). Eye diagram display

  • Qualitative bus level signal integrity insight
  • Simultaneous eye diagram displays to view all

signals relative to each other.

  • No measurement on eye
  • Quantitative measurements
  • Parametric Compliance Tests
  • Eye height and eye width

measurements

slide-38
SLIDE 38

Page

Recommendations:

  • Join JEDEC and download DDR4 and/or LPDDR4

Specifications for your design http://www.jedec.org/

  • Follow design guidelines from chip vendors
  • Simulate your system with and without probing
  • Perform physical layer compliance tests with scope
  • Perform functional layer compliance tests with logic

analyzer

  • Use both scope and logic analyzer for debug and test

Aug 6, 2013

MemCon 38

slide-39
SLIDE 39

Page

Contact Keysight

Aug 6, 2013

Product Selection and Configuration Assistance, Education and Training US phone: 1 800 829-4444 Press # then 2 Hours: 8:00am – 8:00pm ET, Mon - Fri For more information on Keysight Technologies’ products, applications or services, please contact your local Keysight office. The complete list is available at:

www.Keysight.com/find/contactus

39

slide-40
SLIDE 40

Page

U4154A/B DDR4 <2.5Gb/s Configuration

User-supplied Host PC

Two U4154A/B logic analyzer modules

FS2510 DDR4 DIMM interposer with seamless cable connections to U4154A/B

M9502A 2 slot AXIe chassis

DDR4 System under test PCI Express Cable and adapter

Logic Analyzer System SW common to: U4154A/B 16900 series 16800 series PCI Express Gen3 HDMI

40
