Boundary Channel Drive Interchange Modification Public Information Meeting Project Location & Area Final local road connection in Arlington to I-395 Four-lane divided east-west local road between Long Bridge Drive and the Pentagon

slide-1
SLIDE 1

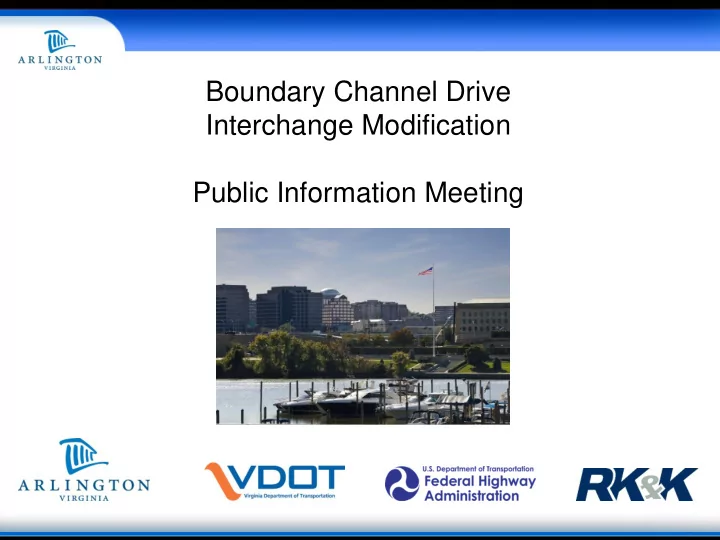

Boundary Channel Drive Interchange Modification Public Information Meeting

slide-2
SLIDE 2

Project Location & Area

  • Final local road connection in

Arlington to I-395

  • Four-lane divided east-west local

road between Long Bridge Drive and the Pentagon

  • Interchange serves an active,

growing area

  • Located at a nexus of

transportation modes and facilities

– Freeways – Local Streets – Multi-use Trails

2

slide-3
SLIDE 3

Project Goals

  • Project identified based on the ability to

improve the transportation network in the area

  • Goals of the Project – Access, Safety,

Congestion Mitigation

  • Fulfill Arlington County MTP Goals
  • Regional Partners and Priorities

3

slide-4
SLIDE 4

External Partners

4

slide-5
SLIDE 5

External Partners

5

Pentagon Transportation Management Plan

slide-6
SLIDE 6

Existing Conditions

  • Existing Interchange and Issues

6

slide-7
SLIDE 7

Existing Conditions

  • Issues with existing interchange

– Excessive ramp connections to I-395

7

1 4 2 3 5 6

slide-8
SLIDE 8

Existing Conditions

  • Issues with existing interchange

– Short weaving areas

8

slide-9
SLIDE 9

Existing Conditions

  • Issues with existing interchange

– Unclear intersection design – Long Bridge Drive

9

slide-10
SLIDE 10

Boundary Channel Drive Interchange Project

10

Project Framework IMR Engineering Design Construction

Project Phases

slide-11
SLIDE 11

Boundary Channel Drive Interchange Project

  • Interchange Modification Report

– FHWA technical analysis – Concept designs created and evaluated

  • Traffic Operations
  • Safety
  • Design Feasibility
  • Cost
  • Other location-specific concerns (security)

– Evaluations using future-year traffic volume (2036) – End result – Final Preferred Design Alternative

11

slide-12
SLIDE 12

Boundary Channel Drive Interchange Project

12

Project Framework IMR Engineering Design Construction

Project Phases

Preferred Alternative

slide-13
SLIDE 13

Boundary Channel Drive Interchange Project

  • Concept design evolution

– Required to evaluate “no-build” relative to all

  • f our designs

13

slide-14
SLIDE 14

Boundary Channel Drive Interchange Project

  • Concept design evolution

– Original designs from Project Framework

14

slide-15
SLIDE 15

Boundary Channel Drive Interchange Project

  • Concept design

evolution

– Designs broken into different elements – These elements are all shown in tonight’s concepts

15

slide-16
SLIDE 16

Boundary Channel Drive Interchange Project

  • Concept Design 1

16

slide-17
SLIDE 17

Boundary Channel Drive Interchange Project

  • Concept Design 2

17

slide-18
SLIDE 18

Boundary Channel Drive Interchange Project

  • Concept Design 3

18

slide-19
SLIDE 19

Tonight’s Meeting – Design Feedback

  • We want your

feedback!

19

slide-20
SLIDE 20

Next Steps

20

Project Framework IMR Engineering Design Construction

Project Phases

Preferred Alternative
