Components Ltd. Components Ltd. Bolt N Go US Patent # 7,080,728 Other Patents Pending www.go4b.com Traditional Chain and Welded Flight Systems Assembly using pins and collars Assembly using pins and circlips www.go4b.com Limitations

SLIDE 1

www.go4b.com

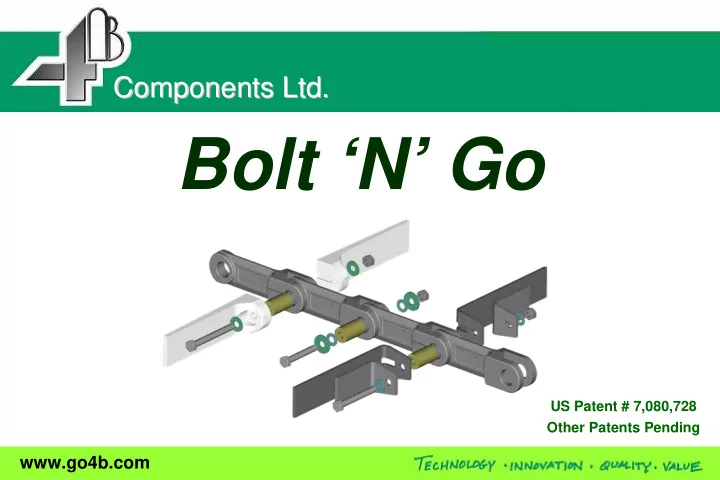

Bolt ‘N’ Go

Components Ltd. Components Ltd.

US Patent # 7,080,728 Other Patents Pending

SLIDE 2

www.go4b.com

Traditional Chain and Welded Flight Systems

Assembly using pins and collars Assembly using pins and circlips

SLIDE 3

www.go4b.com

Limitations of Traditional Chain and Welded Flight Systems

Removal of whole chain from conveyor to conduct repairs
Inconsistency of clamp assembly
Large cost and time taken to re-weld flights if bent in

conveyor

Long Down Time

SLIDE 4

www.go4b.com

* Reliable Method of Pin assembly – no more clamps – Now use bolts, hollow pins and nylock nuts

Bolt ‘N’ Go

SLIDE 5

www.go4b.com

Bolt ‘N’ Go Demo 1 Link Assembly

Click on image to play video

SLIDE 6

www.go4b.com

* Revolutionary Method to attach flights to chain – NO MORE WELDING!

What is Bolt ‘N’ Go ?

* No Need to Remove Chain from Conveyor * Reliable Secured Link, pin and flight assembly

SLIDE 7

www.go4b.com

Bolt ‘N’ Go Demo 2 Flight Assembly

Click on image to play video

SLIDE 8

www.go4b.com

Bolt ‘N’ Go Assembly

1, 1 2, GBu:2BFP IIIDPliGllHl8FN Pl.vl ~I ), GBU2HW10HYL ~. G81i2B"101l\r 5, GBUlBlW S, GBU2BW1015HEX 7. 81~B"109I)H X 8, GBUlBBF 1), GBU2BF 1..:::....:.:.::==..:...;:::.... .1\.;10. G'!l14 GNP

US Patent 1700072.8

I-._--~

L..--8

H ....,I(;' ~L1:r"y

SLIDE 9

www.go4b.com

Option - Plastic flights and Round Link Chain

SLIDE 10

www.go4b.com

Bolt ‘N’ Go Ad

"Can I [jet

Bolt IN' Go

in 6-packs?"

No, it's not the latest energy drink. Bolt 'N' Go is the revolutionary new assembly method for drop forge conveyer chain. No welding

r circlips required! Chain tlights are aftached

using astandard bolt and nut with ahigh-strength hollow pin, so there's never aneed to remove chain from the conveyor for installation. And strength is never an issue. Just bolt the links and the flights togetherandgo!

SLIDE 11

www.go4b.com

Bolt ‘N’ Go

Please have a look at

ur website:
